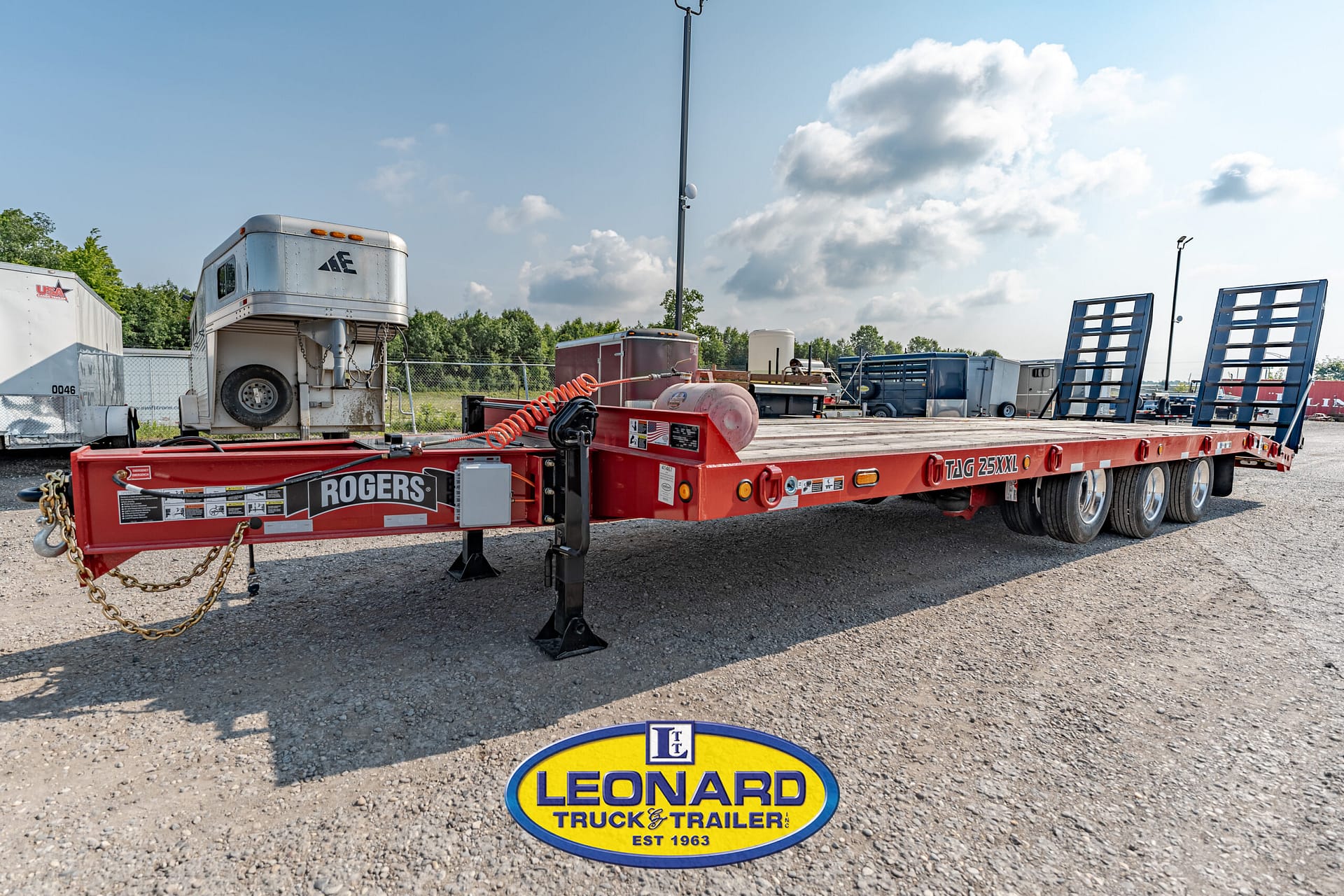

NEW ROGERS TAG25XXL — 25-TON DRAWBAR TAGALONG (TRI-AXLE) — FACTORY-UPGRADED BUILD

Spec’d for professional paving and heavy construction fleets. This TAG25XXL combines Rogers’ proven 25-ton platform with premium ride, loading, and safety upgrades for faster turnarounds and smoother towing.

Premium Factory Options Included (This Unit)

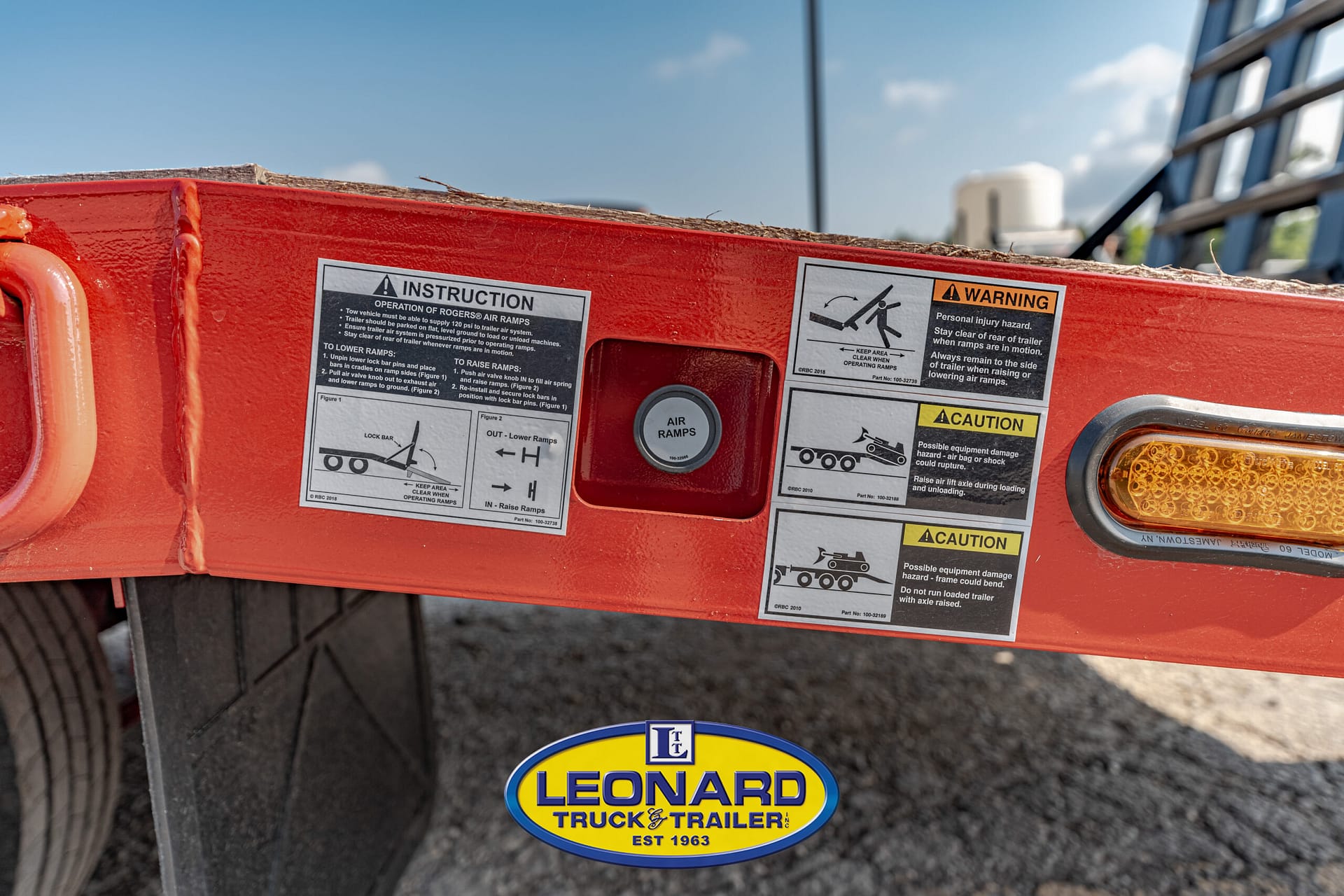

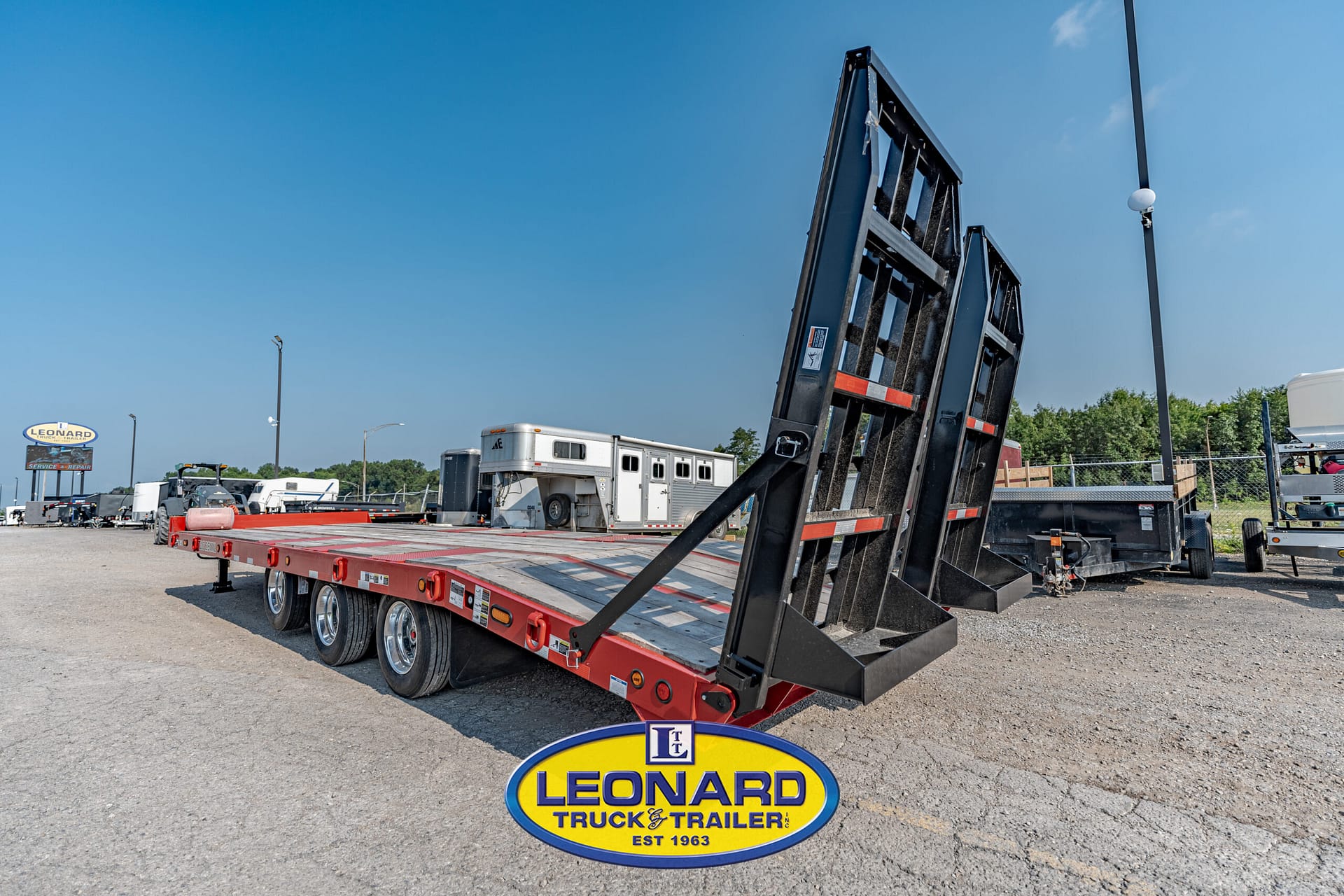

• Air-operated rear ramps, self-cleaning, 84″ L × 38″ W (replaces manual ladders)

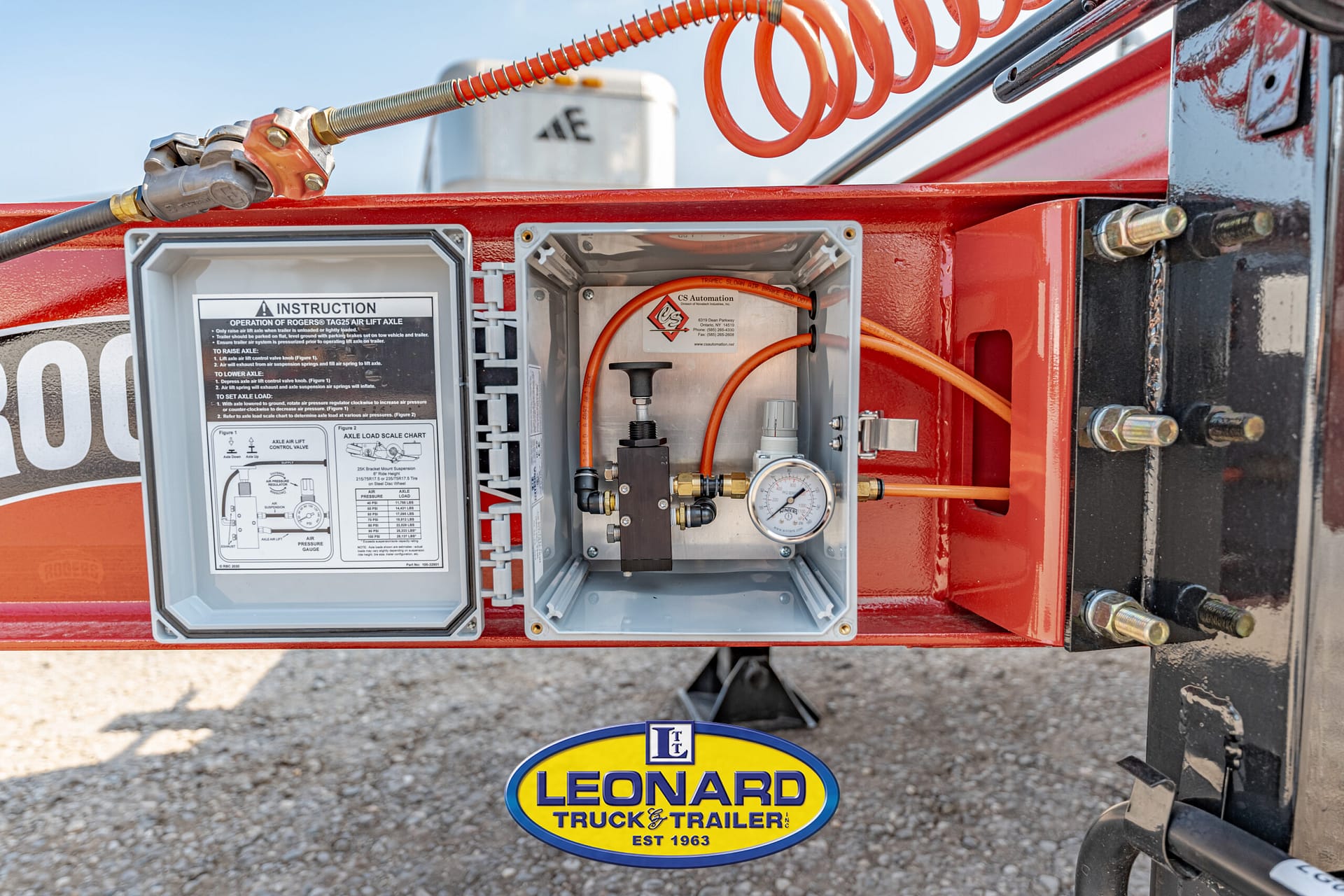

• Air-ride front axle with lift (axle air lift on 1st axle)
• Aluminum outer wheels (inner wheels steel) with 235/75R17.5 H radial tires
• Dual two-speed landing gear — 50,000-lb lift / 70,000-lb static (each)
• Expanded LED package: amber clearance lights, side strobes, and rear mini-strobes on switch
• Mechanical back-up alarm & hubodometer
• Lockable steel toolbox; additional lashing points

Deck & Dimensions

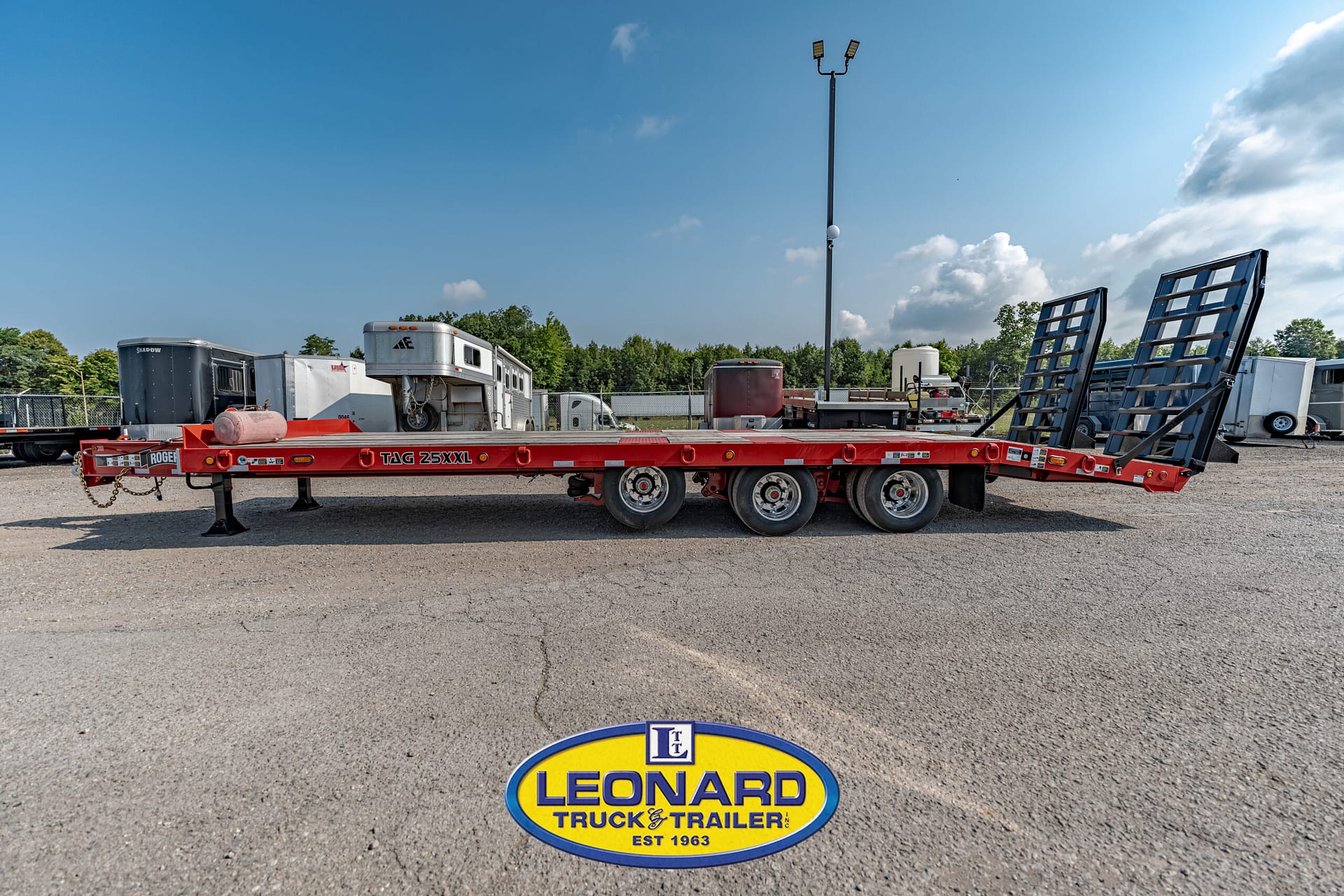

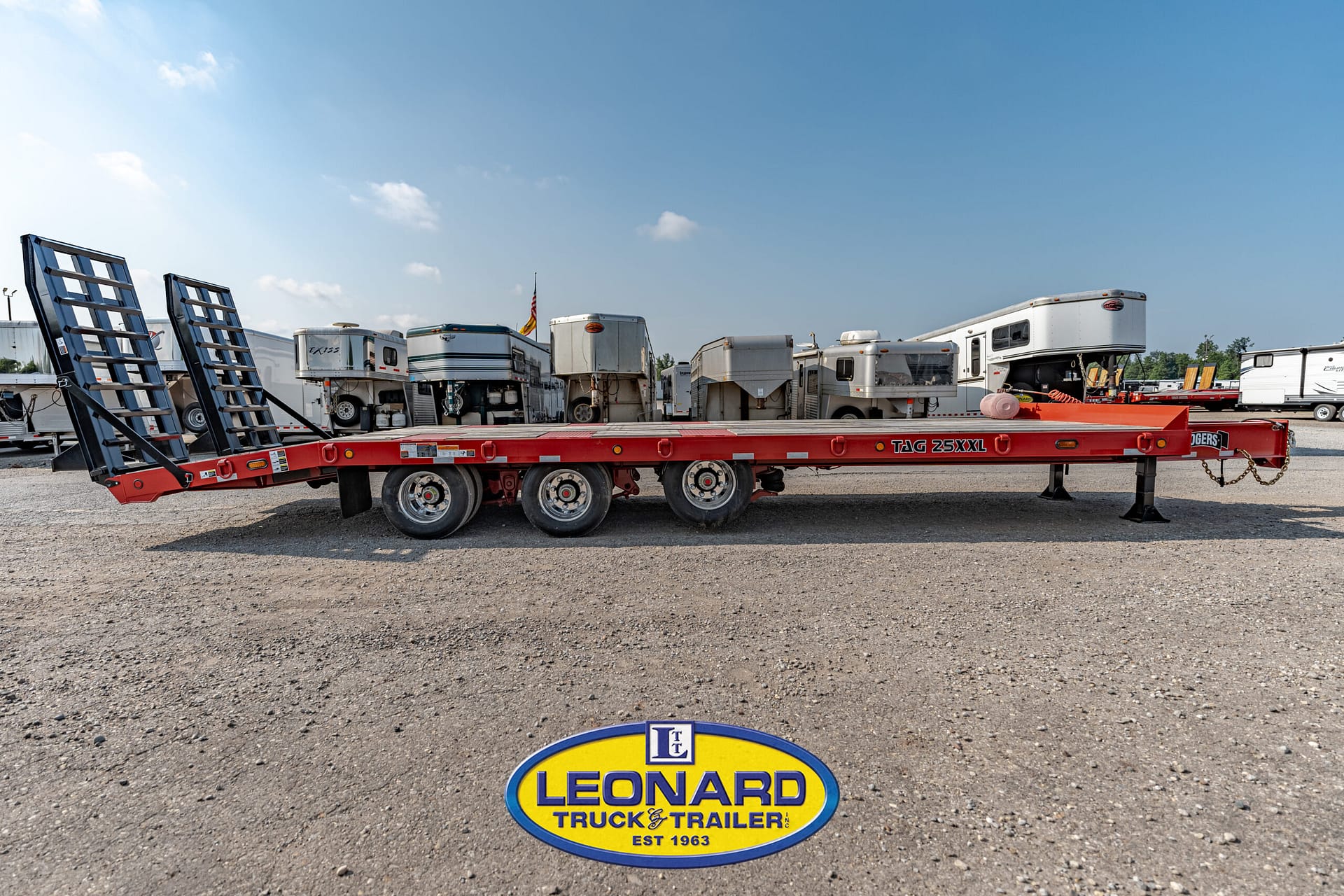

• Deck: 30′ × 102″ (24′ flat + 6′ self-cleaning steel beavertail, ~8° load angle)
• Loaded deck height: 34″ (at full capacity)
• Overall length: 36′ 10″   |   Width: 102″ (96″ out-to-out of tires)
• Flooring: 1-3/4″ air-dried oak with tread-plate wheel covers
• Tie-downs: (14) D-rings plus (7) chain slots per side

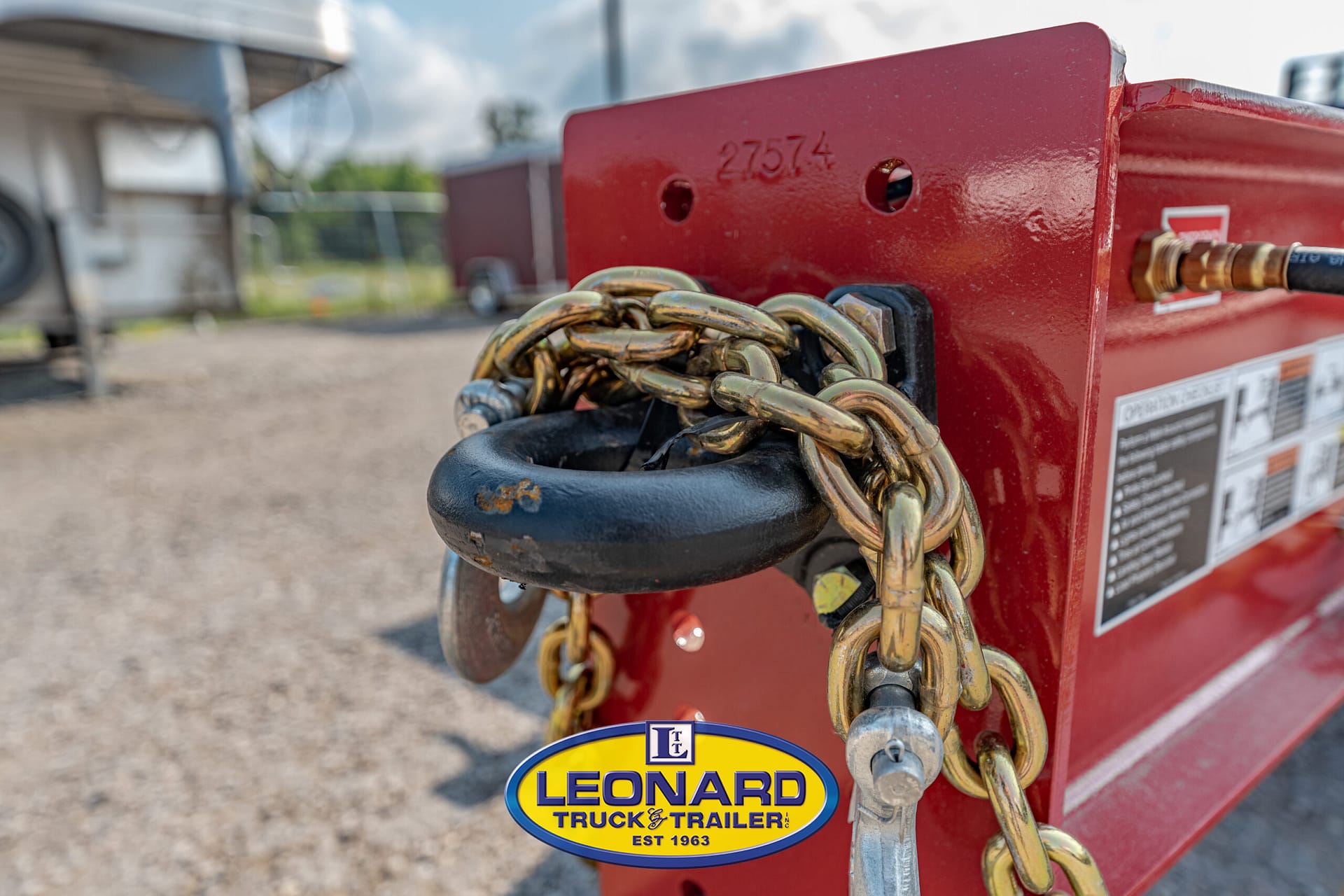

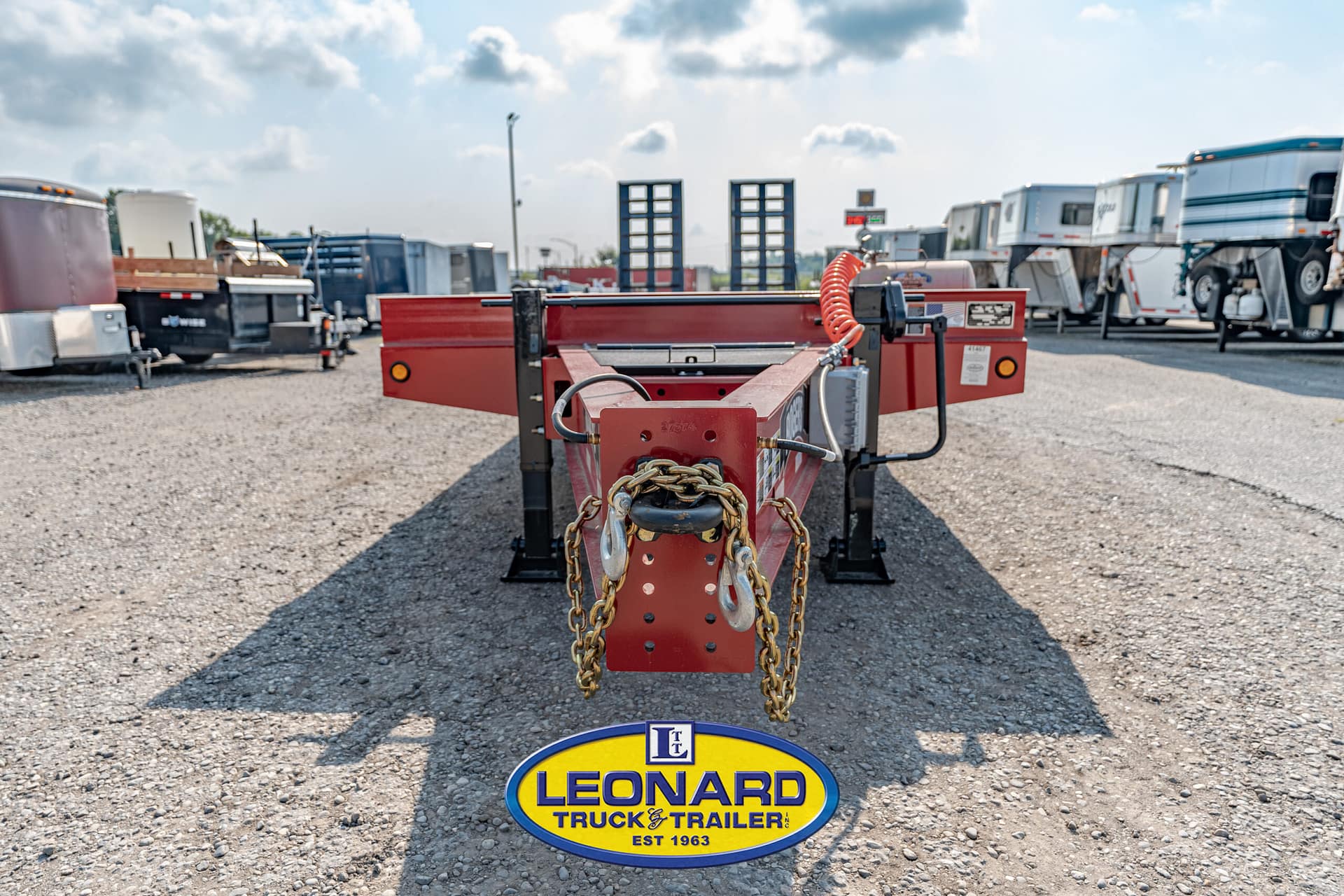

• Drawbar: 80″ with 6-position adjustable pintle eye

Running Gear & Brakes

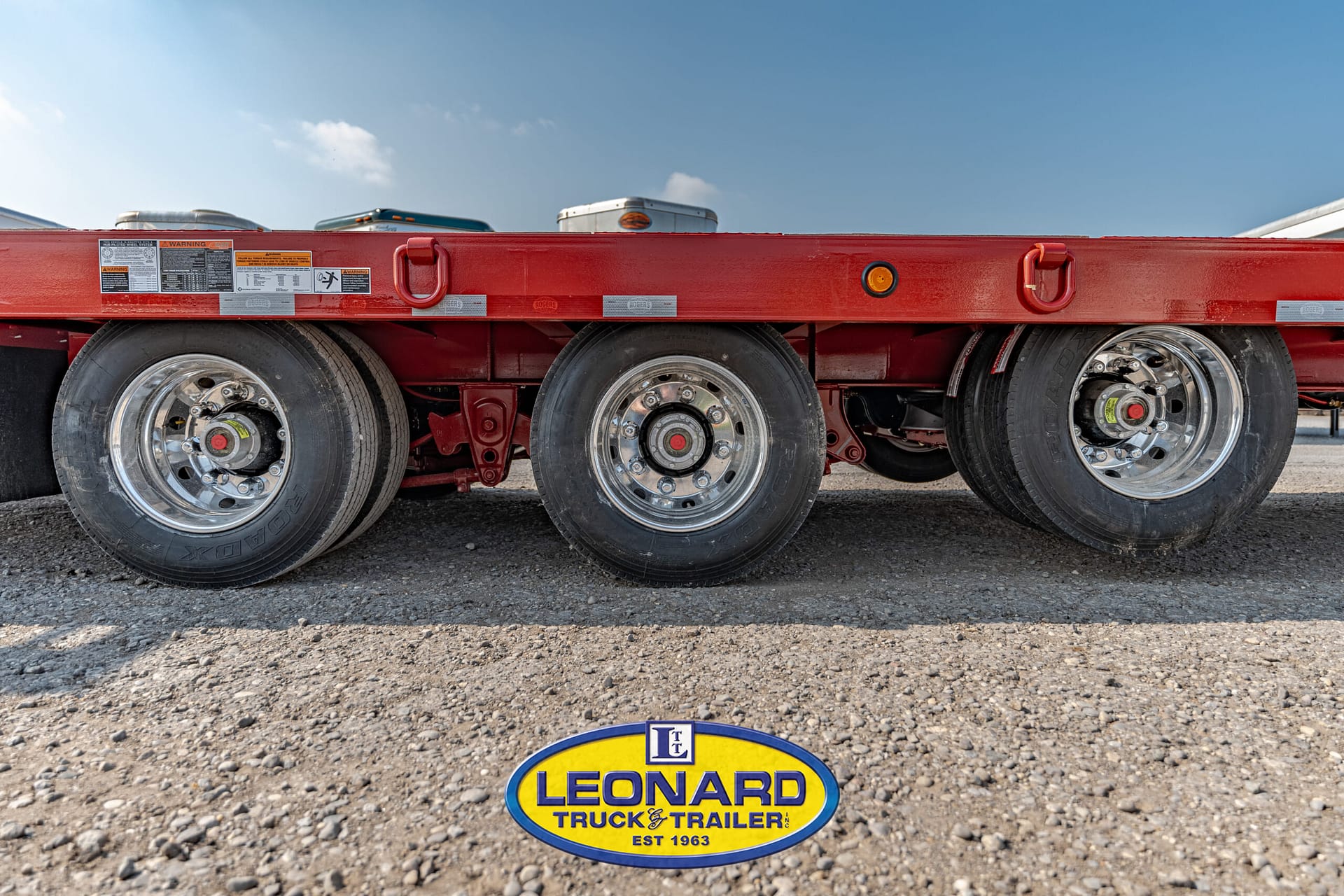

• Axles: (3) × 22,500-lb oil-bath axles
• Suspension: heavy-duty multi-leaf springs on rear two axles + 23,000-lb air-ride on front lift axle (49″ spacings)
• Wheels/Tires: 17.5″ × 6.75 hub-piloted — steel inners / aluminum outers; (12) 235/75R17.5 H radials
• Brakes: air, 12-1/4″ × 7-1/2″ S-cam with automatic slack adjusters, ABS 4S/2M, spring brakes on all three axles

Lighting & Electrical

• US DOT LED system with sealed 7-wire harness
• Amber LED strobes at deck sides and rear mini-strobes on dedicated switch

Capacity & Ratings

• Payload rating: 25 tons (50,000 lb concentrated in 15′ of deck)
• Coupler/landing gear: high-capacity, two-speed landing gear (each rated 50,000-lb lift / 70,000-lb static)
• Finish: Rogers Red acrylic urethane over epoxy primer

Built for faster loading, a smoother ride, and long-term durability.
Call or text for availability, financing, or delivery options.  Trade-Ins Welcome

Stock #41467  |  Model: TAG25-30/102/3XSPAL  |  Type: 25-Ton Drawbar Tagalong

**We believe these specifications to be accurate. Any discrepancies are unintentional. Please verify information with a sales associate prior to purchase.**
