2025 WINSTON AP32235AL-HR Equipment Trailer (SOLD)

SOLD INVENTORY

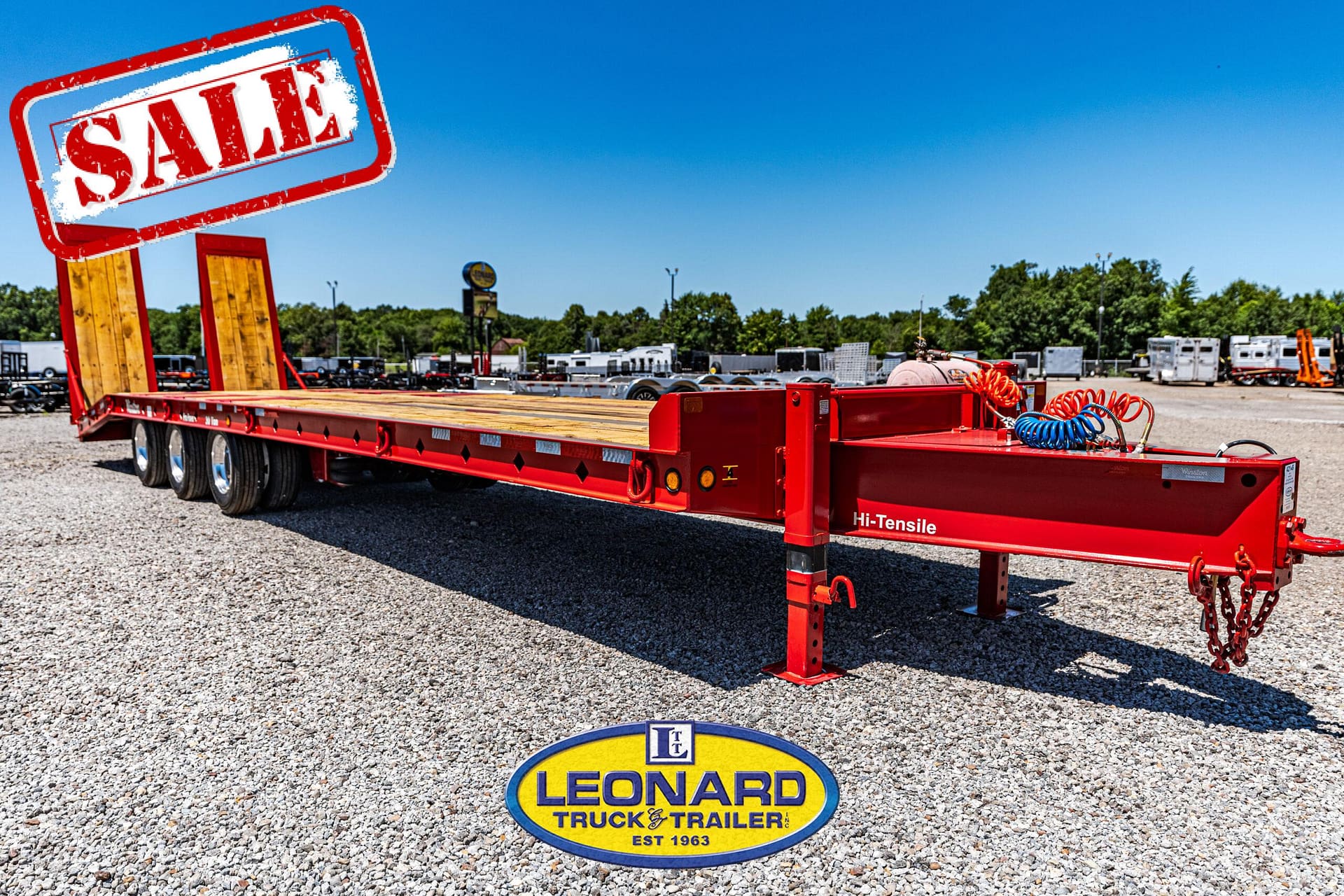

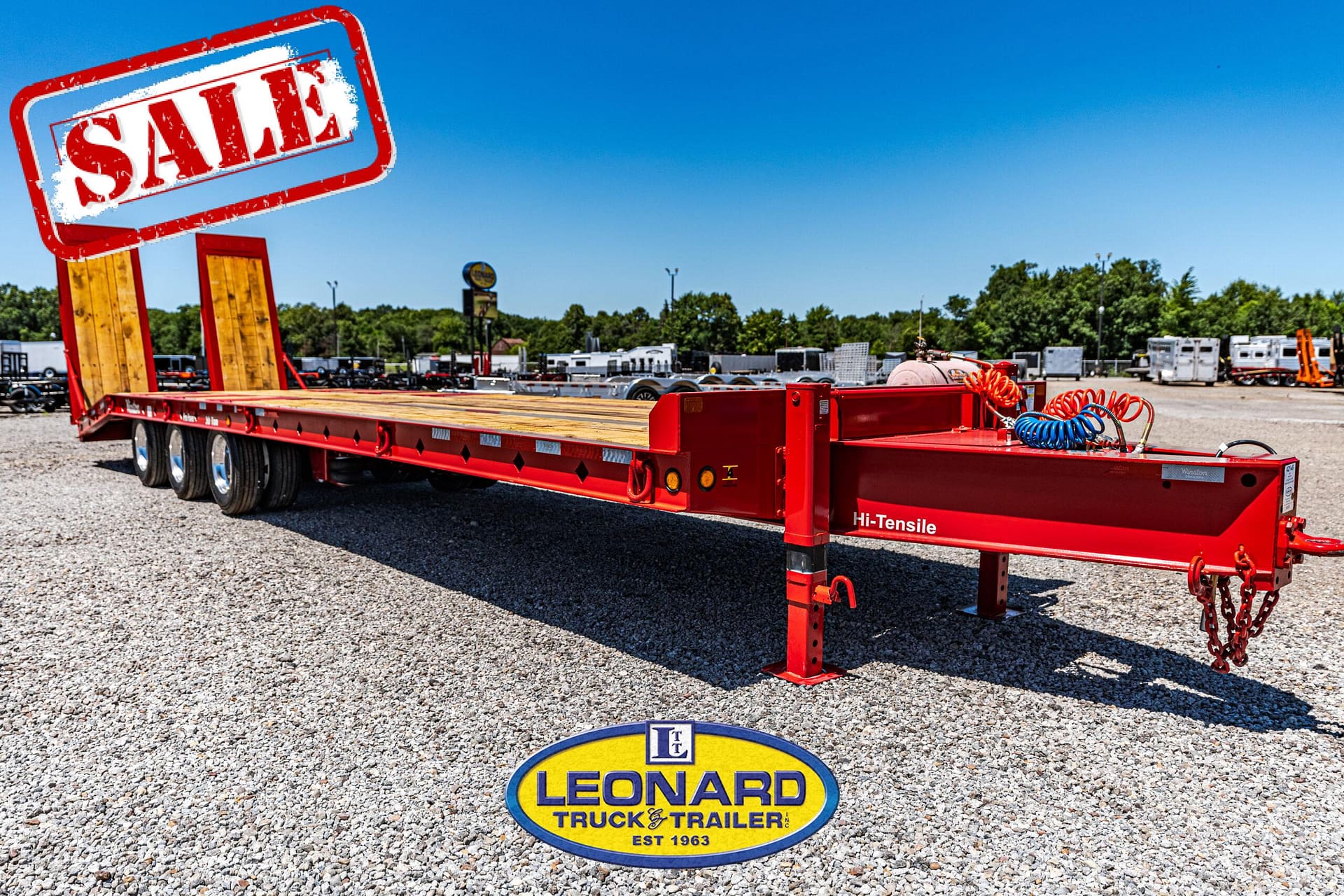

NEW WINSTON 30-TON “BIG DADDY” PROPAVER TAG — PAVER SPECIAL (TRI-AXLE)

Heavy-duty, low-profile tag built to make most lowboys jealous.
This ProPaver 30-Ton tri-axle hauls big iron with confidence and adds the Paver Special package for easier, safer loading.

Build Highlights (This Unit)

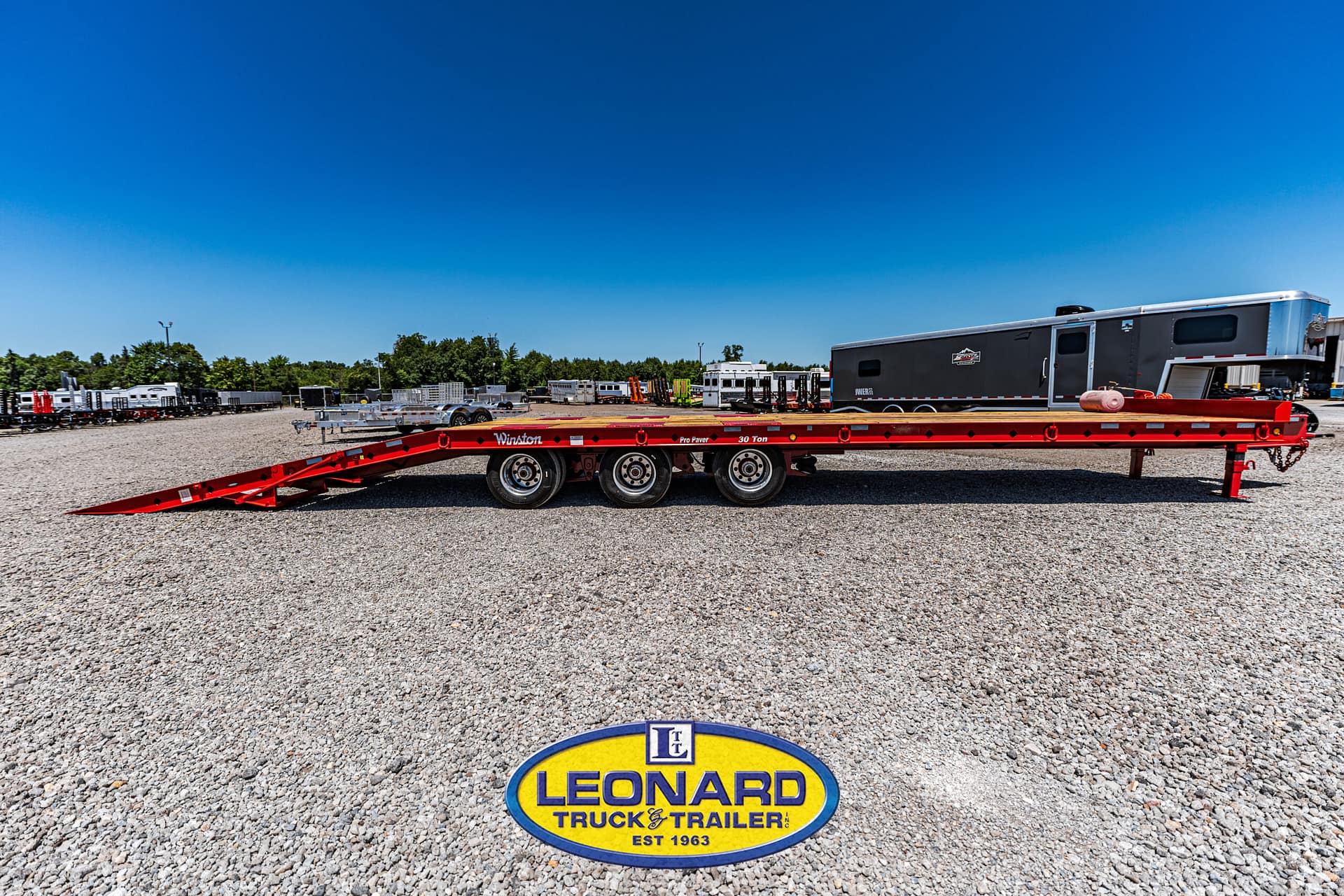

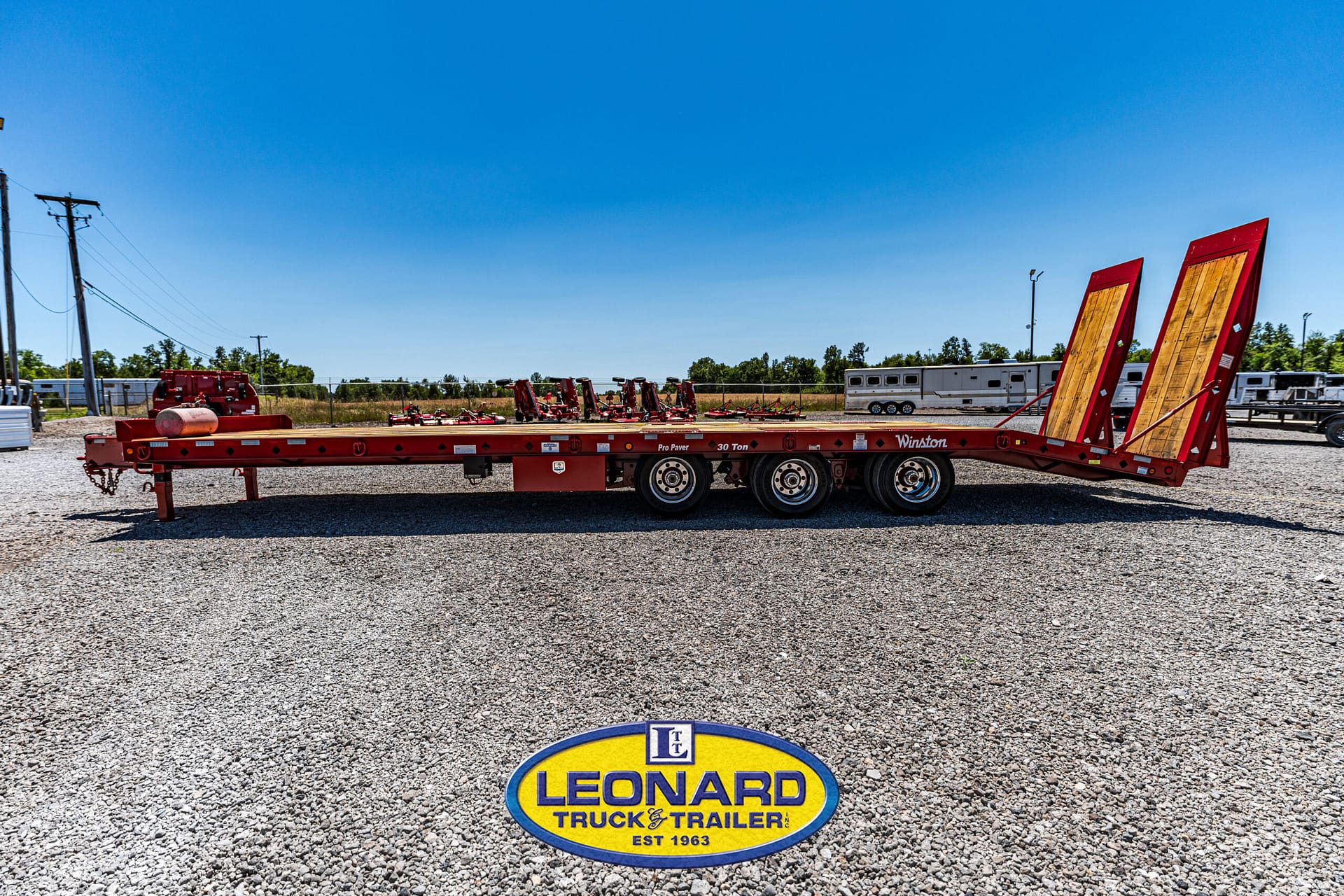

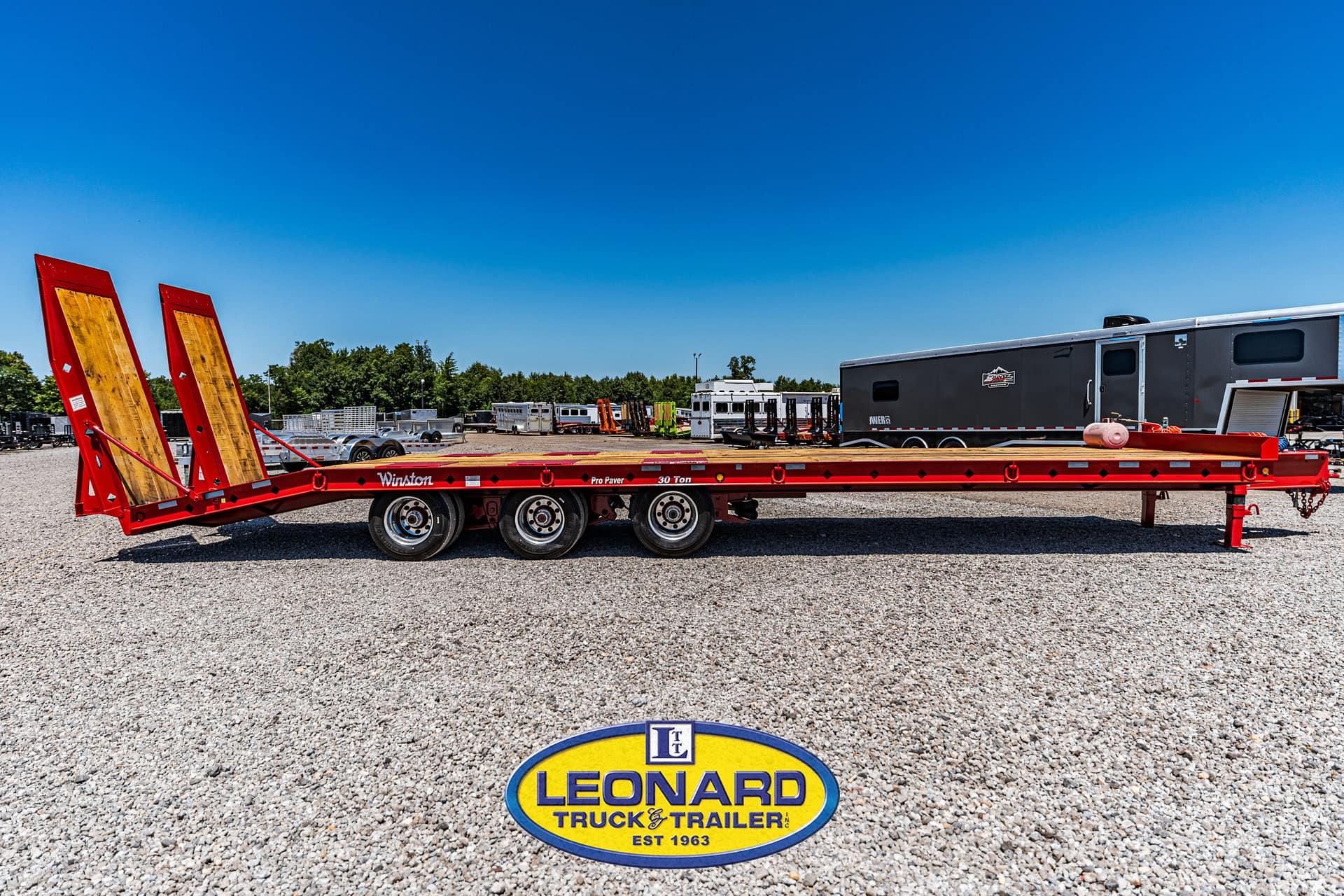

• Deck: 29′ flat + 6′ dovetail (≈ 35′ total deck), 102″ wide

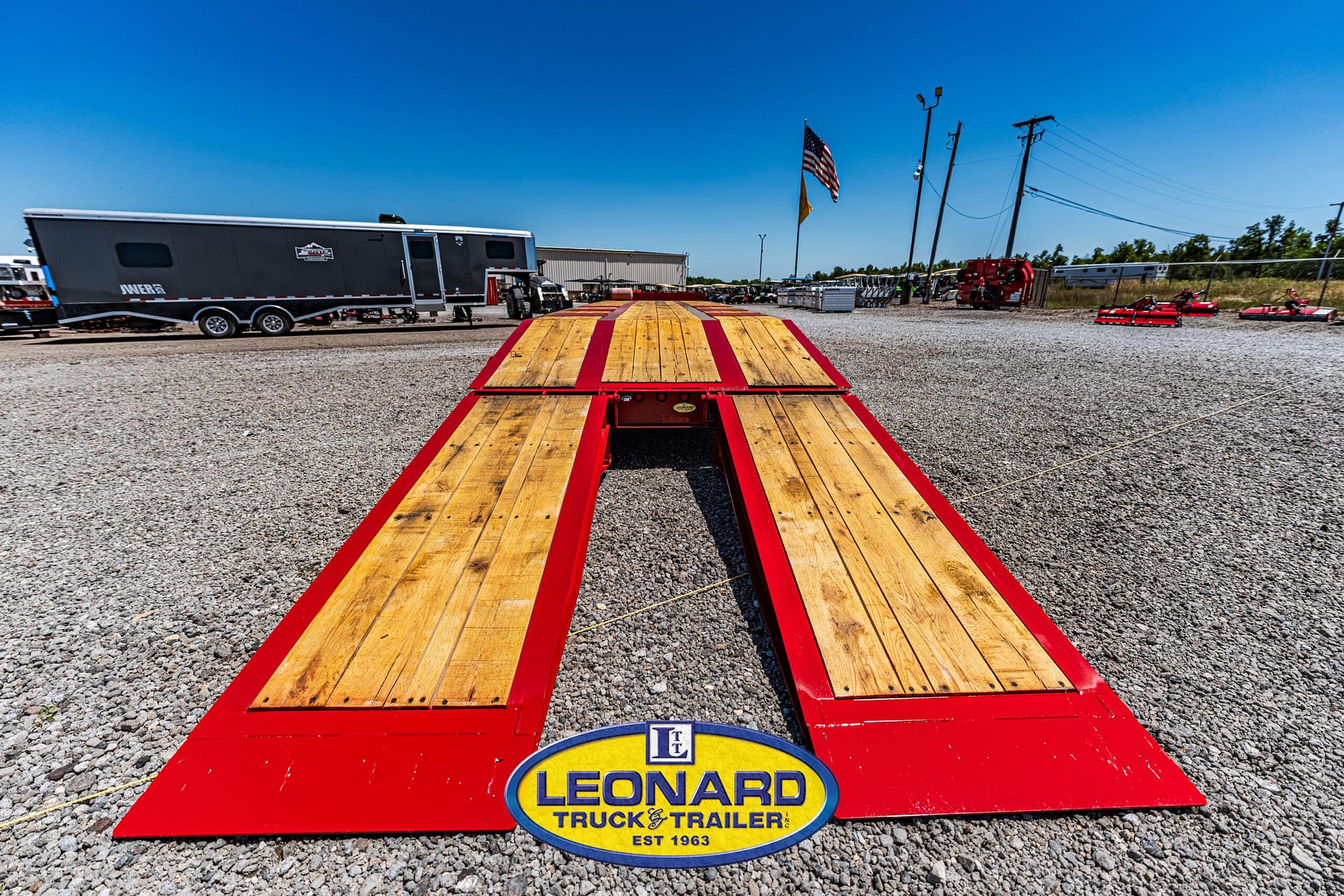

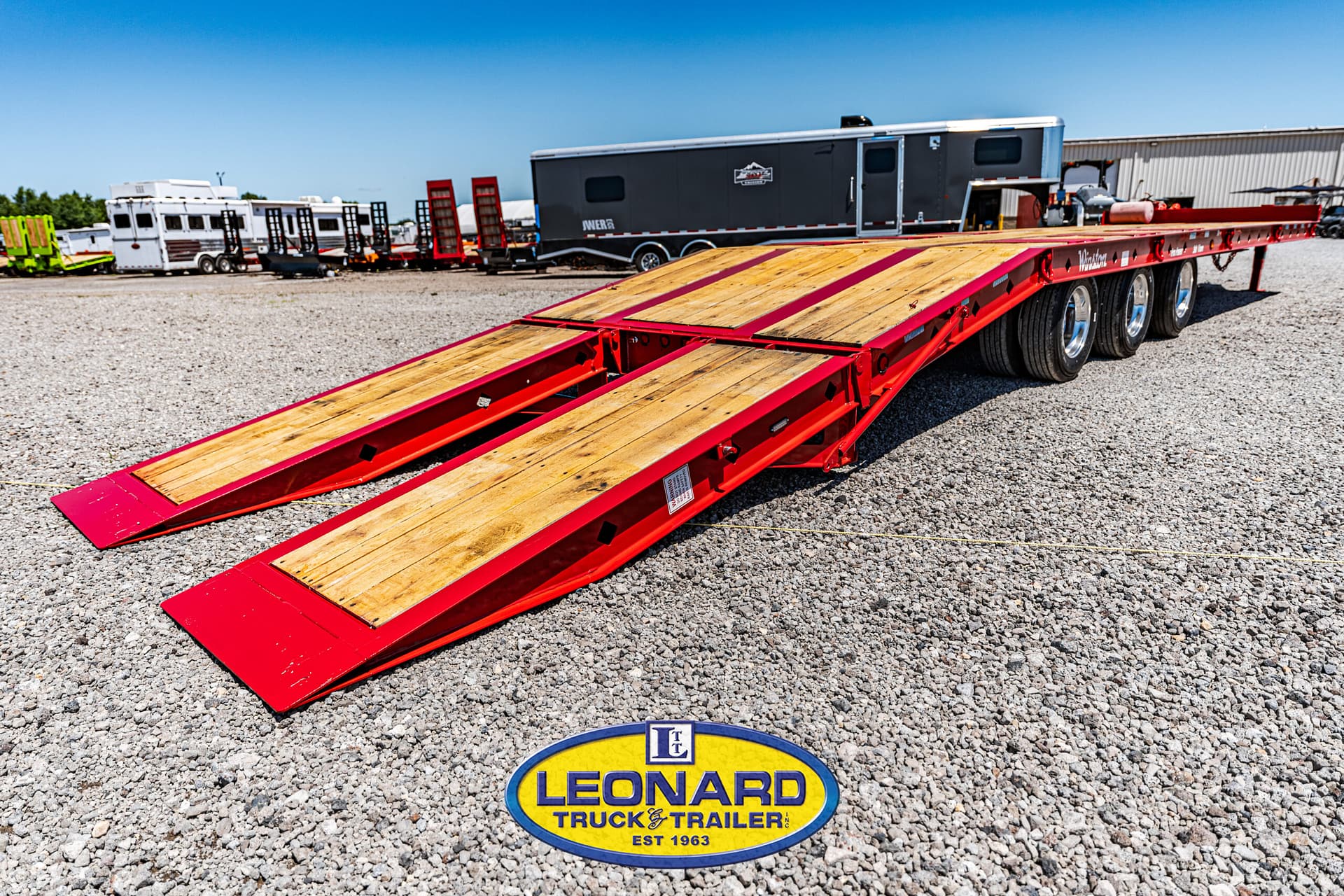

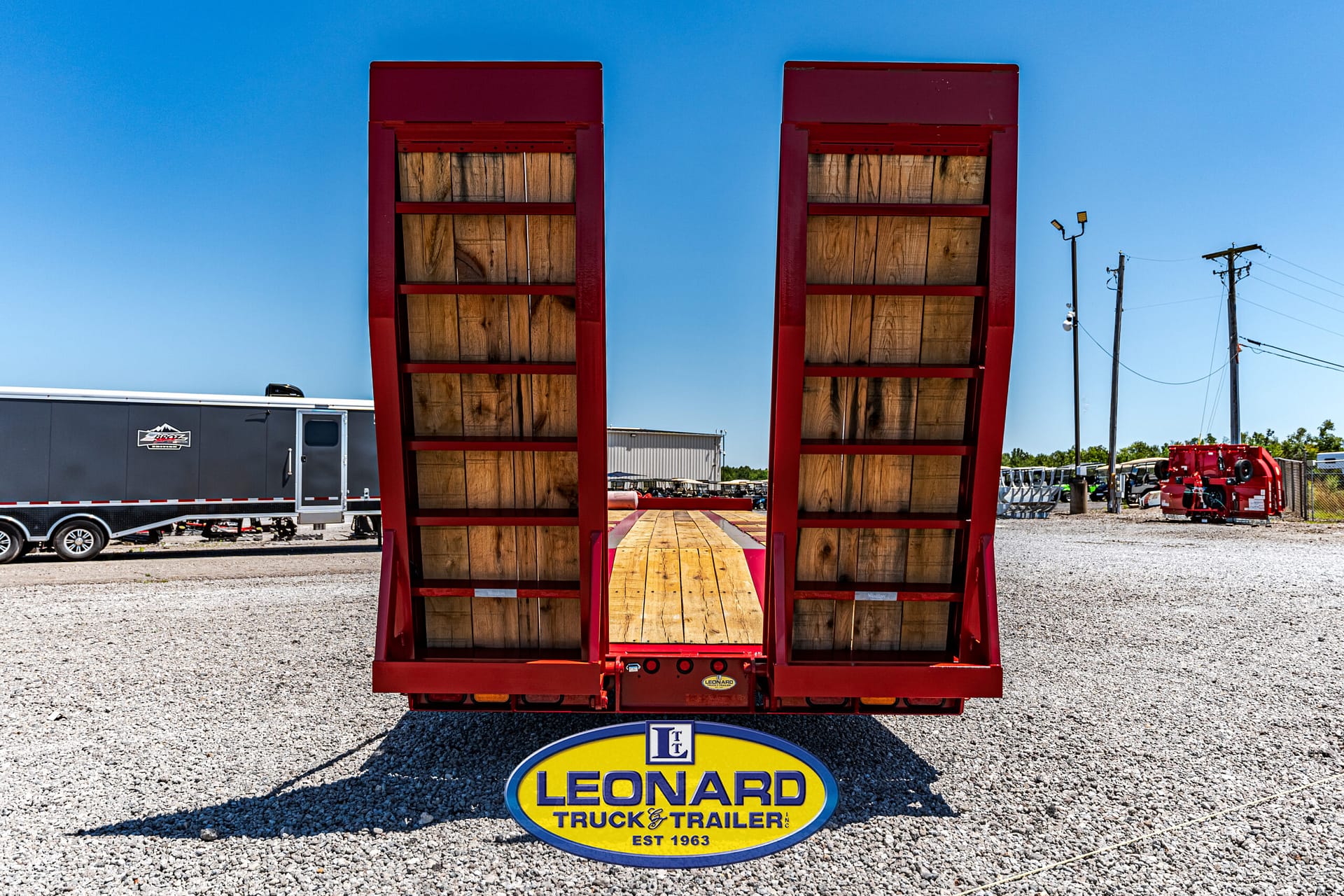

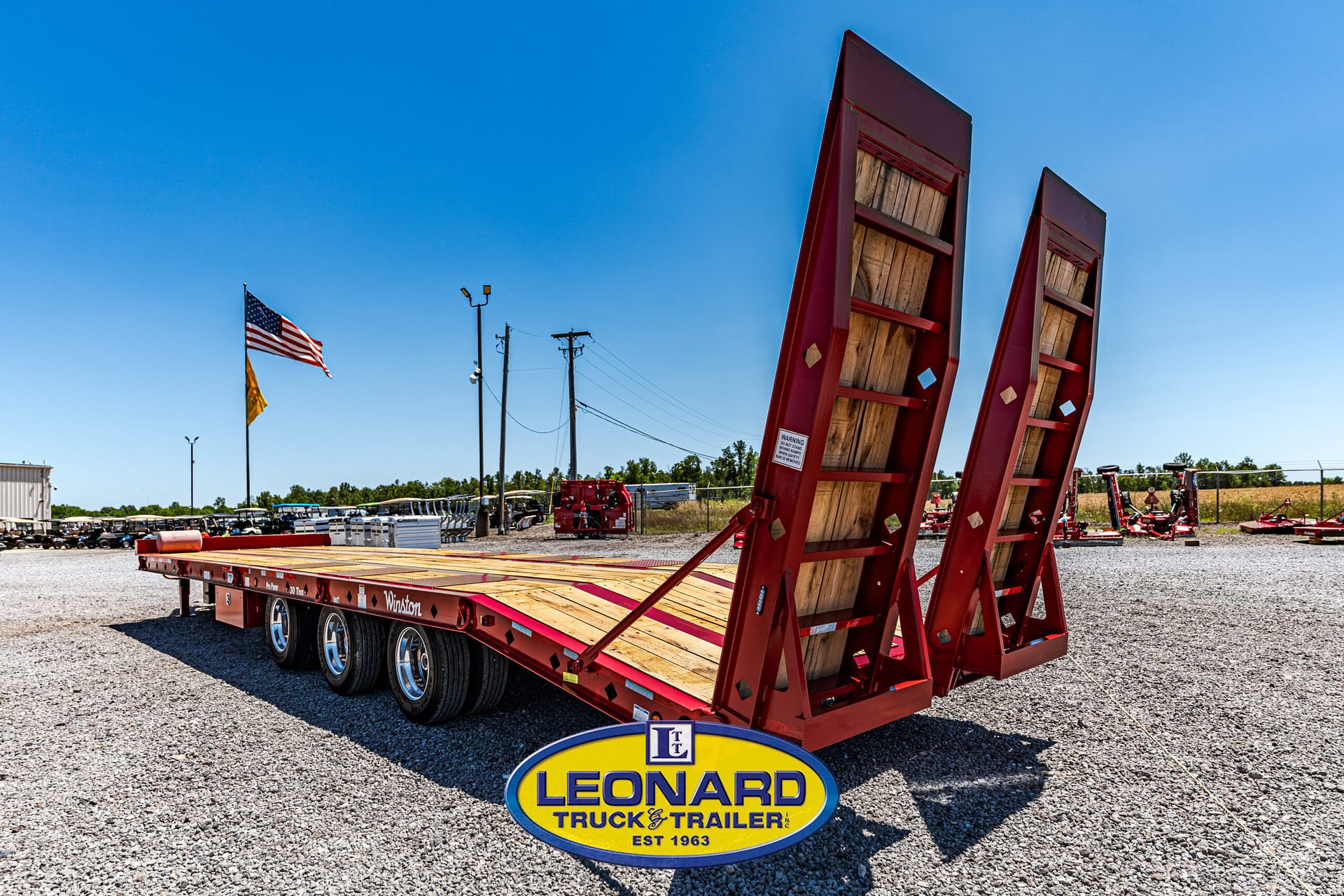

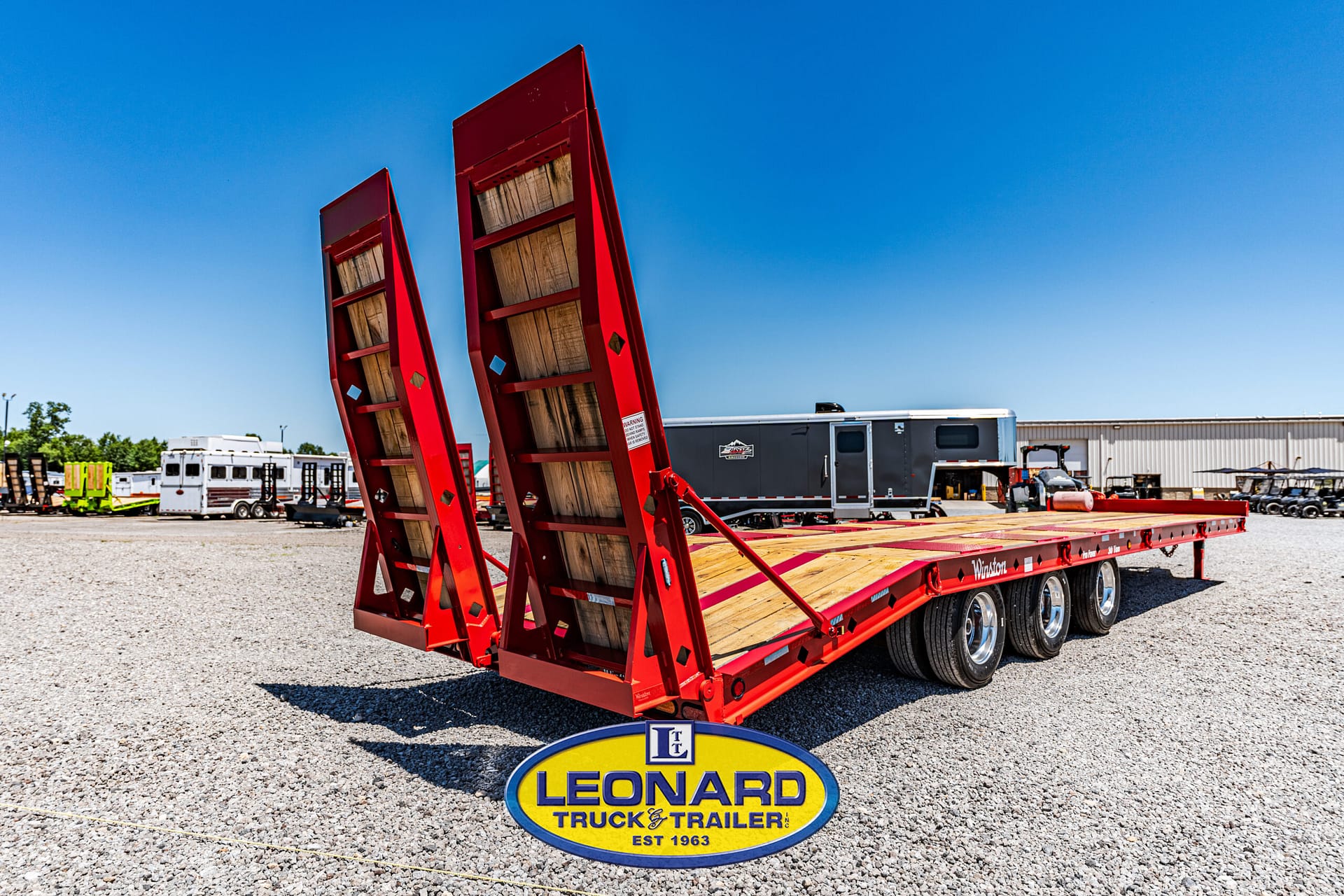

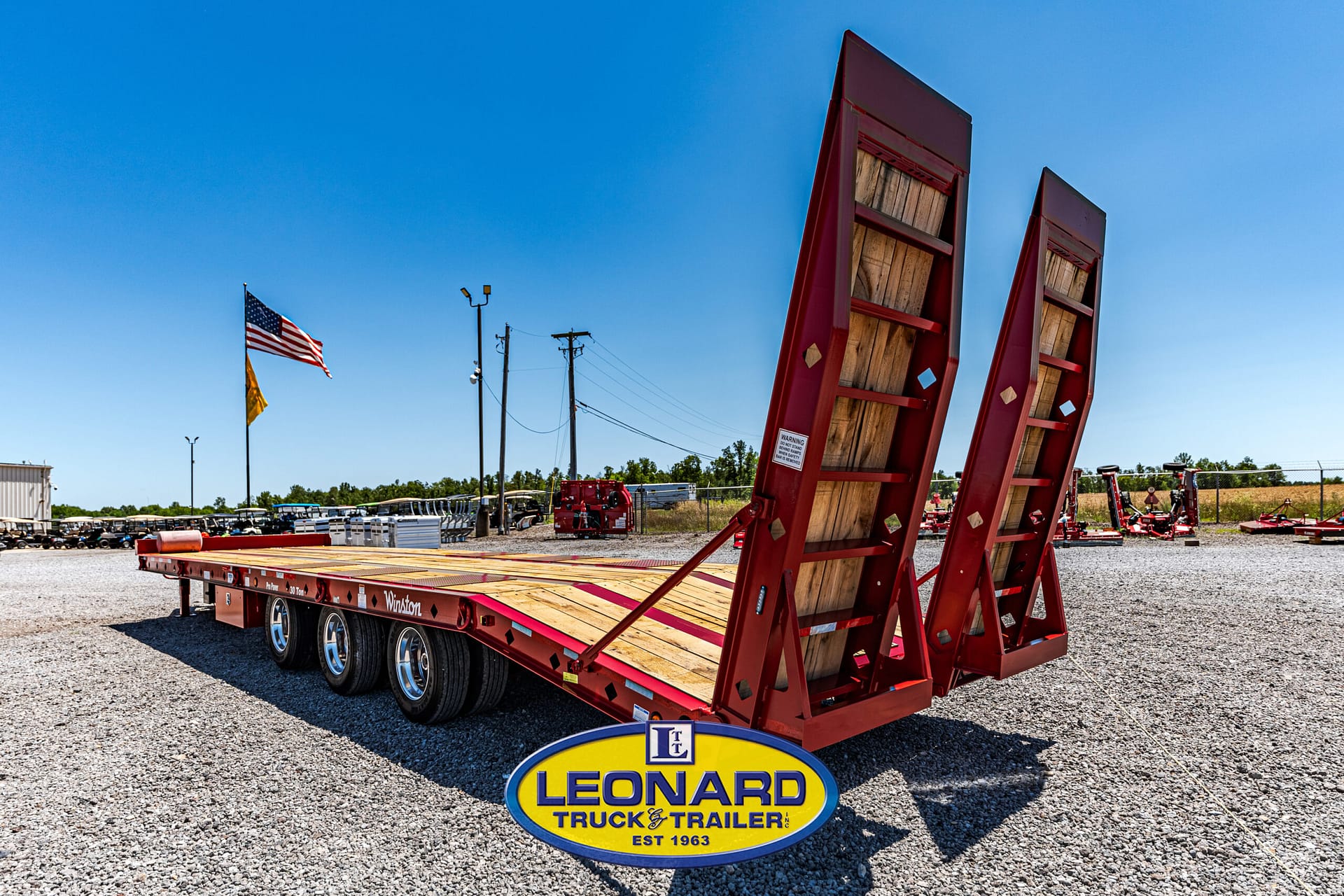

• Ramps: 8′ self-contained electric/hydraulic wood-filled paver ramps for smooth, low-angle loading
• Brakes: ABS air brakes with spring parking brakes

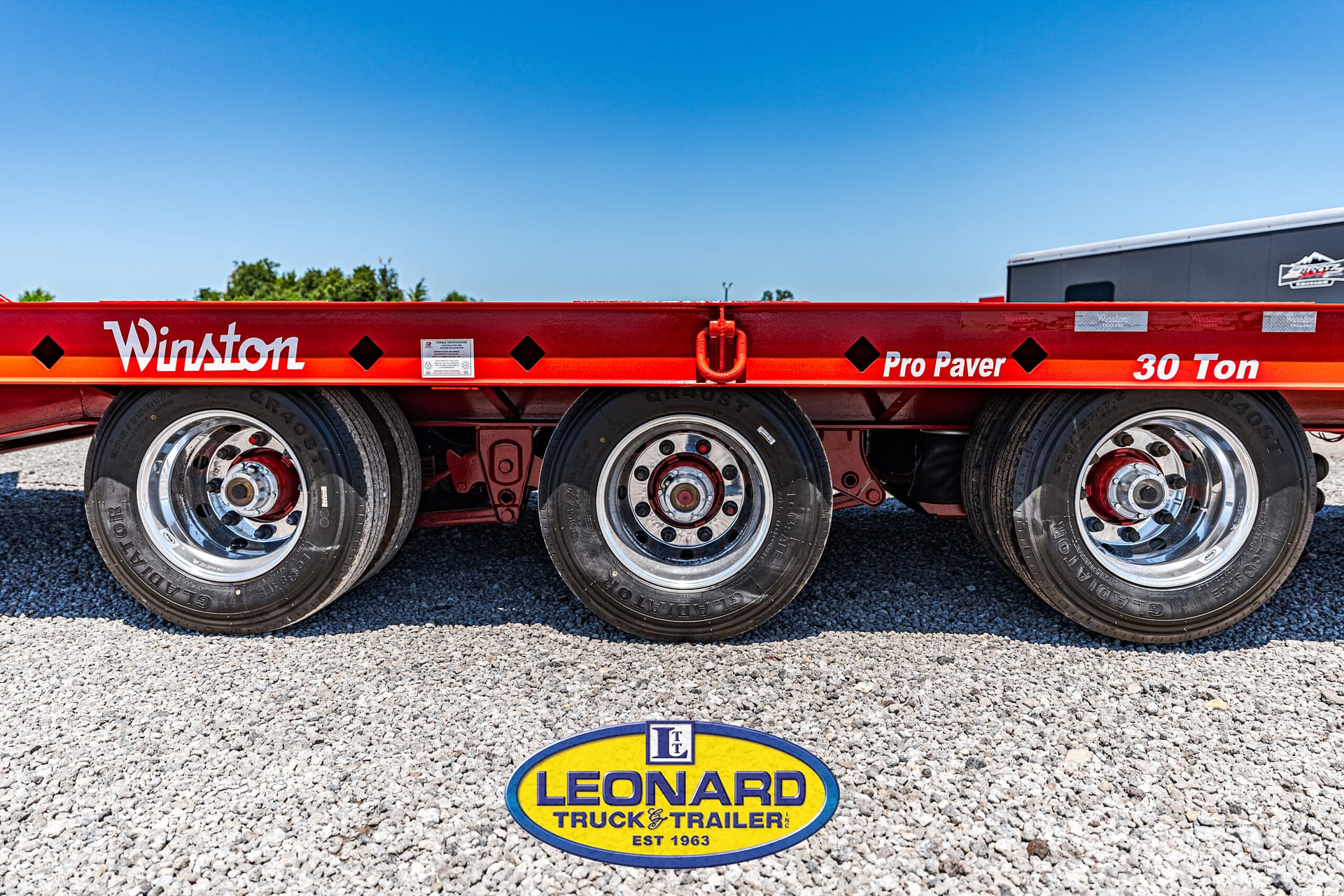

• Running Gear: Tri-axle, 235/75R17.5 (18-ply) tires, aluminum outer wheels (qty 6)

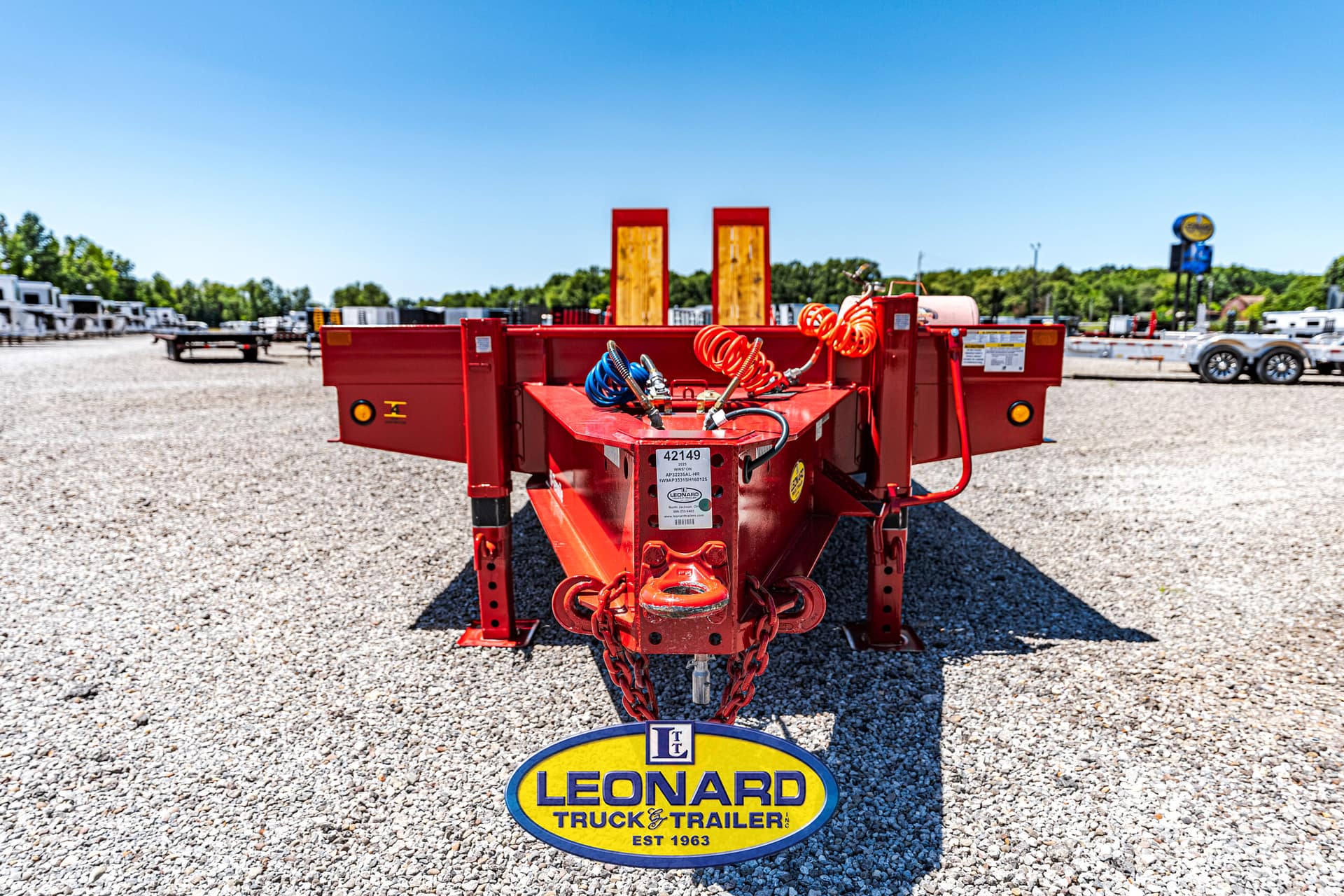

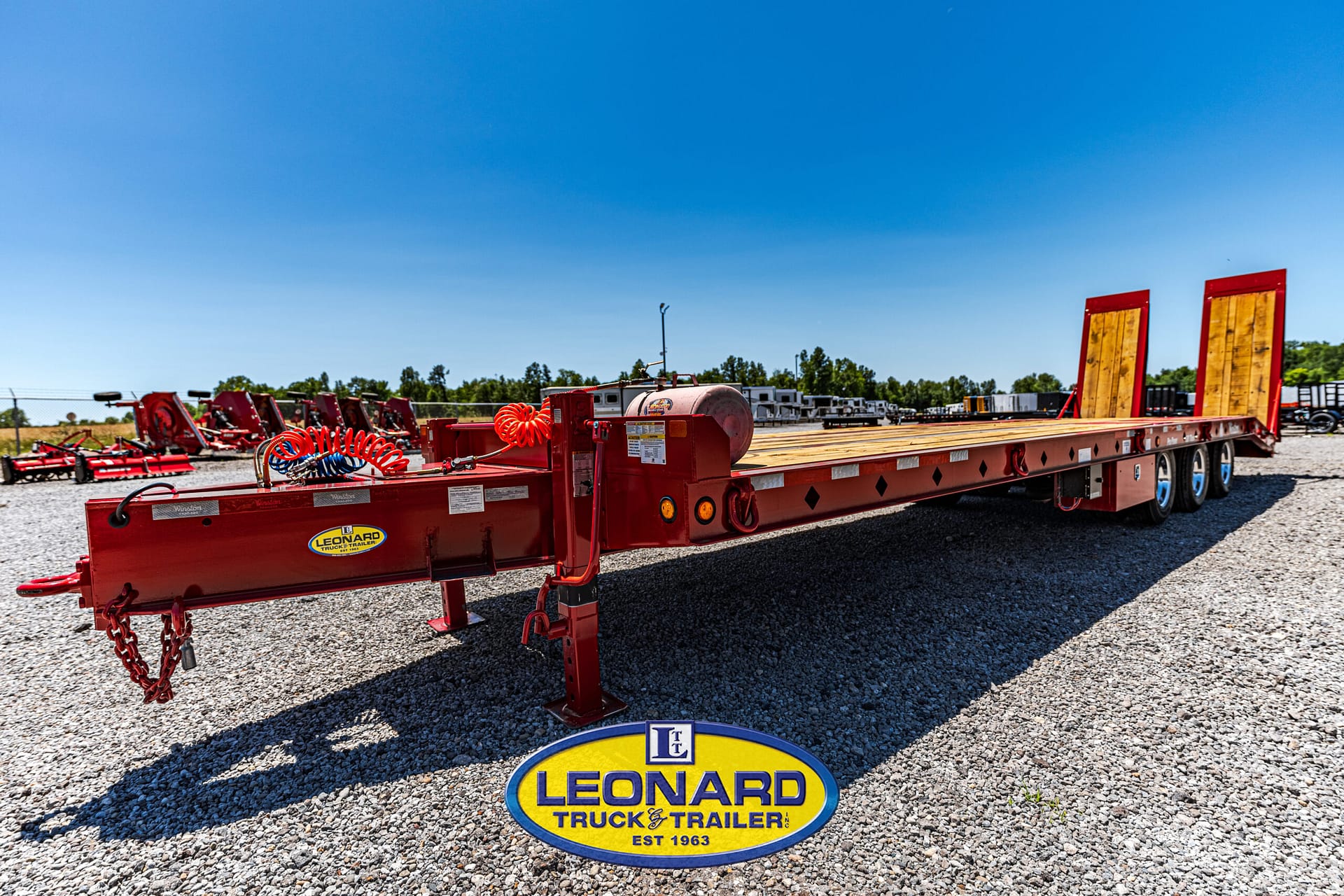

• Landing Gear: Dual 2-speed bolt-on jacks
• Tie-Downs: I-beam siderails with Diamonds & D-Rings for flexible securement
• Lighting: Full LED package plus strobe lights (rear & sides) on switch
• Finish: Painted HR Red, LED markers, sealed modular wiring harness

Upgrades Noted on the Build Sheet

• Air-Ride / Air-Lift front axle
• ABS sensored axles (4S/2M system)
• Aluminum outer wheels × 6
• Strobe lights tied into marker lights via switch
• Dual 2-speed landing gear

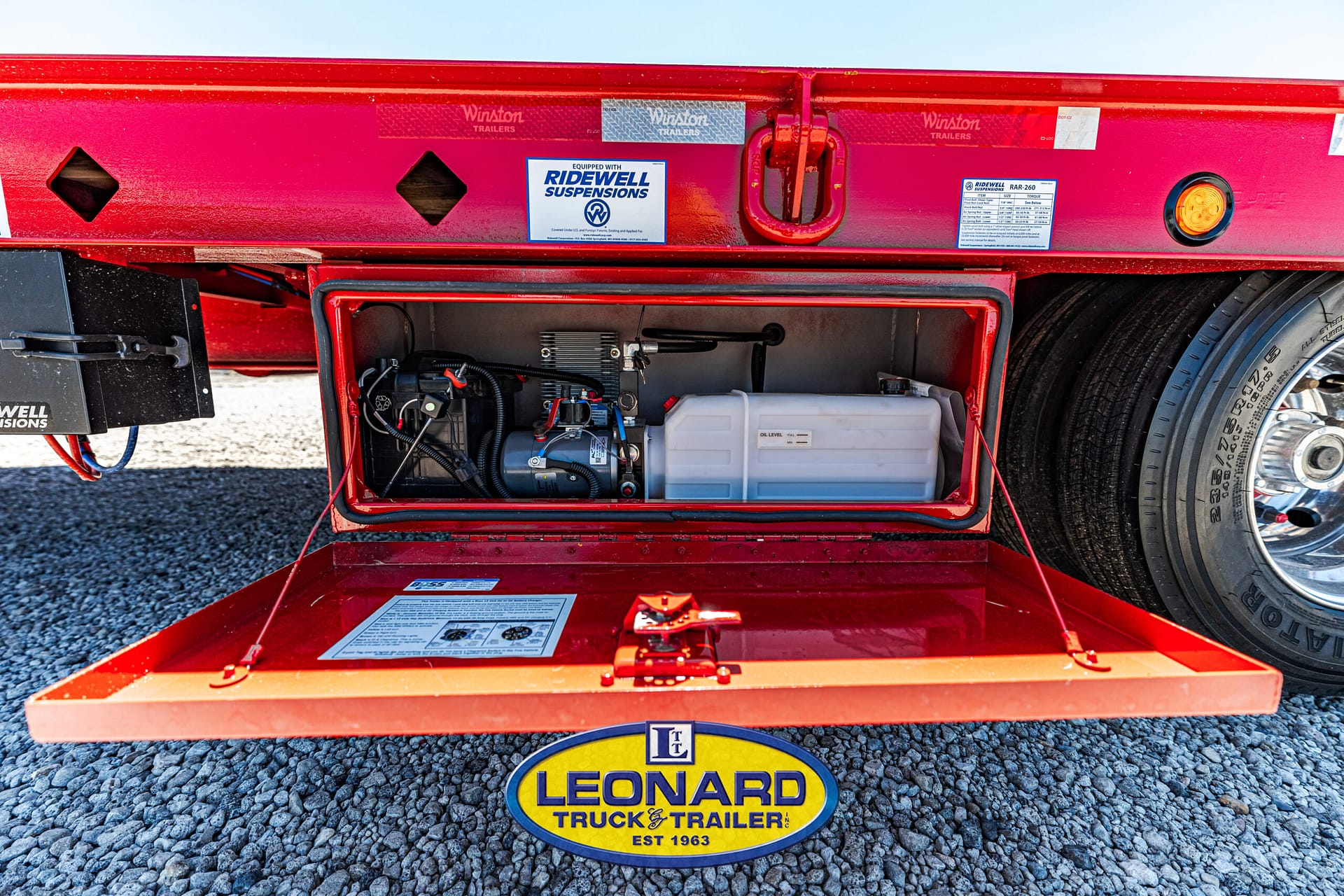

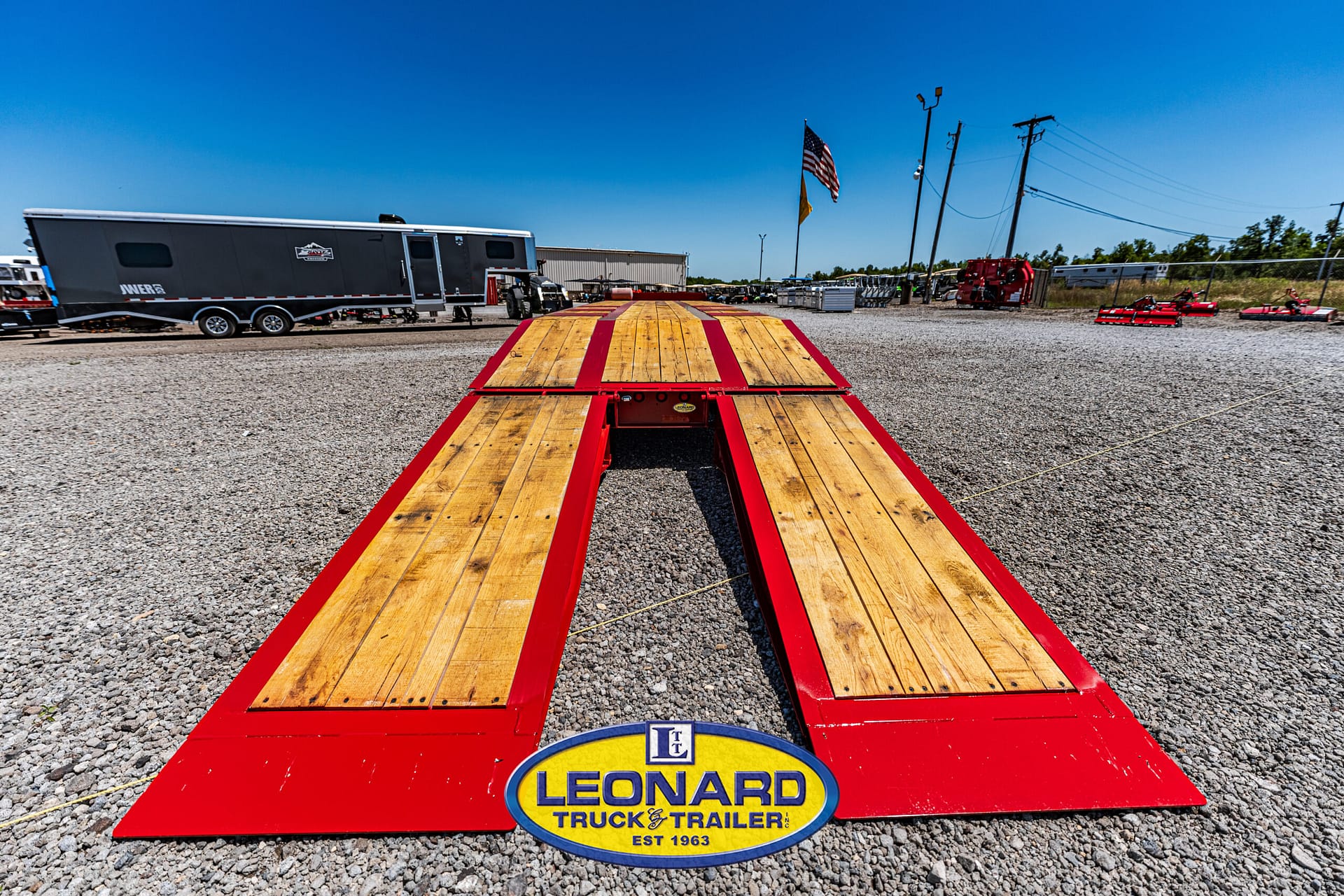

• 8′ self-contained electric/hydraulic wood-filled paver ramps

Winston Pro Series Construction

Built to outperform and outlast — heavy-duty frame and premium components:

• High-strength A992, 4-I-Beam construction (two main beams + I-beam siderails)
• CNC-pierced main frame with through-inserted crossmembers and heavy belly/side bracing
• Diamond cut-outs + bent D-rings for secure tie-downs
• Lockable tongue toolbox
• Sealed modular wiring harness & lifetime LED lighting
• Epoxy primer + acrylic urethane topcoat

Reference Specs — 30-Ton Pro Series (Manufacturer Baseline)

• GVWR: ≈ 72,040 lbs
• Deck: 30′ total (25′ + 5′ standard; this build 29′ + 6′ Paver Special)
• Deck Height (empty): ≈ 35″
• Width: 102″
• Main Beam: 14″ @ 38# I-beam (G50+)
• Suspension: HD tri-axle leaf springs
• Standard Ramps (baseline): HD 20.5″ × 60″ ladder ramps (this unit upgraded to 8′ electric/hydraulic paver ramps)

Why Choose Winston “Big Daddy”

Winston’s 30-Ton ProPaver series is engineered for serious paving and heavy construction work.
Large I-beam construction, air-ride suspension, and electric/hydraulic paver ramps make it one of the most capable tag trailers on the market.

Built to work. Whether you pave, mill, or move heavy equipment, this Big Daddy ProPaver delivers the capacity, low-angle loading, and durability professionals demand.

Call or text for pricing, financing, or delivery options.

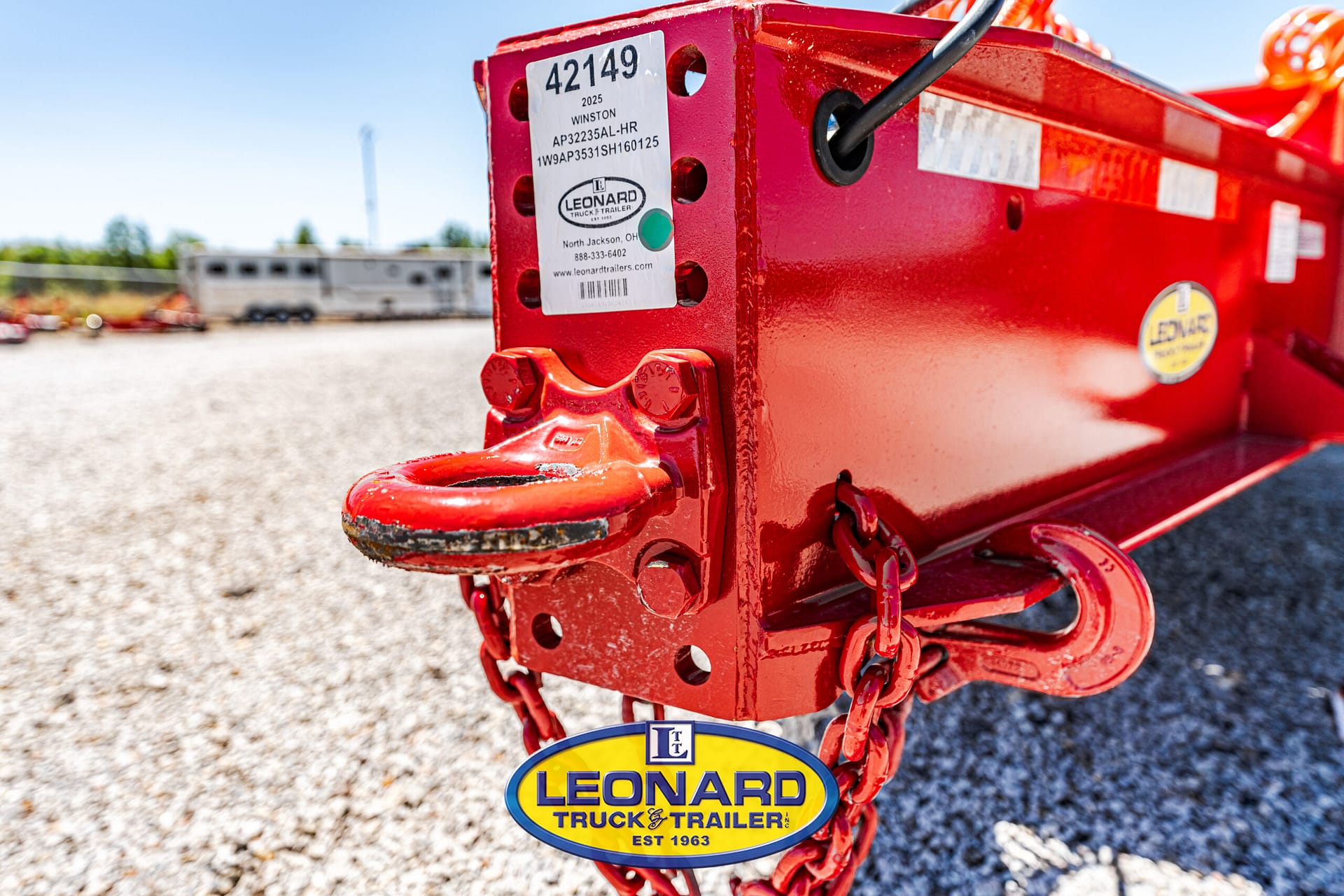

Stock #42149 | Model: ProPaver 30-Ton Tri-Axle (Paver Special)

**We believe these specifications to be accurate. Any discrepancies are unintentional. Please verify information with a sales associate prior to purchase.**

Stock Number:42149
