MSRP:
$34,563
You Save:
$5,564
SALE PRICE:
$28,999
Estimated Payment w/ 10% Down*
*$2,900.00 Down**
*10% APR at 120 months**
$345* /mo.
| Exterior Color | GREEN |
| Horse Power | 24 |
| Cooling | 1.3GAL |
| Steering | JOYSTICK |
| Transmission | DIRECT DRIVE OF HYDRAUIC MOTOR TO MAIN UNDERCARRIAGE DRIVE SPROCKET |
| Weight | 3323 |
| Capacity | 1300 |

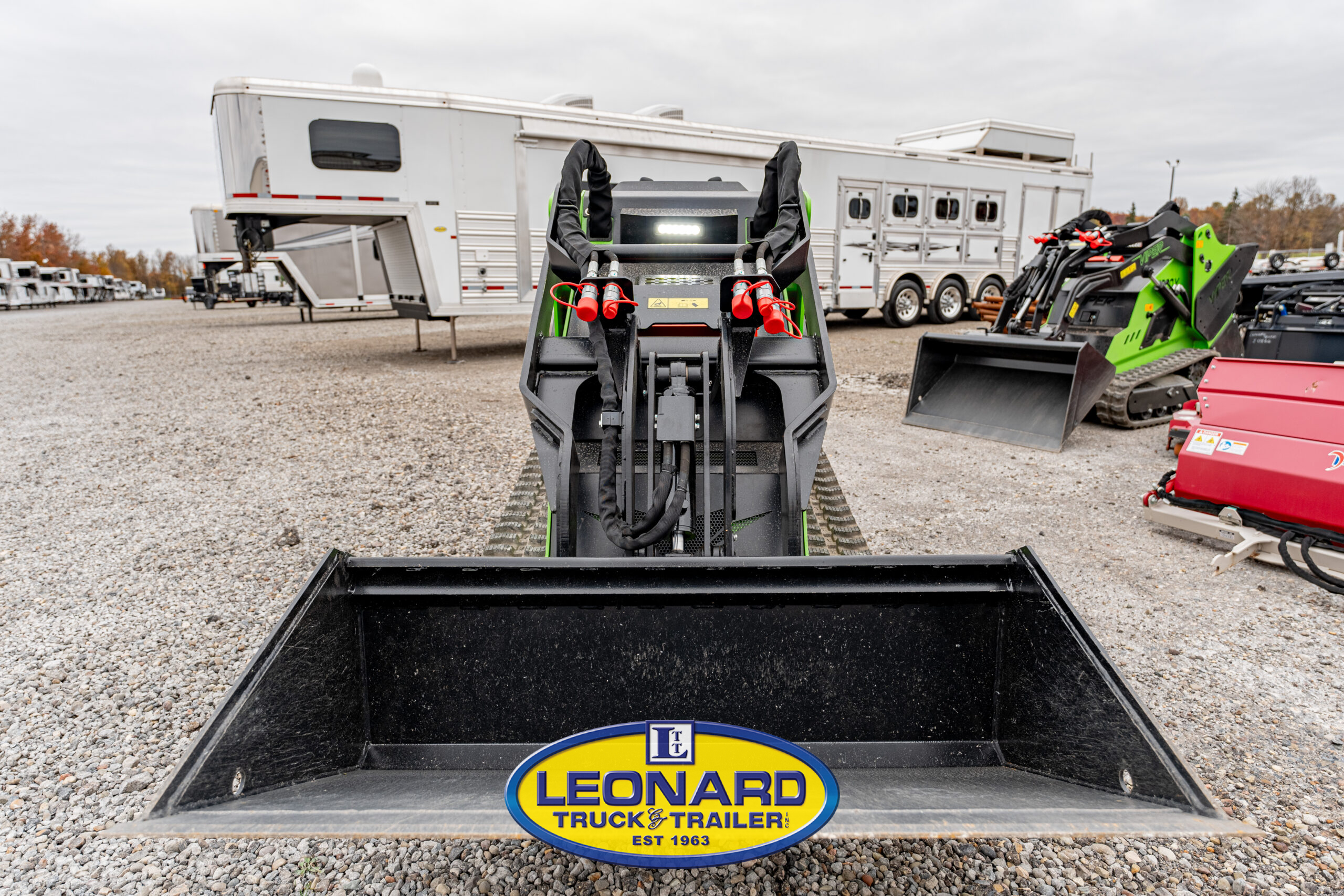

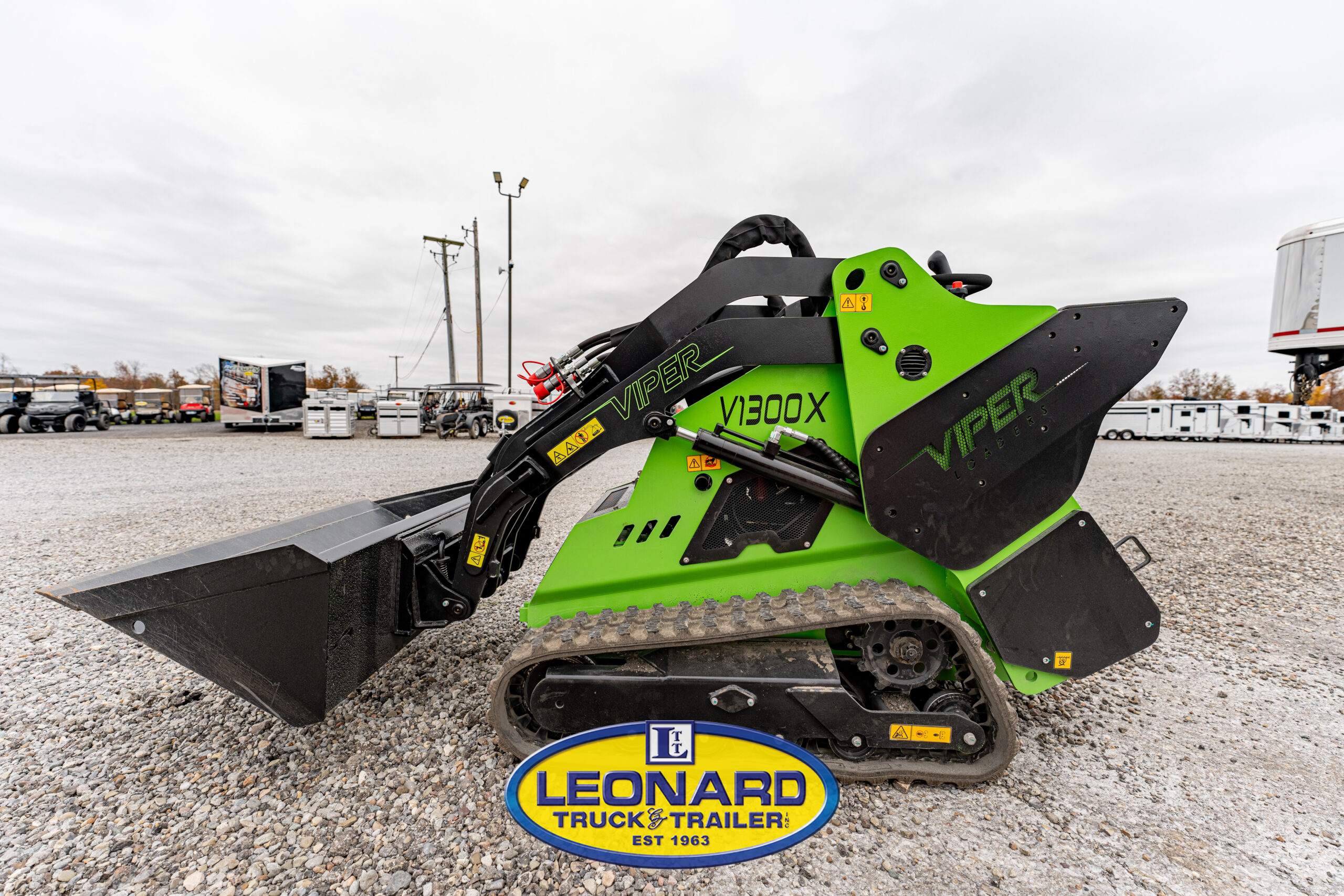

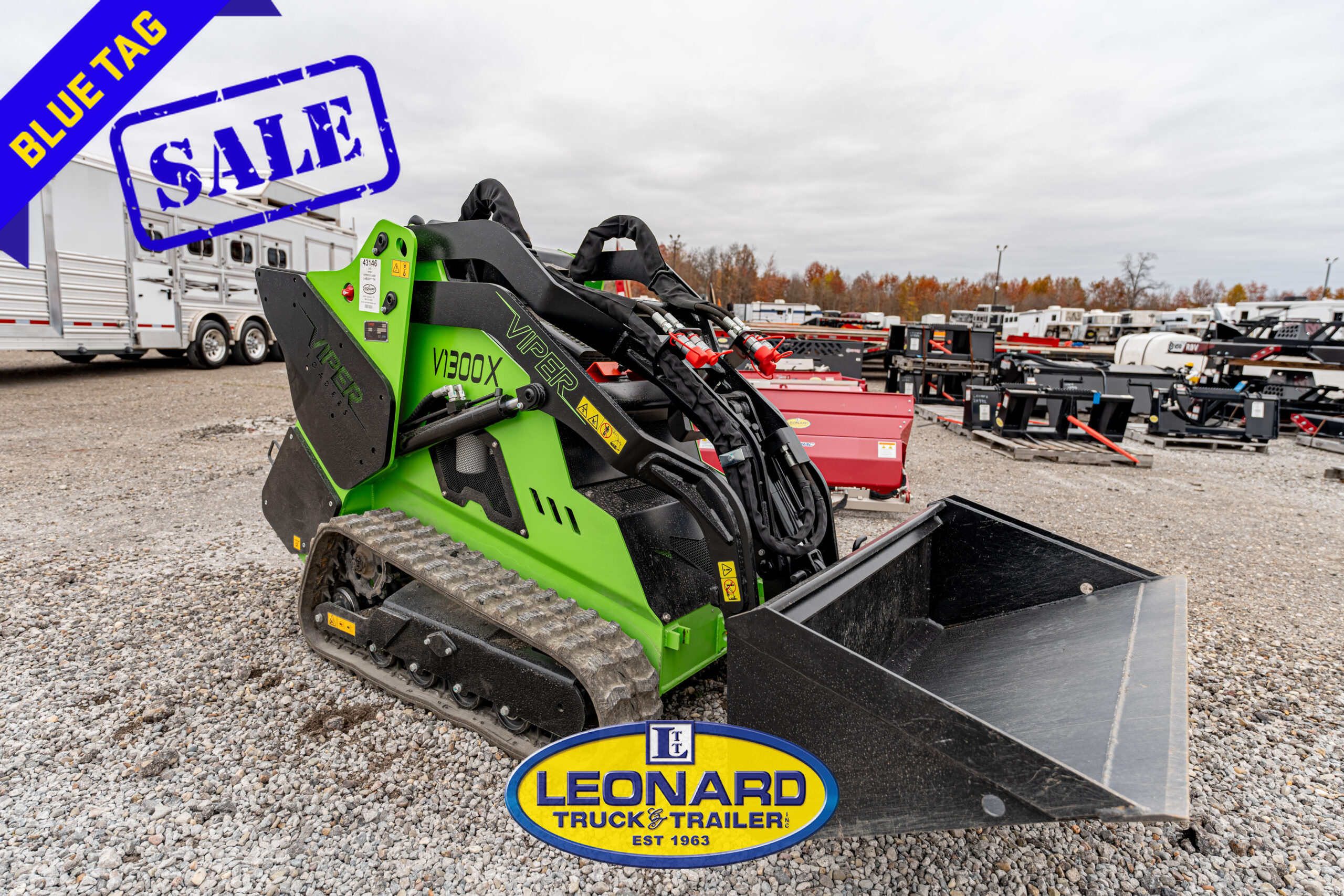

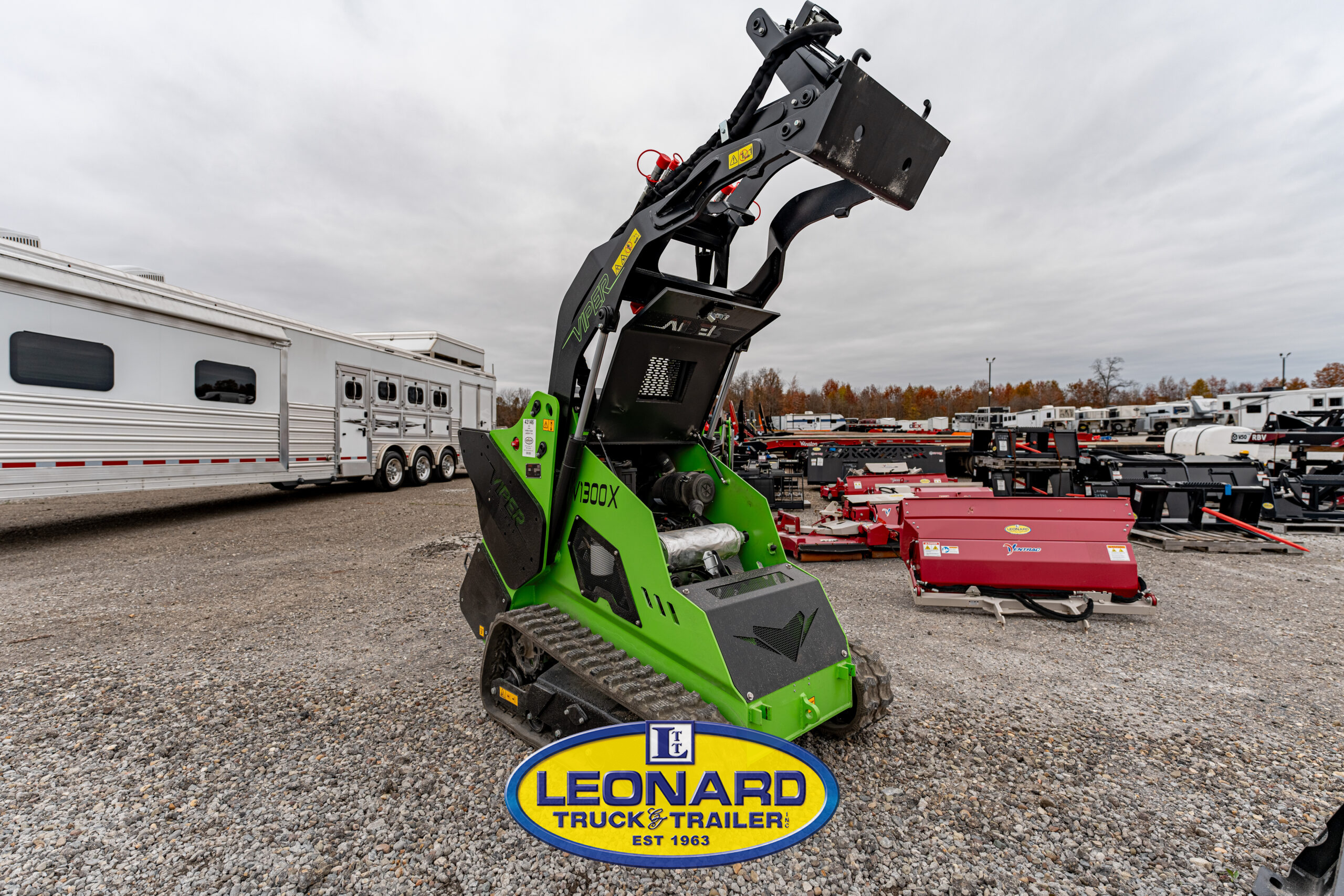

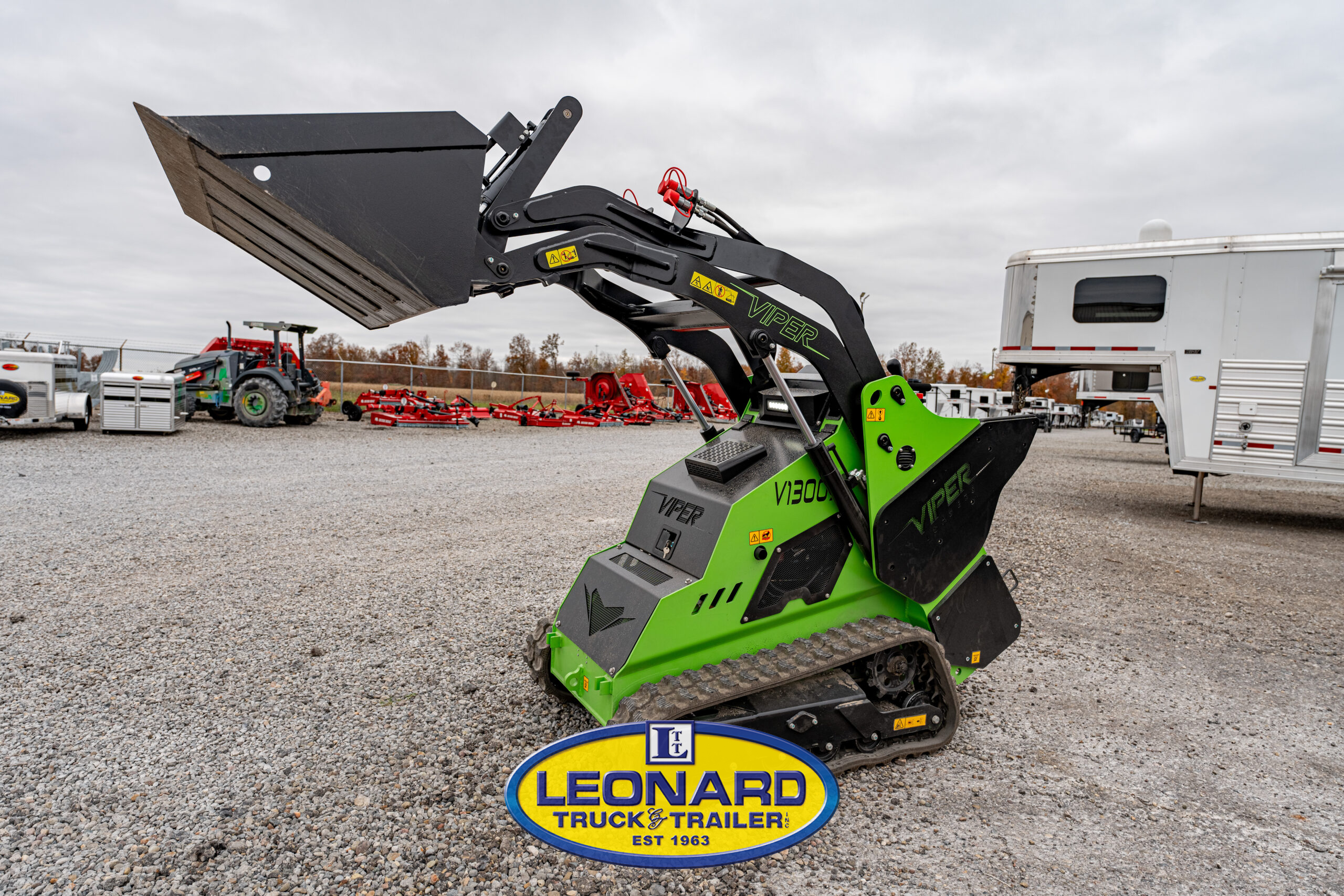

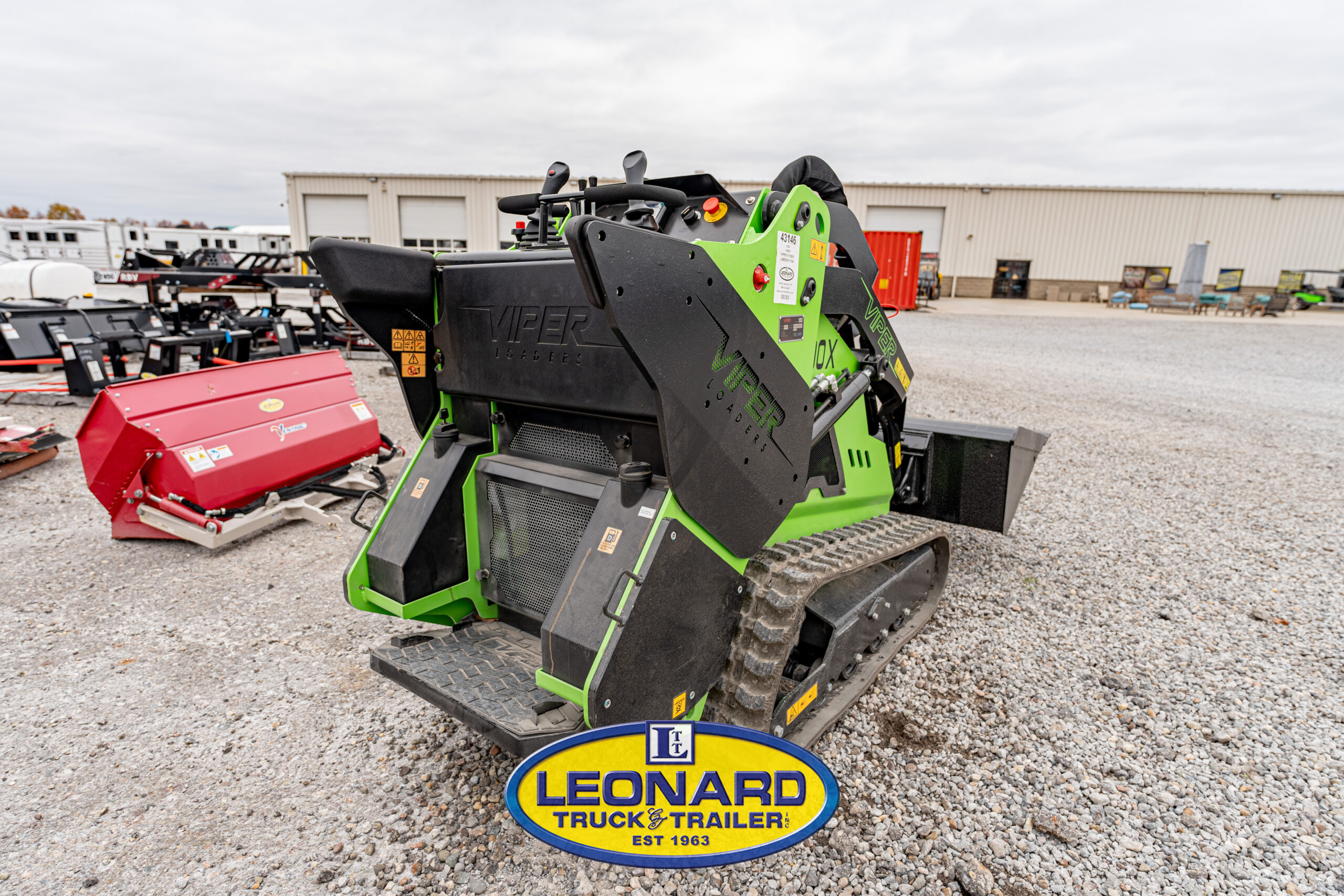

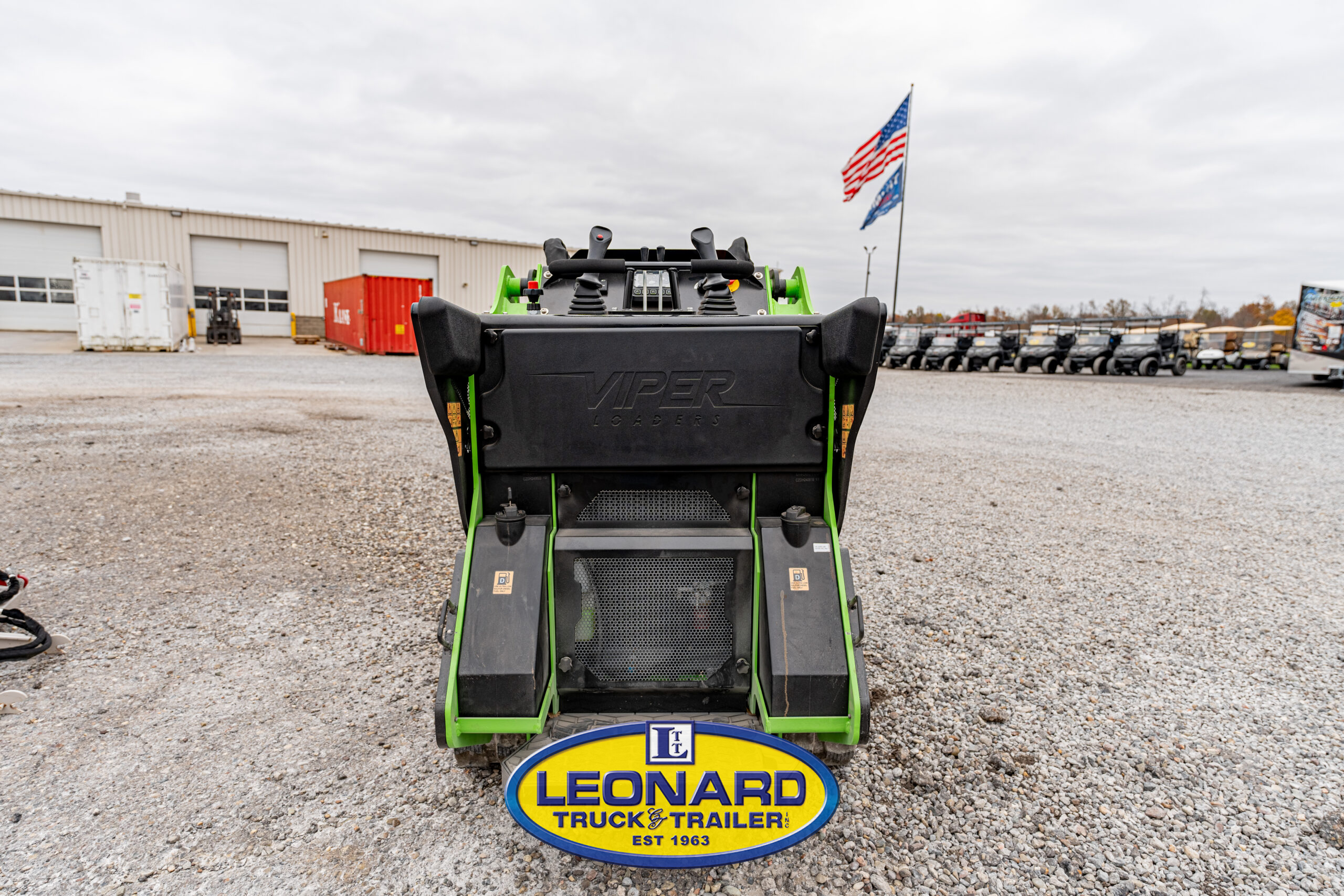

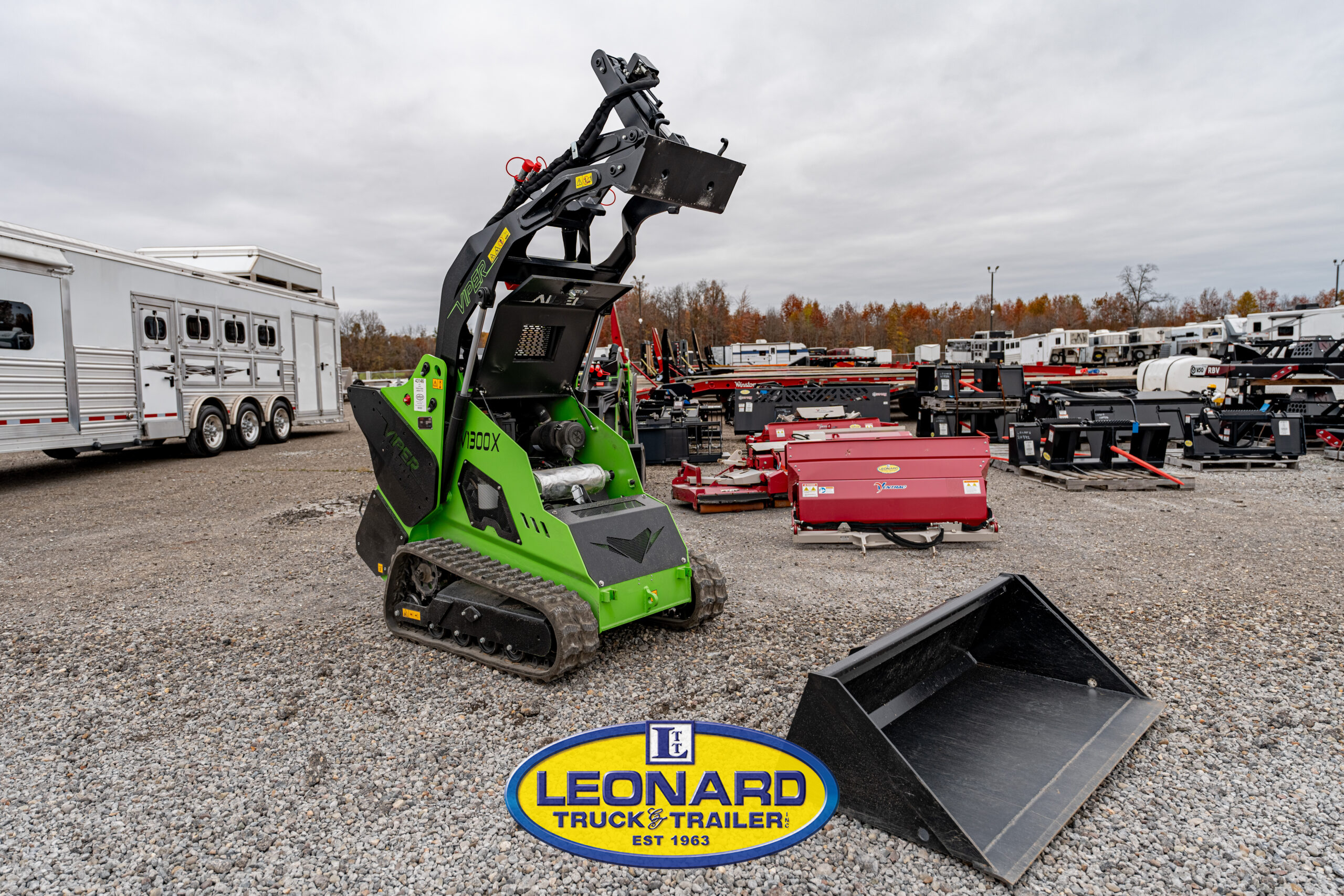

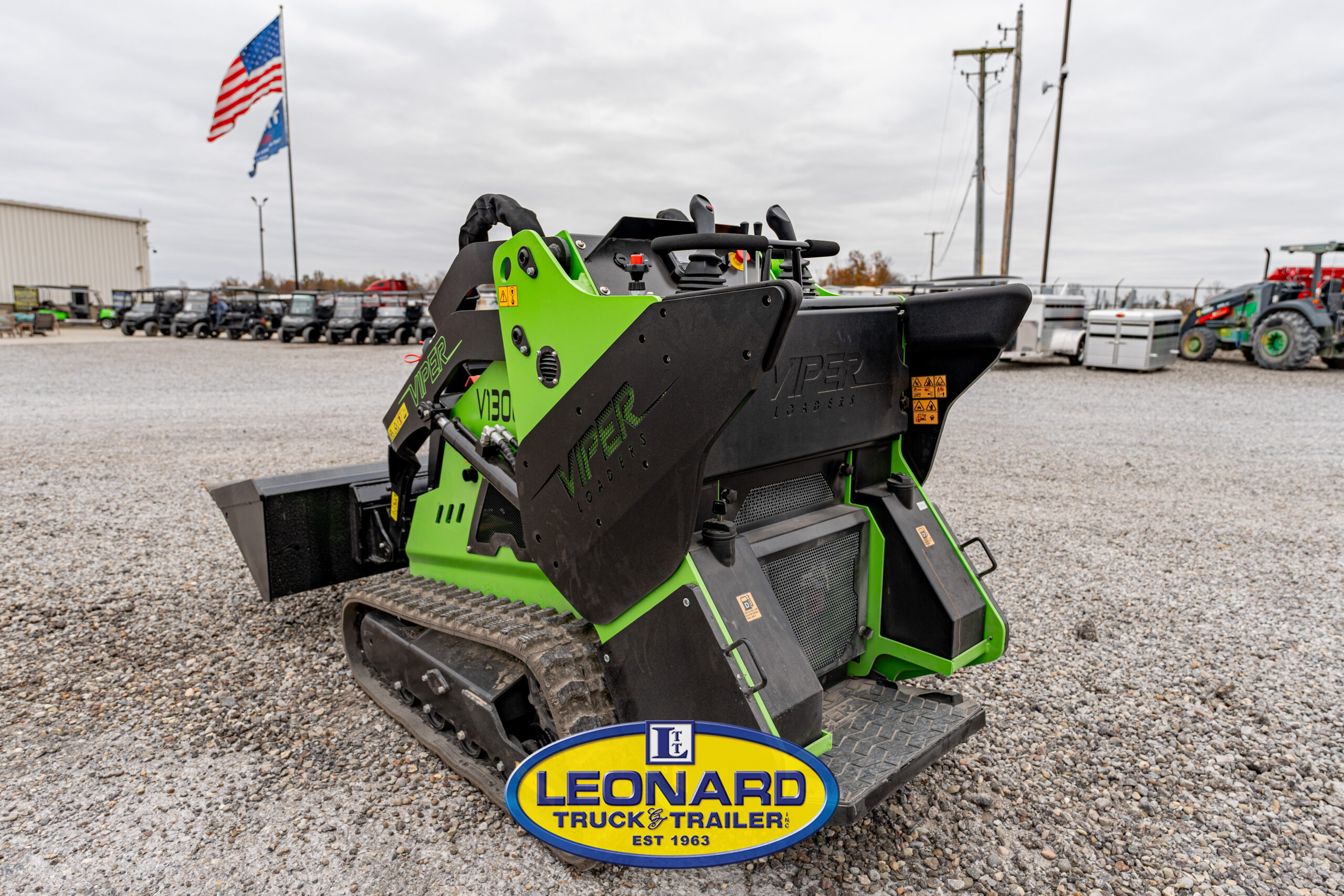

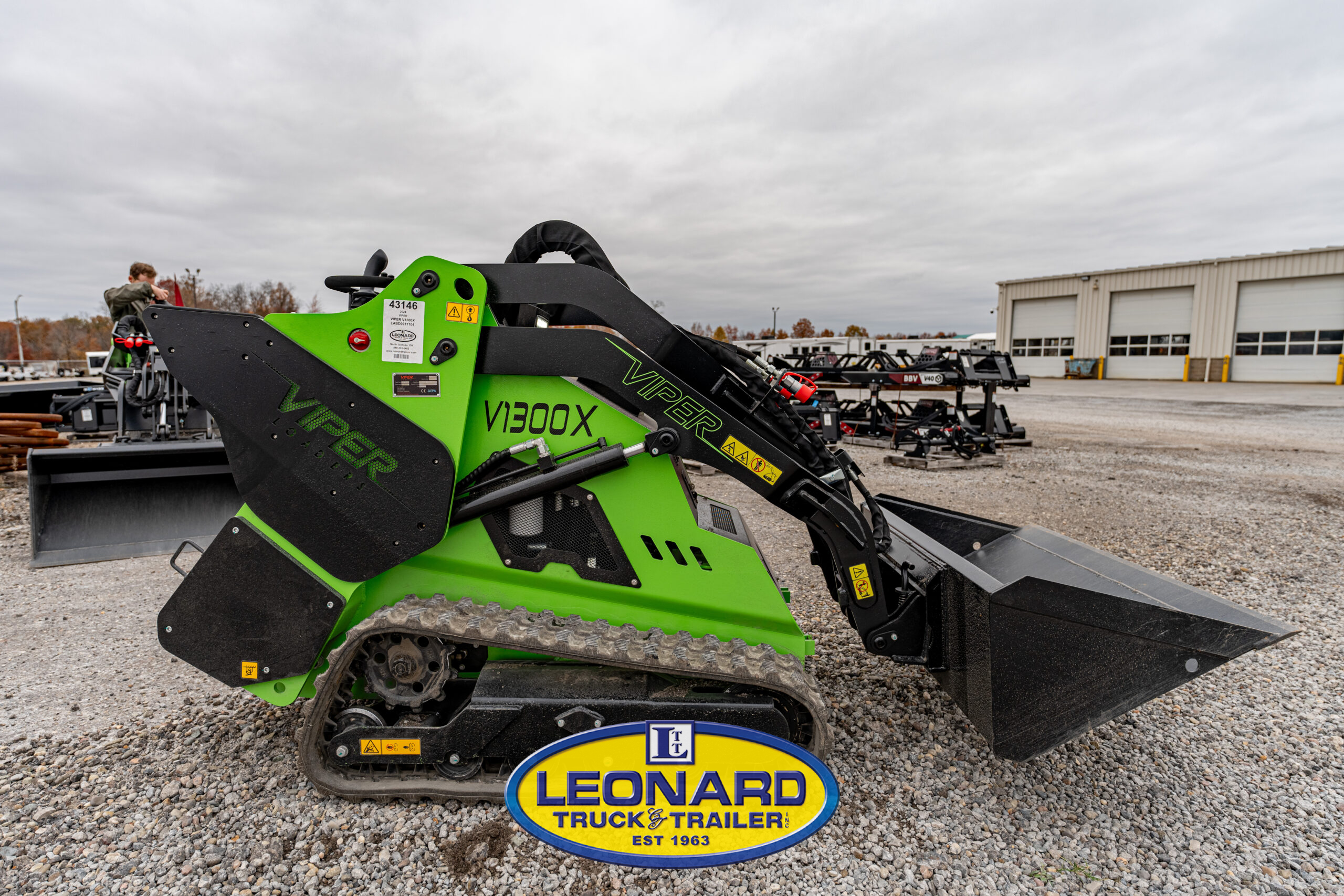

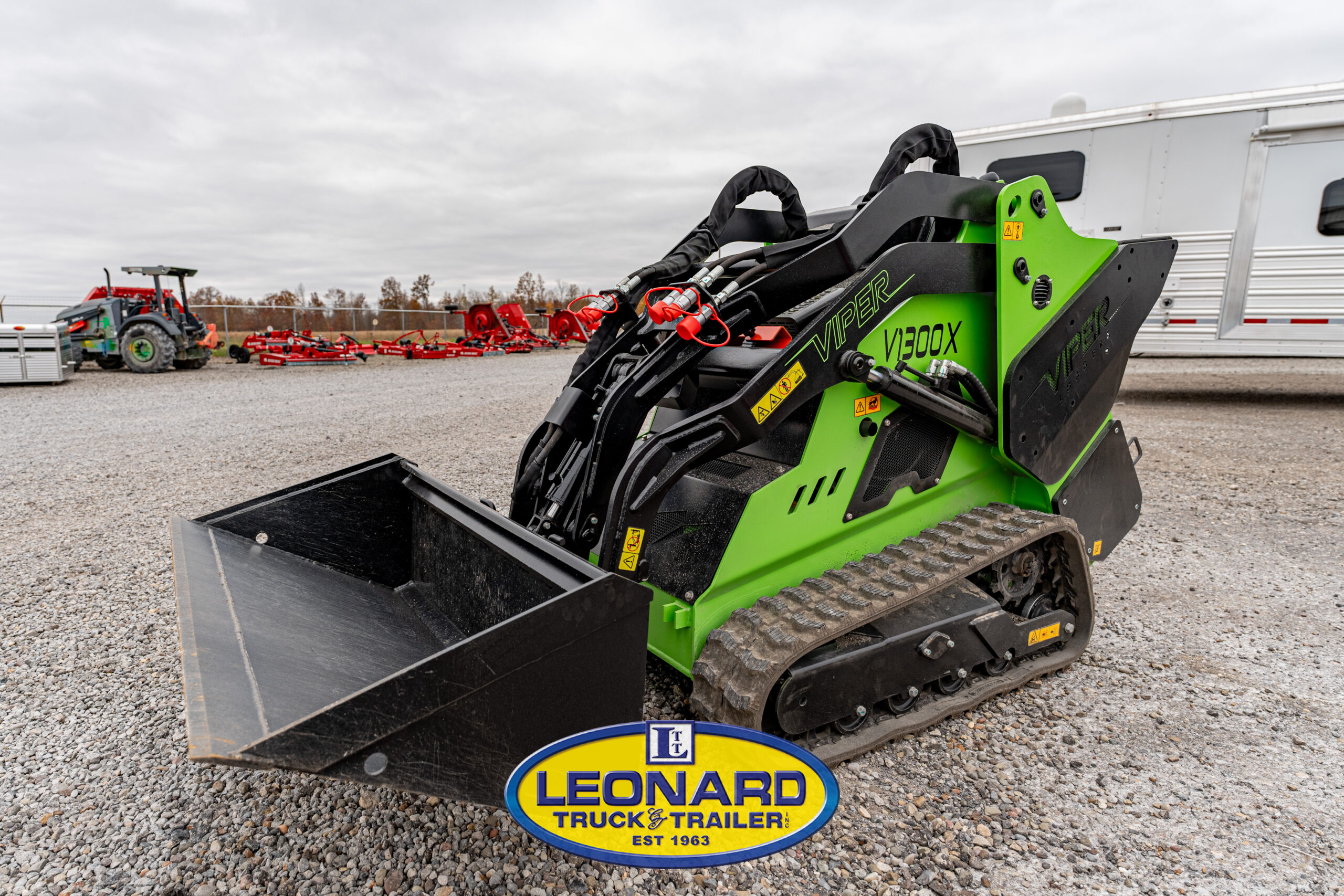

V1300X
MINI TRACK LOADER
The all-new Viper V1300X gives you all the options and accessories you need to complete even the toughest tasks. With outstanding build quality and parts sourced from industry-leading manufacturers, the V1300X is built to excel at anything you can throw its way. The V1300X has a narrow footprint, powerful engine and impressive operating capacity, allowing you to tackle a large variety of jobs with ease.
GENERAL SPECS
Performance
Rated Operating Capacity (ROCi): 1300 lbs
Max. Travel speed: 3.5 mph (with high torque drive motors)
Machine Weight with Bucket :3323 lbs

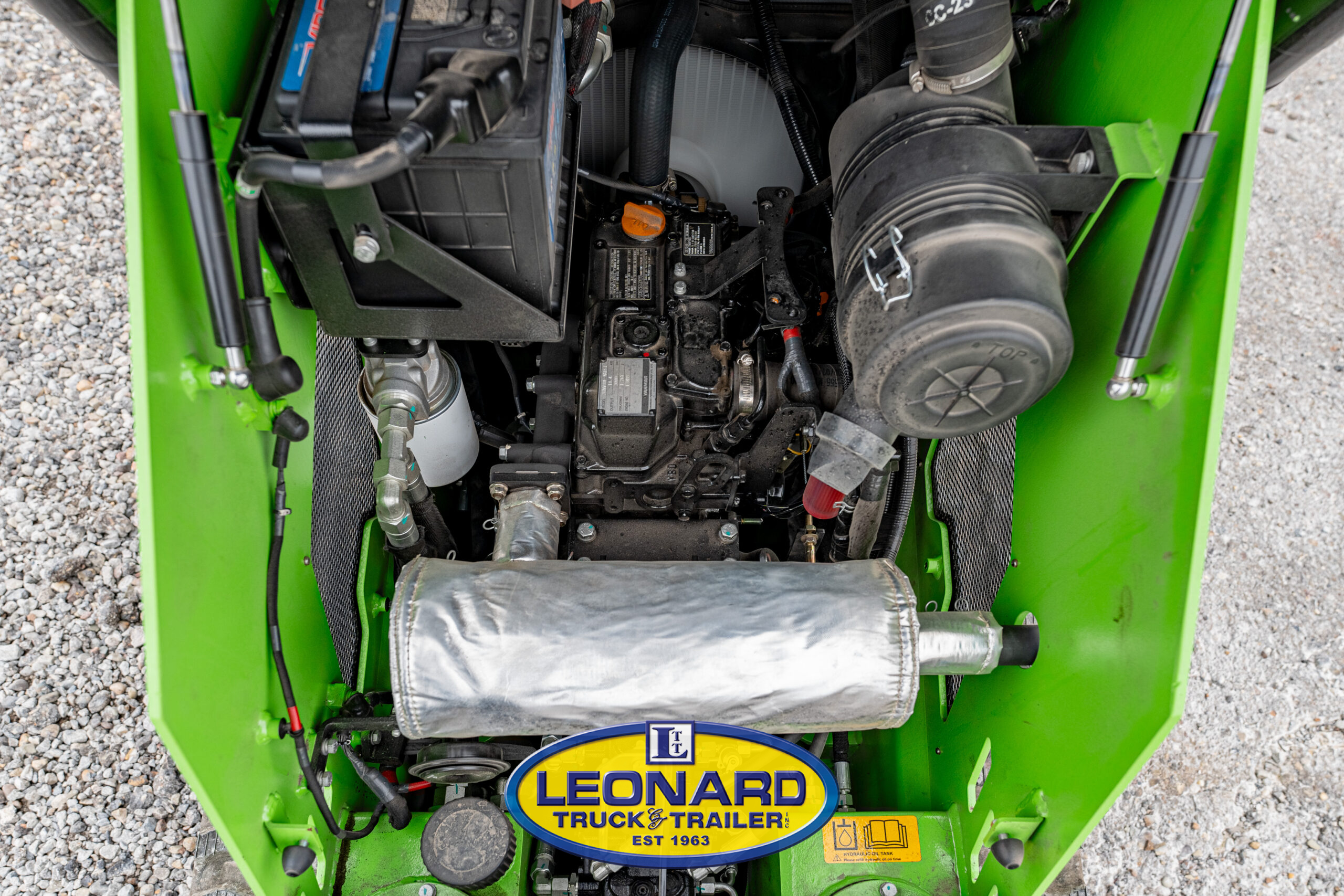

Engine
Make/Model: Yanmar 3TNV80F diesel engine
Fuel/Cooling: Diesel/Liquid
Horsepower (SAE Gross J1955) :17.8 kW / 24 HP or 18.4 kW / 24.7 HP
Rated engine speed: 3000 RPM
Torque: 52.4 ft-lb @1900 RPM (SAE Net)
Number of Cylinders:3
Displacement: 1.266 L (77.2 in³)
Bore/Stroke: 80 mm (3.15 in) / 84 mm (3.3 in)
Fuel Consumption: 1.55 gph
Lubrication: Forced lubrication with trochoid pump
Air Cleaner: Dry replaceable cartridge with safety element
Hydraulics
Pump Type: Drive pump Type: Two closed circuit axial piston pumps. Auxiliary Pump Type: Gear pump
Main Control Valve :2-Spool, open center series parallel configuration
Auxiliary Control Valve: 2-Spool, open center series parallel configuration
Auxiliary Flow: 11.5 GPM
Hydraulic Filter: Replaceable 10-micron filtration
Hose Quick Couplers: 2 Sets of Quick Couplers: Set 1 -2 quick couplers to drive a momentary attachment with cylinder(s). Set 2 – 3 quick couplers to drive constant hydraulic flow attachments, with or without case drain or hydraulic return.
System Relief: Auxiliary pump relief: 2900 psi (200 bar) Ground drive pump relief: 3045 psi (210 bar)

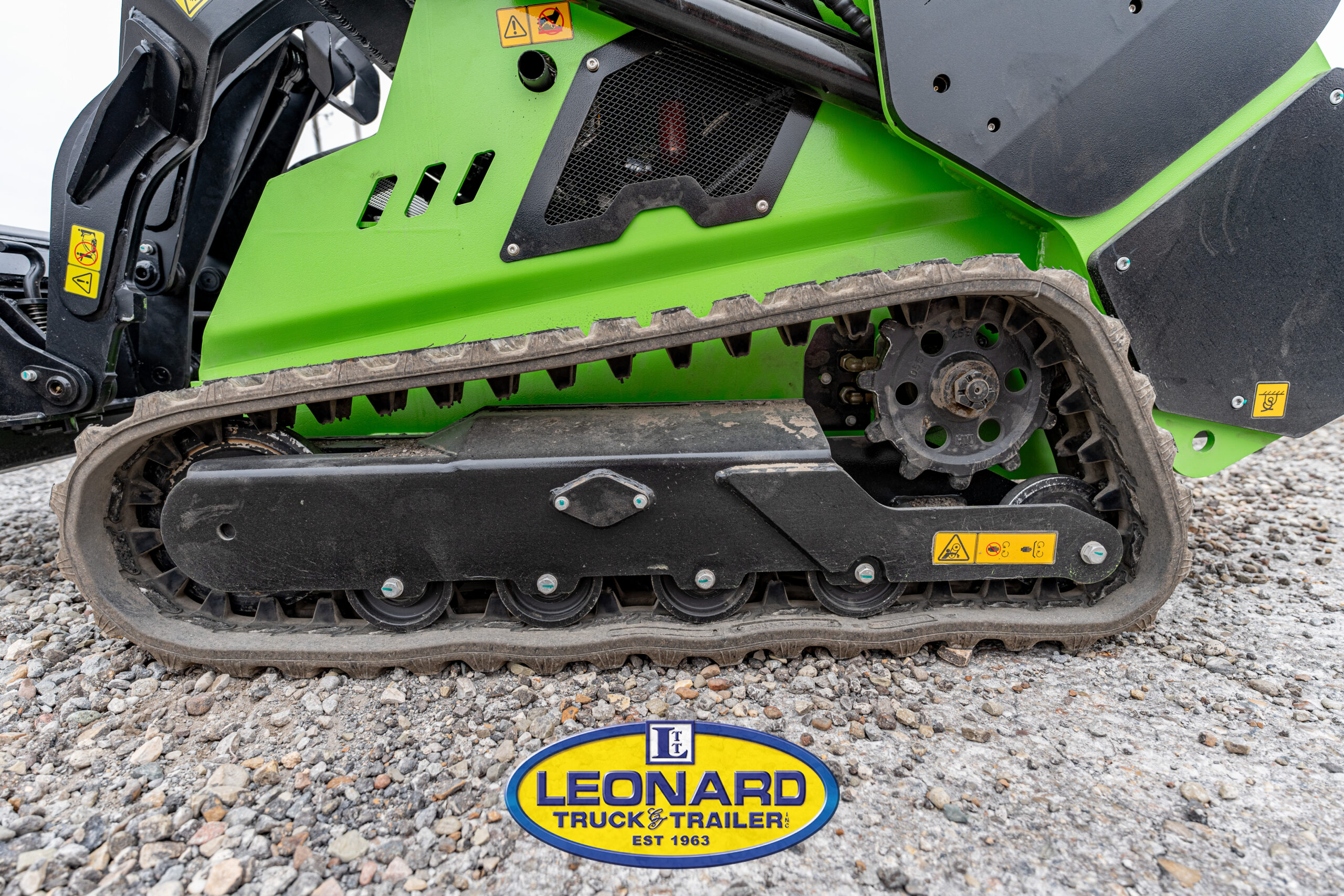

Drive System
Main Drive: Right Hydraulic Motor drives right side track Left Hydraulic Motor drives left side track
Transmission: Direct drive of hydraulic motor to main undercarriage drive sprocket
Tracks: 8” inch wide
Capacities
Cooling System: 1.3 gal
Engine Oil with Filter: 0.8 gal
Fuel Tank: 9 gal
Hydraulic Reservoir: 11 gal
Hydraulic System: 11.9 gal
Please call us for any additional information!
**We believe these specifications to be accurate. Any discrepancies are unintentional. Please verify information with a sales associate prior to purchase.**
Stock Number:43147
