2025 CIMARRON TRAILERS SW30G SIG Livestock Trailer (SOLD)

SOLD INVENTORY

Stock# 43507

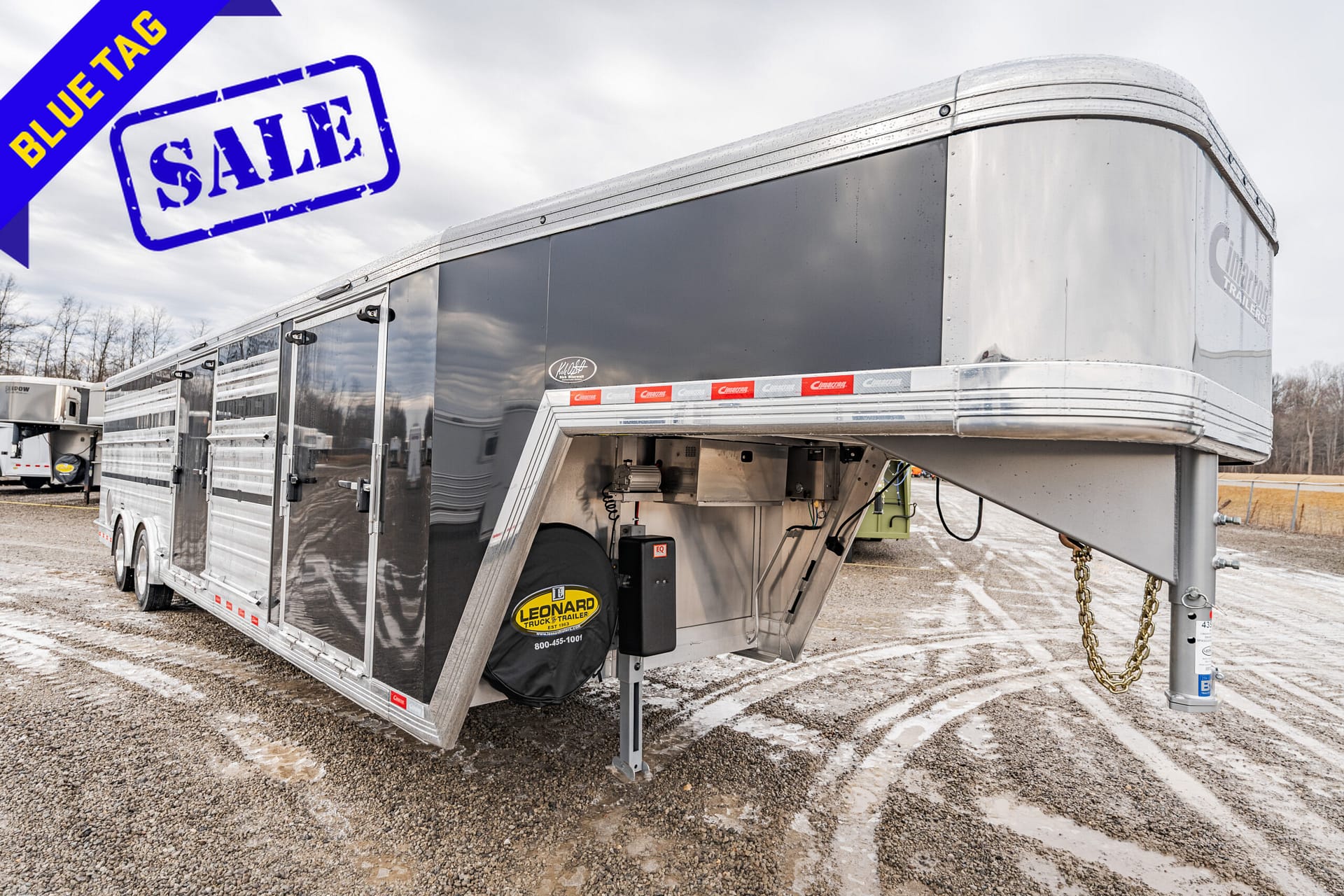

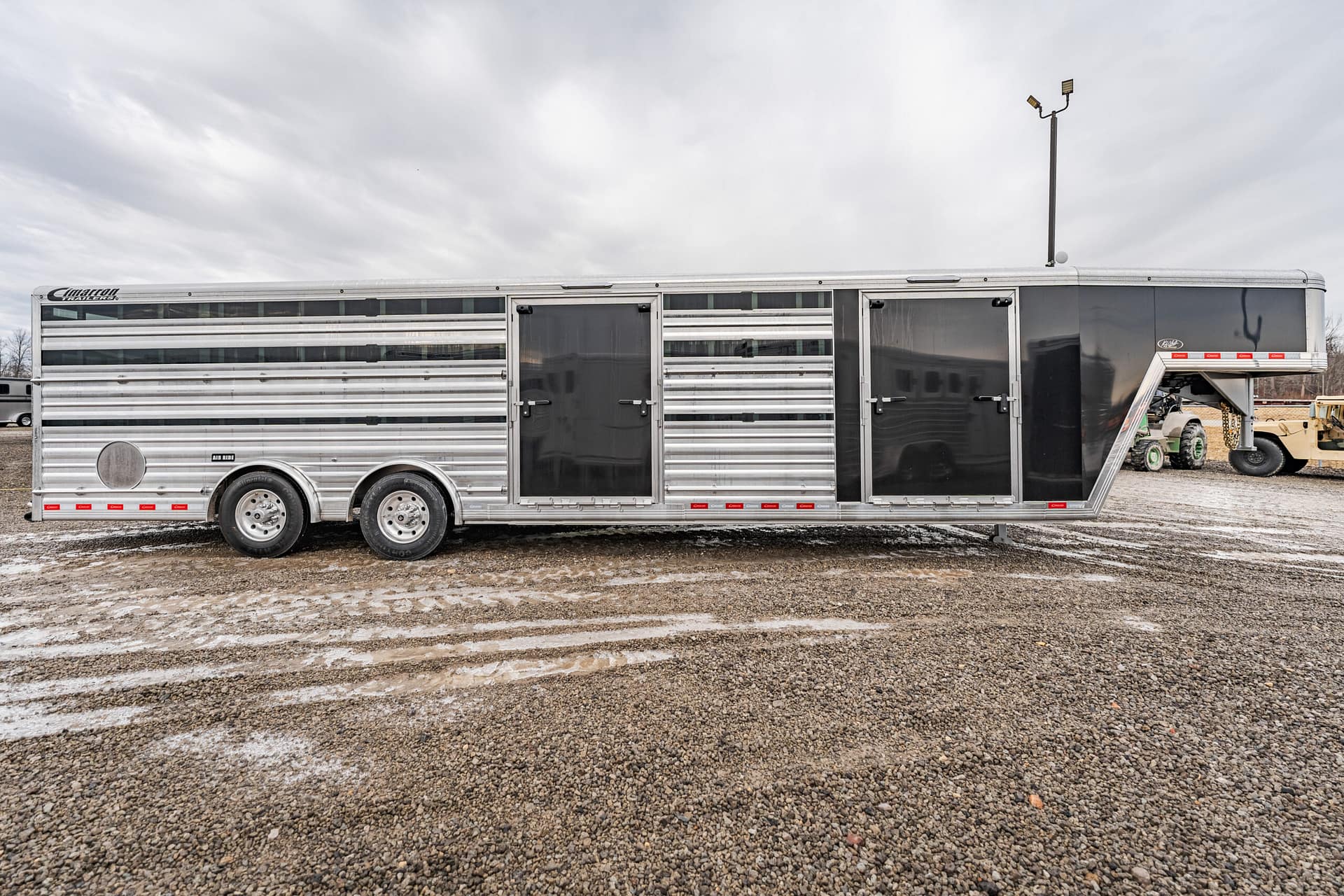

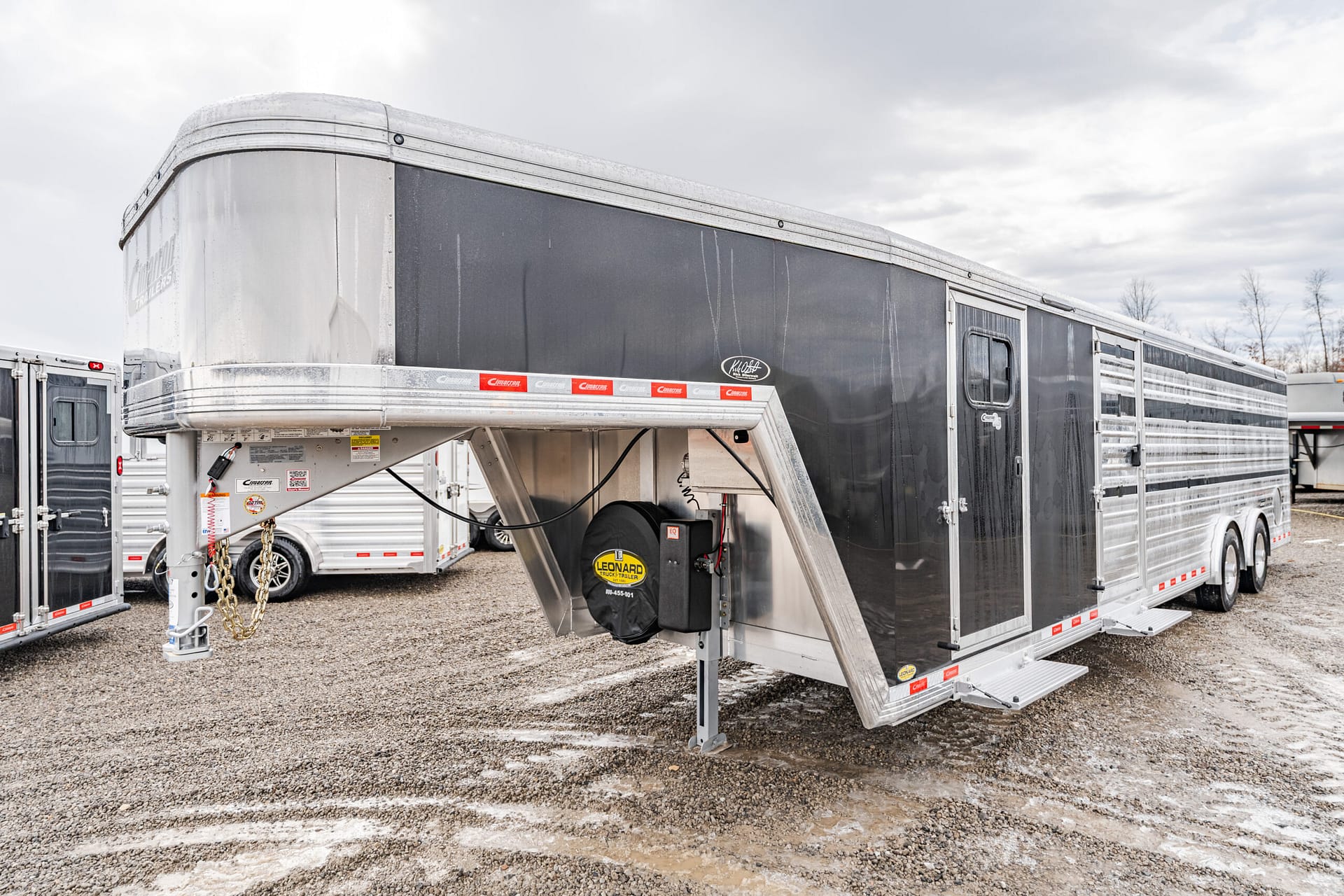

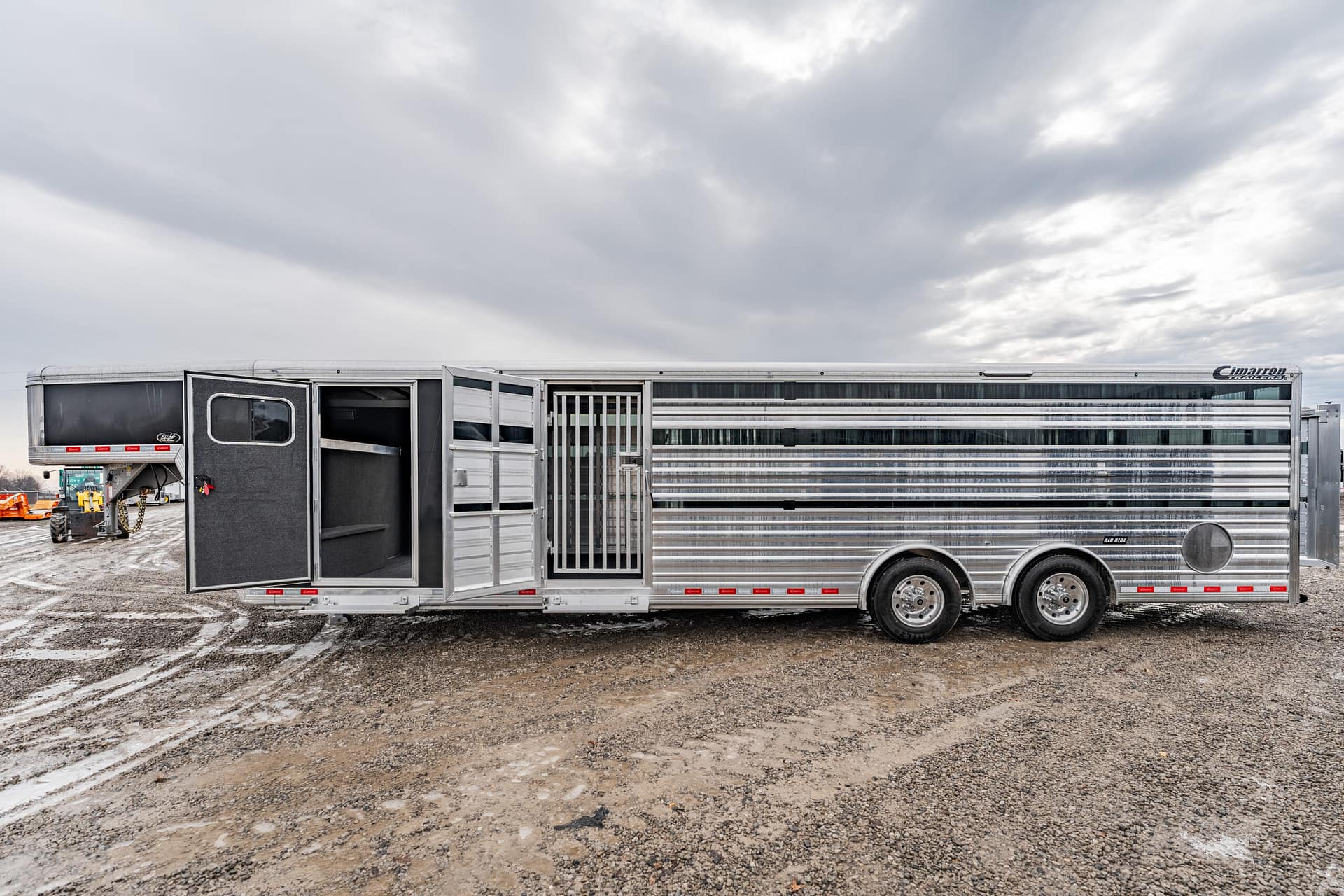

New 2025 Cimarron SW30G SIG Gooseneck Stock Trailer

Cimarron Trailers has teamed up with club calf legend Kirk Stierwalt to design the perfect club calf trailer. The Stierwalt Series trailers have the most useful trailer features for hauling club calves.

Model: SW30G SIG

Warranty:

• 8yr- Structural
• 3yr-Body and Hardware

Overall Equipment

Dimensions:

• Box Length: 30′ – 0″
• Box Width: 8′ – 0″
• Box Height: 6′ – 8″
• Gooseneck (GN) Length: 9′ – 0″
• GN Drop Wall: 50″ (For 4×4 Vehicle)
• GN Structure: Medium Duty

Undercarriage:

• GVWR: 16,000 lbs

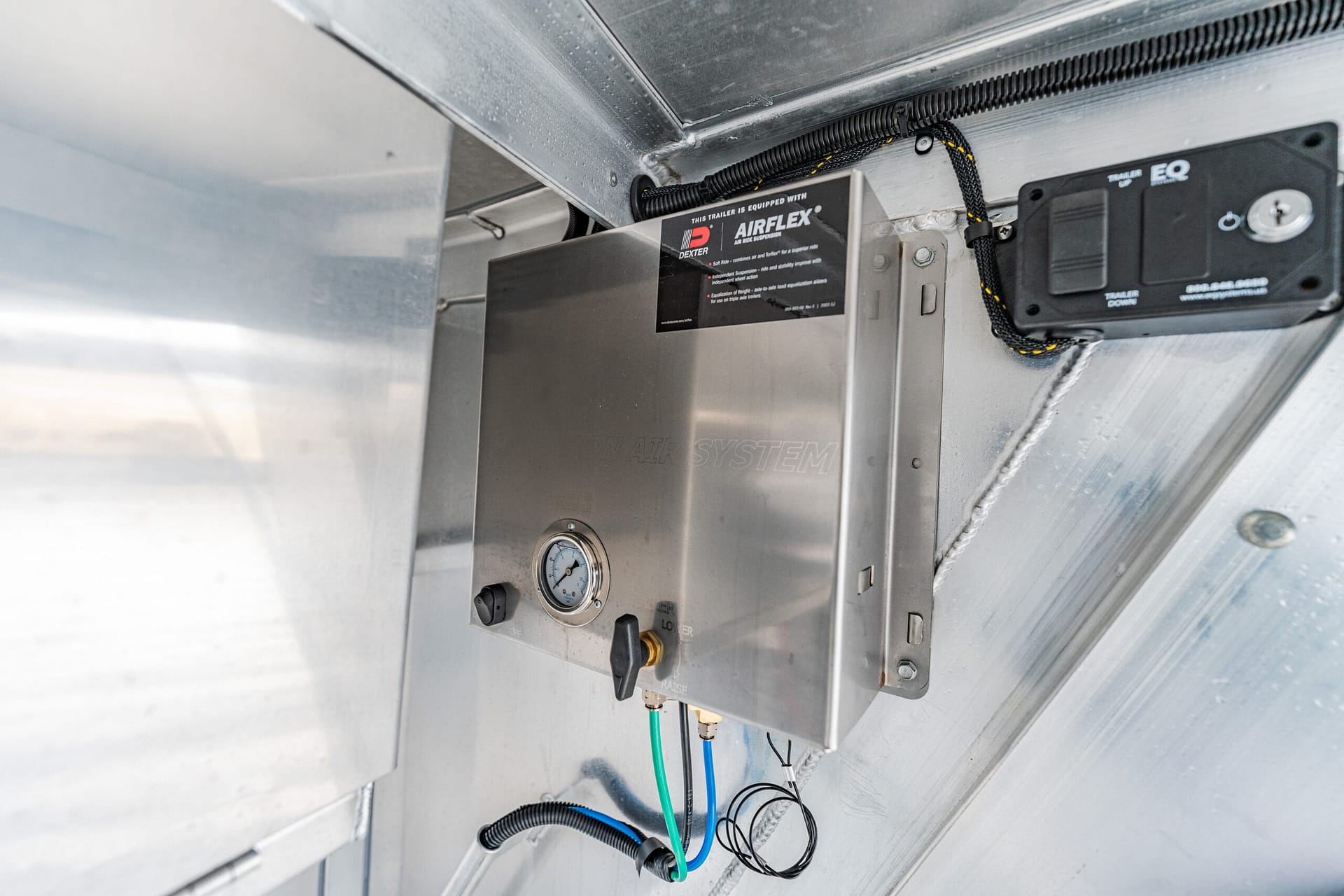

• Axles: 8,000 lb Dexter Airflex Axles (8 Bolt Hubs w/ 5/8″ Studs)
• Axle Articulation: 0 Degree
• Brakes: Electric / Hydraulic Brakes, DISC BRAKES-8K

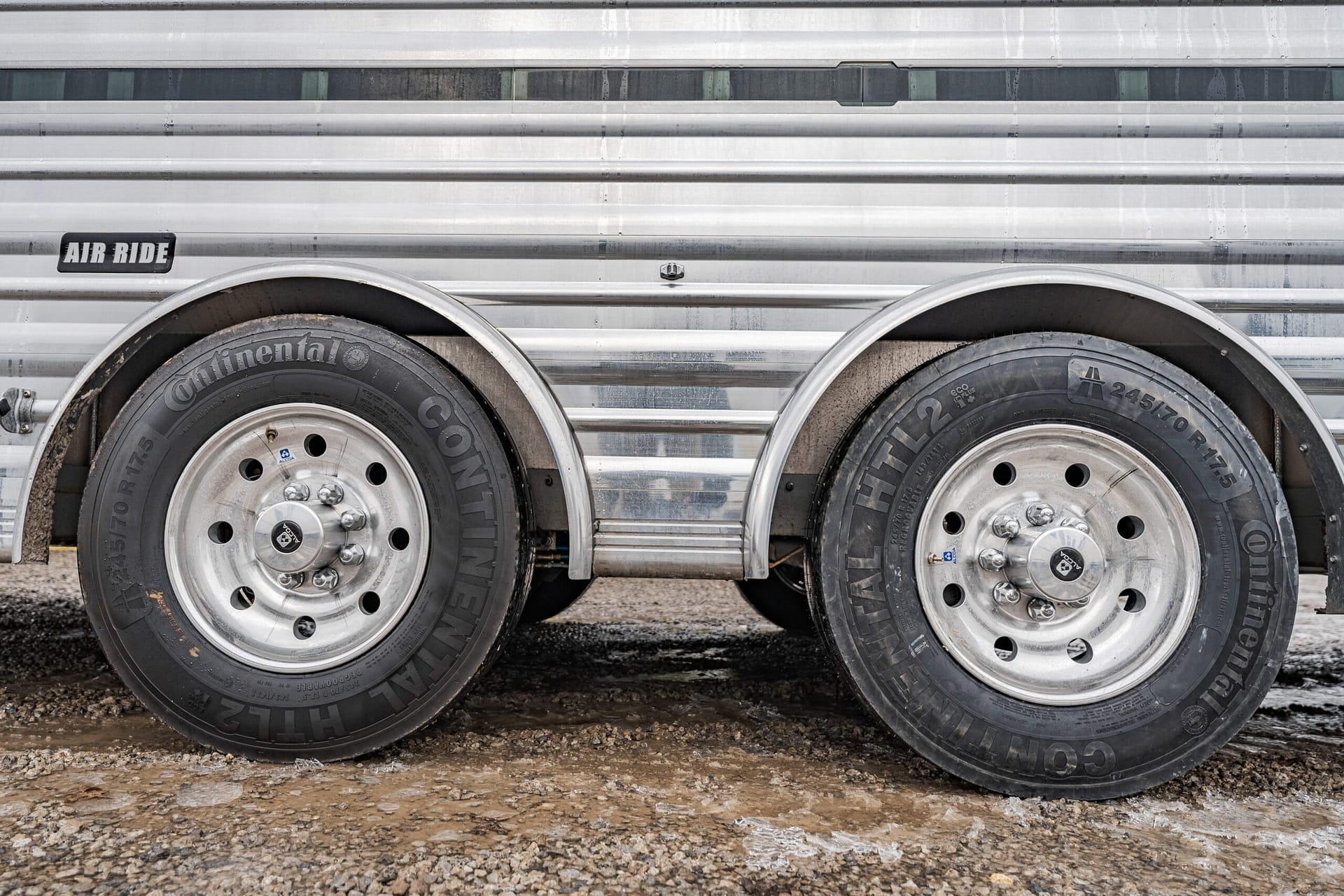

• Tires: Continental 245/70 R17.5″ LR-J (Choose SRW or ALCOA Wheels)
• Wheels: 8-Hole Aluminum ALCOA MOD 17.5″

Trim:

• Fender Edge Molding: NO
• Stone Guards: VYNL
• Lower Body: Rocker Panel, Full Length

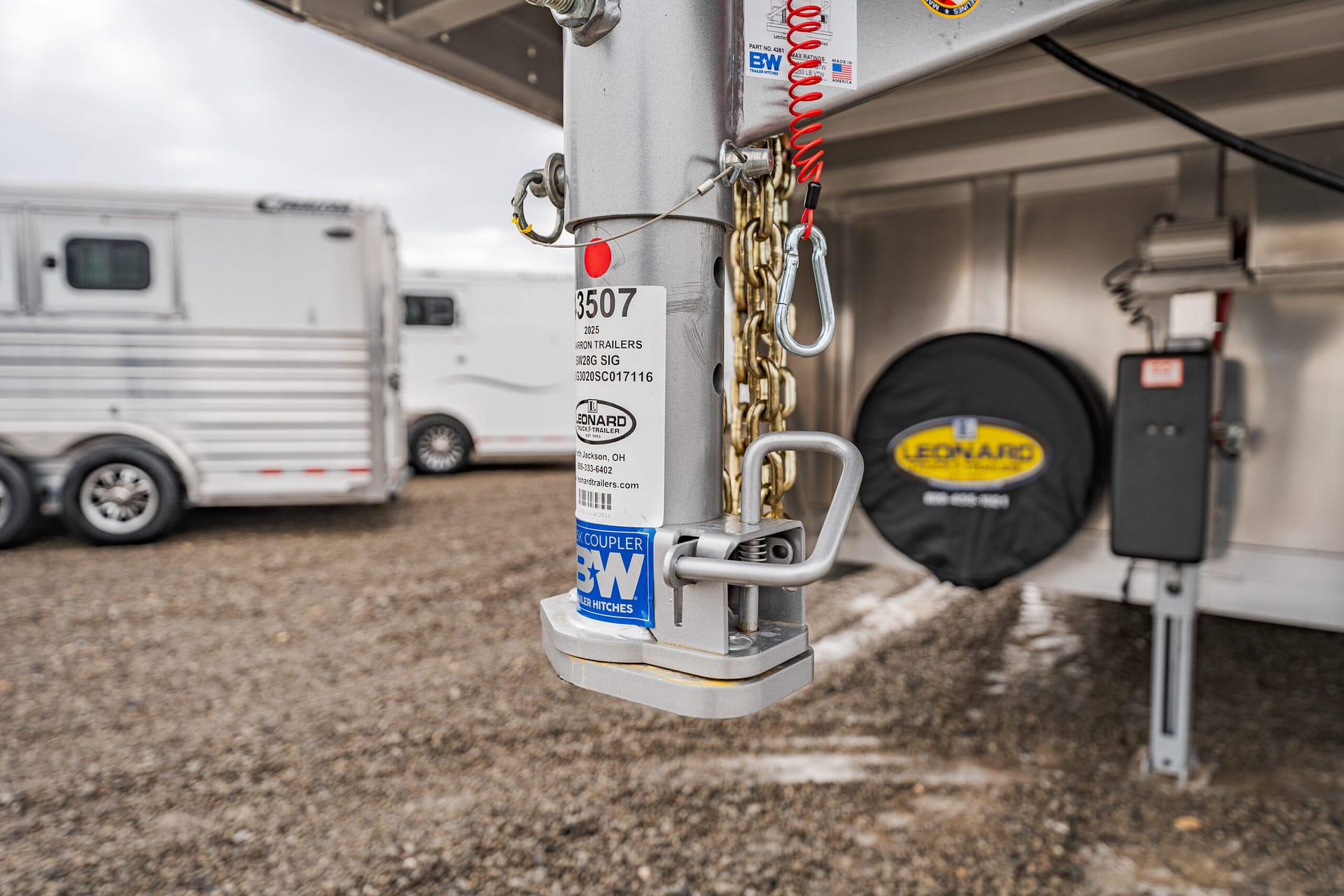

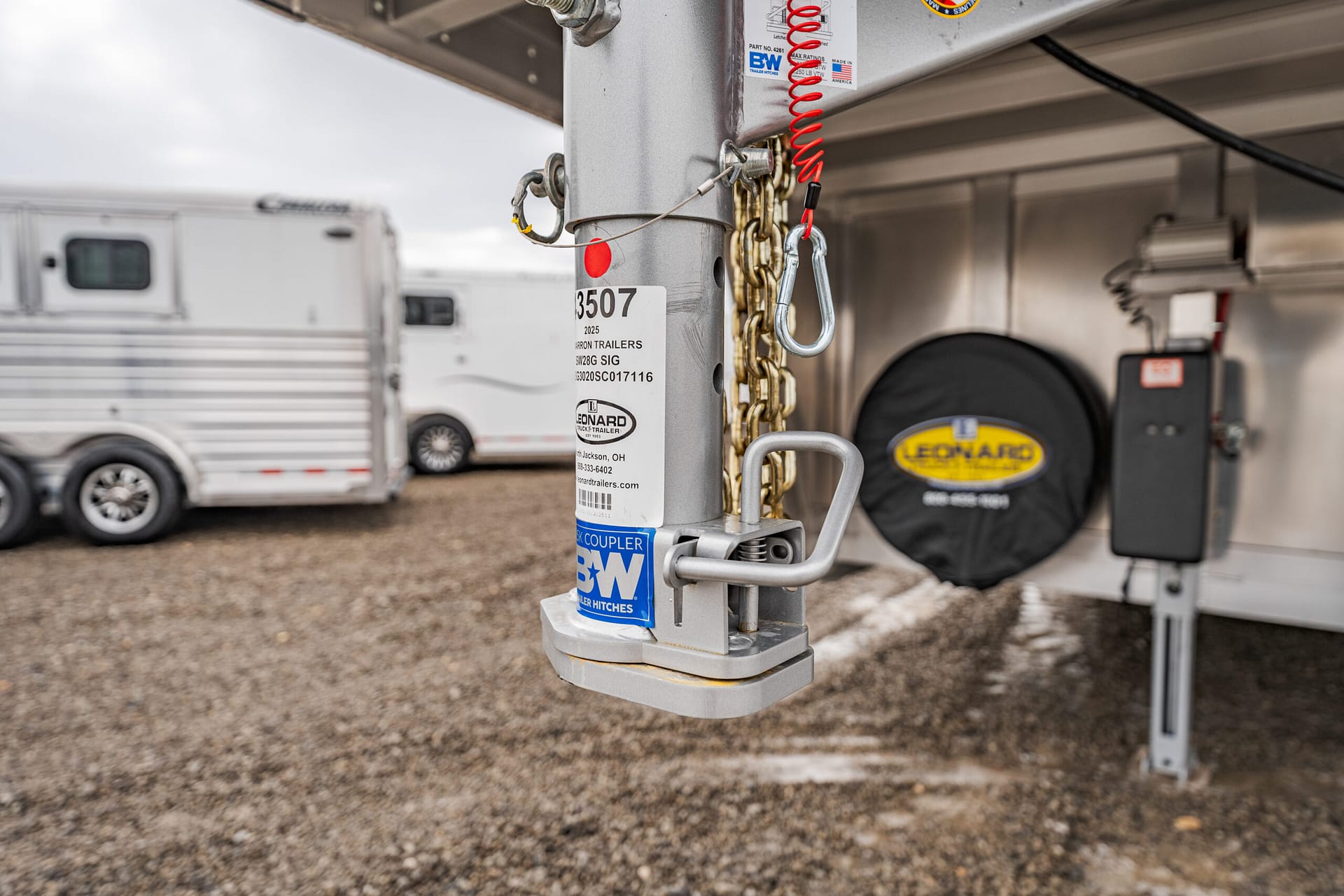

Coupler:

• Type: 2-5/16″ Positive Lock w/ Adjustable Height Stem (GN Standard)

Design:

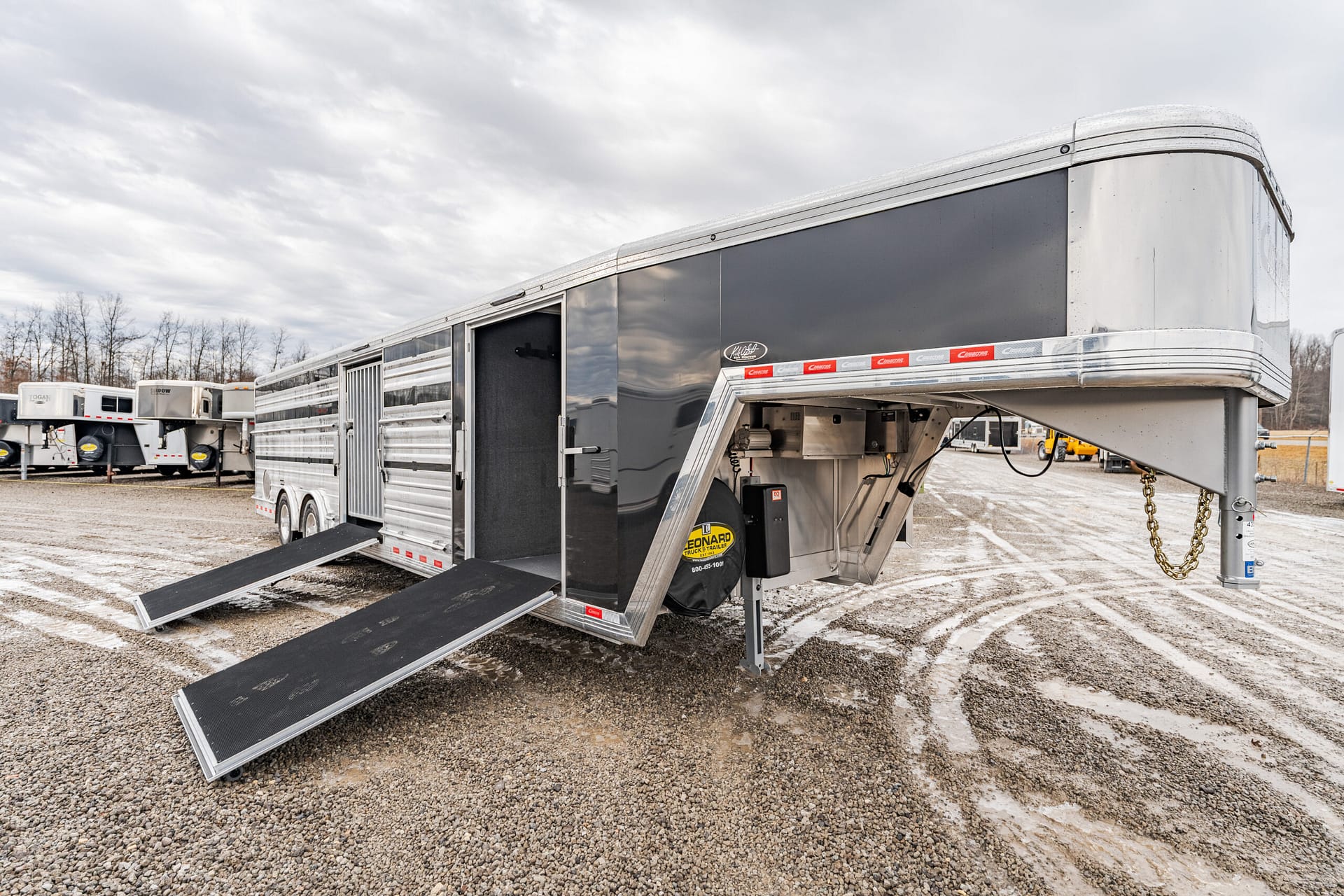

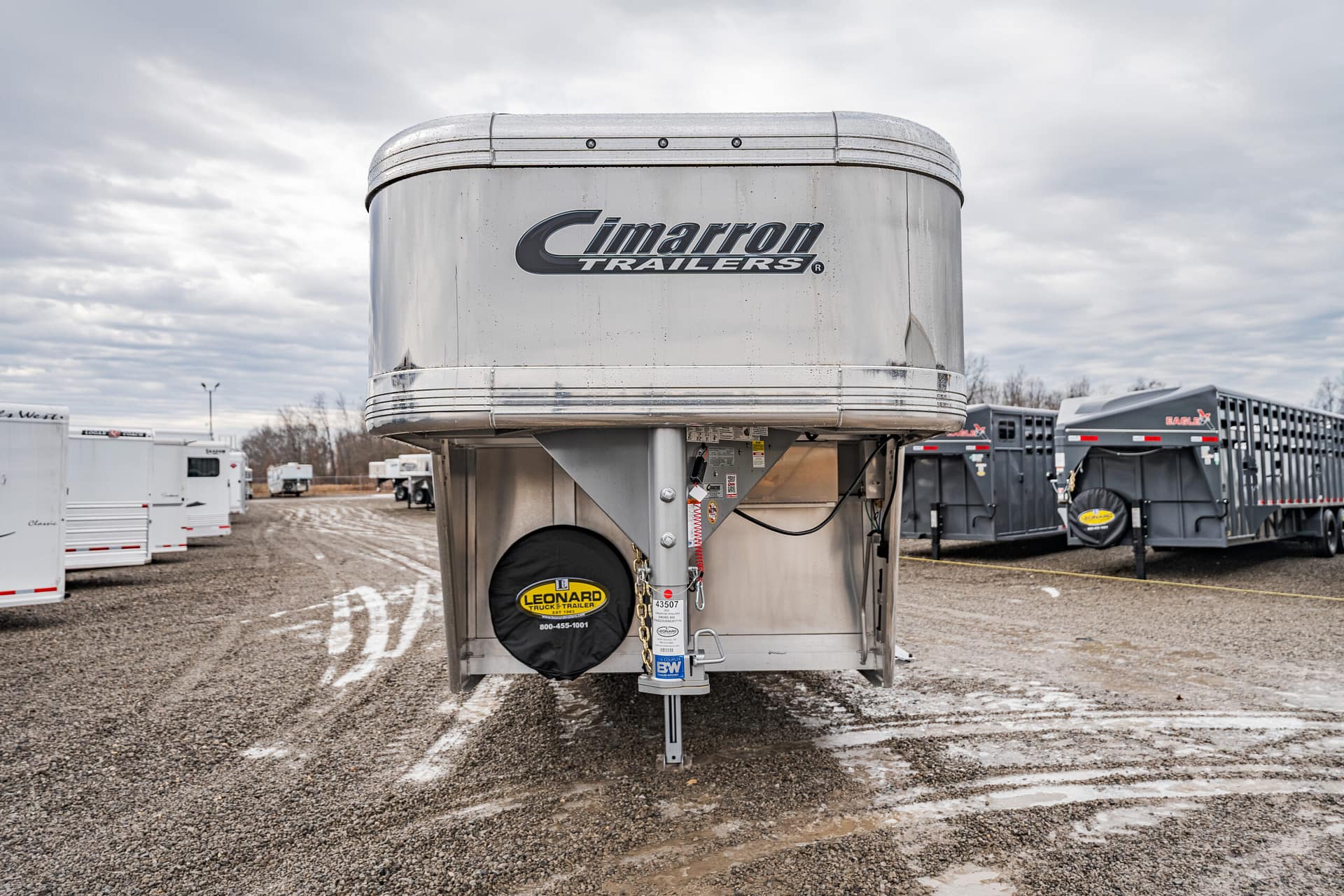

• Nose Profile: Tapered Sides with 18″ Radius Corners
• Nose Style: Wrap Around
• Nose Sheet: Polished Stainless Steel
• Other Options: Extend GN 10″, No Door or Enclosure

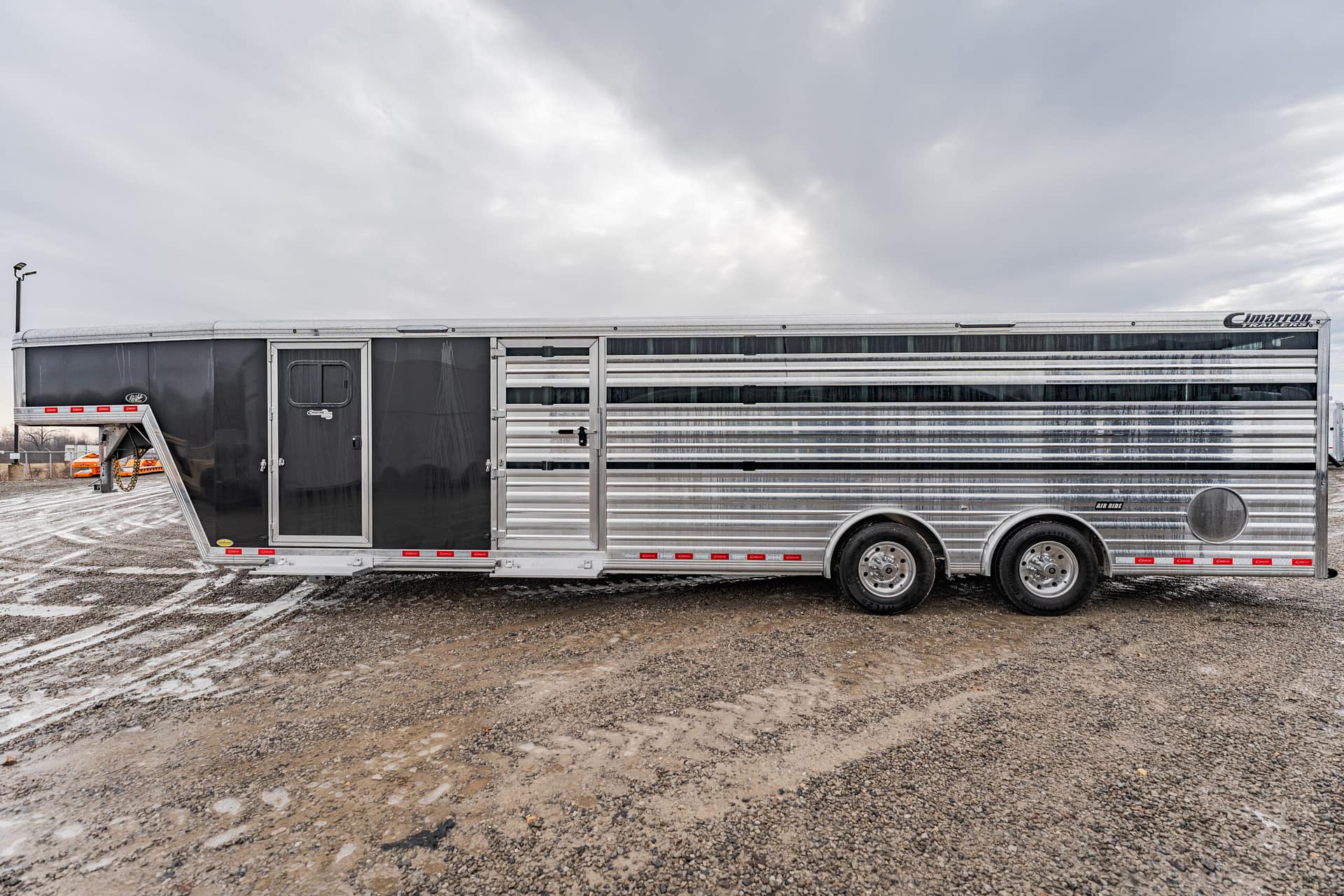

• Side Walls: Extruded Side Slat with 3 Air Gaps, Plexiglass Insert & Tray
• Sheet Color: Black, Exterior Extrusions Polished
• Fenders: Single-Spread-2, Overall Width 102″ O.A.W.
• Roof Material: Insulated Roof Panel

Flooring:

• Flooring Type: Extruded Aluminum with Cross Members @ 4″ C/C
• Bottom Rail: HD-Bottom Rail

Hardware:

• Hold Backs: All Doors & Gates
• Roof Mount Parts: (Not Specified)
• Ladder Type: (Not Specified)
• Tie Rings:
  • Interior: Not Specified
  • Exterior: Not Specified

Jack & Parking Type:

• Type: Single Electric / Hydraulic with 12V Battery & Compartment

Exterior Lights:

• Back-Up LED Lights: YES, Built into Tail Lights
• Tail Lights: LED with Red Lens (Qty: 4)
• Marker Lights: LED Button Type (Qty per side on top rail: 9)
• Flood Lights: LED Awning Light 16″
  • Right-Hand (RH): 2
  • Left-Hand (LH): 2
• Other Lights: Not Specified
• Side Turn Signals: NO

Walls:

• Front Tack Room: Solid Partition Wall, Full Height & Width (Straight Wall)
• Rear Tack Room: Arrangement Not Specified
• Mid Tack Room: Not Specified
• Closet Tack Room: Not Specified

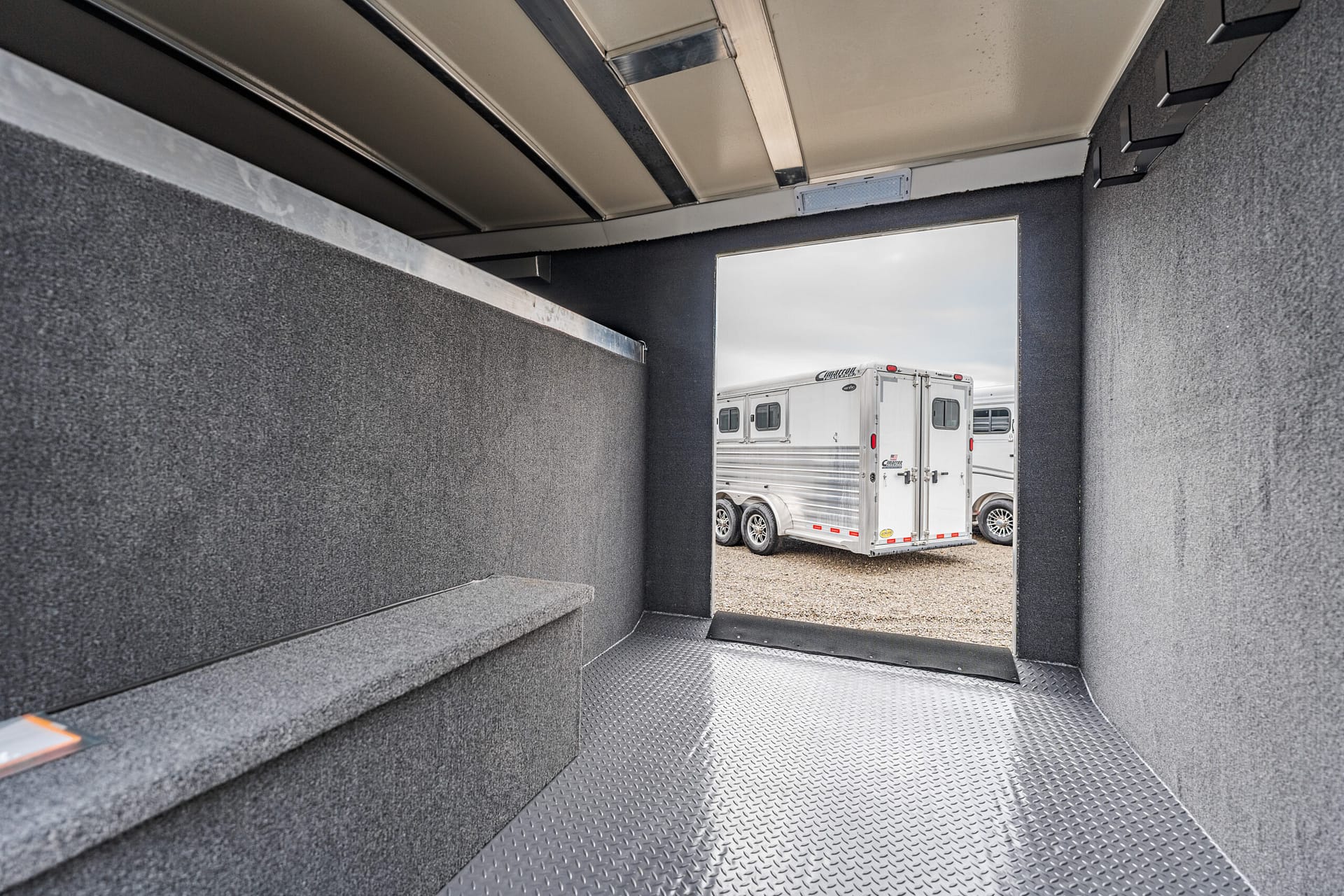

Front Tack Room Equipment

• Size:
  • Left-Hand Length: 6′ – 0″
  • Right-Hand Length: 6′ – 0″
  • Width: 8′ – 0″

Doors:

• Primary: 32″ Wide, Standard Height
• Secondary: Ramp – Full Height, Up to 48″ Wide, with Black Latches

Flooring:

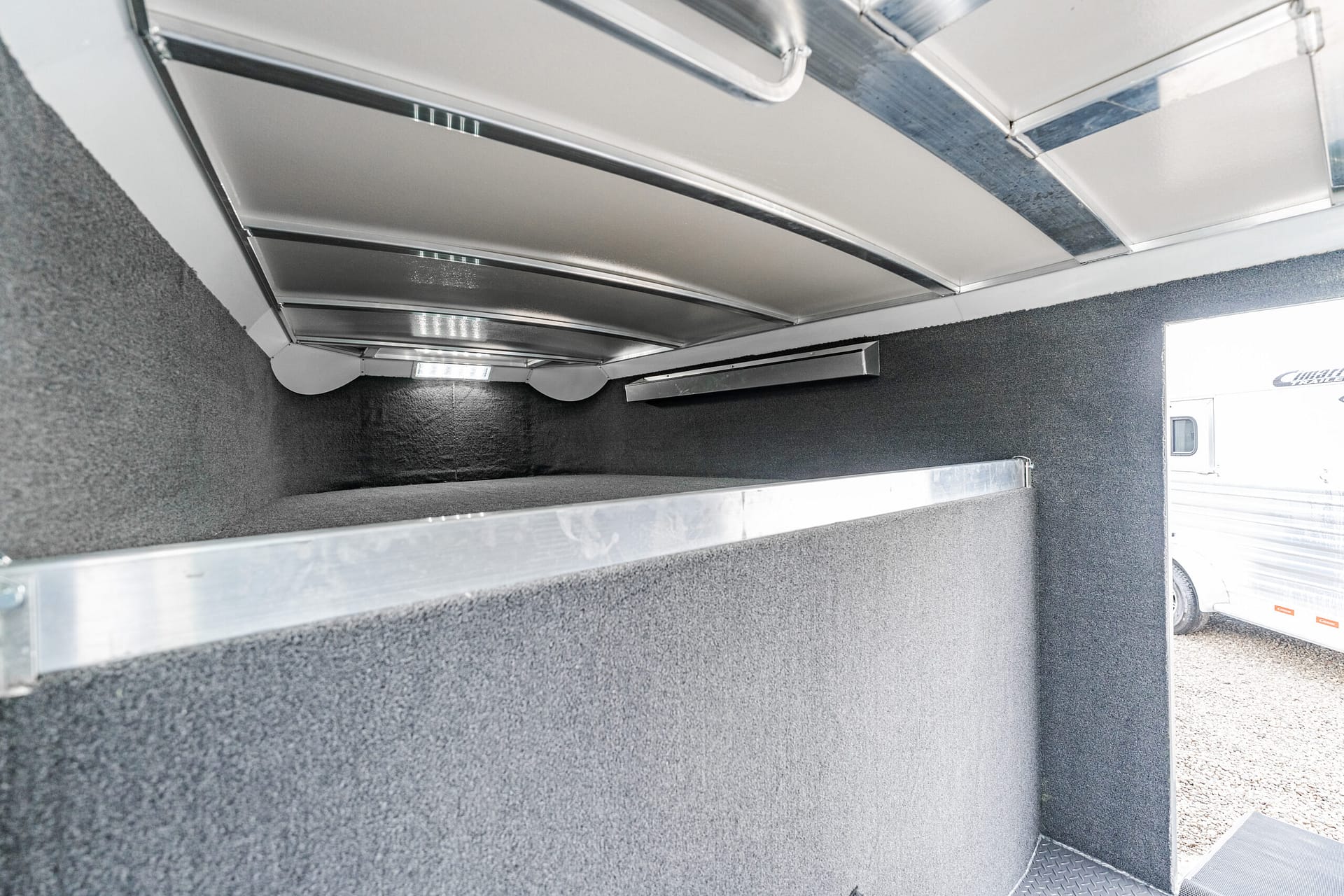

• Carpet/Floor Mat: Grey Rubber Tread Flooring, Carpet on GN Wall & Deck

Living Quarter Prep:

• A/C Frame: Not Specified
• Side Wall Vent Frames: Not Specified
• Hold Tank Frames: Not Specified
• LP Brackets: Not Specified
• Battery Compartment: Triple RV Battery Box Under GN, Wired Hot (with Electric Jack)
• Generator Equipment: Not Specified
• Glide Outs: Not Specified

Windows:

• Sliding Type:
  • Size: 15″ x 22″
  • Left Corner (LC) Qty: 1
  • Right Corner (RC) Qty: 1
• Awning Type: Not Specified

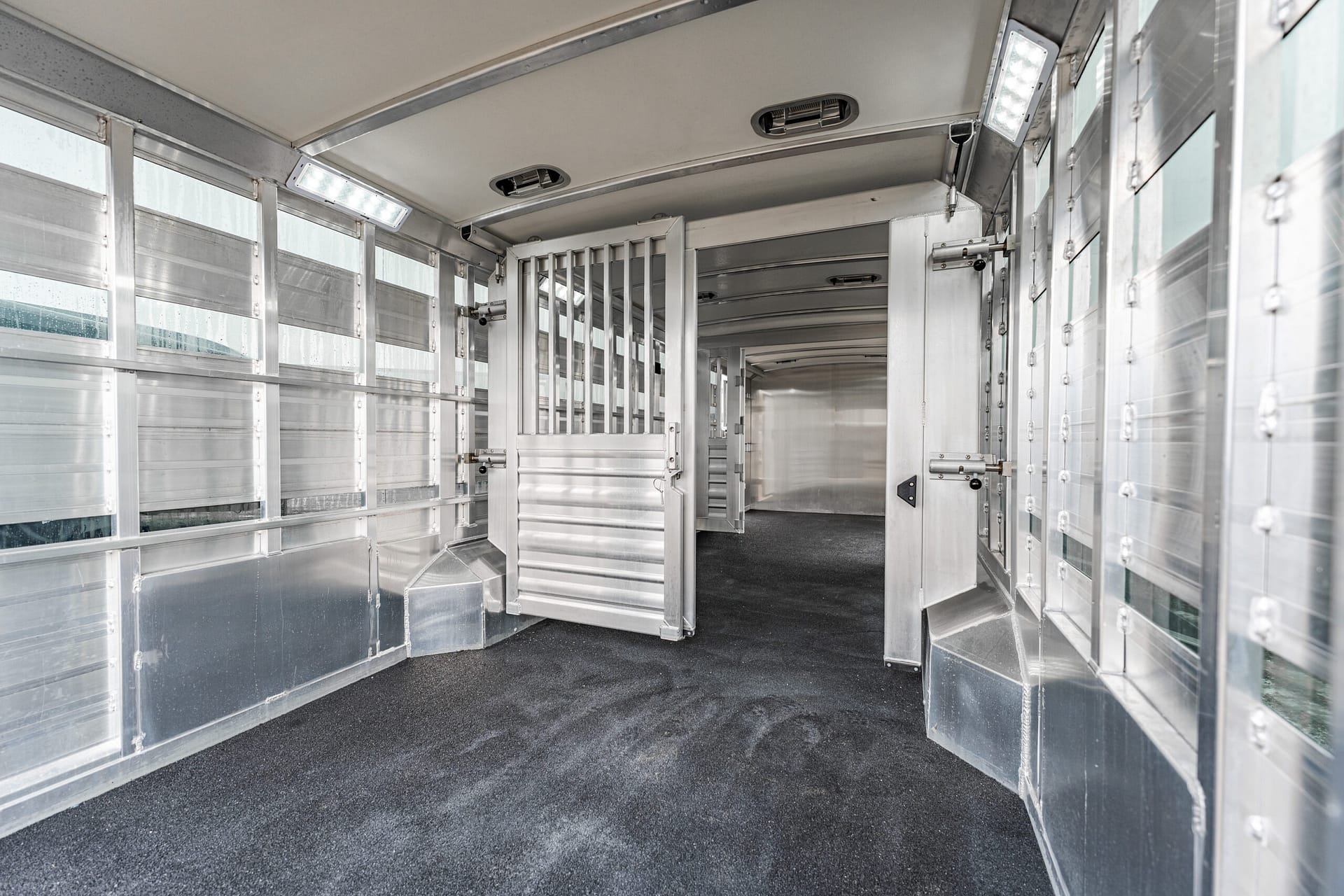

Stall Area / Load Space Equipment

Size:

• Length (LH): 24′ – 0″
• Length (RH): 24′ – 0″
• Width: 8′ – 0″

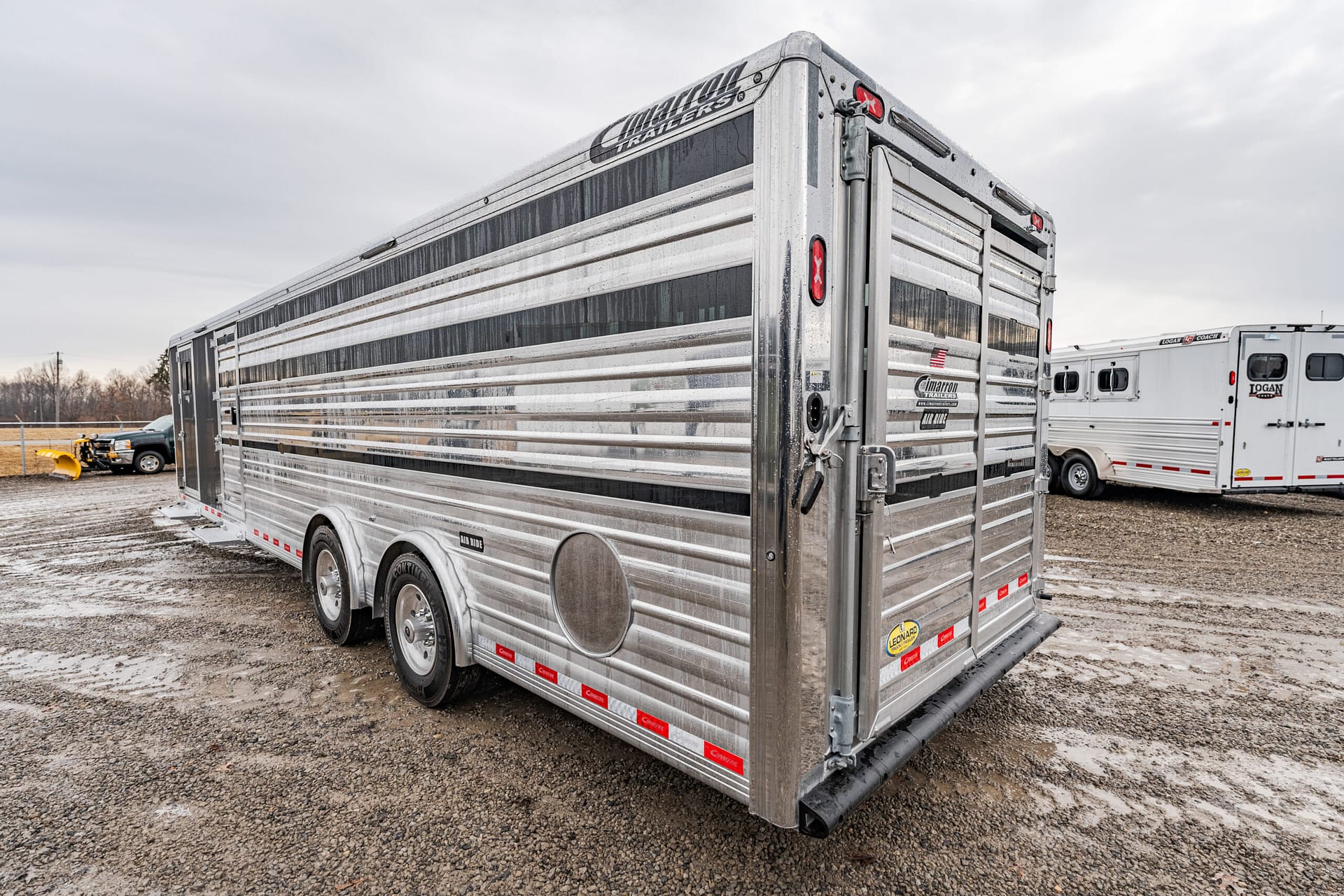

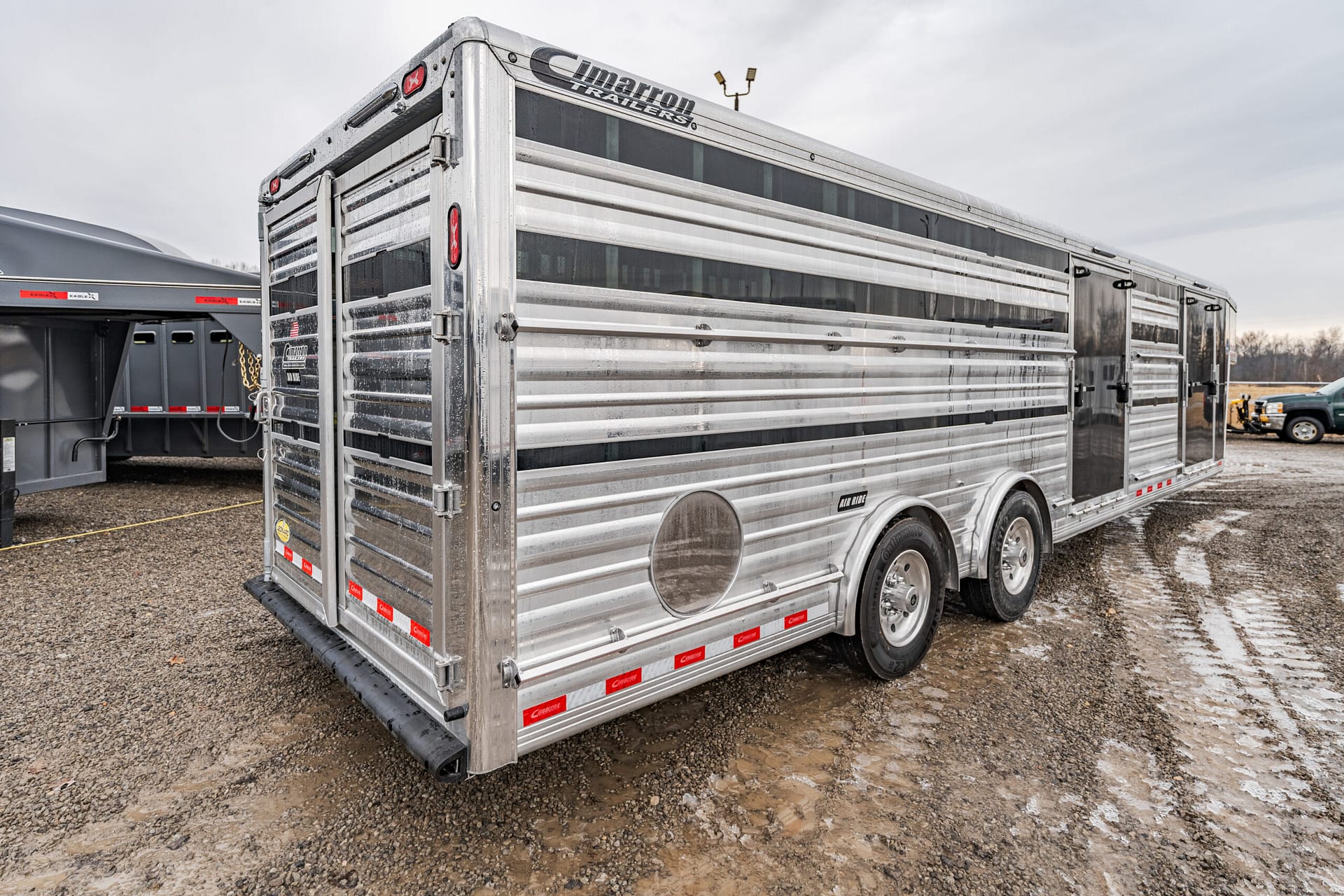

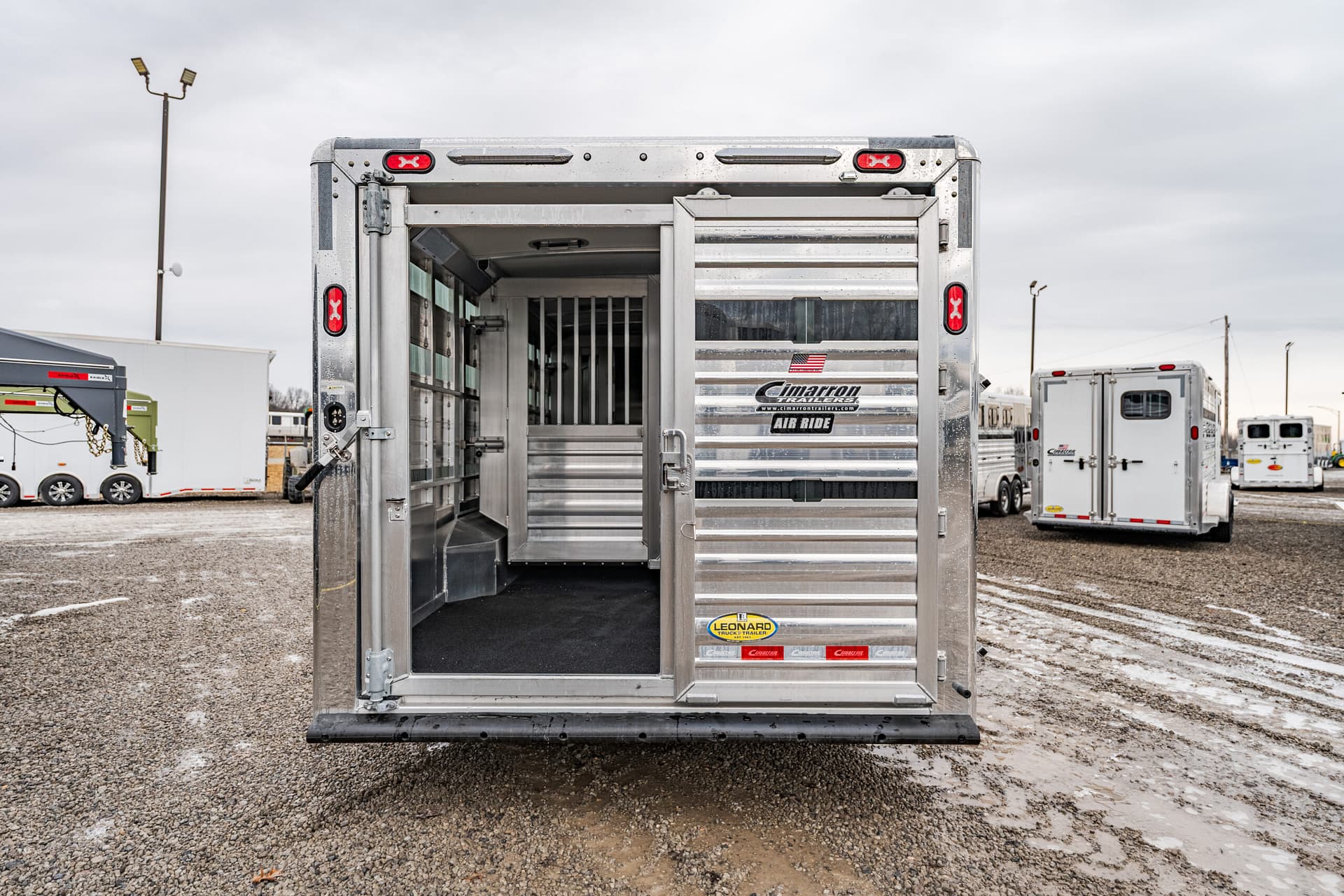

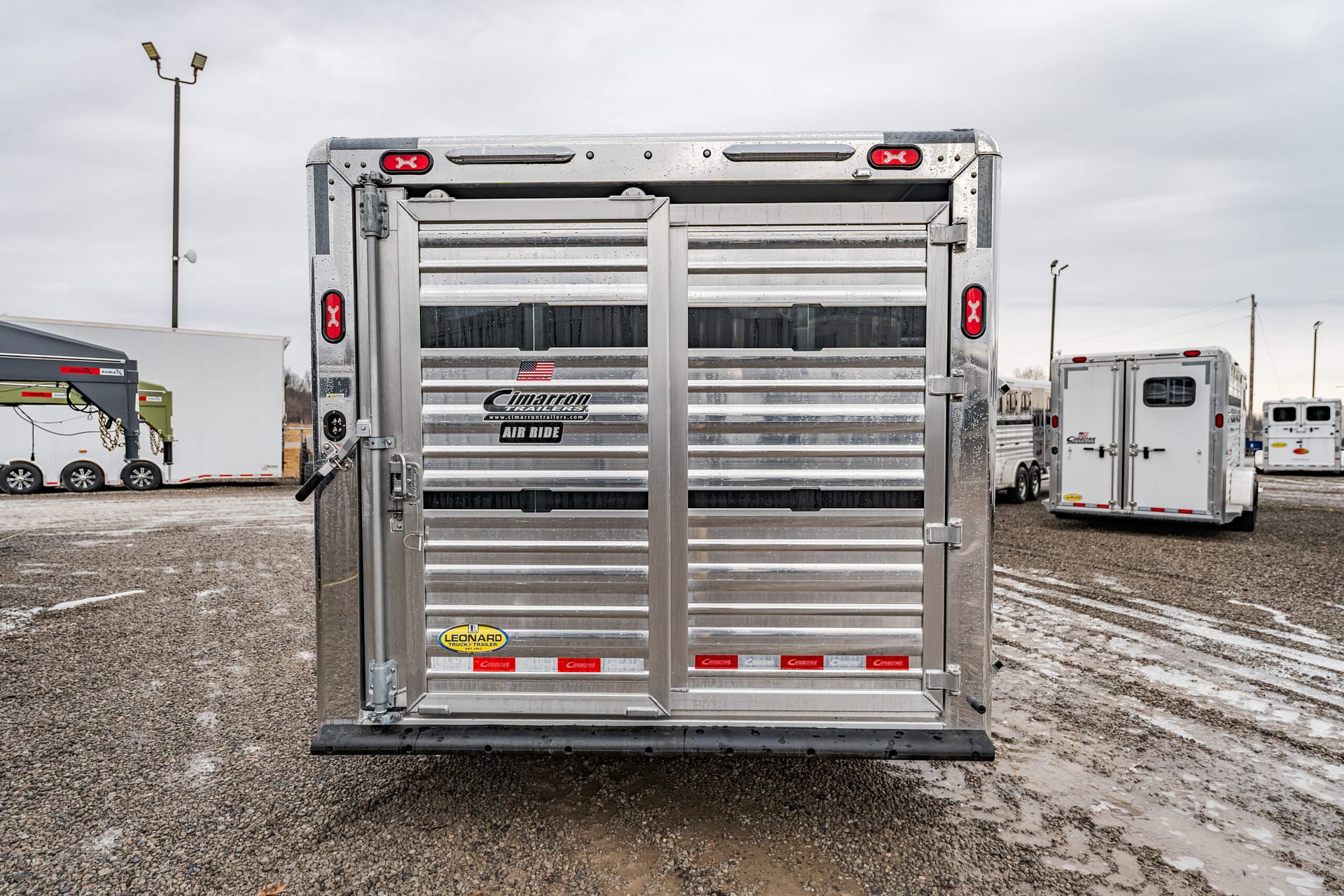

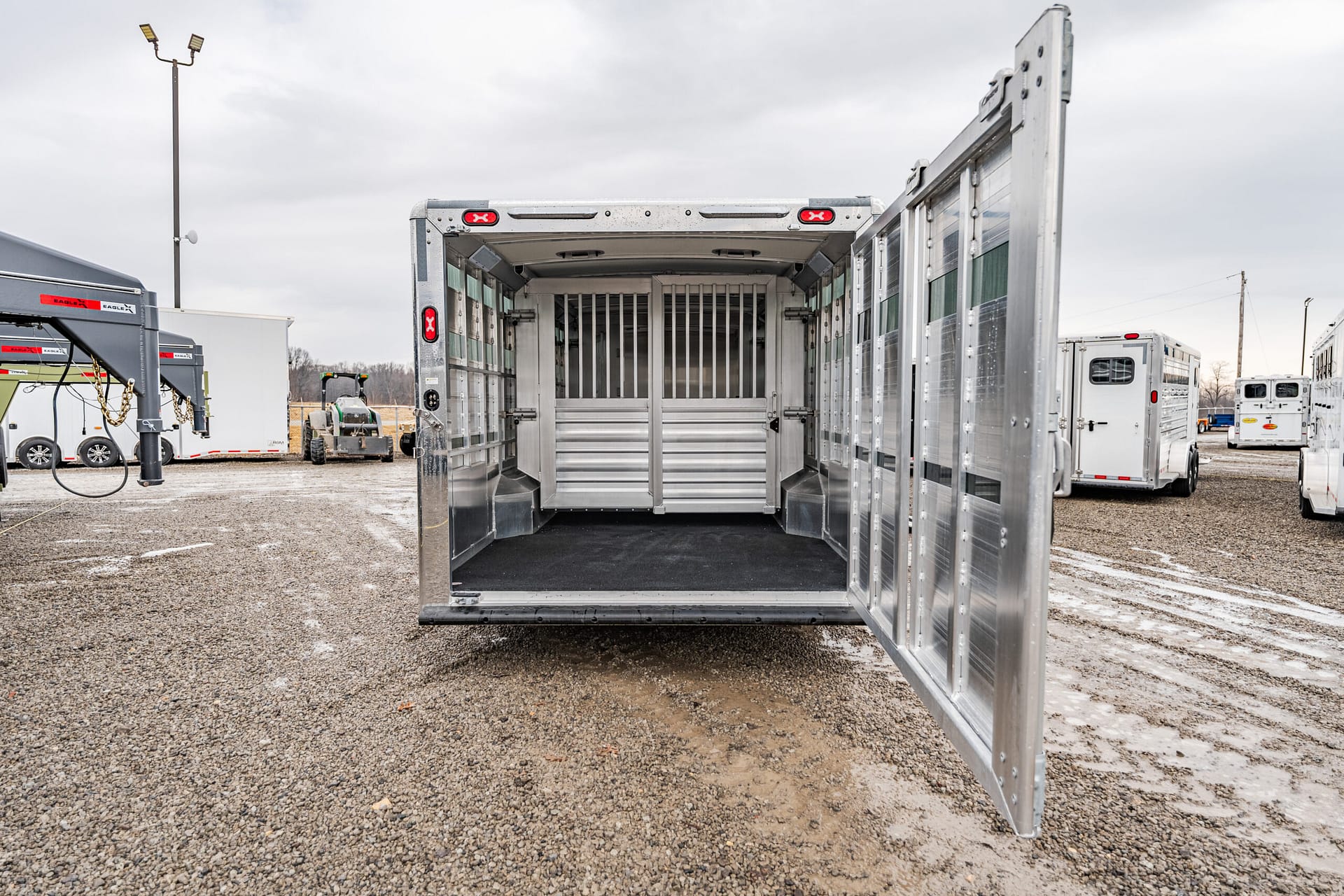

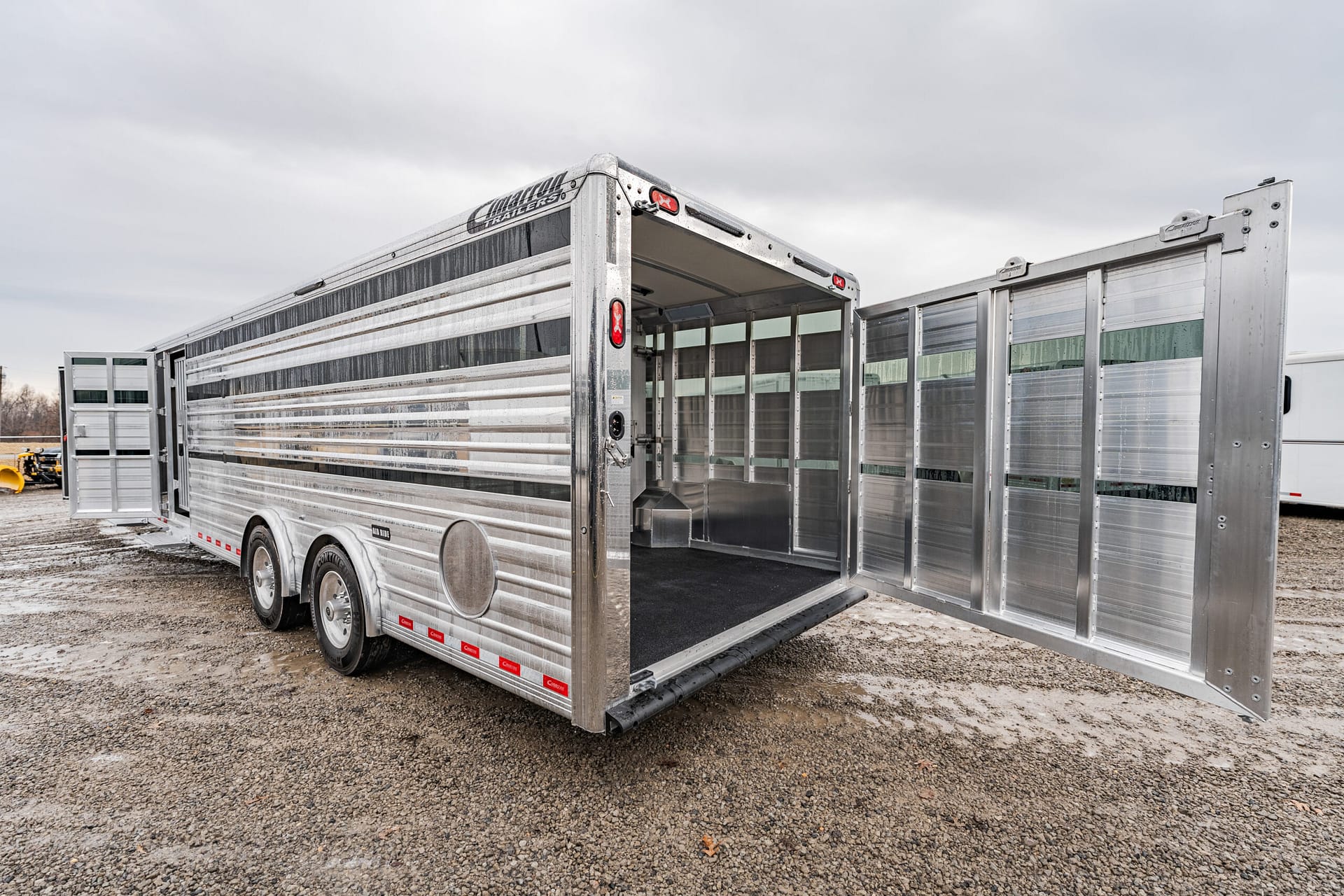

Rear Opening:

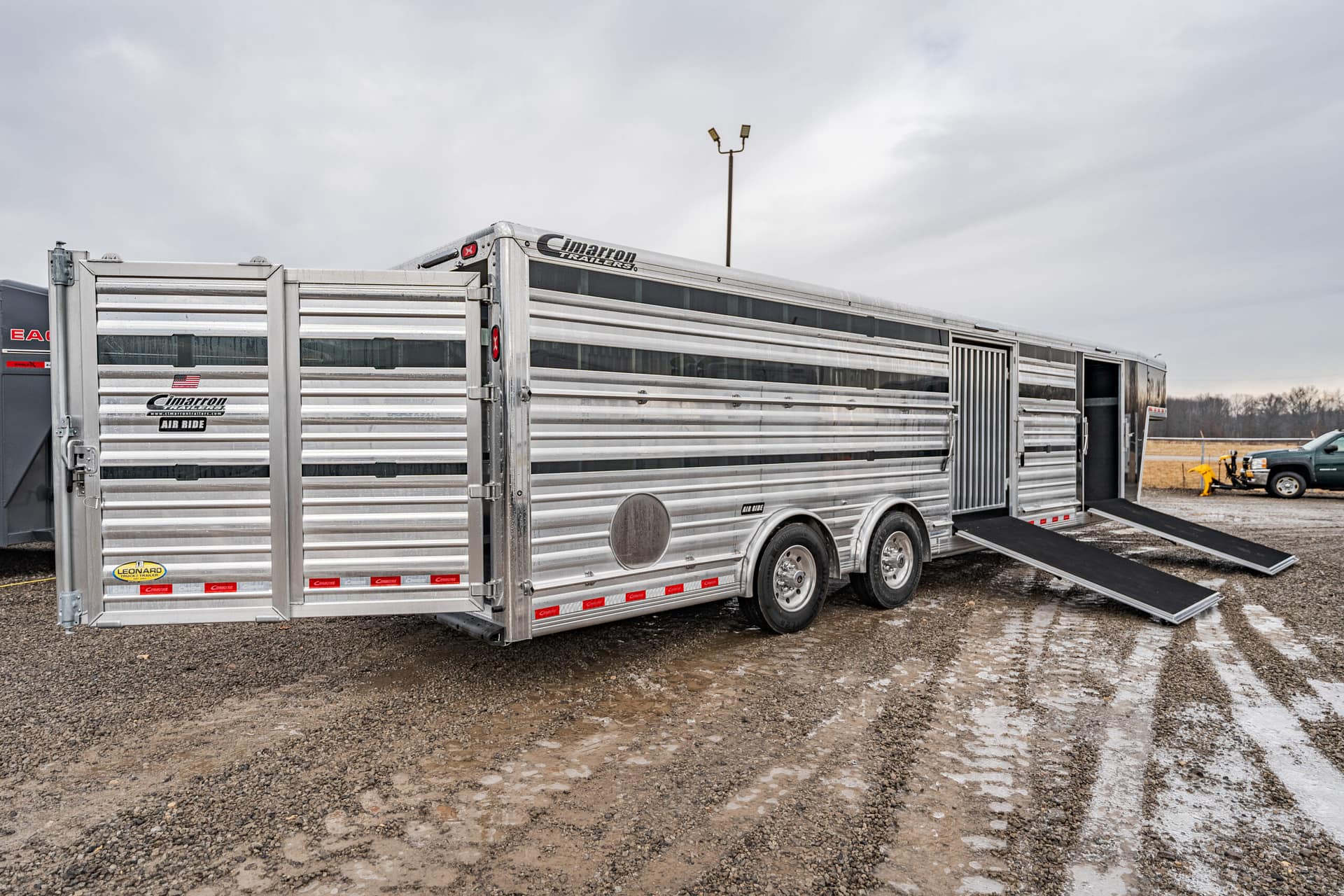

• Type: Gate – Swing Type with Sliding Gate
• Latch Type: HD-Steel Cam Lock

Doors:

• Access Doors: Not specified
• Feed Doors: Not specified

Windows:

• Sliding Type: Not specified

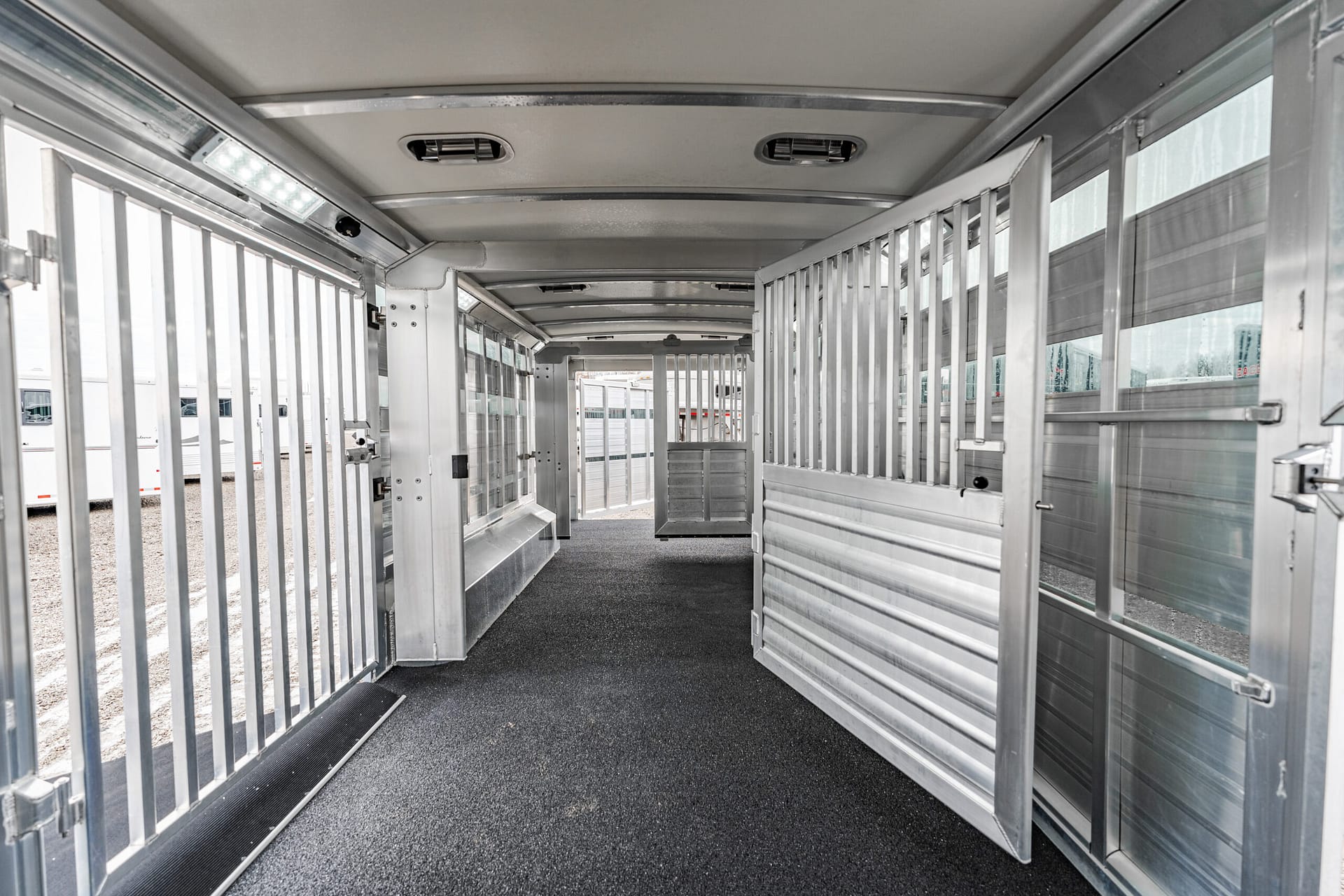

Gates:

• Access: 34″ Sealed Access Gate with Black Latch (LH Location)
• GN Nose: 4″ Tall Removable Tube @ GN Wall
• Center: Not specified
• Traveling: Frame with 48″ Swing Gate (Bar Top Half – No Threshold)
• Track Length: 7.8′

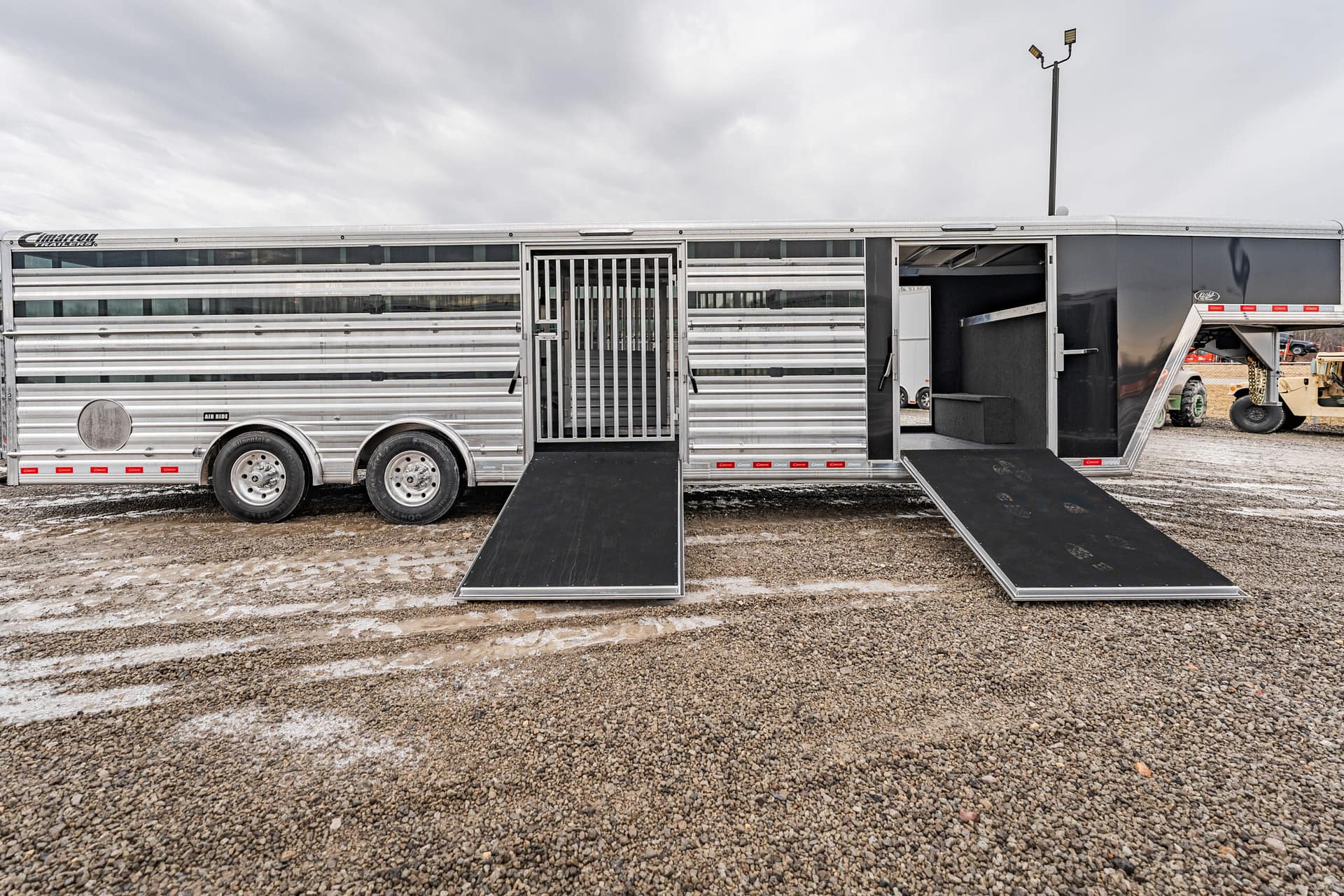

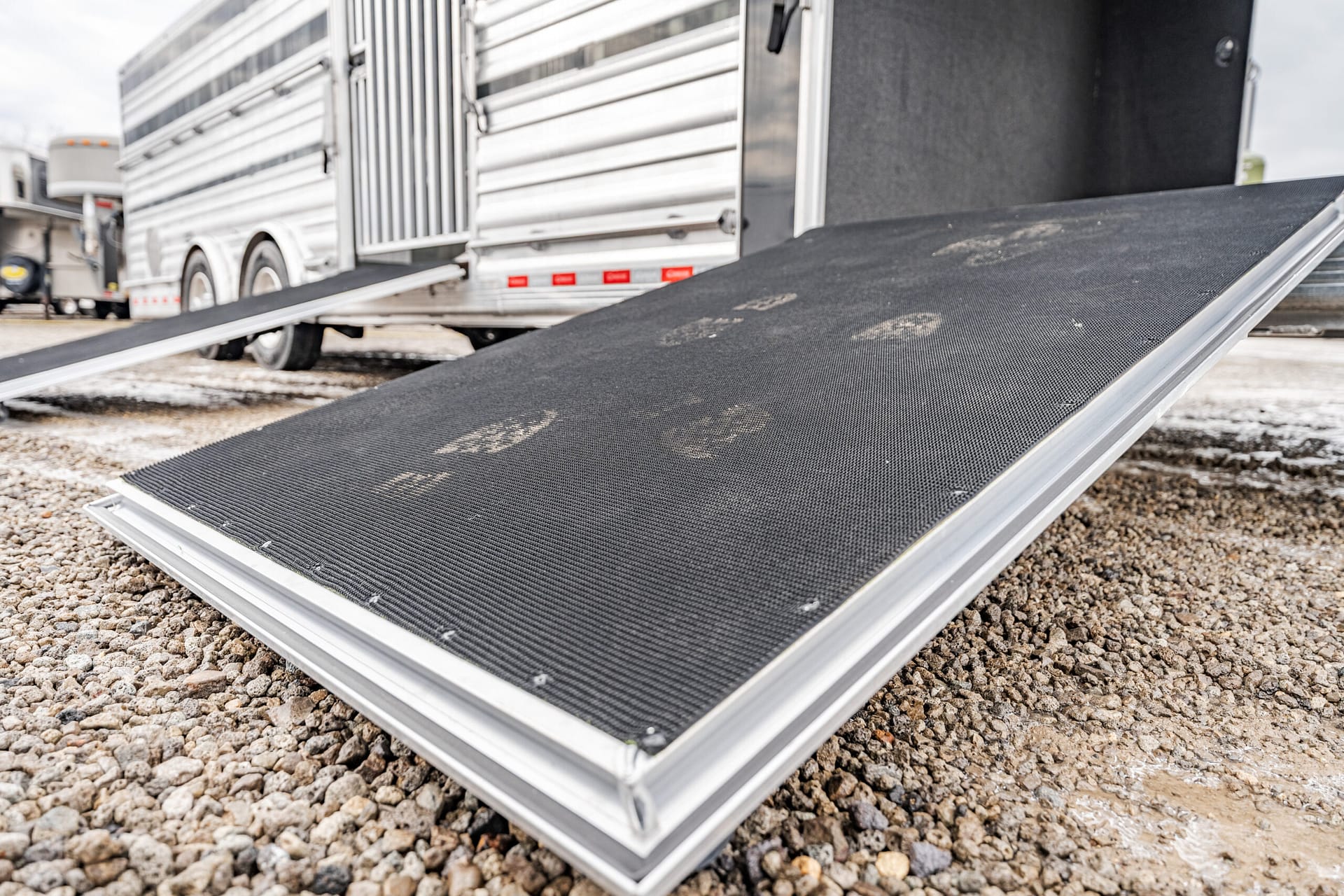

Ramps:

• Rear: Not specified

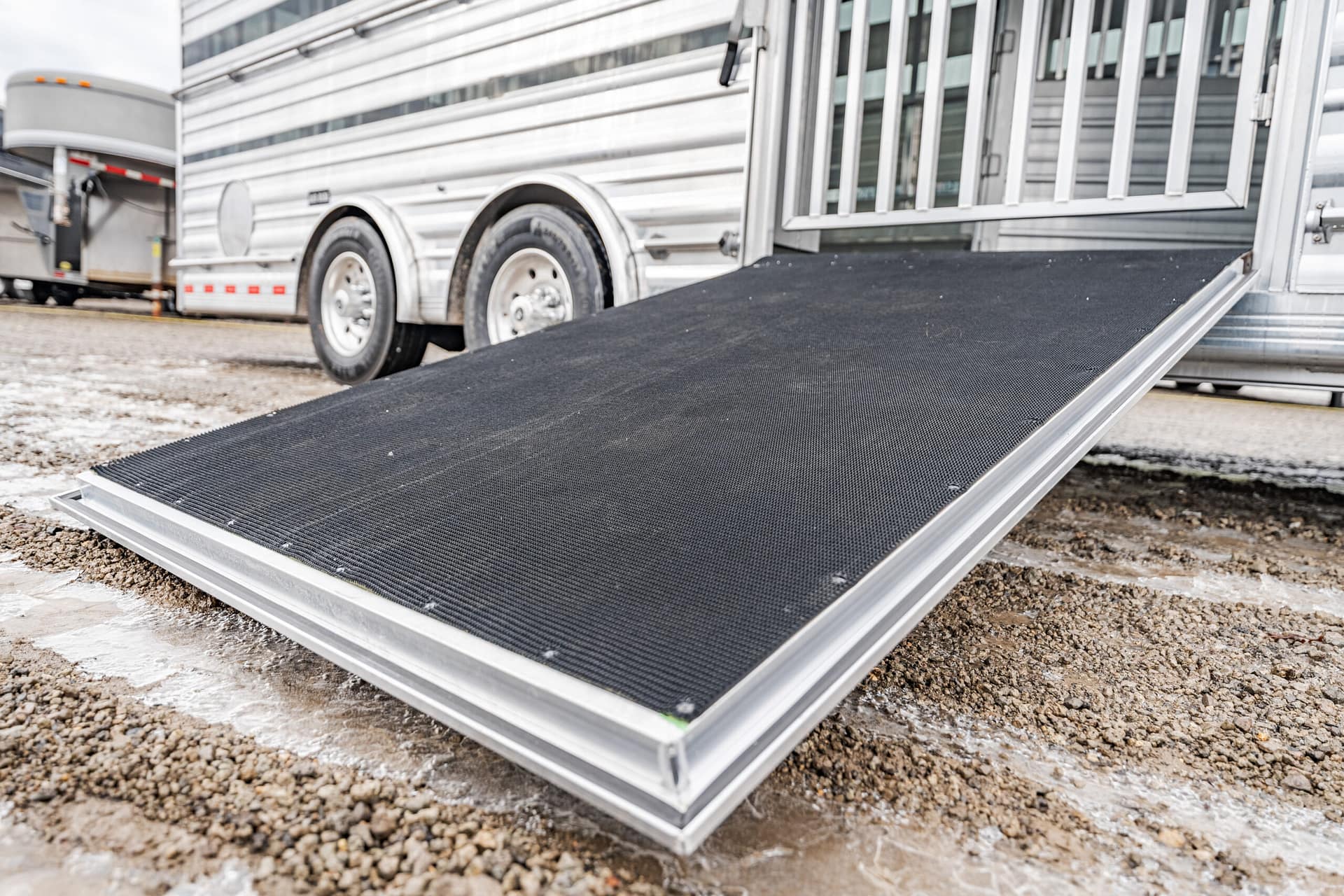

• Side: Full Height up to 48″ Wide, Sealed with Black Latches

Pen Management System

• Total Pens: Not specified
• Pen Arrangement: Not specified
• Width (LH): 5′ – 0″
• Width (RH): 3′ – 0″
• Lengths: Infinity
• Panel Mounting Height: Not specified
• Removable Posts: Not specified
• Feeder Rods per Pen (LH): Not specified
• Feeder Rods per Pen (RH): Not specified
• Extra Panels: Not specified
• Drop-Down Sliding Windows with Fold-Down Bars (18″ x 37″): Not specified
• Head Padding: Not specified
• Fold-Down Slat (Per Every 48″): Not specified

Flooring & Lining

• Kick Mat: Not specified

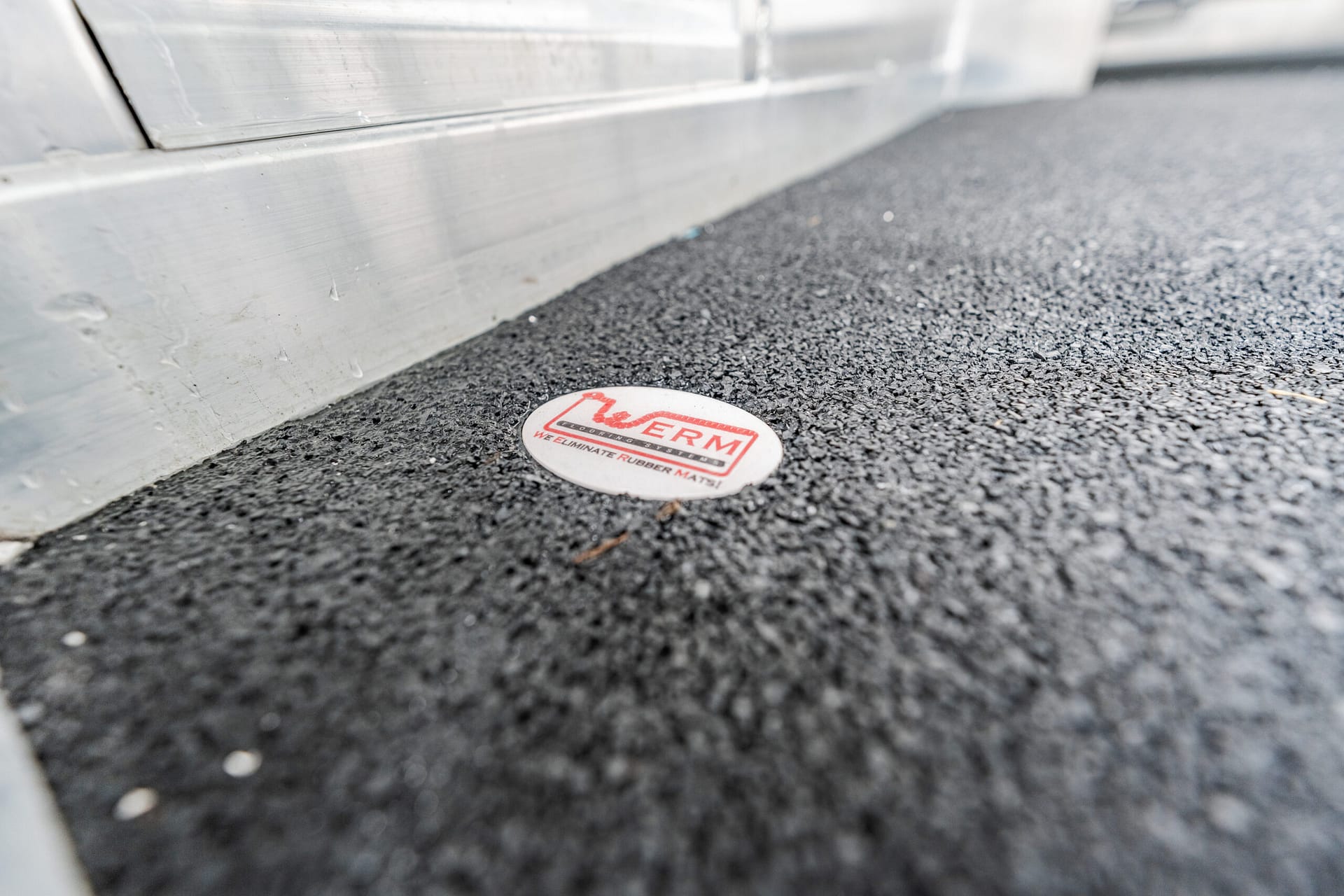

• Floor Mat: WERM Flooring – Black (Installed at Cimarron)
• Wall Lining: Not specified

We offer outstanding financing options, accept trades, and can arrange nationwide NO HASSLE delivery!

Inquire today for more information! (888) 333-6613

**We believe these specifications to be accurate. Any discrepancies are unintentional. Please verify information with a sales associate prior to purchase.**

Stock Number:43507
