2026 CIMARRON TRAILERS LS20G-FTR-K Livestock Trailer (SOLD)

SOLD INVENTORY

Stock# 44316

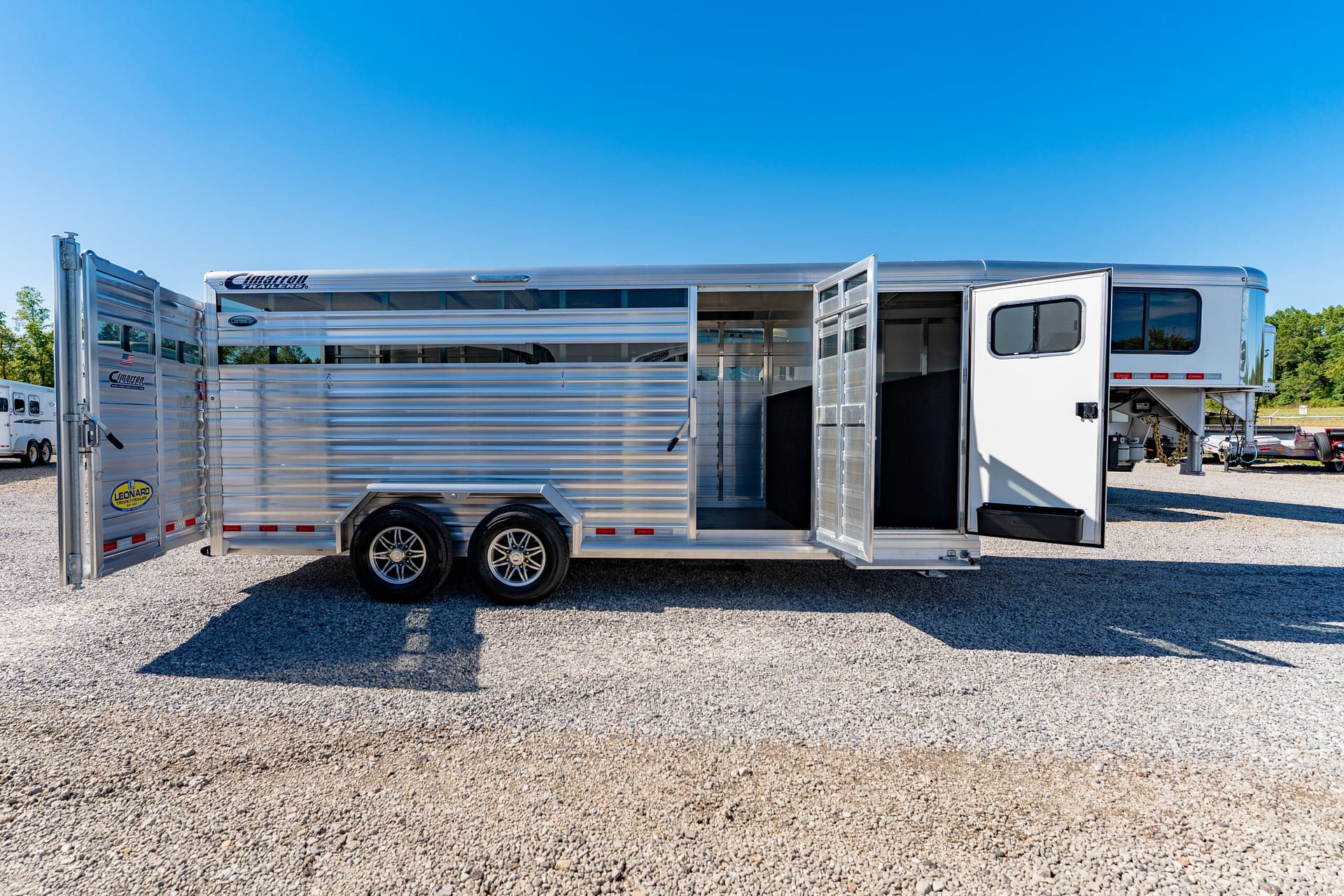

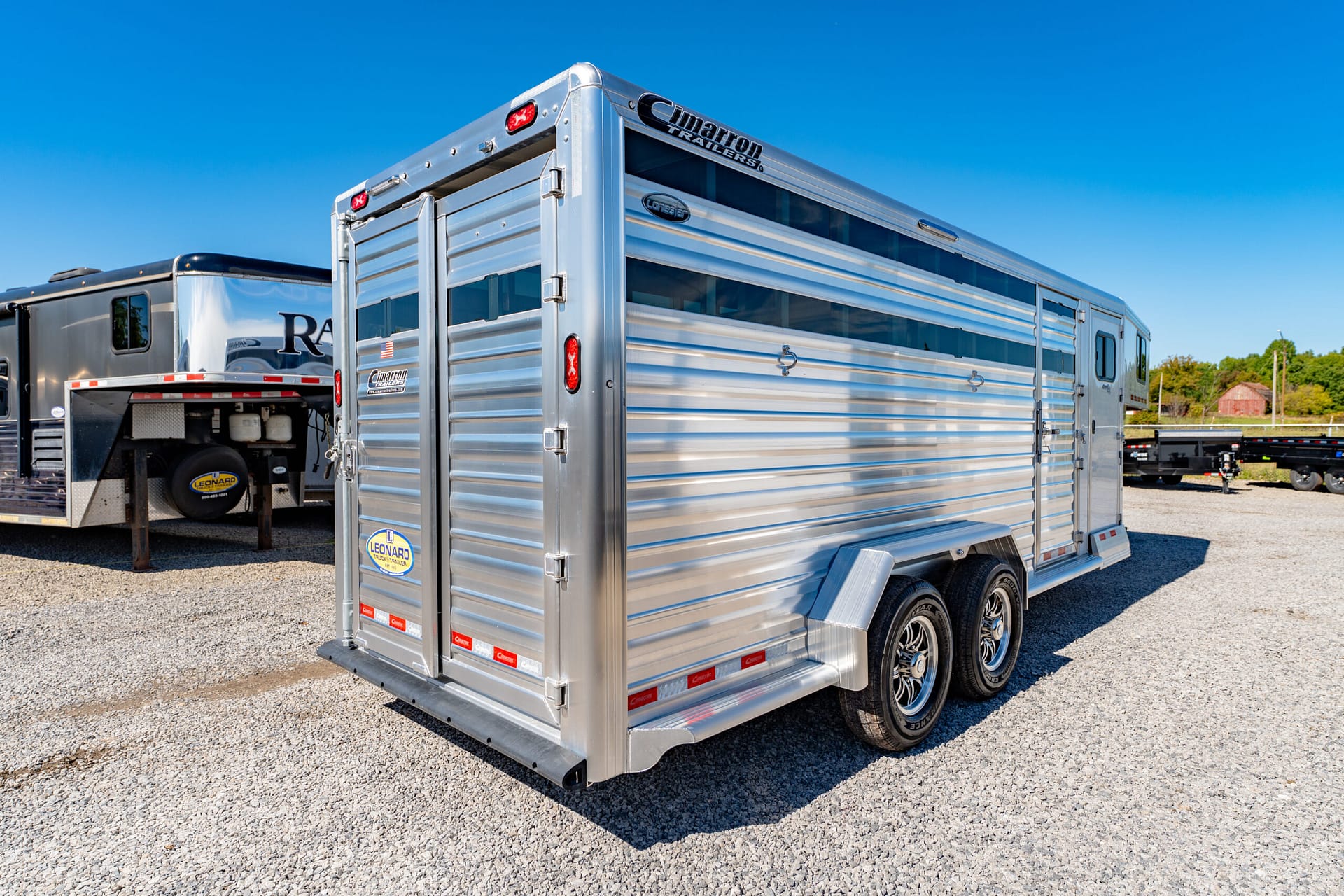

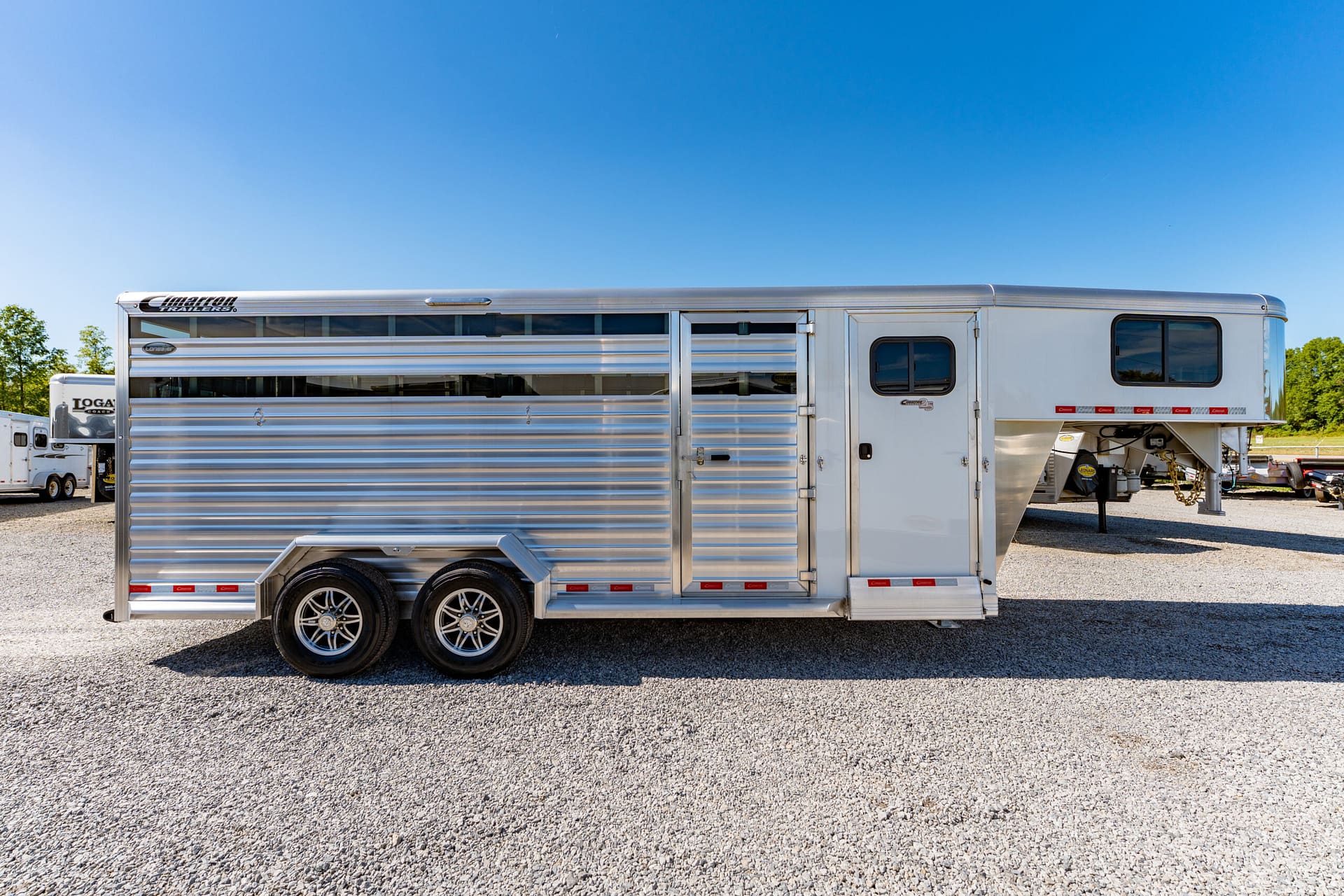

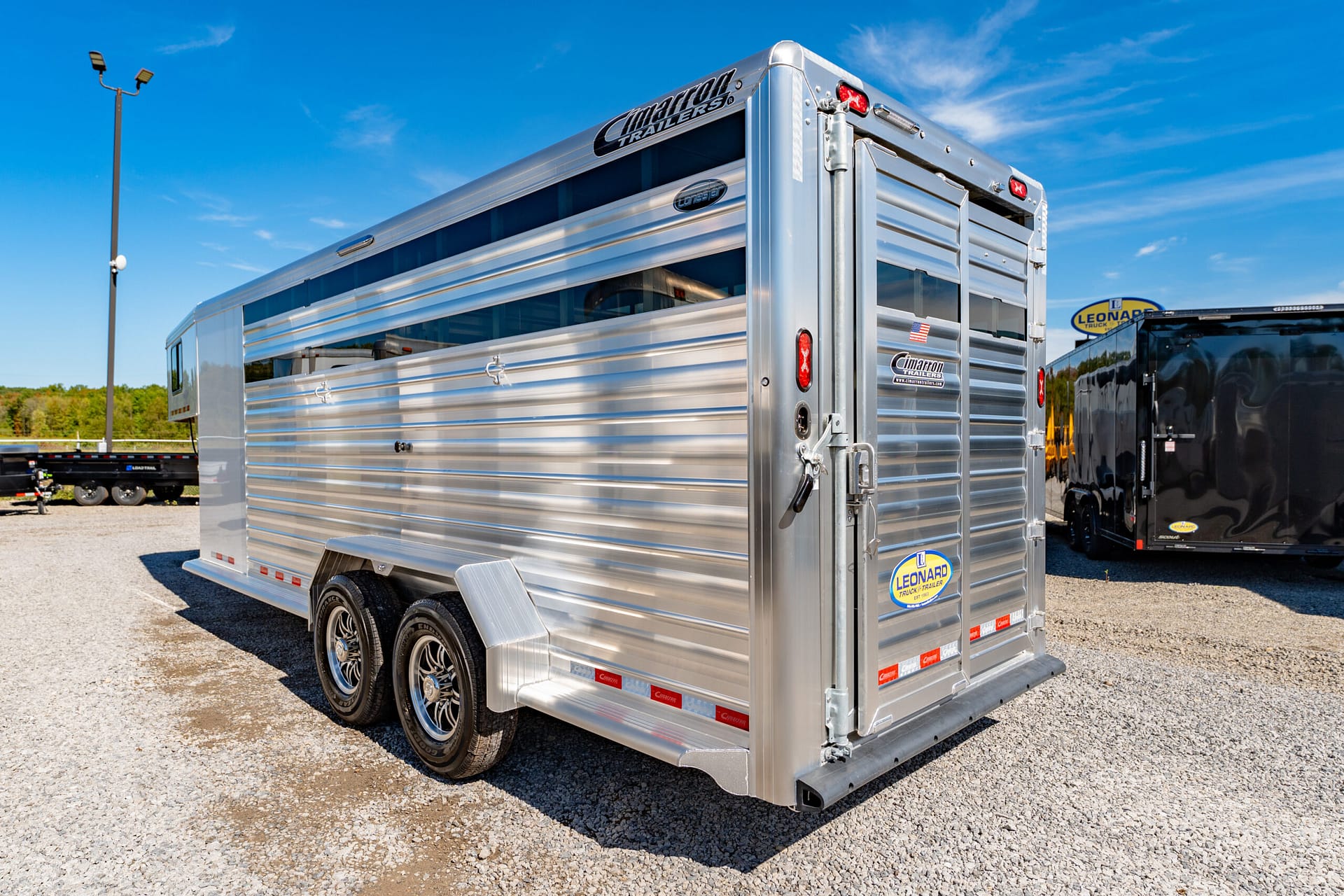

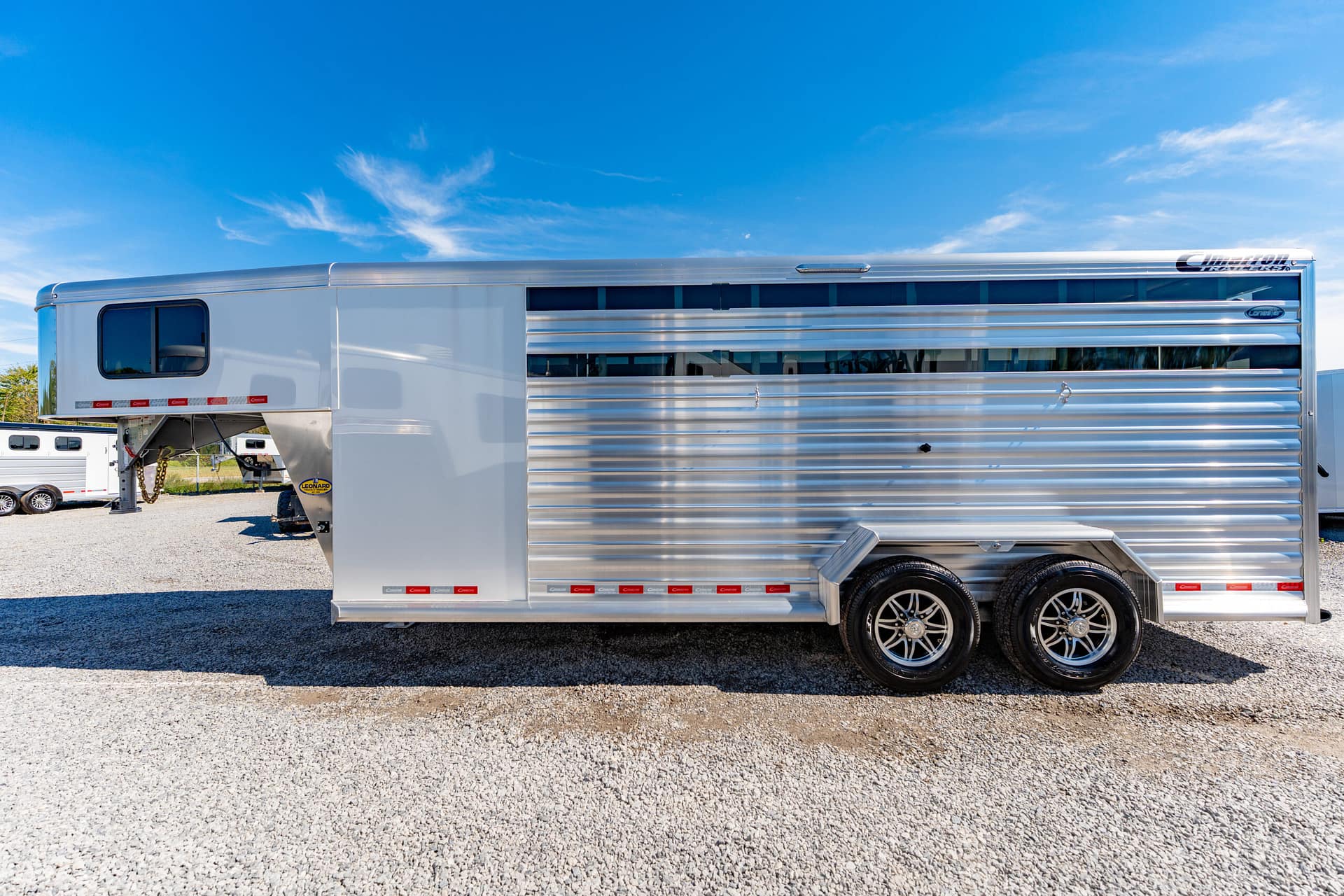

New 2026 Cimarron LS20G-FTR-K Gooseneck Stock Trailer

Cimarron’s Lonestar series are the most durable aluminum livestock trailers available. Heavy duty construction and intelligent design ensure these trailers last.

Model:  LS20G-FTR-K

Warranty:

• 8yr- Structural
• 3yr-Body and Hardware

Overall Equipment

• Dimensions:

  • Box Length: 20′ – 0″
  • Box Width: 6′ – 10″
  • Box Height: 7′ – 1″
  • GN Length: 8′ – 2″
  • GN Drop Wall: 53″ (for extreme 4×4 clearance)

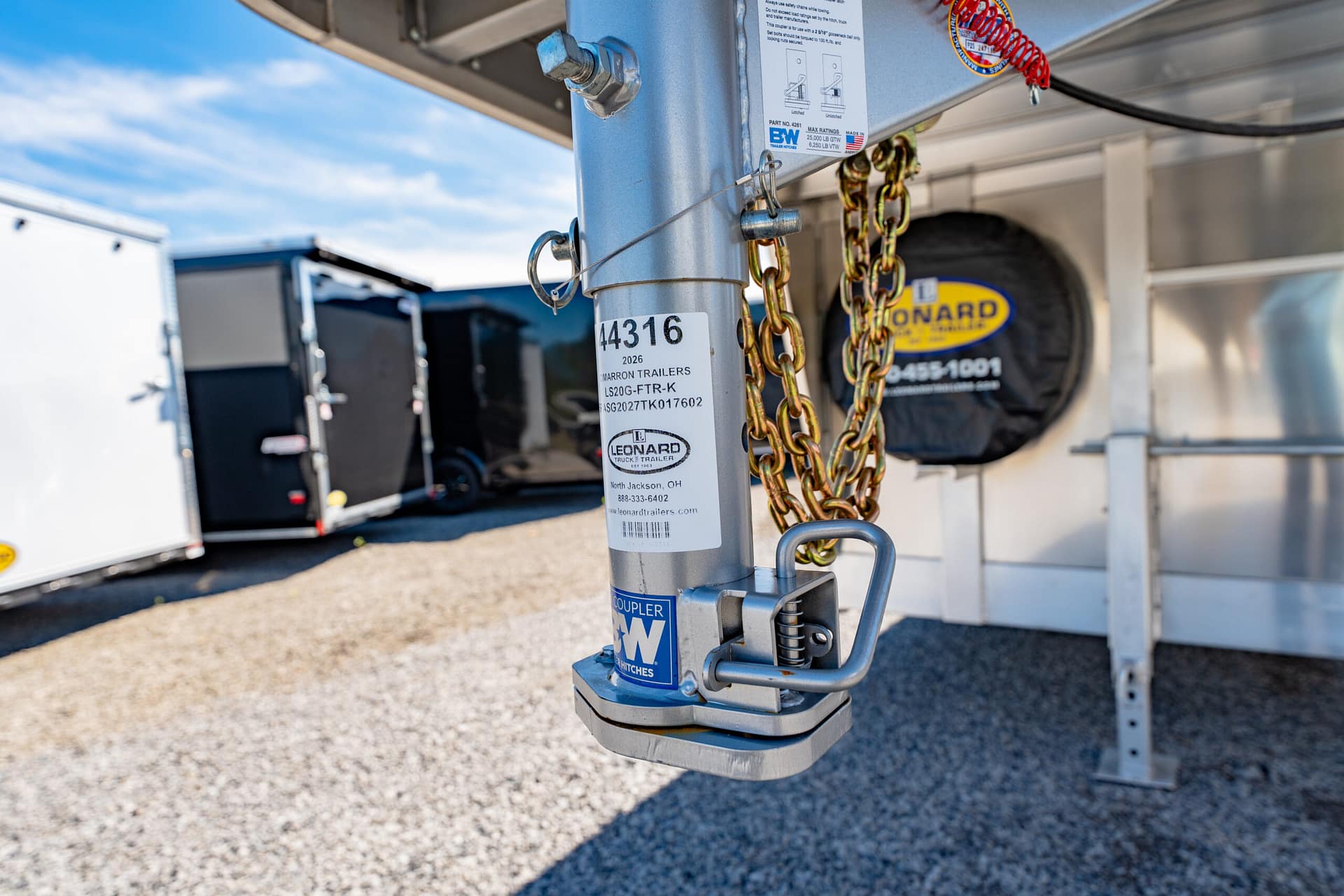

  • GN Structure: Standard Duty

• Undercarriage:

  • GVWR: 12,000 lbs
  • Axles: 6,000 lb Dexter Torflex Axles 8 Bolt Hubs w/ 1/2″ Studs
  • Axle Articulation: 10 Degree up
  • Brakes: Electric (All Wheel)

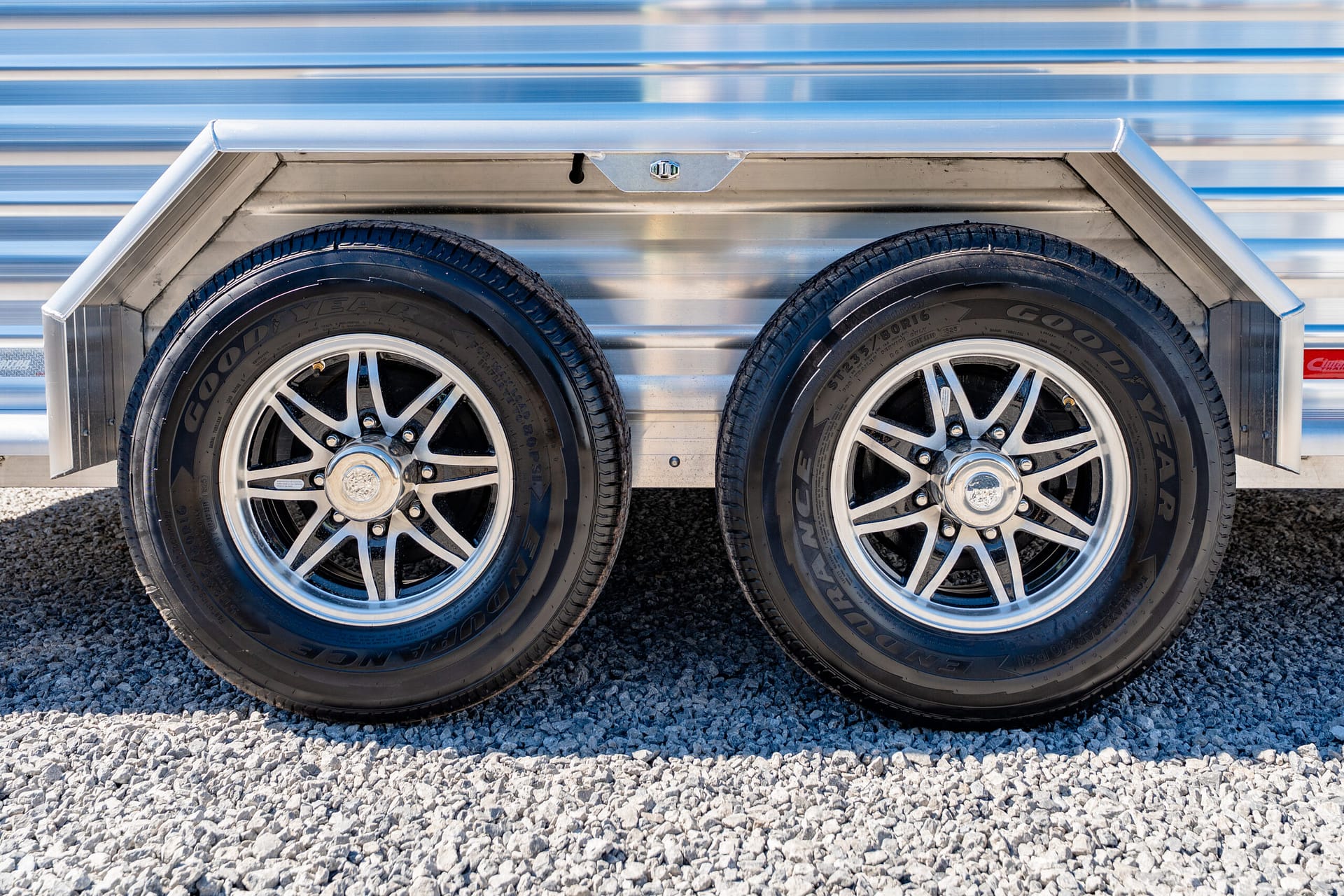

  • Tires: Goodyear ST 235/80 R16″ LR-E
  • Wheels: 8 Hole-Aluminum BLACK SPOKE 16″

• Design:

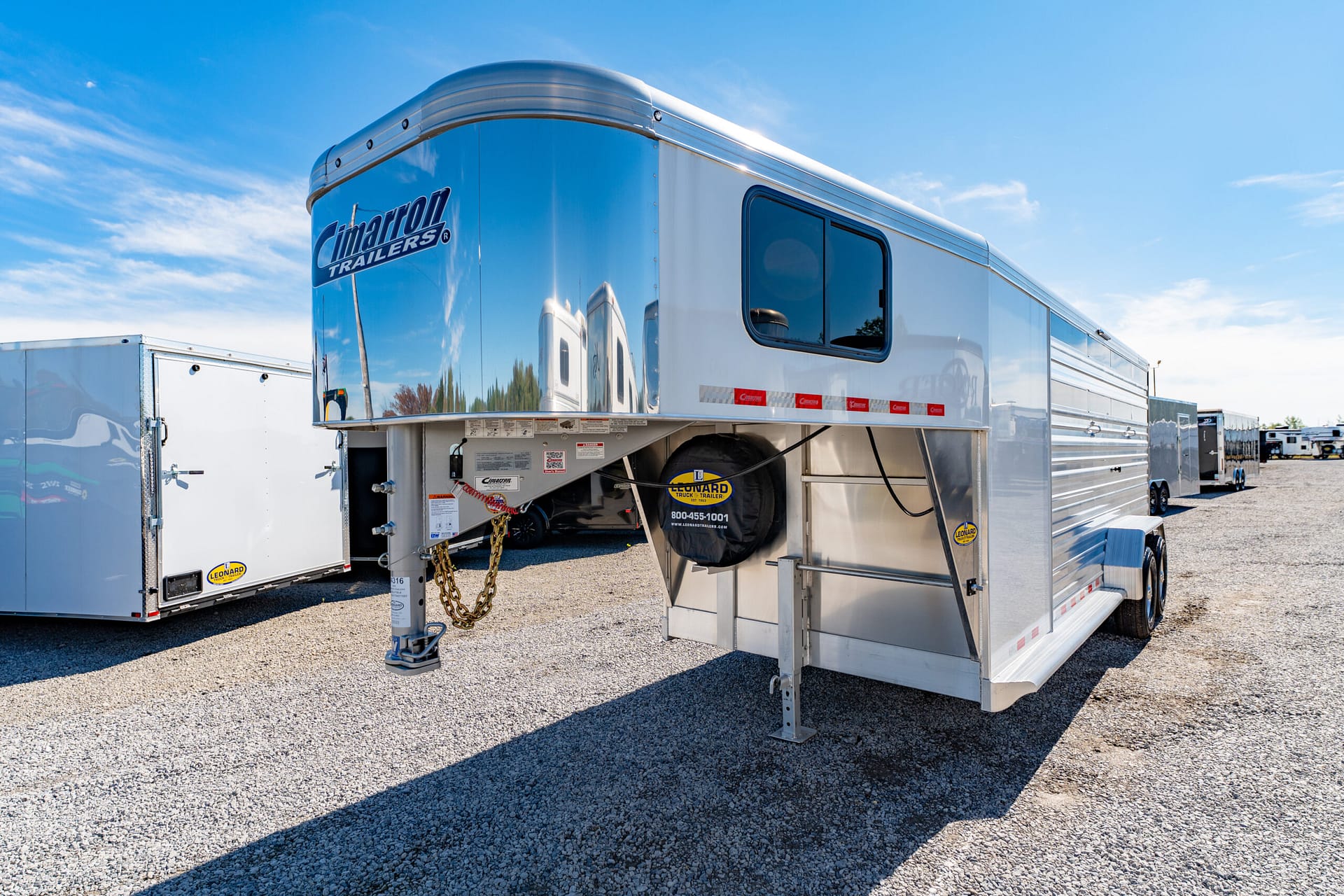

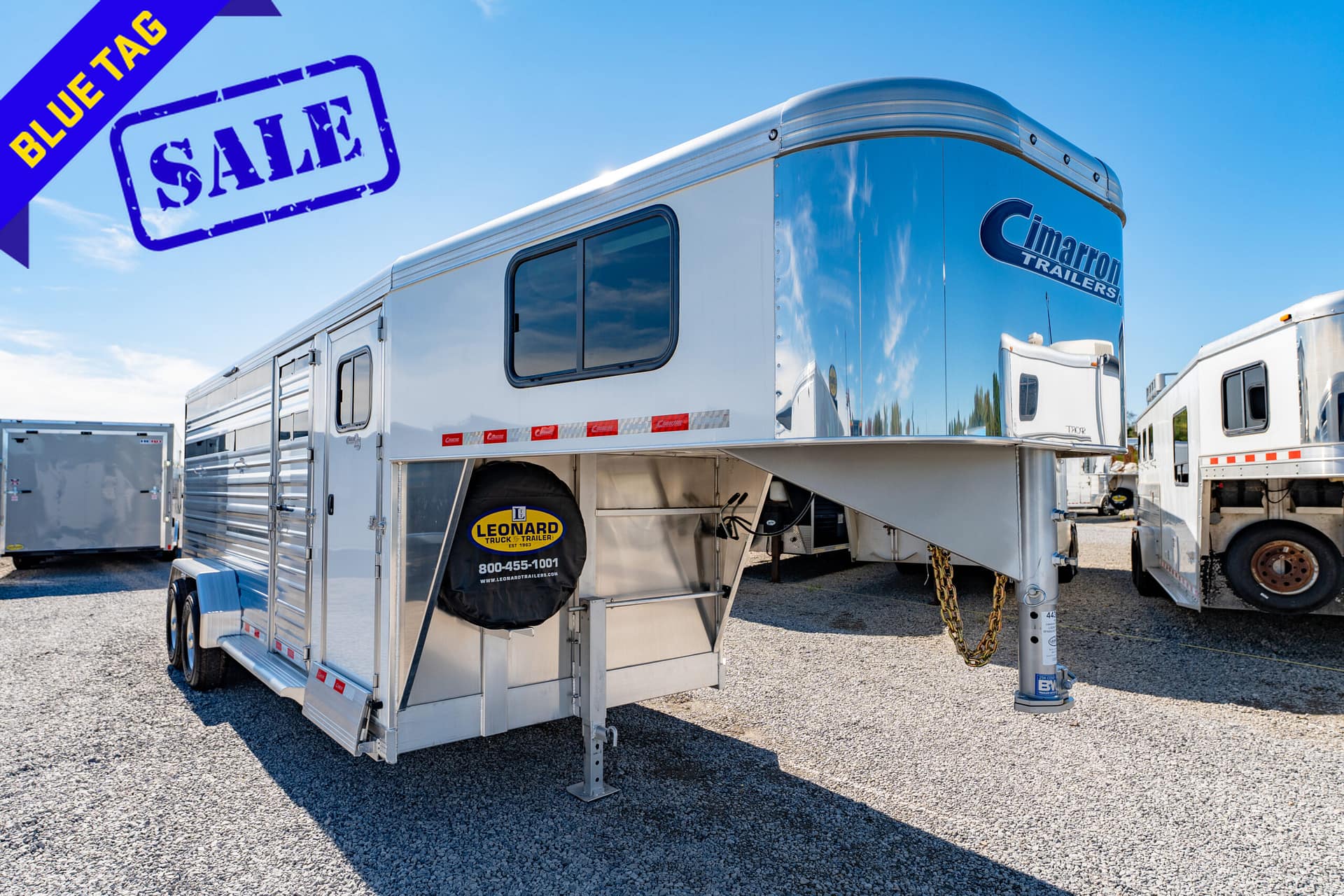

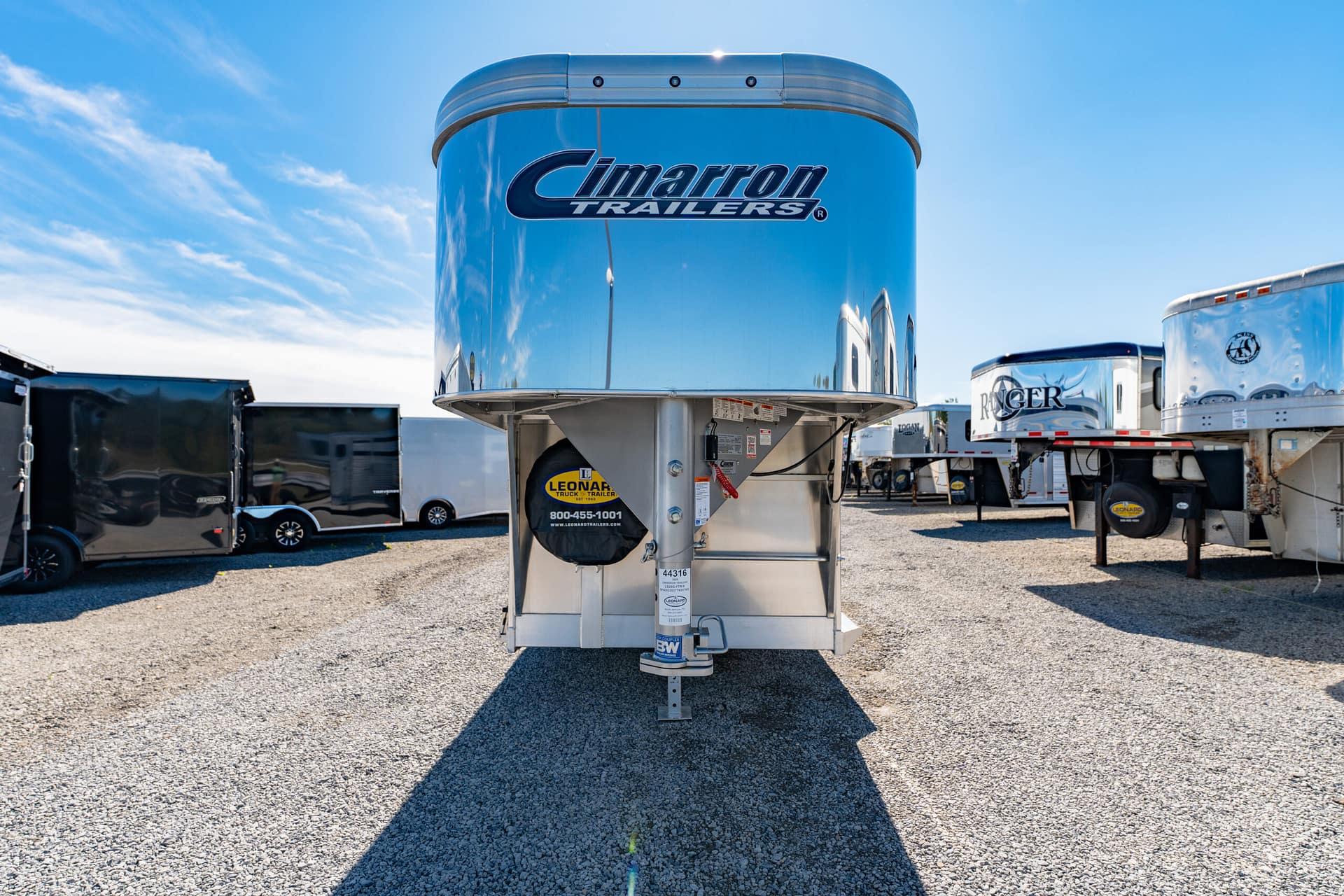

  • Nose Profile: Tapered Sides w/ 18″ r Corners
  • Nose Style: VP
  • Nose Sheet: Polished Stainless Steel
  • Side Walls: Extruded Side Slat w/ 2 Air Gaps w/ Plexiglass Insert & Tray
  • Sheet Color: White (Ext. Extras: Mill Finished)
  • Fenders: Extruded
  • Overall Width: 102″ O.A.W.
  • Roof Material: Insulated Roof Panel

• Flooring:

  • Flooring Type: Extruded Aluminum w/ V-truss & cross members every 4″

  • Bottom Rail: STD-Bottom Rail



• Jack, Parking Type:

  • Type: Standard Single speed with drop shoe

• Exterior Lights:

  • Backup Lights LED: Yes (Built into tail lights)
  • Tail Lights: LED w/ Red Lens (Qty: 4)
  • Marker Lights: LED Button Type (Qty per side: 2)
  • Flood Lights:
    • LED Awning Light 8″ (RH: 1, LH: 1)
    • LED Awning Light 16″ (RH: 1, LH: 1)

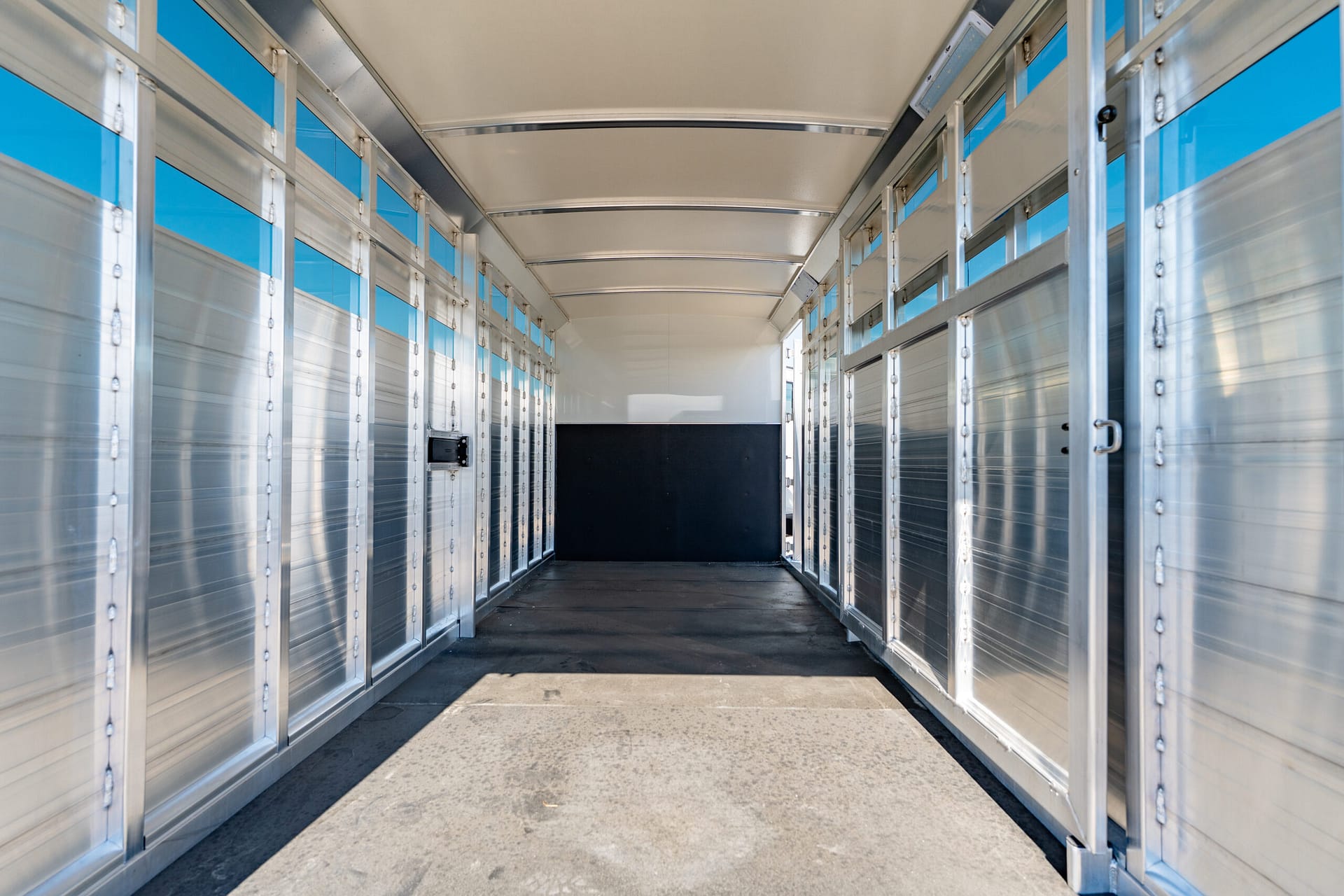

Stall Area / Load Space Equipment

• Size:

  • Length, LH: 16′ – 0″
  • Length, RH: 16′ – 0″
  • Width: 6′ – 10″

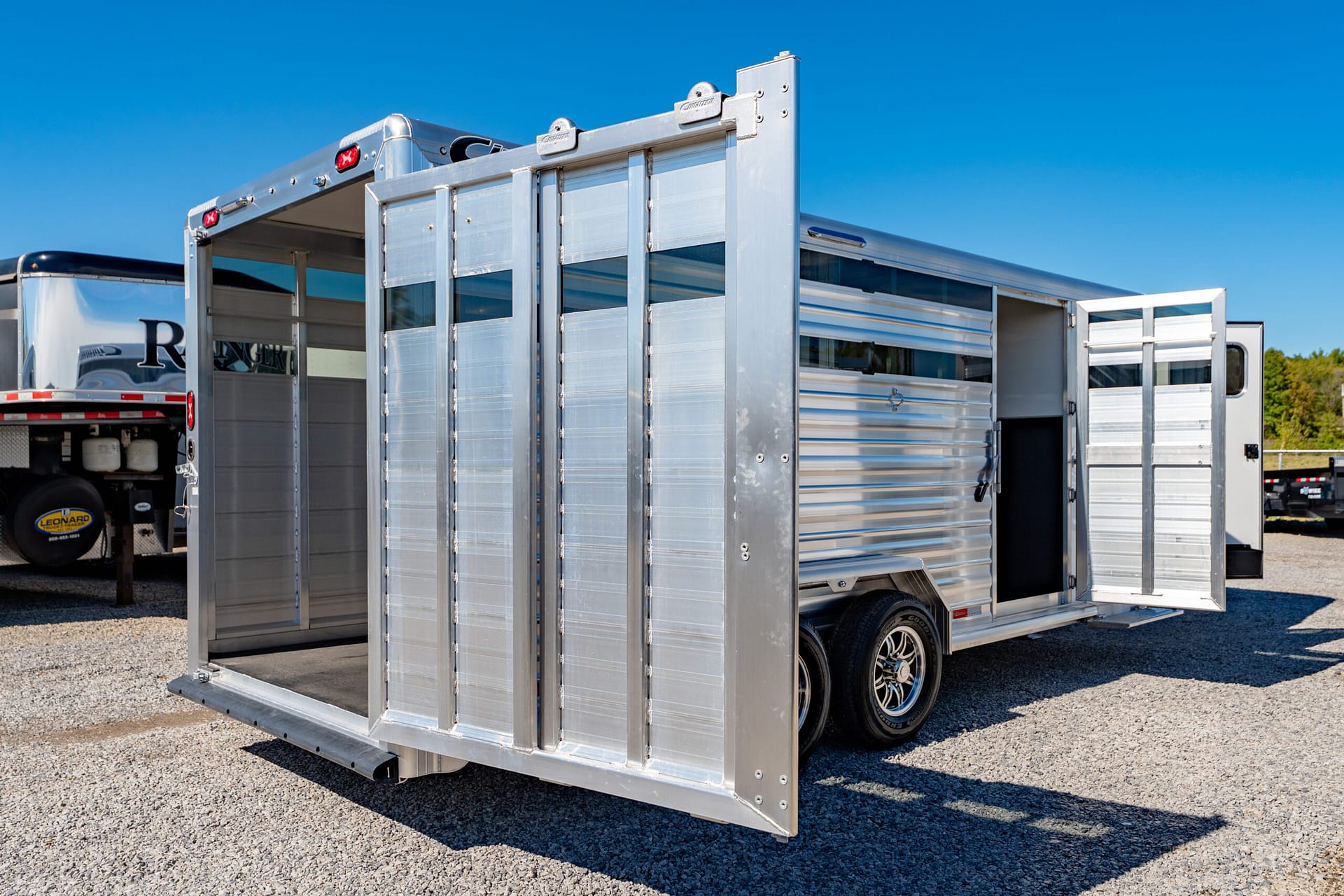

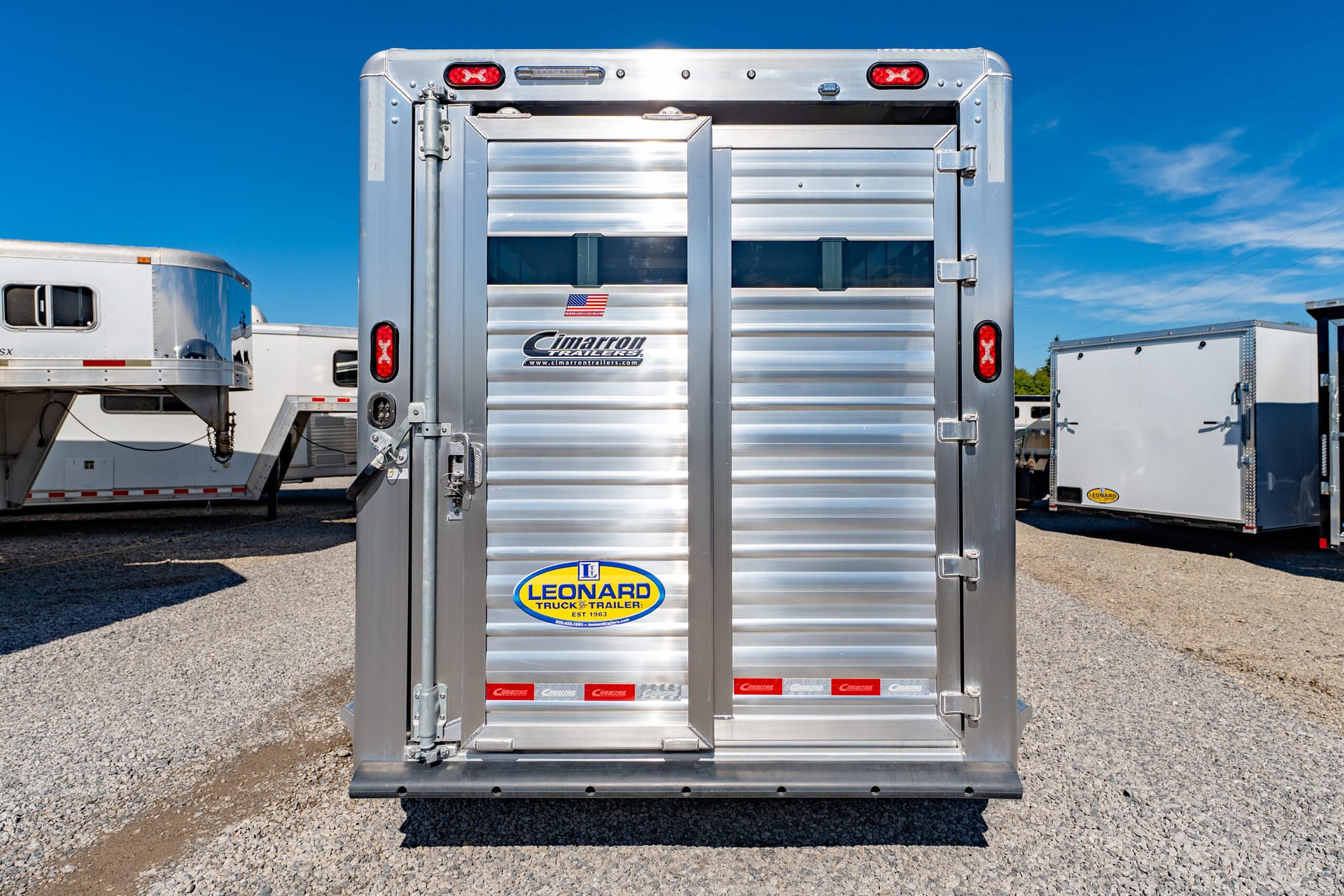

• Rear Opening:

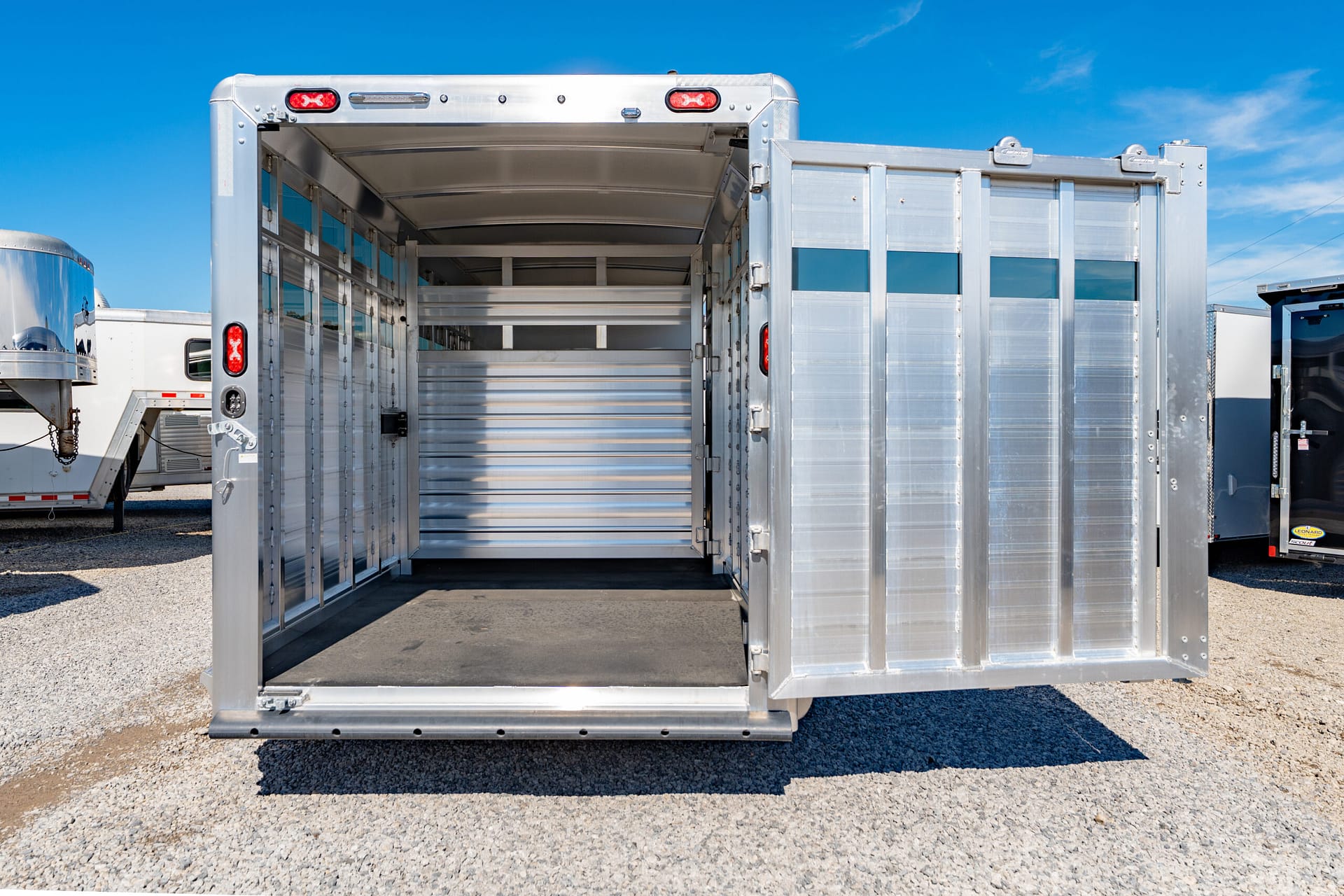

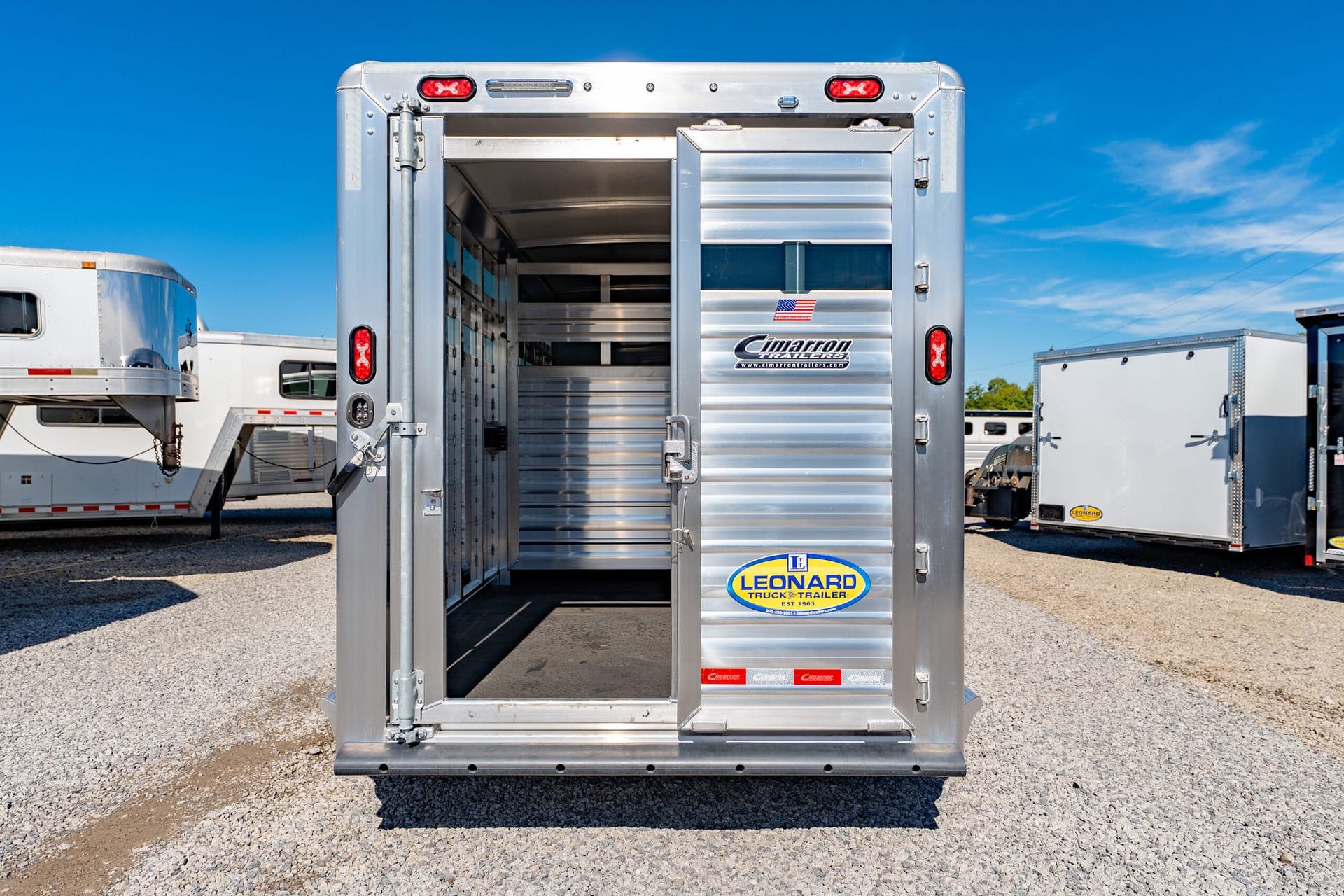

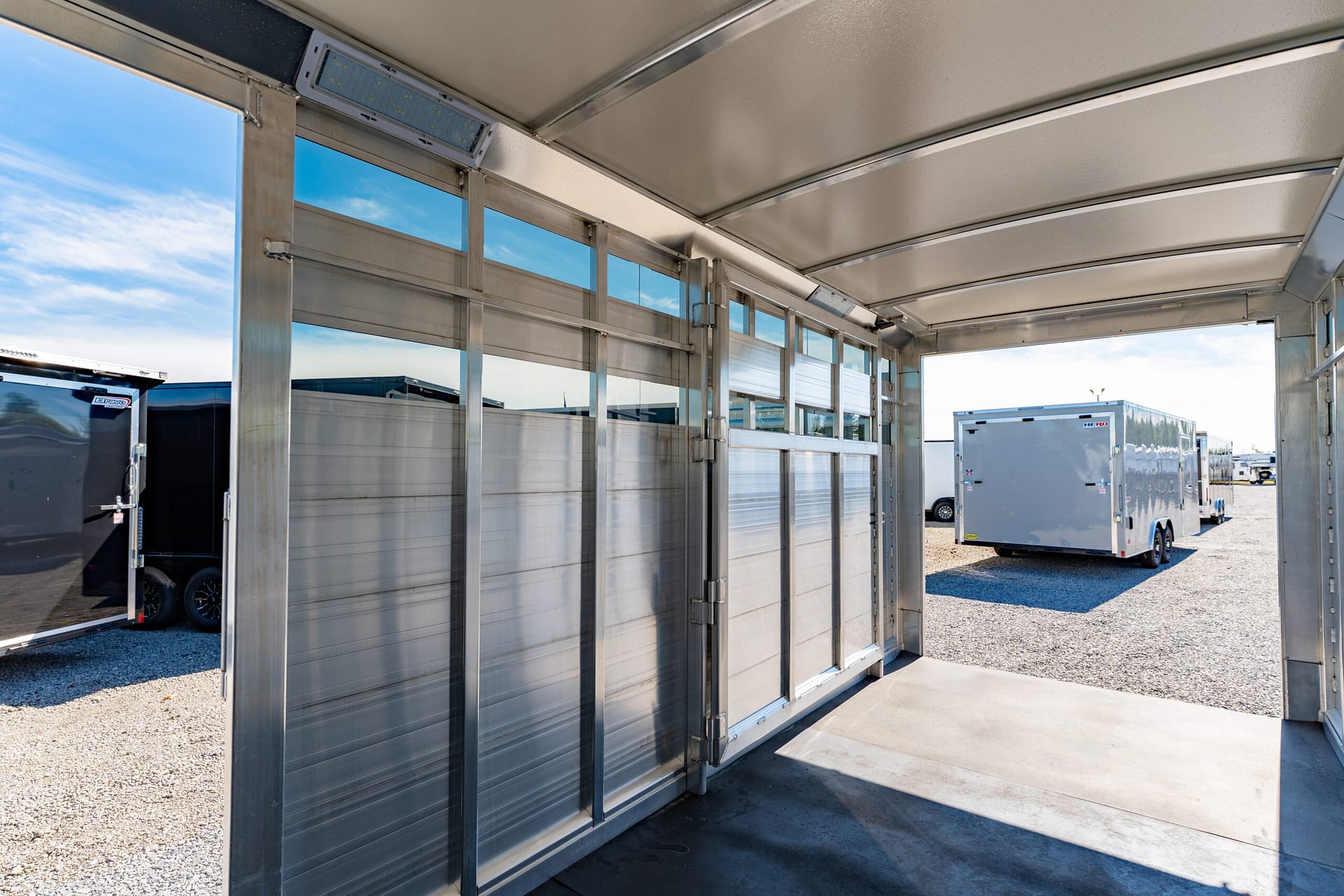

  • Type: Gate – Swing Type with Sliding Gate
  • Latch Type: HD-Steel Cam Lock

• Gates:

  • Access: 34″ Access Gate
  • Location: RH

• Manger Assembly:

  • Stalls with: Doors & Comp Lights

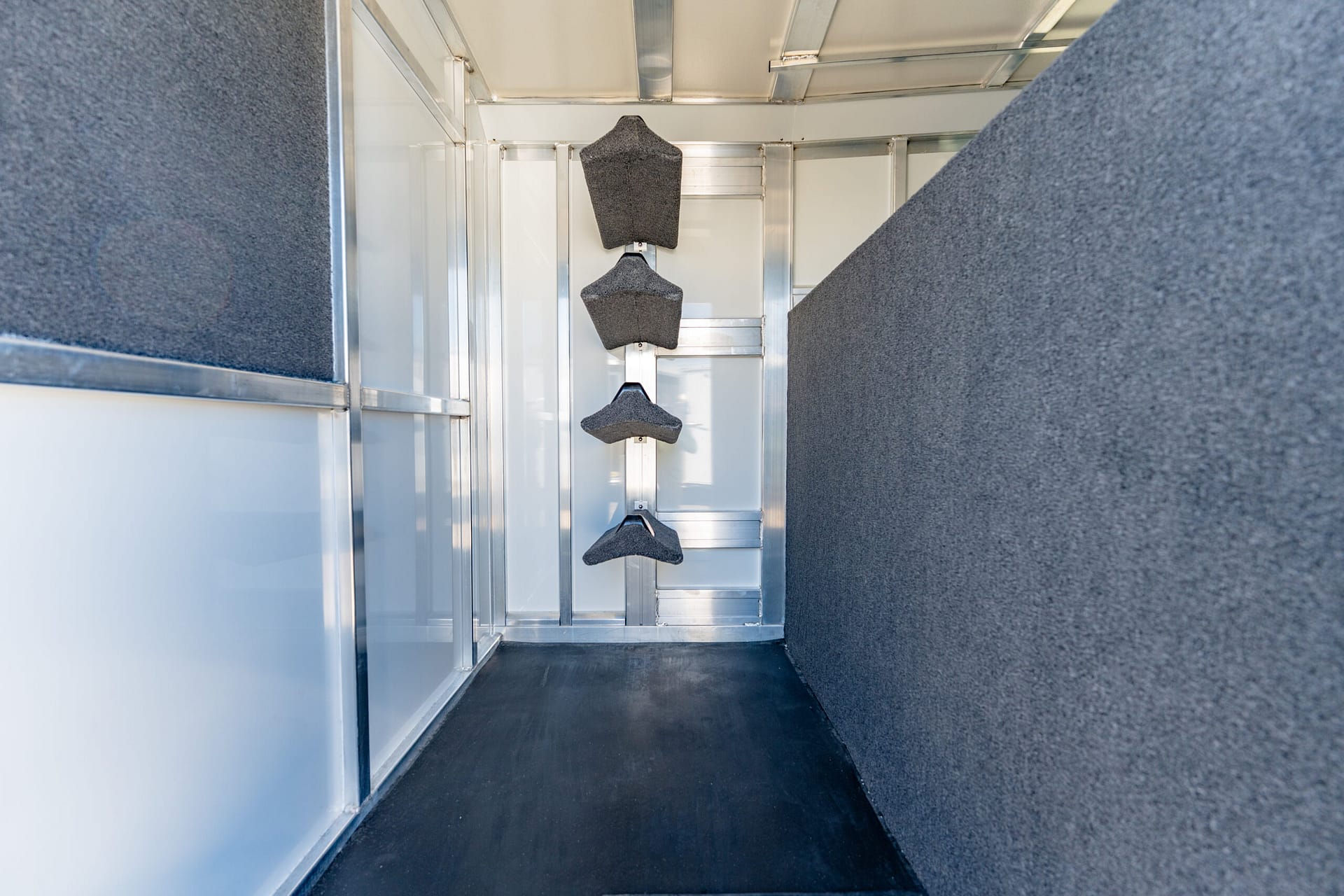

Saddle Racks

• Adjustable Pads: 4
• Post Type: Recessed

Special Requirements

1. Interior Tie Rail per ft. Between Air Openings
2. Center Gates 4″ above floor

We offer outstanding financing options, accept trades, and can arrange nationwide NO HASSLE delivery!

Inquire today for more information! (888) 333-6613

**We believe these specifications to be accurate. Any discrepancies are unintentional. Please verify information with a sales associate prior to purchase.**

Stock Number:44316
