2026 CIMARRON TRAILERS SS10GLX Livestock Trailer For Sale

Stock# 44670

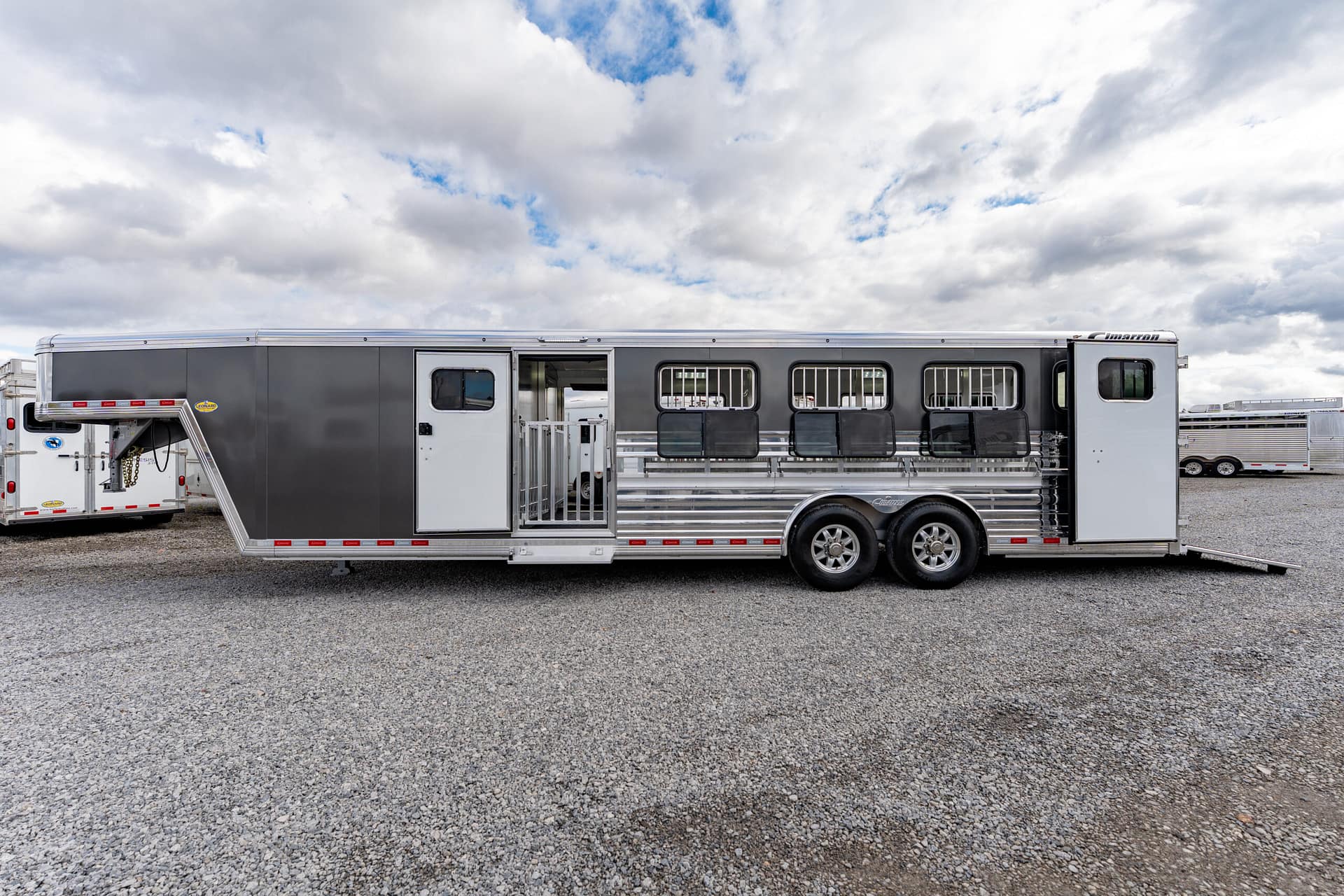

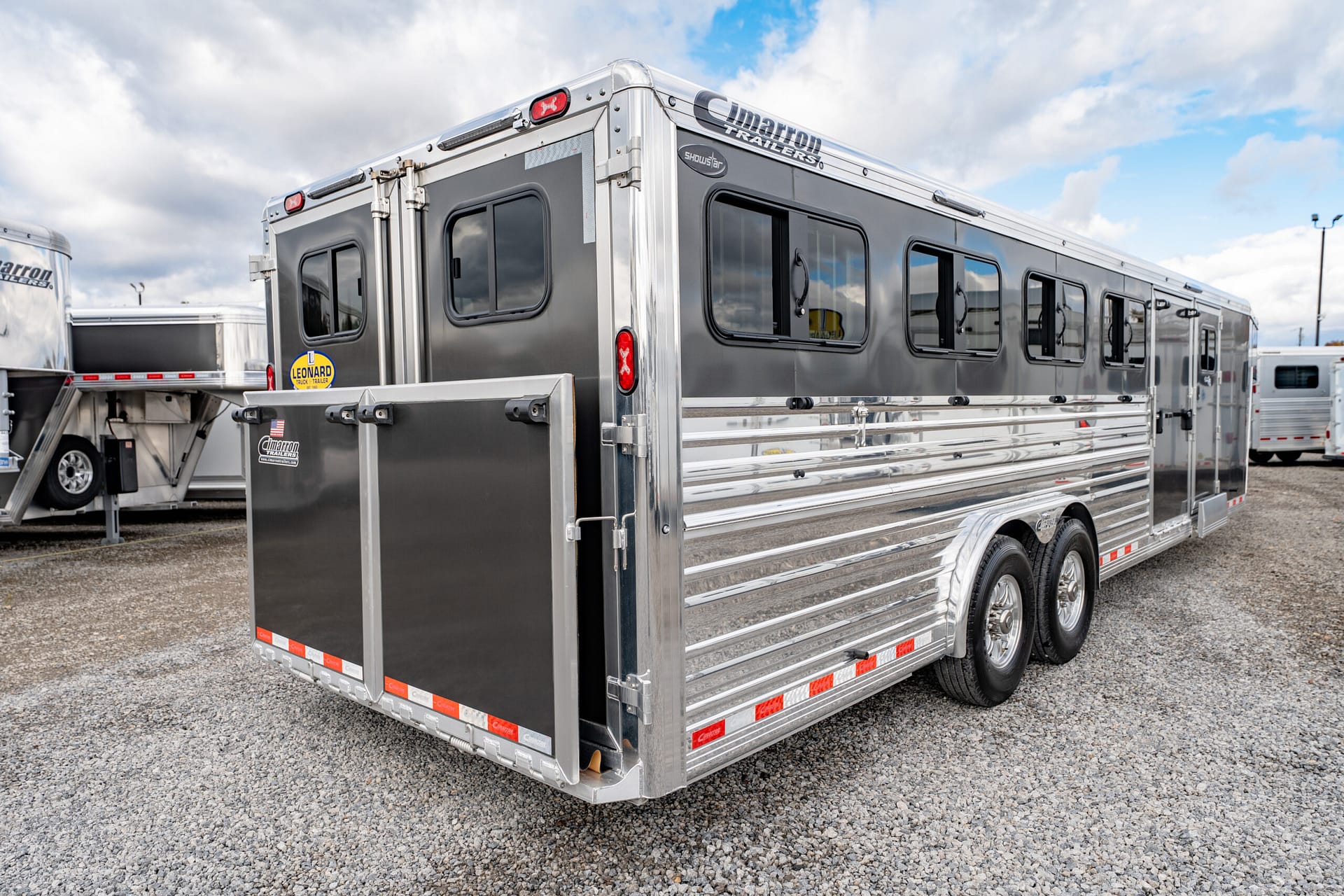

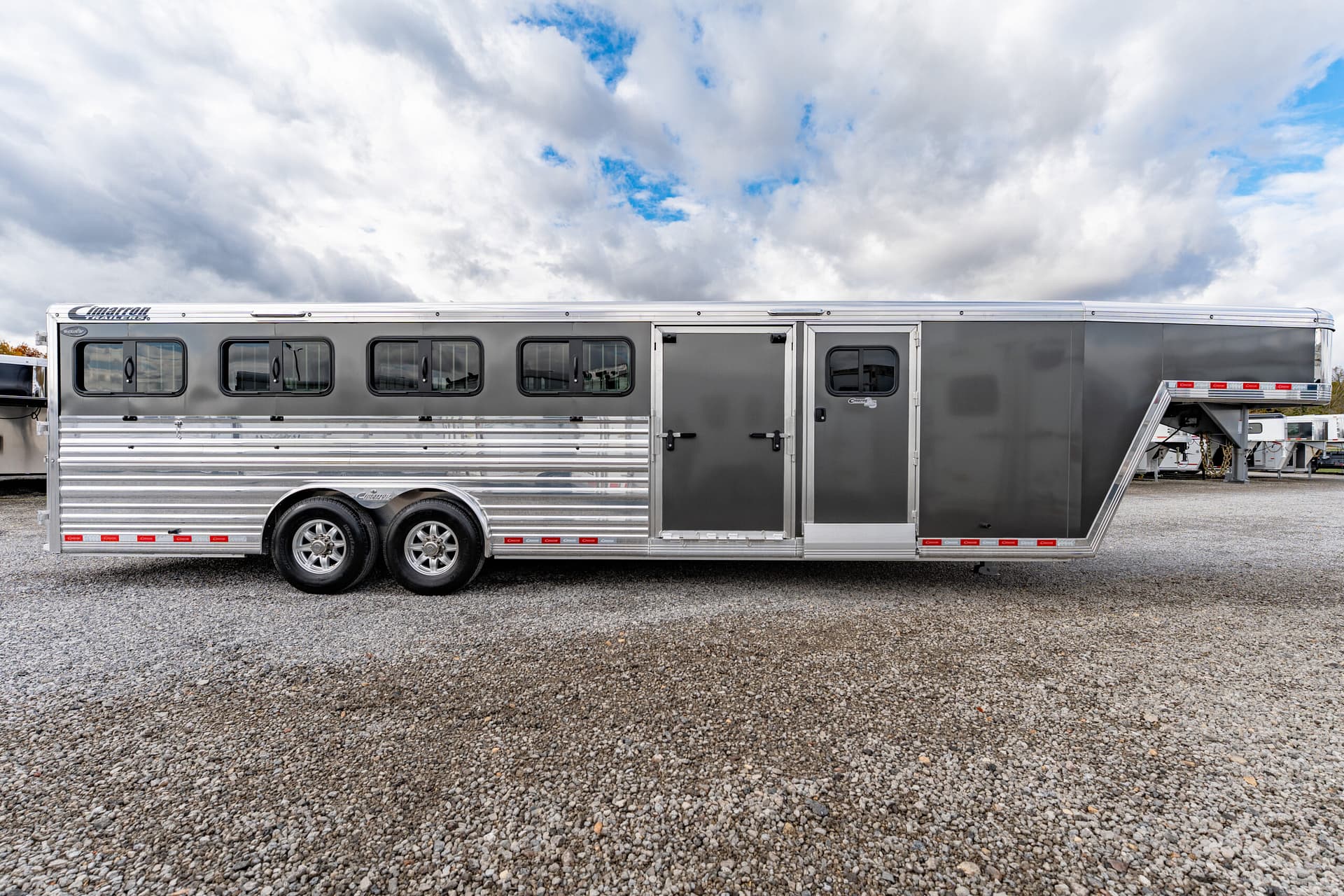

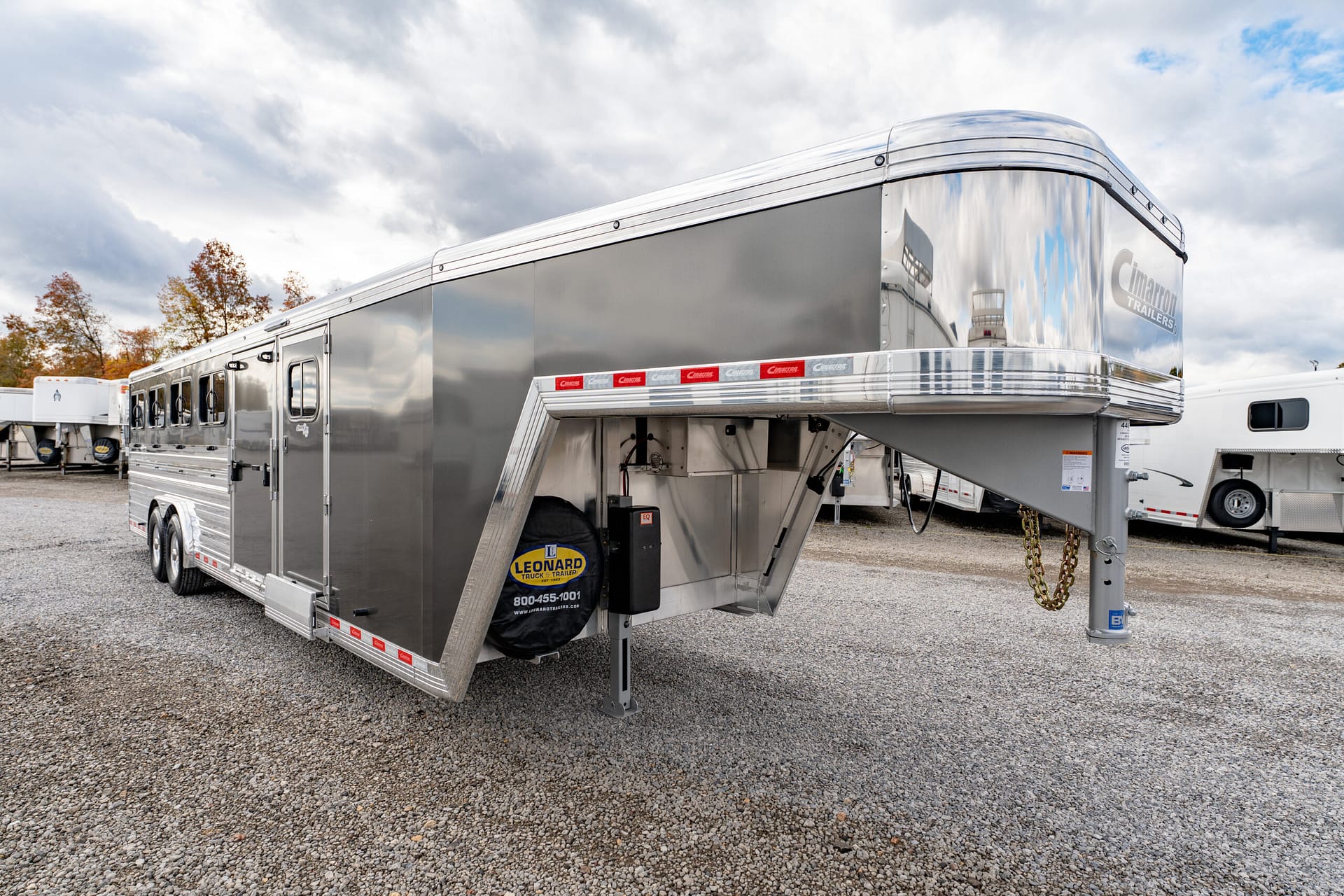

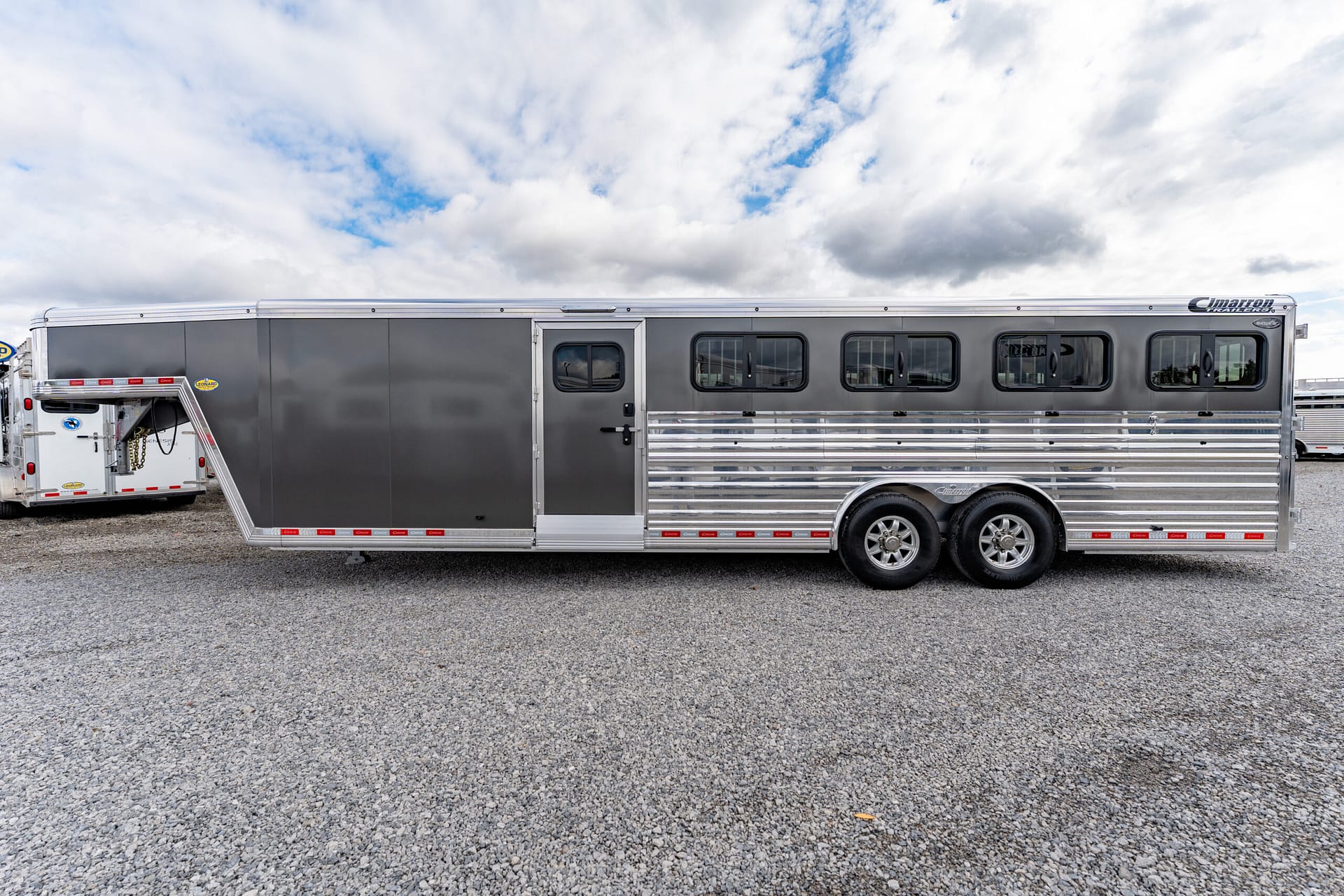

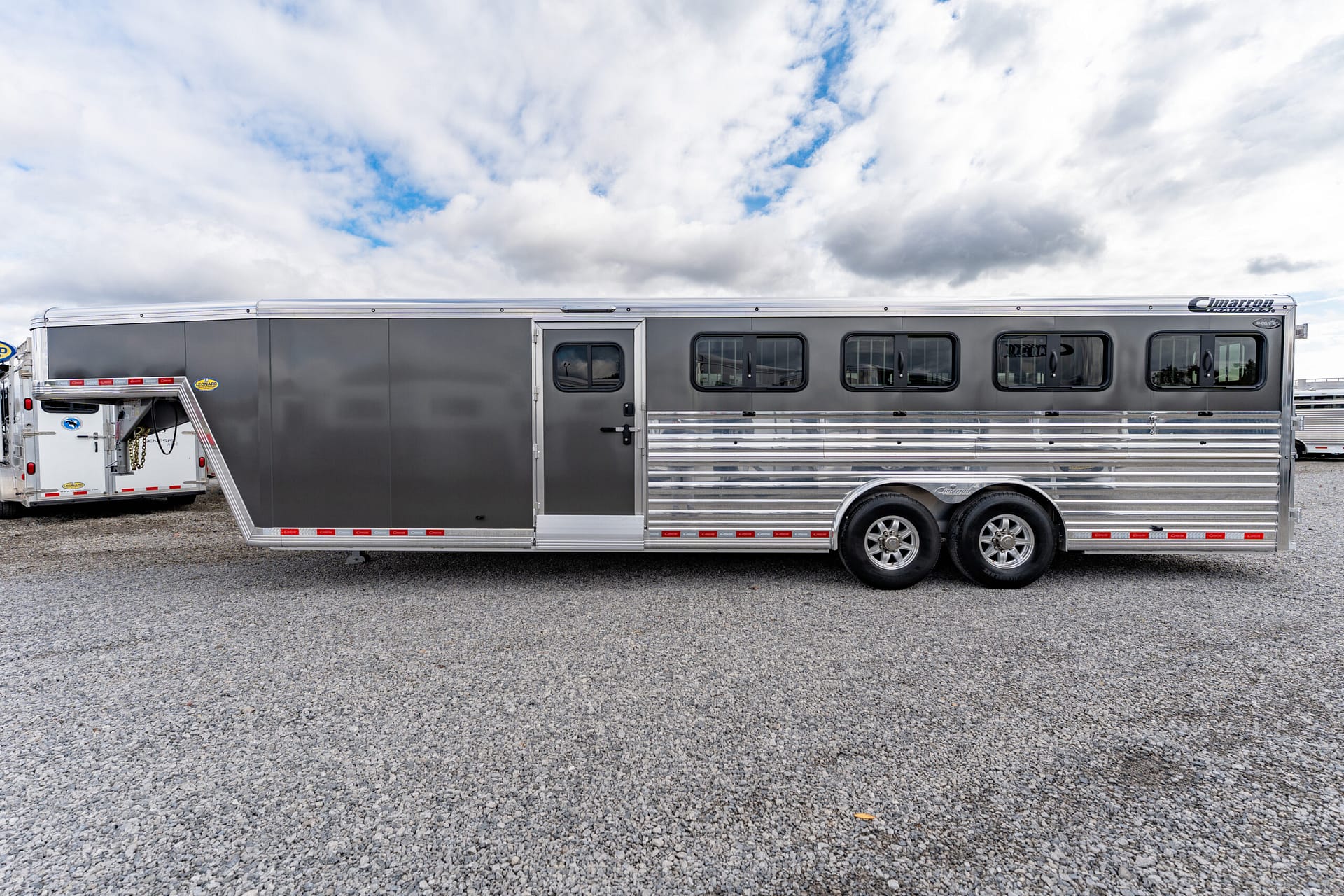

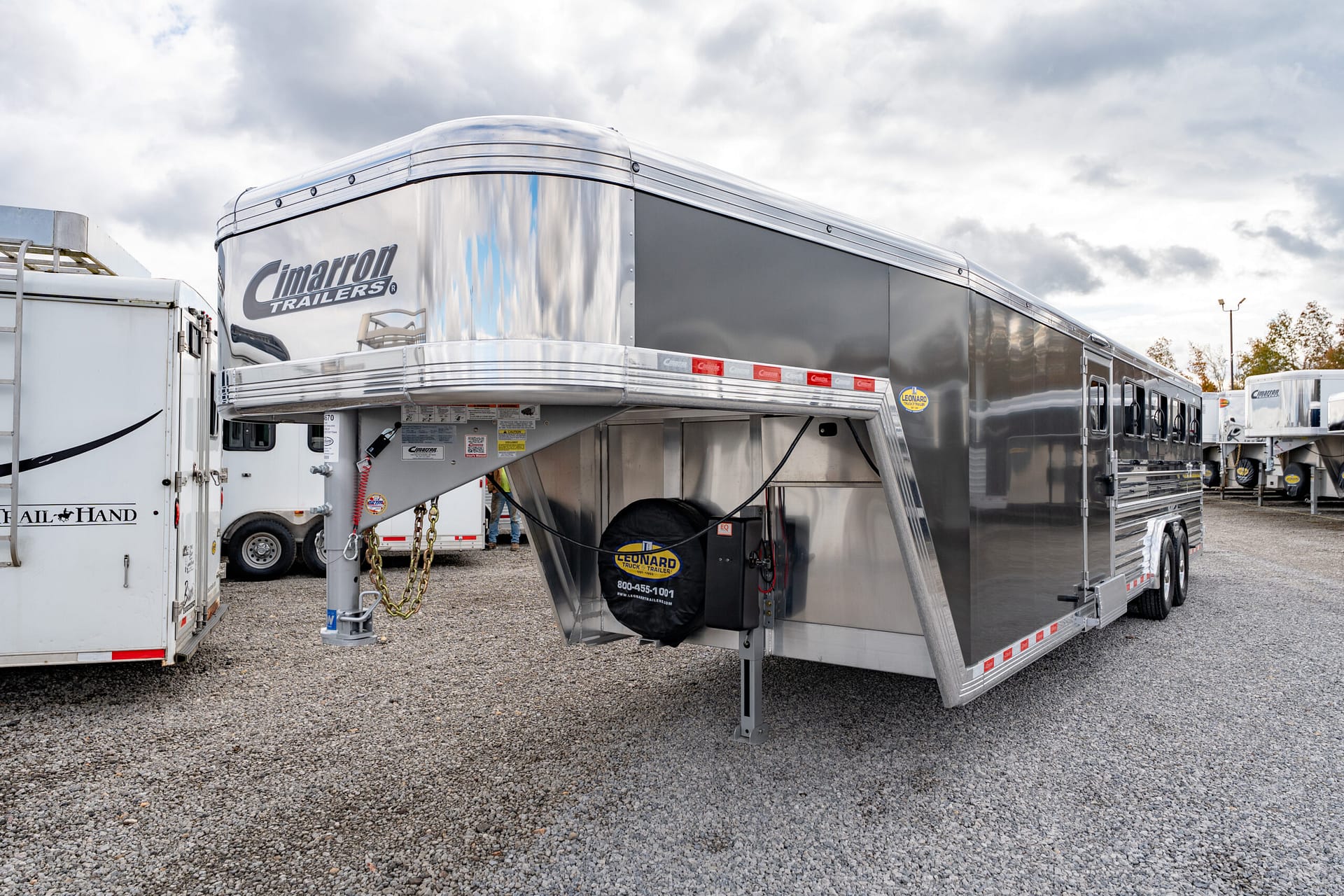

New 2026 Cimarron SS10GLX Gooseneck Stock Trailer

The Showstar Low Profile Trailer series makes hauling small animals a breeze. Cimarron’s dynamic design is perfectly suited for pigs, sheep, goats, and more.

Model: SS10GLX

Warranty:

• 8yr: Structural
• 3yr: Body and Hardware

Overall Equipment

• Dimensions:
  • Box Length: 26′ – 0″
  • Box Width: 8′ – 0″
  • Box Height: 6′ – 4″
  • Gooseneck (GN) Length: 8′ – 2″
  • GN Drop Wall: 50″ (For 4×4 Vehicle)
  • GN Structure: Medium Duty
• Undercarriage:
  • GVWR: 13,680 lbs
  • Axles: 7,000 lb Dexter Torflex Axles (8 Bolt Hubs w/ 9/16″ studs)
  • Axle Articulation: 10 Degree Up
  • Brakes: Electric (All Wheel)

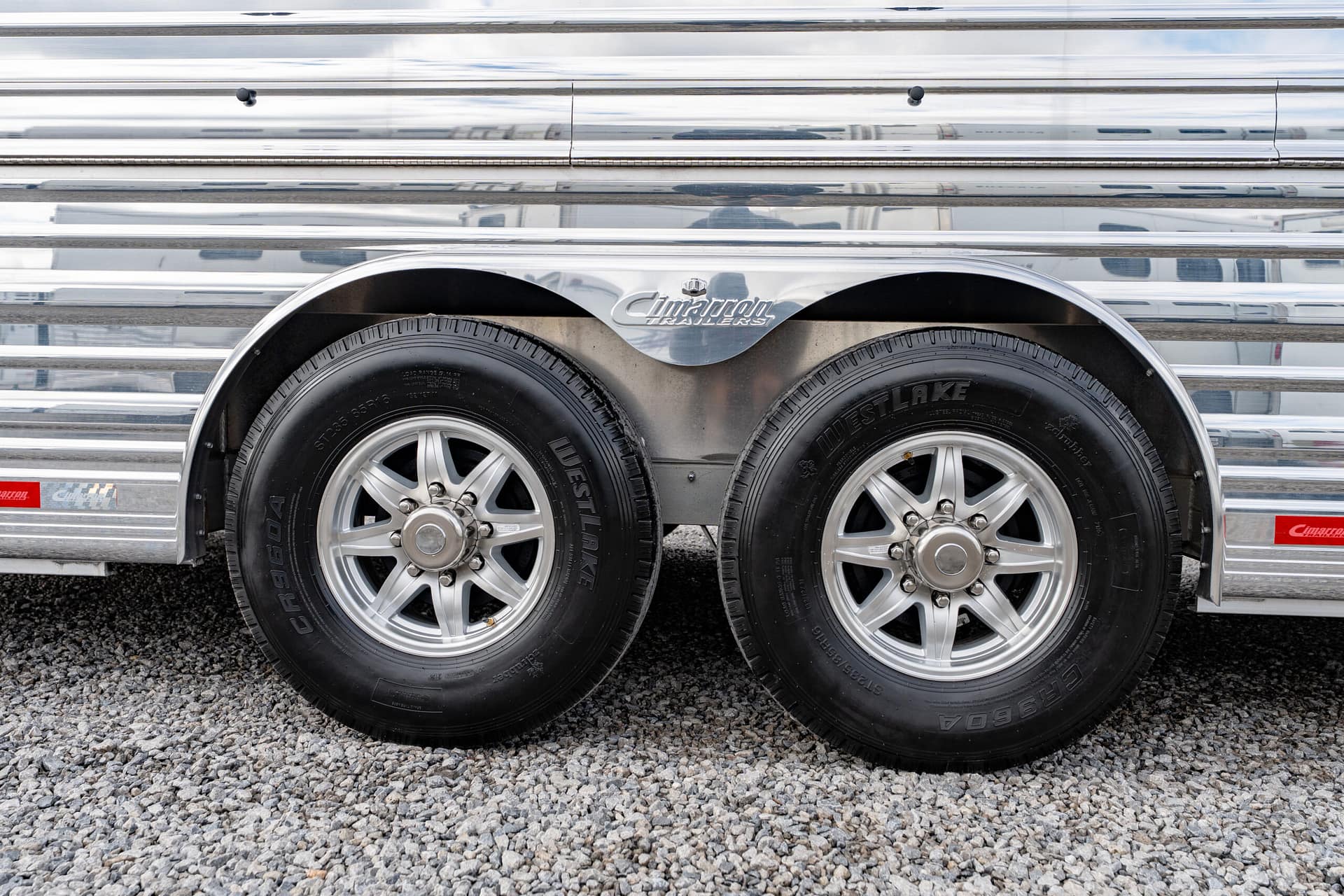

  • Tires: Goodyear ST 235/80 R16″ LR-E
  • Wheels: 8 Hole-Aluminum Spoke 16″ LR-E (QTY: 5)

Trim & Design

• Trim:
  • Fender Edge Molding: NO
  • Stone Guards: Vinyl (FT)
  • TP-RL Capping: Not Specified
  • Lower Body: Rocker Panel, Full Length
• Coupler:

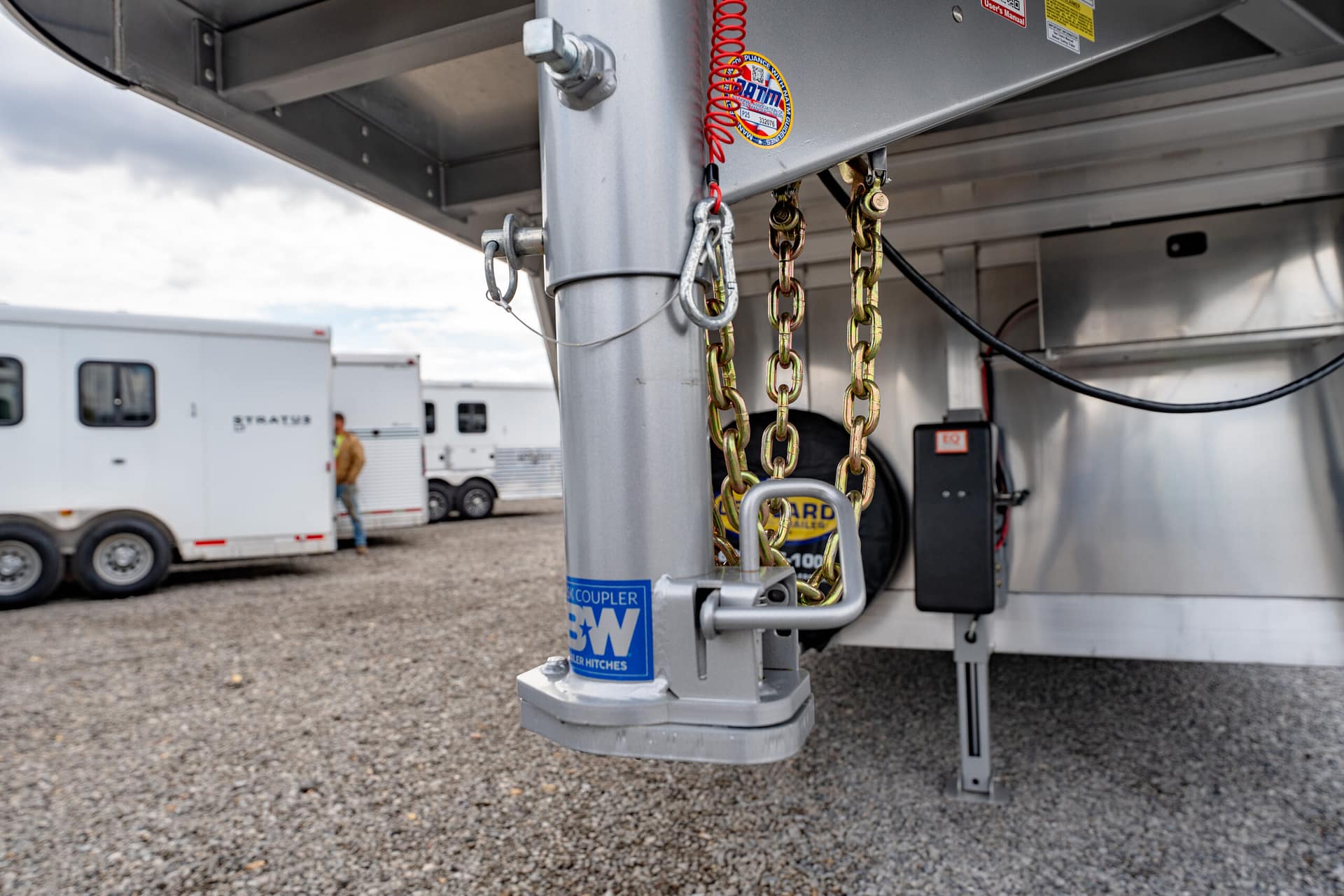

  • Type: 2 5/16″ Positive Lock w/ Adjustable Height Stem (GN Standard)
• Design:

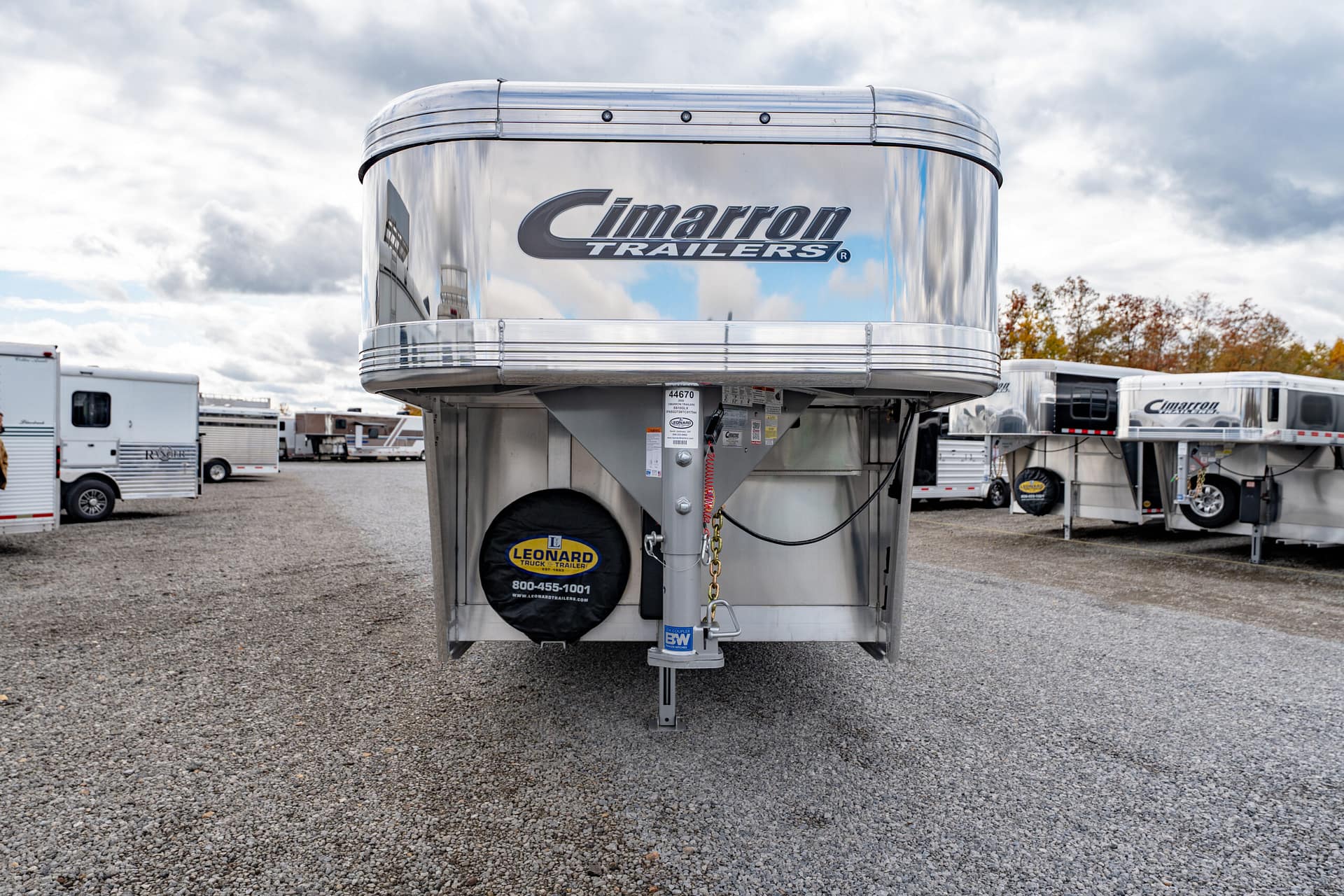

  • Nose Profile: Tapered Sides w/ 18” R Corners
  • Nose Style: Wrap Around Polished Stainless Steel
  • Side Walls: Extruded Side Slat w/ 1 Air Gap
  • Sheet Color: Charcoal Metallic (Mill Finished)
  • Fenders: Single-Spread-2 Overall Width- 102″ O.A.W.
  • Roof Material: Insulated Roof Panel

Flooring

• Flooring Type: Extruded Aluminum w/ V-Truss & Cross Members Every 4″
• Bottom Rail: HD-Bottom Rail

Hardware & Features

• Hardware:
  • Hold Backs: All Doors & Gates (Rubber Plunger Type)
• Jack, Parking Type:
  • Type: Single Electric / Hydraulic w/ 12V Battery & Compartment

Walls & Compartments

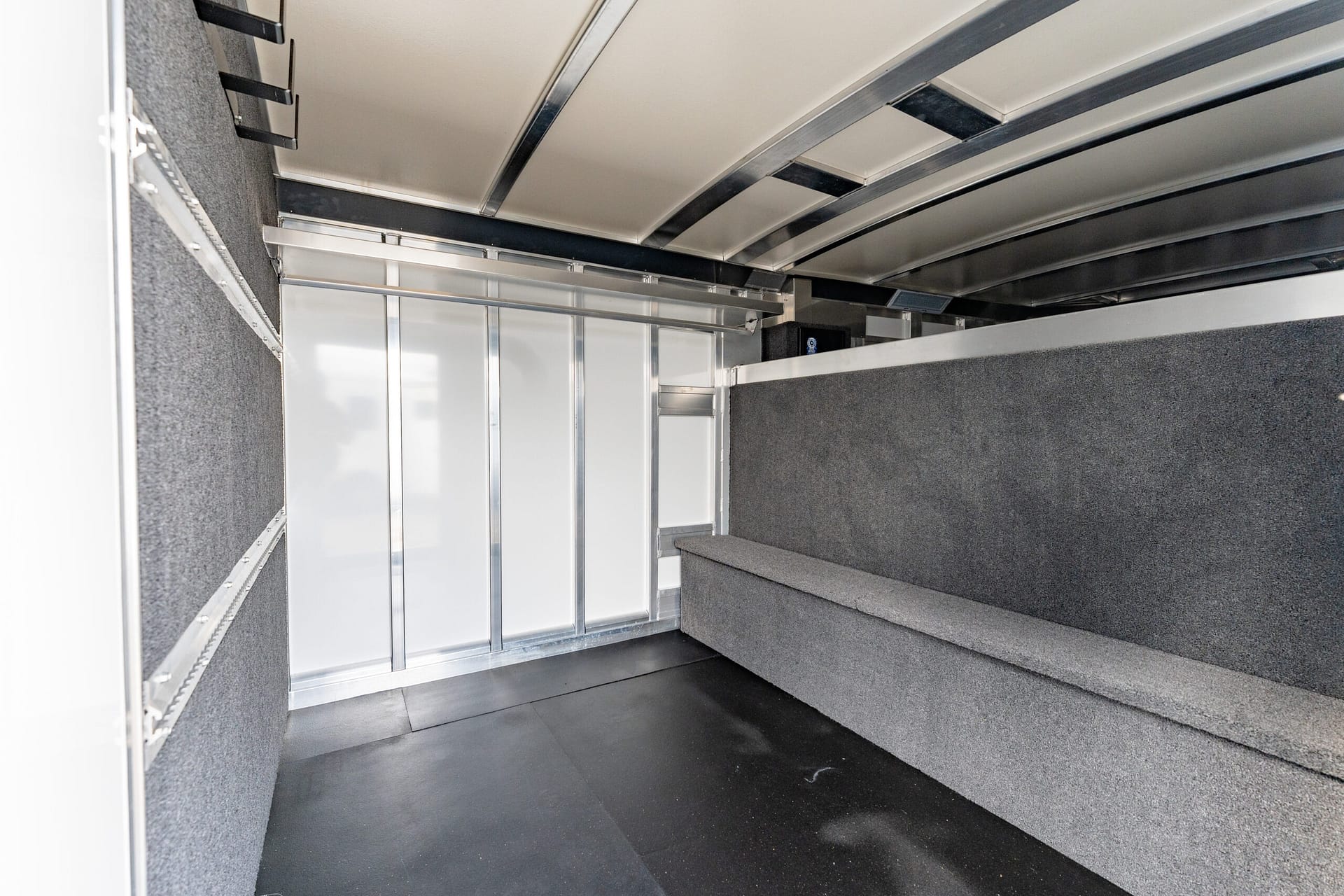

• Front Tack Room: Solid Partition Wall, Full Height & Width, Straight Wall

Stall Area / Load Space Equipment

• Size:
  • Length (LH): 20′ – 3 15/32″
  • Length (RH): 20′ – 3 15/32″
  • Width: 8′ – 0″
• Rear Opening:

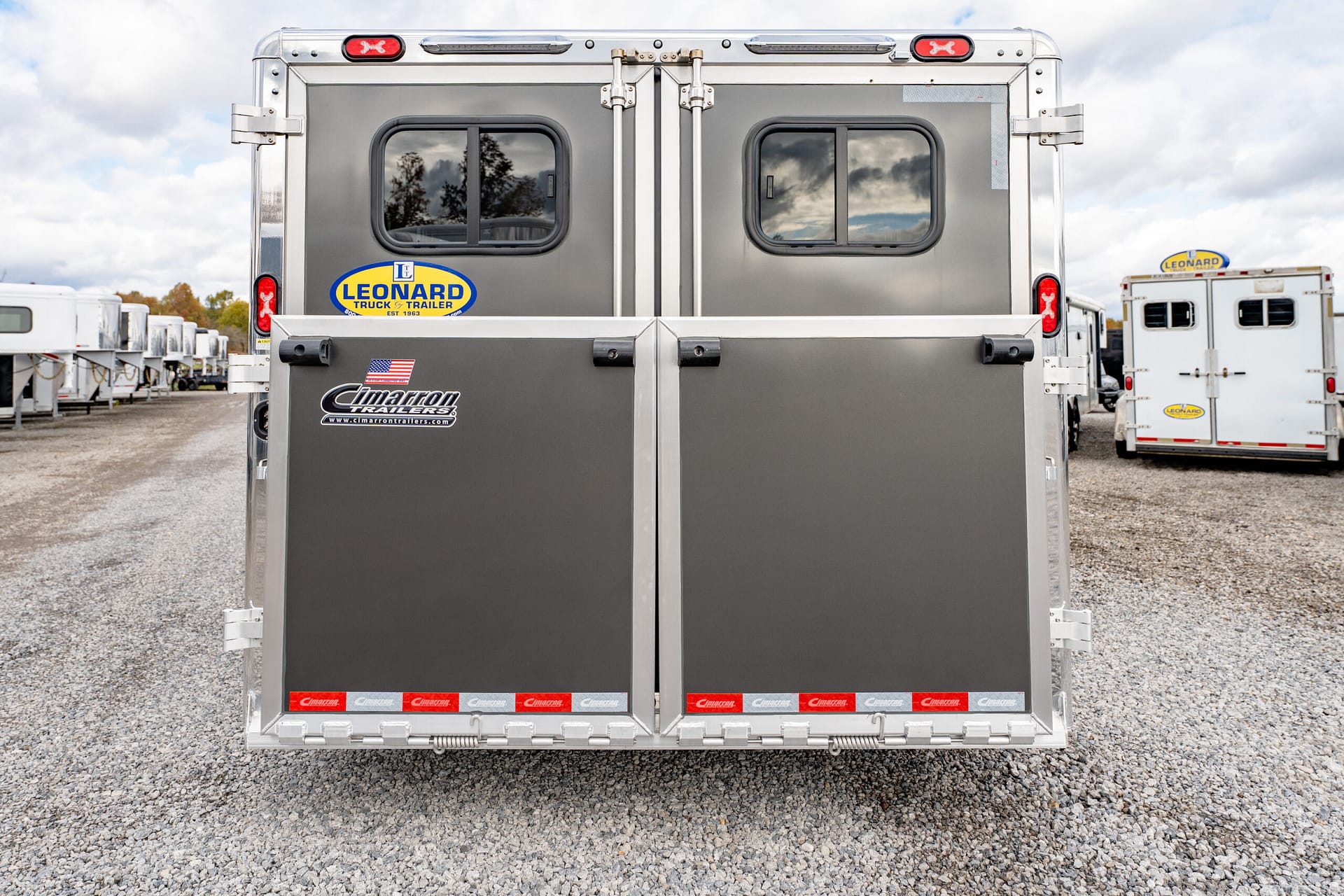

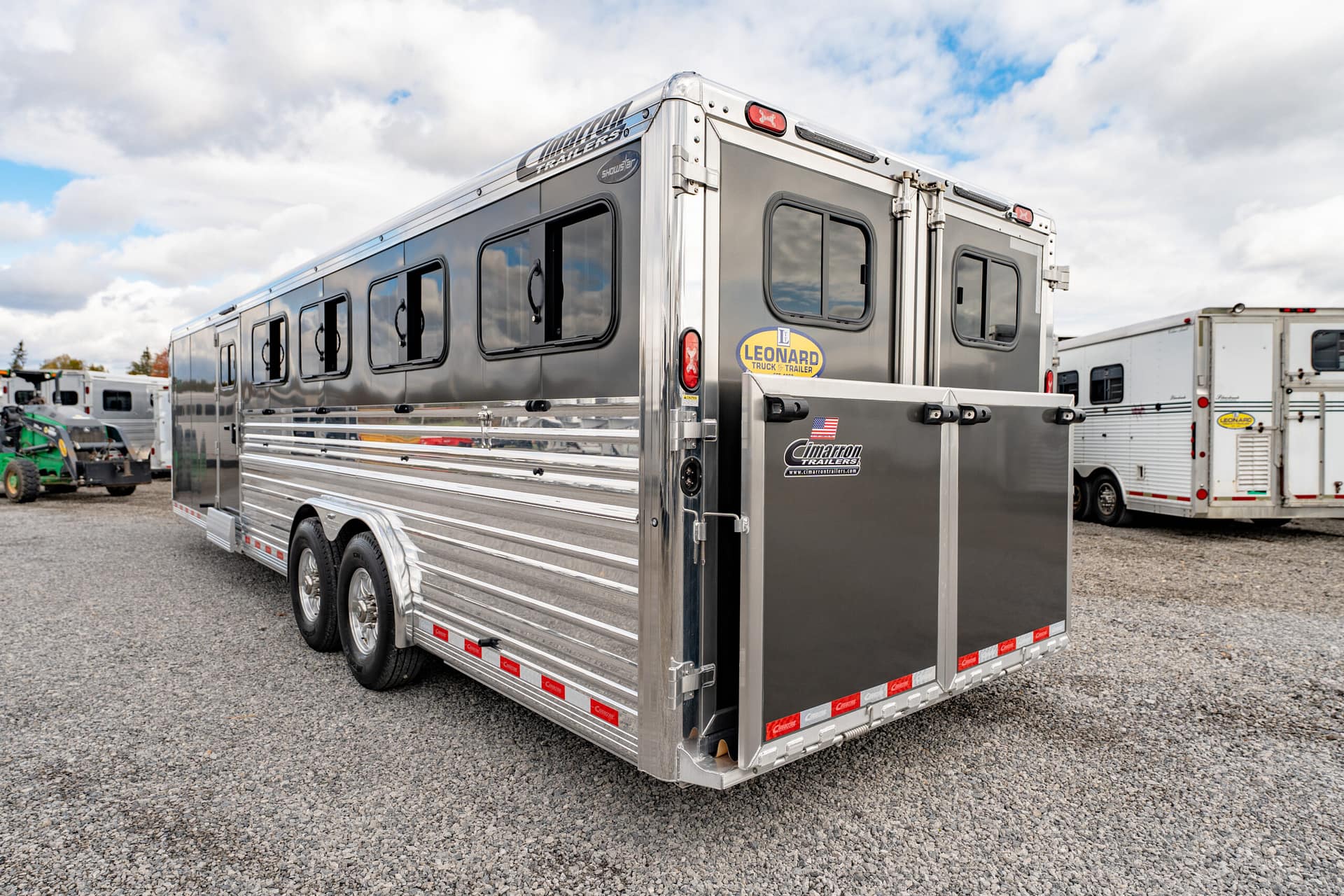

  • Type: Double Doors – Independent, No Post, Wrap Around Hinges (3/door)
  • Arrangement: 50/50
  • Latch Type: Stainless Steel Cam Lock
• Windows:
  • Sliding Type:
    • 15″ x 22″ (Right Rear) – Quantity: 2
    • 15″ x 22″ (Left) – Quantity: 1

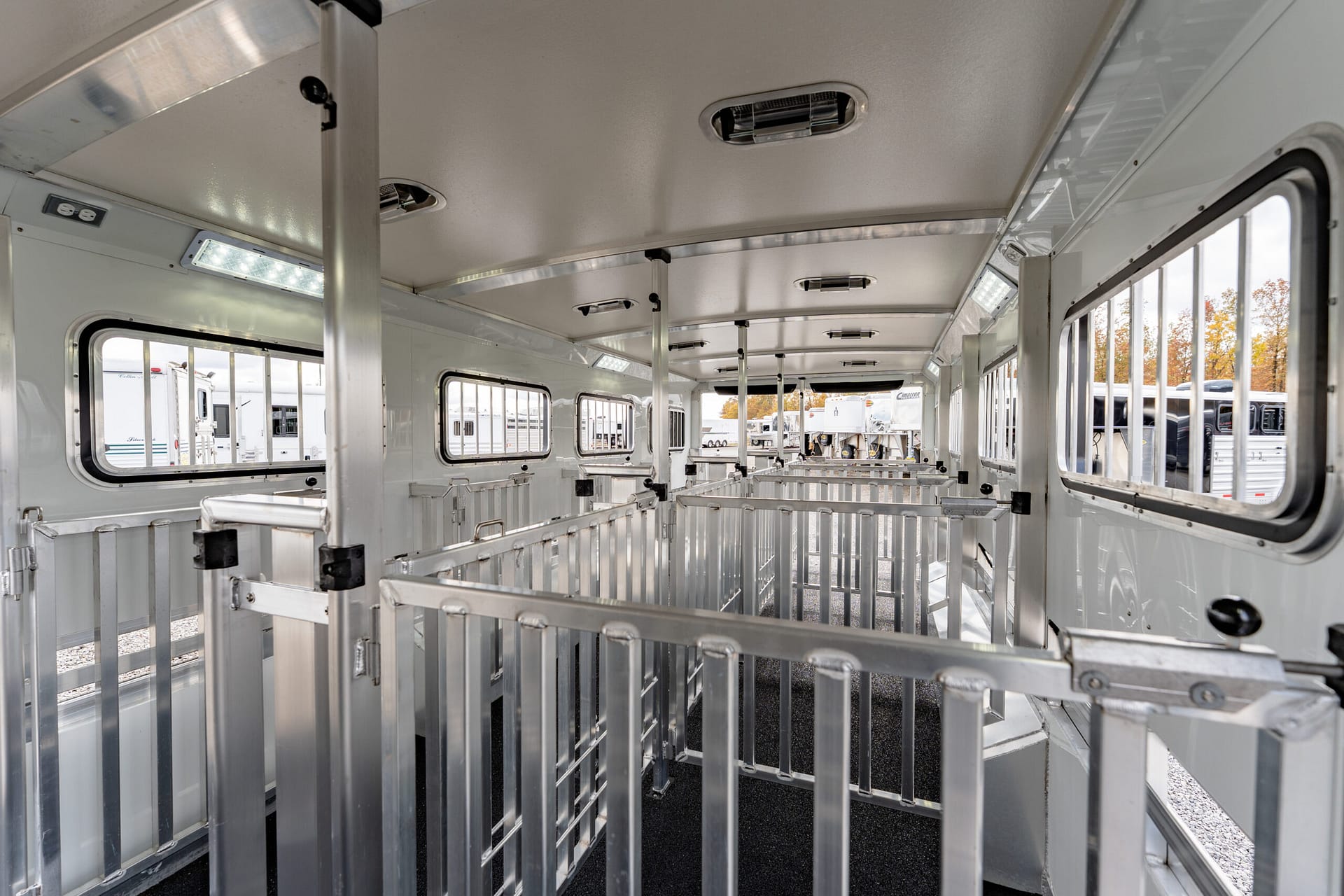

• Gates:
  • Center: 4″ tall removable tube @ GN wall

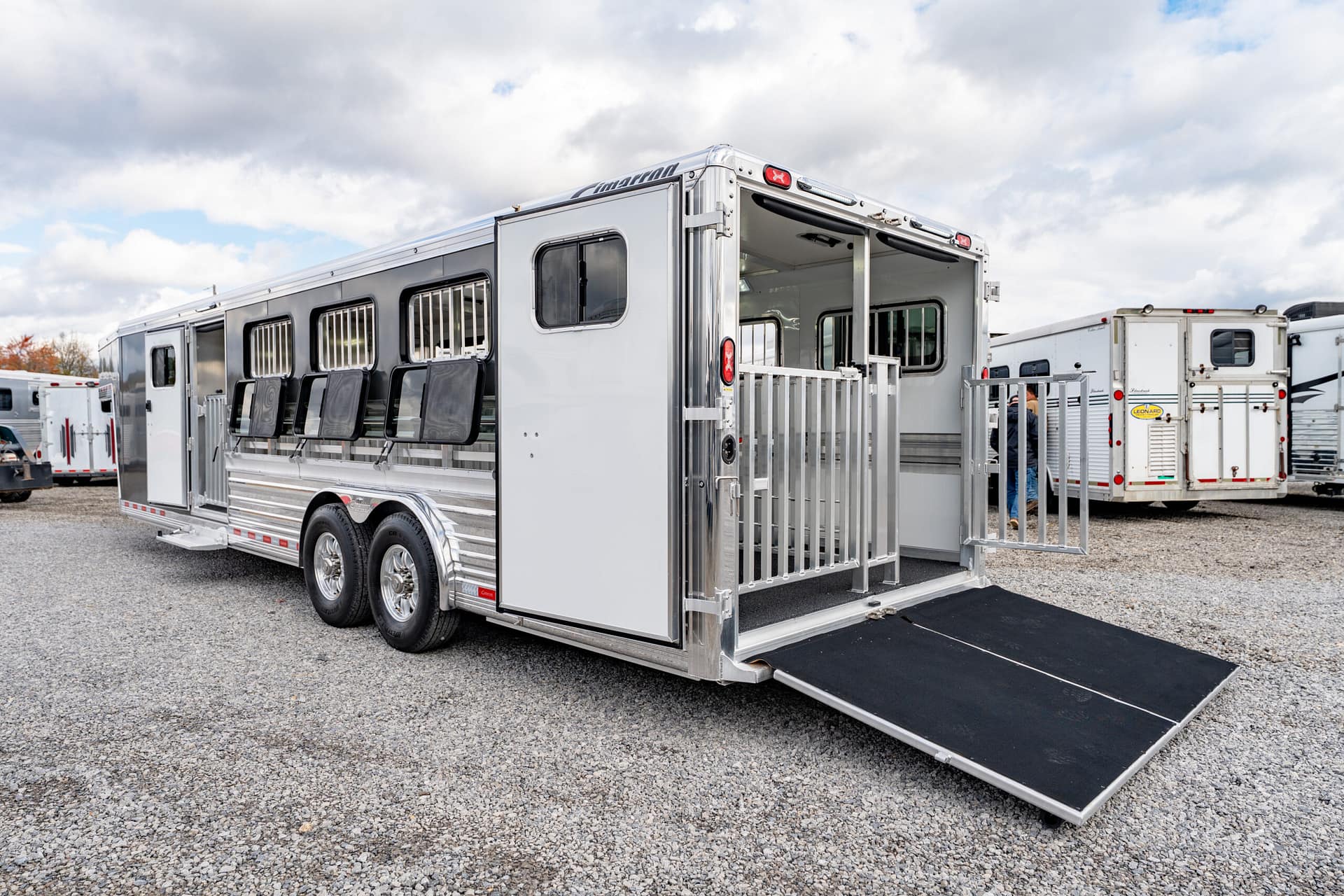

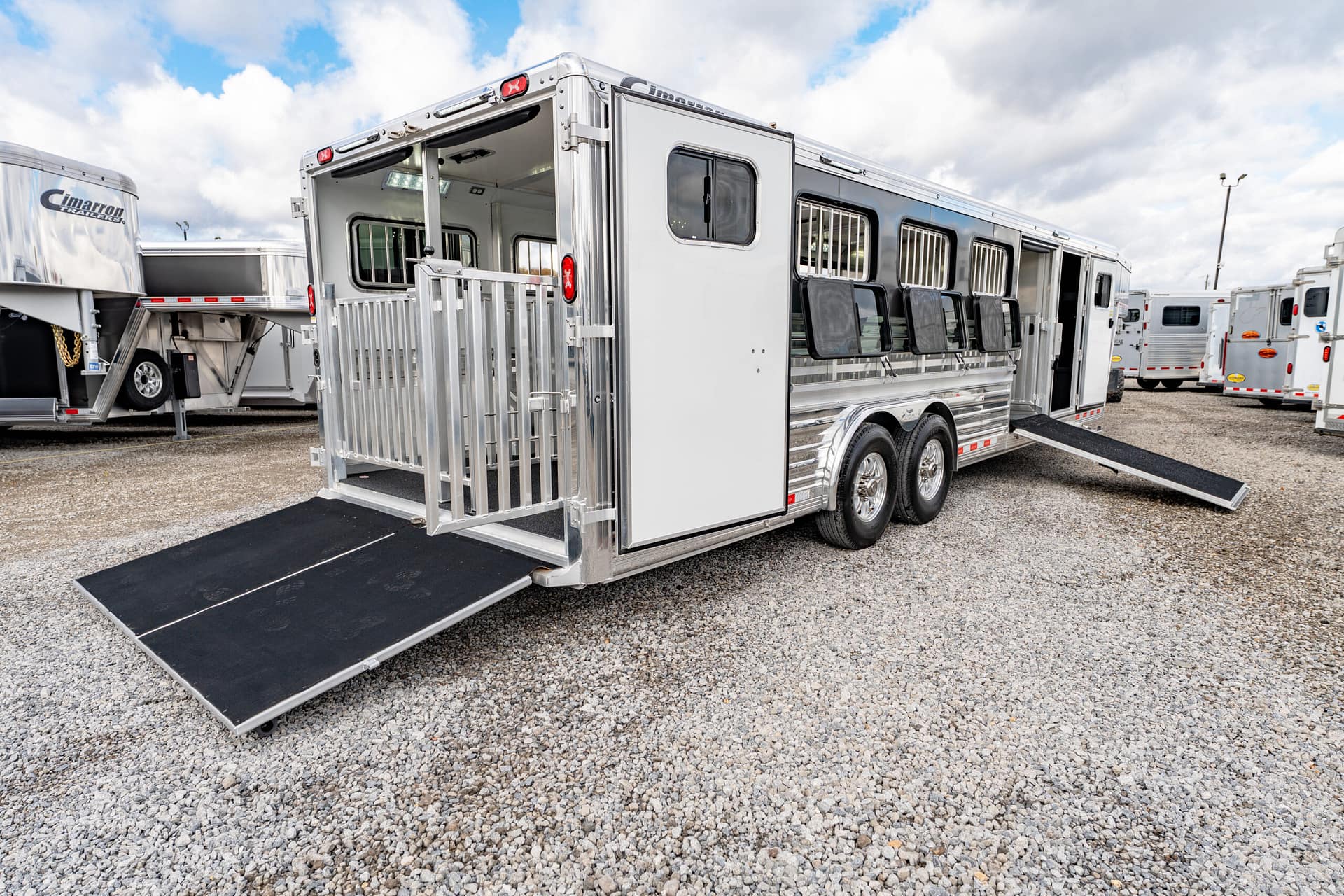

• Ramps:

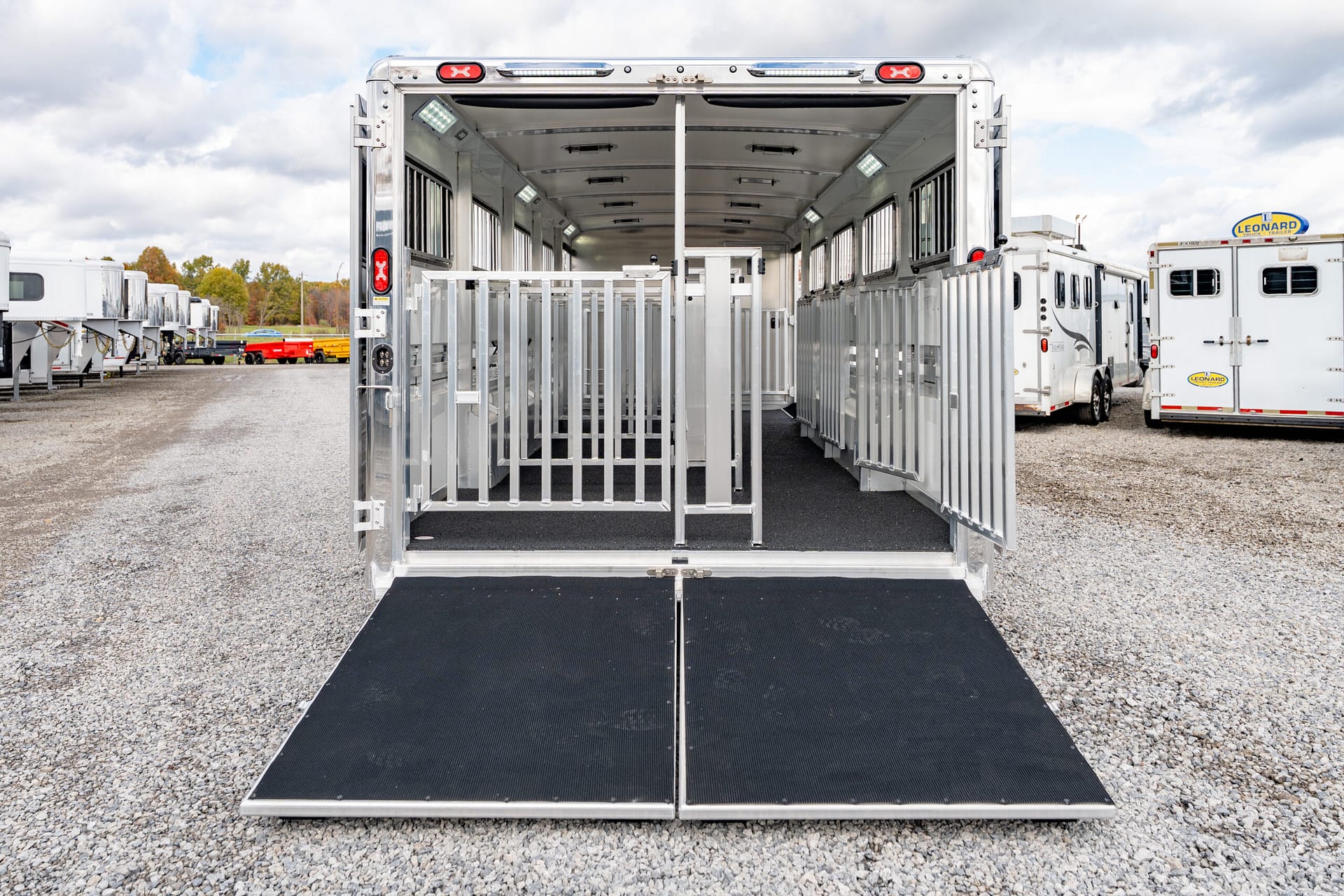

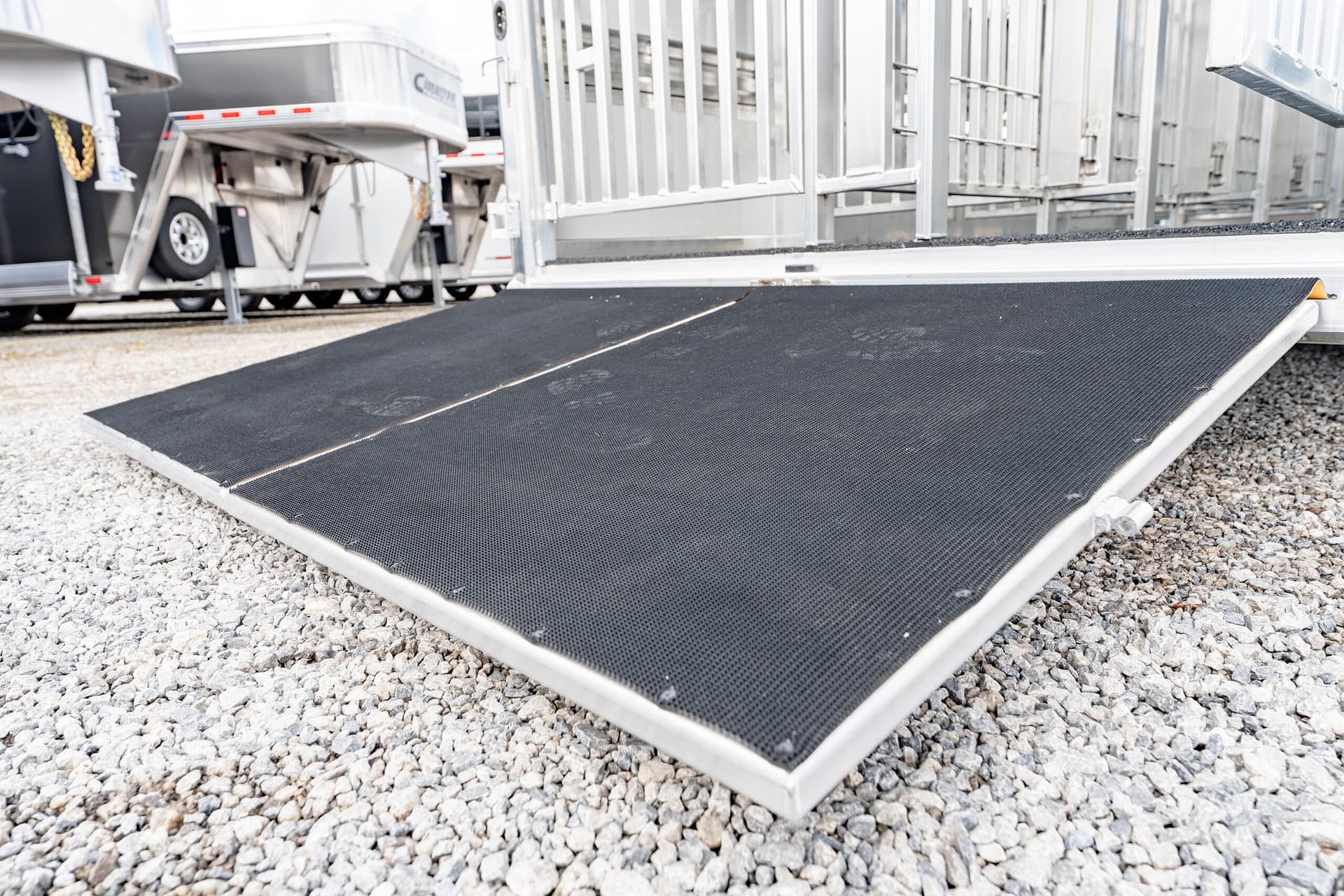

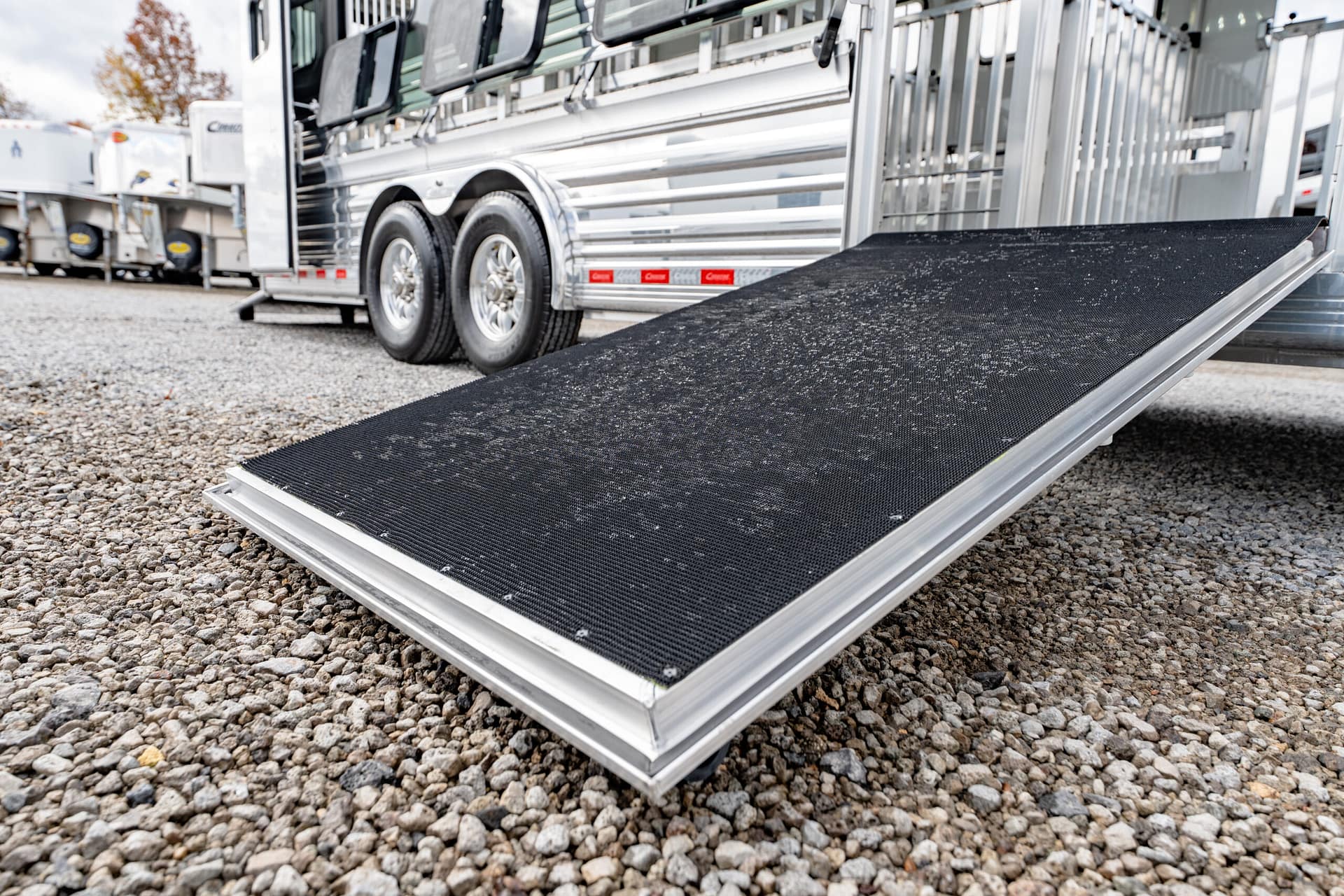

  • Rear: Over existing rear doors, 45″ long x 50/50 split with spring assist

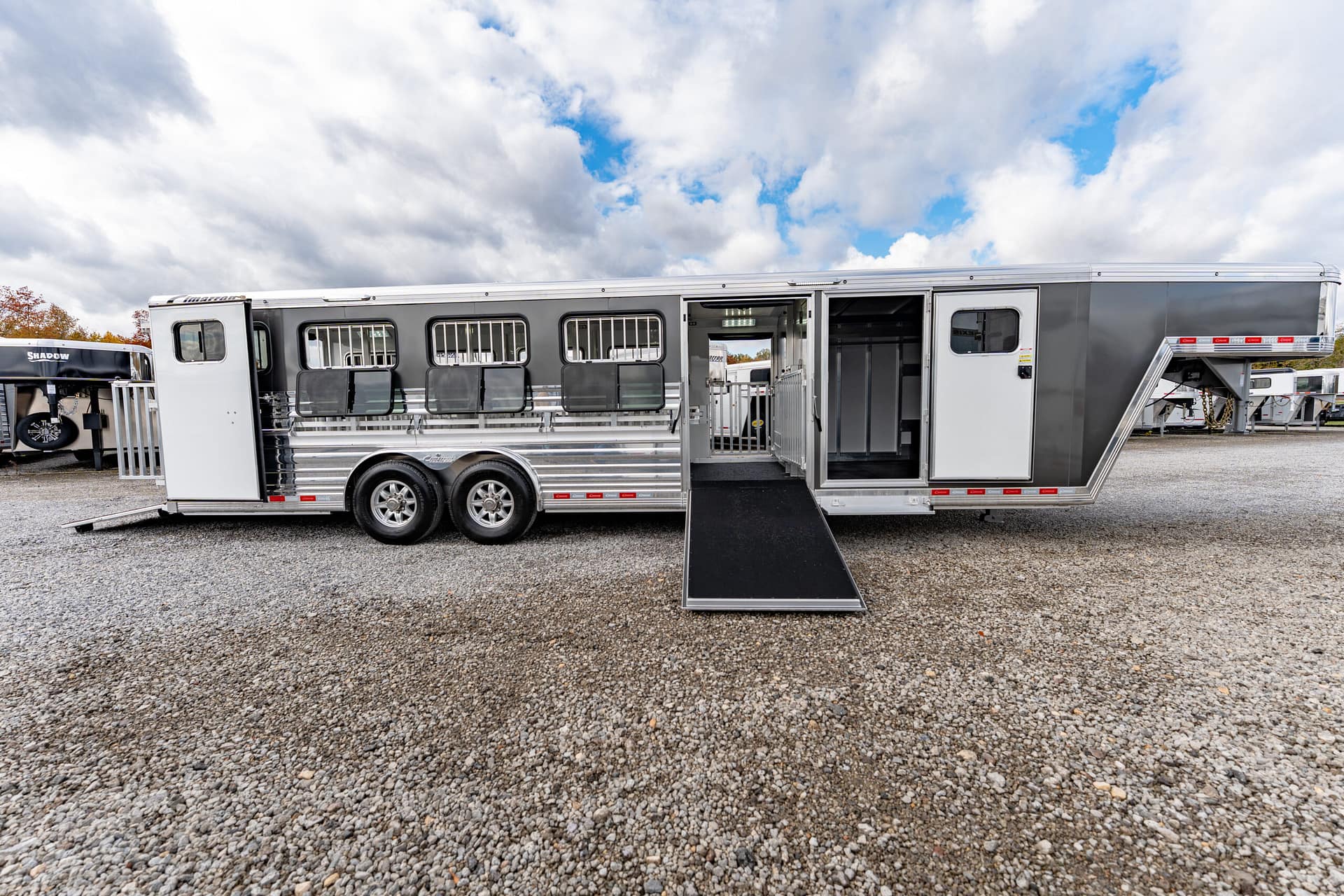

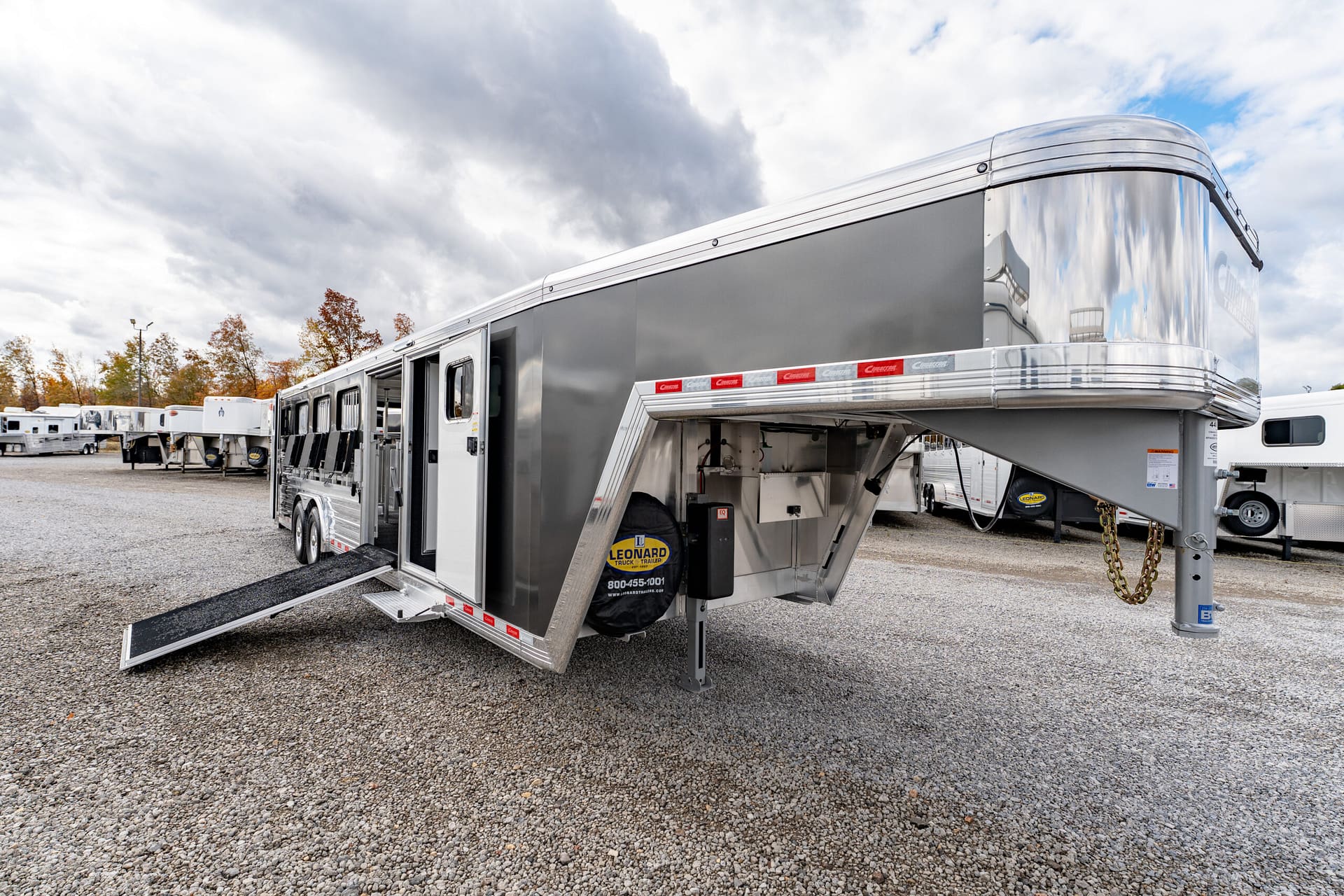

  • Side: Full height up to 48″ wide, sealed with black latches

Special Requirements

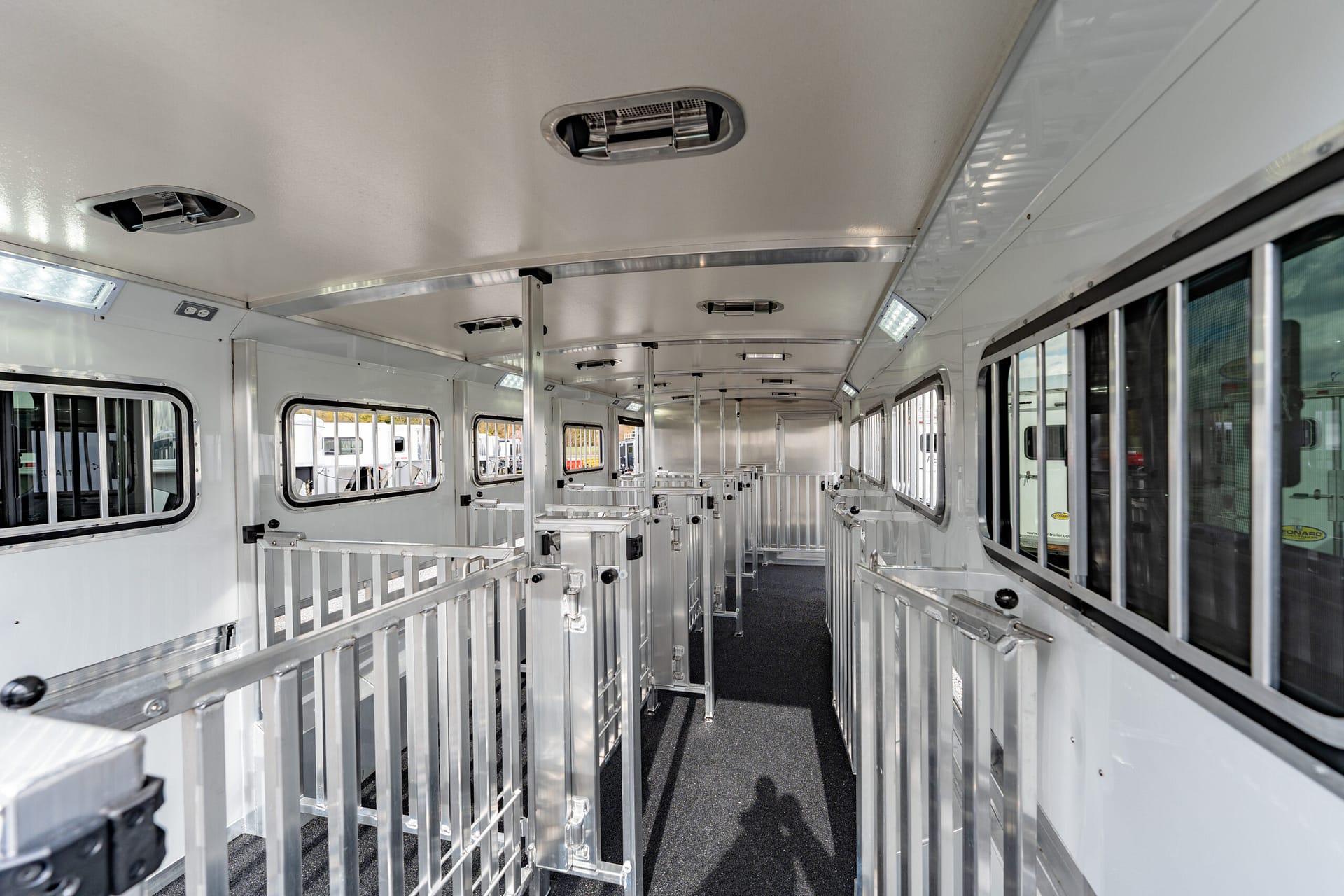

• Pen Gates Hinged at side, requiring Build-Out – ALL RH & REAR GATES

• 110 V 30 Amp pkg w/ 12V Convertor, Shore Cord, Inlet, 1 Outlet

• 110 V Outlet in Top Rail – 3 EVENLY SPACED ON LH SIDE OF STOCK AREA

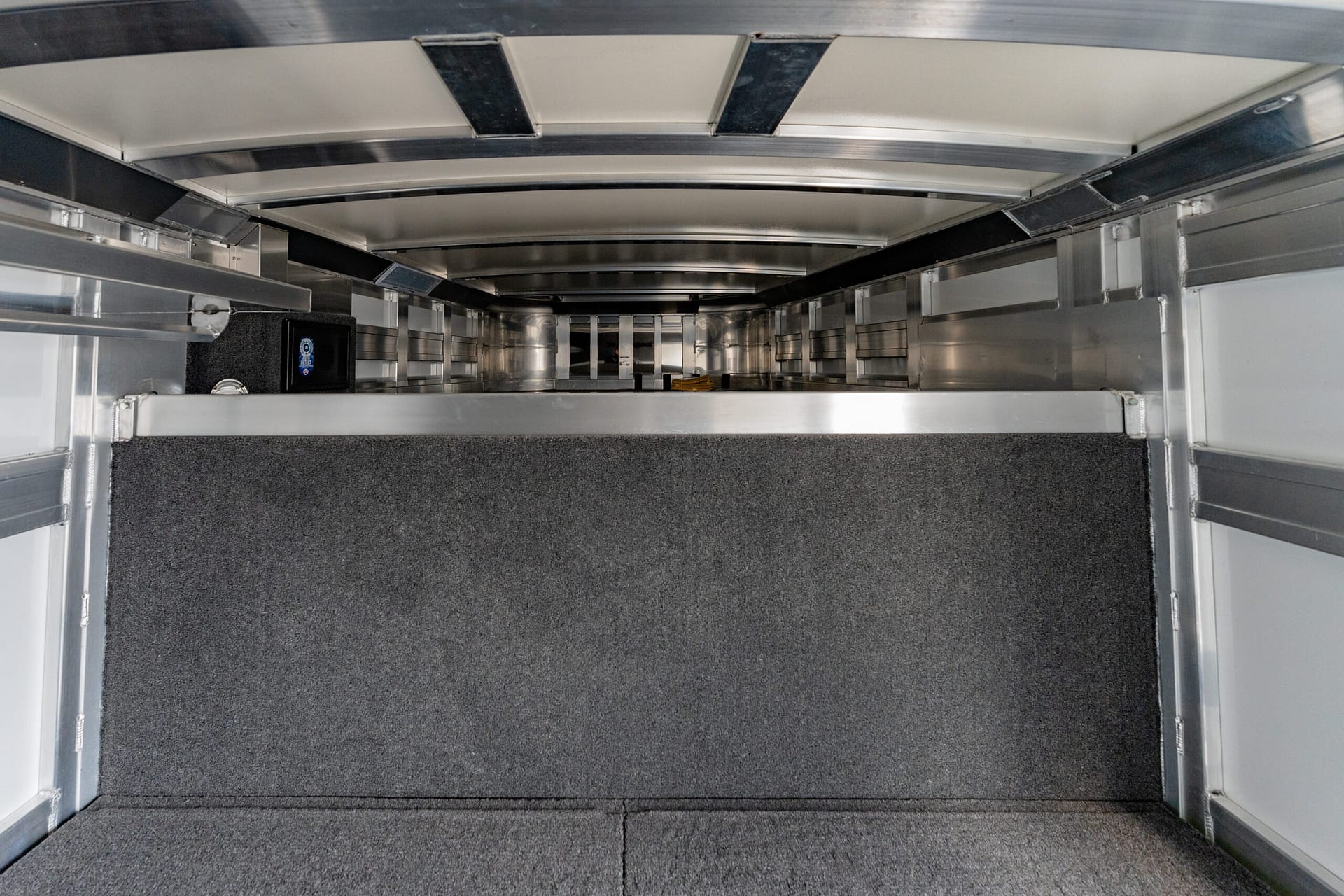

• Carpet complete Partition Wall (NOT WALK THRU DOOR)

• Cargo Control Airliner Track – 24″ & 48″ ABOVE FLOOR ON PARTITION WALL

We offer outstanding financing options, accept trades, and can arrange nationwide NO HASSLE delivery!

Inquire today for more information! (888) 333-6613

**We believe these specifications to be accurate. Any discrepancies are unintentional. Please verify information with a sales associate prior to purchase.**

Stock Number:44670
