2026 CIMARRON TRAILERS NS3G-14’9″ Horse Trailer For Sale

Stock# 45403

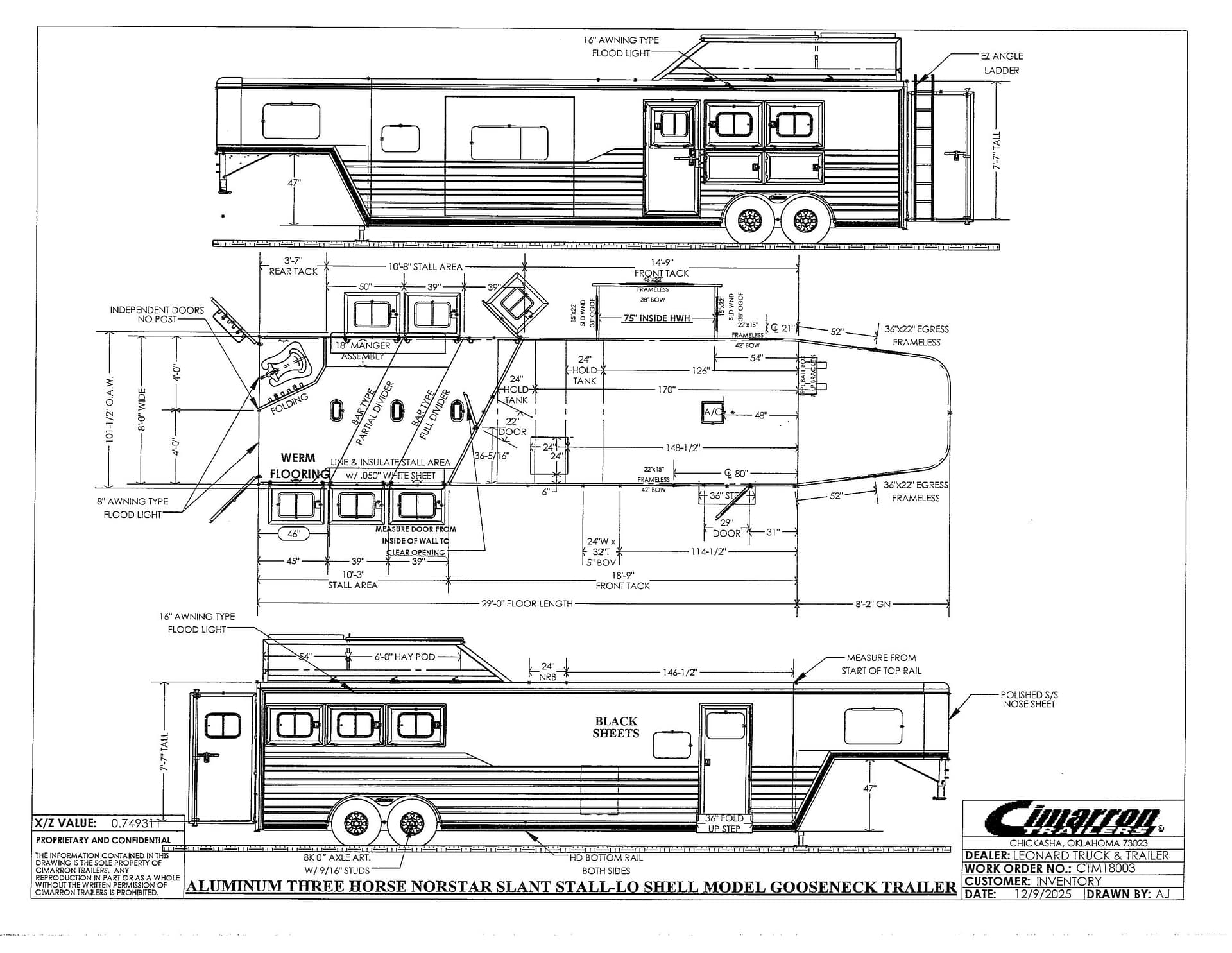

New 2026 Cimarron NS3G-129 Gooseneck Horse Trailer

Cimarron Norstar aluminum horse trailers are engineered to be durable and safe. Bumper pull or gooseneck configurations ensure effortless towing and comfort

Model:  NS3G-129

Warranty:

• 8yr- Structural
• 3yr-Body and Hardware

OVERALL EQUIPMENT:

DIMENSIONS:

• Box Length: 30′ – 3″
• Box Width: 8′ – 0″
• Box Height: 7′ – 10″
• GN Length: 8′ – 2″
• GN Drop Wall: 47″
• GN Structure: Medium Duty

UNDERCARRIAGE:

• GVWR: 16,000
• Axles: 8,000lb Dexter Torflex Axles, 8 Bolt Hubs w/ 5/8″ Studs
• Brakes: Electric (All Wheel)
• Tires: Cooper 245/70 R17.5″ LR-J (Choose SPOKE wheels)
• Wheels: 8 Hole-Aluminum SPOKE 17.5″

TRIM:

• TP-RL Capping: VINYL- FT
• Lower Body: Stall Area & Rear Tack Room
• Rocker Panel: Full Length

COUPLER:

• Type: 2 5/16″ Positive Lock w/ Adjustable Height Stem (GN STD)

DESIGN:

• Nose Profile: Tapered Sides w/ 18″ R Corners
• Nose Style: Wrap Around
• Nose Sheet: Polished Stainless Steel
• Side Walls: Extended Side Slat to GN
• Sheet Color: WHITE (EXT. EXTRUS. – Mill Finished)
• Fenders: Tear Drop
• Overall Width: 102″ O.A.W.
• Roof Material: Insulated Roof Panel

FLOORING:

• Flooring Type: Extruded Aluminum w/ V-Truss & Cross Members Every 4″
• Bottom Rail: HD-Bottom Rail

HARDWARE:

• Hold Backs: All Doors & Gates
• Roof Mnt. Parts: Integrated POD w/ EZ Access Lid & Gate at Rear
• Ladder Type: EZ Angle
• Location: RR-LH

• Tie Rings:

  • Interior: 6
  • Exterior: 6

  JACK, PARKING TYPE:

  • Type: Dual Electric / Hydraulic with 12 Volt Battery & Compartment

EXTERIOR LIGHTS:

• Back-Up LTS L.E.D.: YES (Built into Tail Lights)
• Tail Lights: L.E.D. w/ Red Lens
• Marker Lights: L.E.D. BUTTON Type
  • Qty per Side (on Top Rail): 7
• Flood Lights: L.E.D. Pedestal Mount (RH: 2, LH: 0, RR: 2)
• Other Lights: L.E.D. Awning Light 16″ (RH: 1, LH: 1, RR: 2)

WALLS:

• Front Tack Room: Solid Partition Wall, Full Height & Width (Slant Wall)
• Rear Tack Room: Full Width Rear Tack
• Arrangement:
  • SS Length: 6′ – 0″
  • CS Length: 2′ – 0″
  • Door Locations: DR @ RR

FRONT TACK ROOM EQUIPMENT:

SIZE:

• Length LH: 13′ – 9″
• Length RH: 17′ – 9″
• Width: 8′ – 0″

DOORS:

• Primary Door: 29″ wide x Std height (DR @ RH)
• Secondary Door: 22″ wide x Std height (DR @ PW)

FLOOR:

• Carpet/Floor Mat: Unfinished

LIVING QUARTERS PREP.:

• A/C or Skylight Frame: 2 QTY
• Side Wall Vent Frames: 3 QTY
• Hold Tank Frames: 2 QTY
• LP Brackets: Double
• Battery Compartment: Triple RV battery box under GN, wired hot (w/ electric Jack)
• Generator Equipment: Hinged Lvrd Cover (4-7kw gen) w/ platform on Integrated-Pod Deck
• Glide Outs: LIFTCO Electric Slide Room (35″ Deep x 75 1/4″ Long I.D.)

WINDOWS:

• Sliding Type Windows:
  • 15″ x 22″
• Awning Type Windows:
  • 15″ x 22″ Frameless
  • 22″ x 36″ Frameless
  • 22″ x 48″ Frameless

STALL AREA / LOAD SPACE EQUIPMENT:

SIZE:

• Length LH: 10′ – 6″
• Length RH: 10′ – 6″
• Width: 8′ – 0″

REAR OPENING:

• Type: Single Rear Door w/ Partial Wall (for rear tack)
• Latch Type: Butterfly

DOORS:

• Access Door: 32″ Access Door W/ Feed Door & SBG (Location: LH)
• Feed Doors:
  • Head Side-Fold Down Type (Options: W/ Safety Bars, Quantity: 2)
  • Butt Side-Fold Down Type (Options: W/O Safety Bars, Quantity: 3)

WINDOWS:

• Sliding Type Windows:
  • 15″ x 22″ (LC, QTY: 4)
  • 15″ x 22″ (RR, QTY: 1)
  • 12″ x 22″ (RH, QTY: 1)
  • 15″ x 16″ (LH, QTY: 1)

RAMPS:

• Side Ramp: Over Side Access Door 65″ W x 57″ T (Side Load w/ 24″ rear tack)

DIVIDERS:

• Type: Break-Over
  • Options: Bar Type (Quantity: 1 @ 2)
  • Type: Full
    • Options: Bar Type (Quantity: 1 @ 1)

HEAD GRILLS:

• Type: Bar Type (for mangers) (Quantity: 2)

MANGER ASSEMBLY:

• Width: 18
• Stalls: 2
• With: 2 Doors & Comp Lights

MISC:

• D-Rings: 3
• Padding:
  • Bolster: 1
  • Chest: 1 Bar
  • Head: 1
  • Sides: 4
  • Butt: 1 Strap

LINING:

• Kick Mat:
  • 48″ HIGH W/.090 PL & INSL.- On LH & Front walls
  • 54″ HIGH W/.090 PL & INSL.- On RH wall & rear
• Floor Mat: Removable VET type
• Wall Lining: Dbl wall & insul @ kick mats w/.050 white above

SADDLE RACKS:

• # of Adjustable Pads (Each):
  • Quantity: 3
  • Post Type: Swing Out/Gas Shock (RT – 1)

BLANKET POLES:

• Type: 4 Poles – Swing Out, Gas Shock
  • Location: RT – DR
  • Quantity: 1

SPECIAL REQUIREMENTS:

1. Add Recessed Paddle Latch on Side Access Door #1 Stall
2. Side Access Door 39″ On RH side of #3 Stall for Side Load
3. #3 STALL IS 48″ WIDE FOR SIDE LOAD
4. Carpet all Walls & Doors of FULL REAR TACK
5. Shelf, 18″ w/2″ lip Custom – 3 SHELVES ON RH WALL IN REAR TACK, 18″ DOWN & 18″ APART
6. Shelf, 18″ w/2″ lip Custom – ON LH WALL OF REAR TACK, 66″ ABOVE FLOOR
7. REAR TACK DOOR IS 48″ & OFFSE

We offer outstanding financing options, accept trades, and can arrange nationwide NO HASSLE delivery!

Inquire today for more information! (888) 333-6613

**We believe these specifications to be accurate. Any discrepancies are unintentional. Please verify information with a sales associate prior to purchase.**

Stock Number:45403
