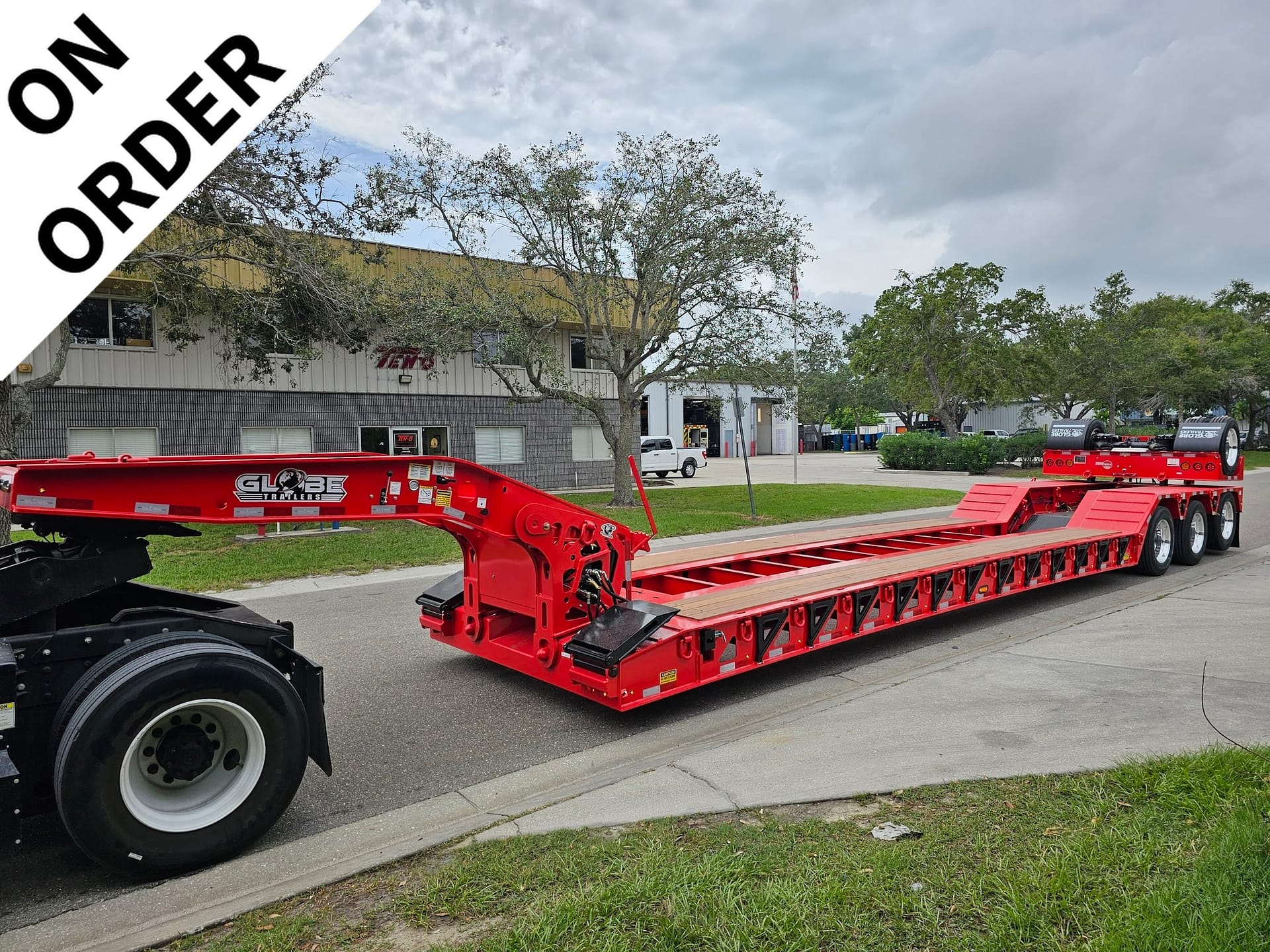

2027 Globe 55 Ton RGN Trailer

Model: GTBN553-53-26-HGG

Warranty: 10 Years

General Specifications

• Trailer Type: Full Deck NGB Detachable Neck
• Capacity: 55 Ton
• Rear Deck Height: 42 in.
• Lower Deck Height: 22 in.
• Gooseneck Length: 147 in.
• Lower Deck Length: 26 ft.
• Rear Deck Length: 174 in.
• Overall Length: 633 in.
• Overall Width: 102 in.
• Ground Clearance: 6 in.

Main Deck

• 16 in. T-1 steel main beams
• 40 in. main beam centers
• 16 in. T-1 steel side rails
• 10 in. & 4 in. crossmembers
• 12 in. crossmember spacing
• Full-height removable outriggers
• 15 outriggers per side
• 13 D-rings per side
• Steel front ramps
• Tool box with lockable lid in the first bay behind the gooseneck
• Open storage bin in the second bay behind the gooseneck
• Chain slots down each side of the main deck and rear deck

Rear Deck / Running Gear

• 35° rear bridge ramp riser
• 16.5 in. T-1 steel rear deck beam
• Boom and bucket well rear well style
• Set up for hydraulic-powered flip axle
• 4 axles
• 54 in. axle spacing
• 25,000 lb. axle capacity
• 76-1/2 in. axle track
• Cush air ride suspension – 25,000 lb.
• Adjustable Cush air ride suspension
• Manual dump

Axle Configuration

• Axle 1: Fixed – Type 30/30 Non-ABS
• Axle 2: Fixed – Type 30/30 ABS
• Axle 3: Super Lift – Type 30 Non-ABS
• Axle 4: Hydraulic Flip – Type 30 Non-ABS

Brakes & Tires

• Brakes: 16-1/2 in. x 7 in. – 25K
• Tires: 275/70R22.5 H
• Rims: 8.25 x 22.5 Hub Piloted – Outer Aluminum
• ABS: 2S1M

Decking / Flooring

• 1.75 in. Apitong decking with open center
• Removable full-length D-plate well decking
• Steel-covered D-plate wheel covers

Electrical

• LED lighting package
• Dual rear strobes
• 7-way connector
• Night light safety package with battery
• 4 additional 3/4 in. round clearance lights on each side of the main deck, evenly spaced
• LED work lights on gooseneck base facing rear of trailer
• All lights to be clear lenses with chrome bezels

Gooseneck

• King Pin Style: Fixed
• King Pin Setting: 16 in.
• Swing Clearance: 102 in.
• 5th Wheel Height: 50 in.
• Ride Height: 5-Position
• Wet Line Kit: Wing Nut Connection
• Engine: 13 HP Honda Gas
• King Pin: 2 in.

Finish

• Sandblasted and powder coated in Viper Red & Black
• 4 flag holders
• Mud flaps and reflective tape
• Meets all DOT requirements

We offer outstanding financing options, accept trades, and can arrange nationwide NO HASSLE delivery!

Inquire today for more information! (888) 333-6613

We believe these specifications to be accurate. Any discrepancies are unintentional. Please verify information with a sales associate prior to purchase.

Stock: 46310
