2027 Pitts LB35-22DC Hydraulic Detachable Trailer

35 Ton Capacity

22” Loaded Deck Height

General Specifications

Hydraulic Detachable Non-Ground Bearing Gooseneck
4-Position Ride Height Adjustment
Vertical Locking Pin
Hydraulic Support Arm
Auto Diverter Valve

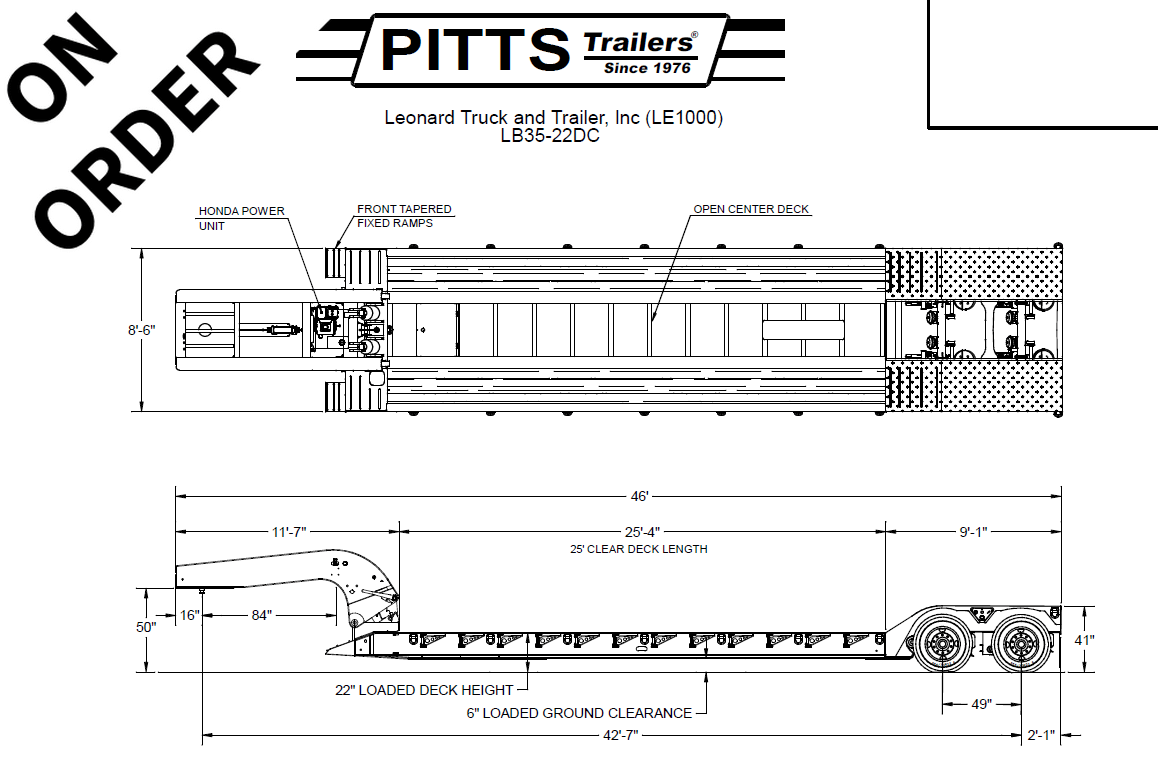

46’ Overall Length
25’ Deck Length
8’6” Wide

Gooseneck

50” King Pin Height
16” King Pin Setting
84” Swing Clearance
5/16” King Pin Plate
Honda Pony Motor

Main Deck

16” Fabricated T-1 Main Beams
14” Side Beams
10” I-Beam Crossmembers on 24” Centers
4” Stub Crossmembers on 12” Centers
1.5” Apitong Outer Decking
Open Center Deck
22” Loaded Deck Height
6” Ground Clearance
Front Fixed Ramps
Lockable Toolbox in Front of Deck
Removable Swing-Type Outriggers
Knuckle Trough at Rear of Deck

Bogie

Triple Reinforced Front Bogie Connection
V-Style Boom Trough
Load Bearing Bolsters Between Axles & Rear
Heavy Duty V-Style Rear Bumper
Ultra Low Bucket Well

Running Gear

(2) Heavy Duty 25K Axles
49” Axle Spacing
25K Heavy Duty Air Ride Suspension
Automatic & Manual Suspension Controls
Suspension Override Prevention Straps
16.5” x 7” Brakes
Type 30/30 Parking Brakes
ABS Equipped
Outboard Mount Brake Drums

Tires & Wheels

255/70R22.5 H Tires
8.25 x 22.5 Wheels
Polished Aluminum Outer Wheels
Steel Inner Wheels

Electrical

Fully Sealed Wiring Harness
LED Lighting Package
Marker Lights & Mid-Turn Signals
(3) Oval Stop / Tail / Turn Lights Per Side
Amber Strobes in Rear Bumper
Battery Backup System

Finish

White Blasted & Cleaned Prior to Paint
PPG 2-Part Primer
PPG Black Acrylic Urethane Paint

Additional Features

16 Bent D-Rings
Steel Check Plate Wheel Covers
Open V-Style Boom Trough

Trailer Information

16,300 lb. Empty Weight

We offer outstanding financing options, accept trades, and can arrange nationwide NO HASSLE delivery!

Inquire today for more information! (888) 333-6613

Specifications believed accurate but subject to verification prior to purchase.

Stock Number:46405
