2025 ROGERS BROTHERS CORP. SP55GR110/53/25/102/3XAR Semi Trailer For Sale

Stock# 44021

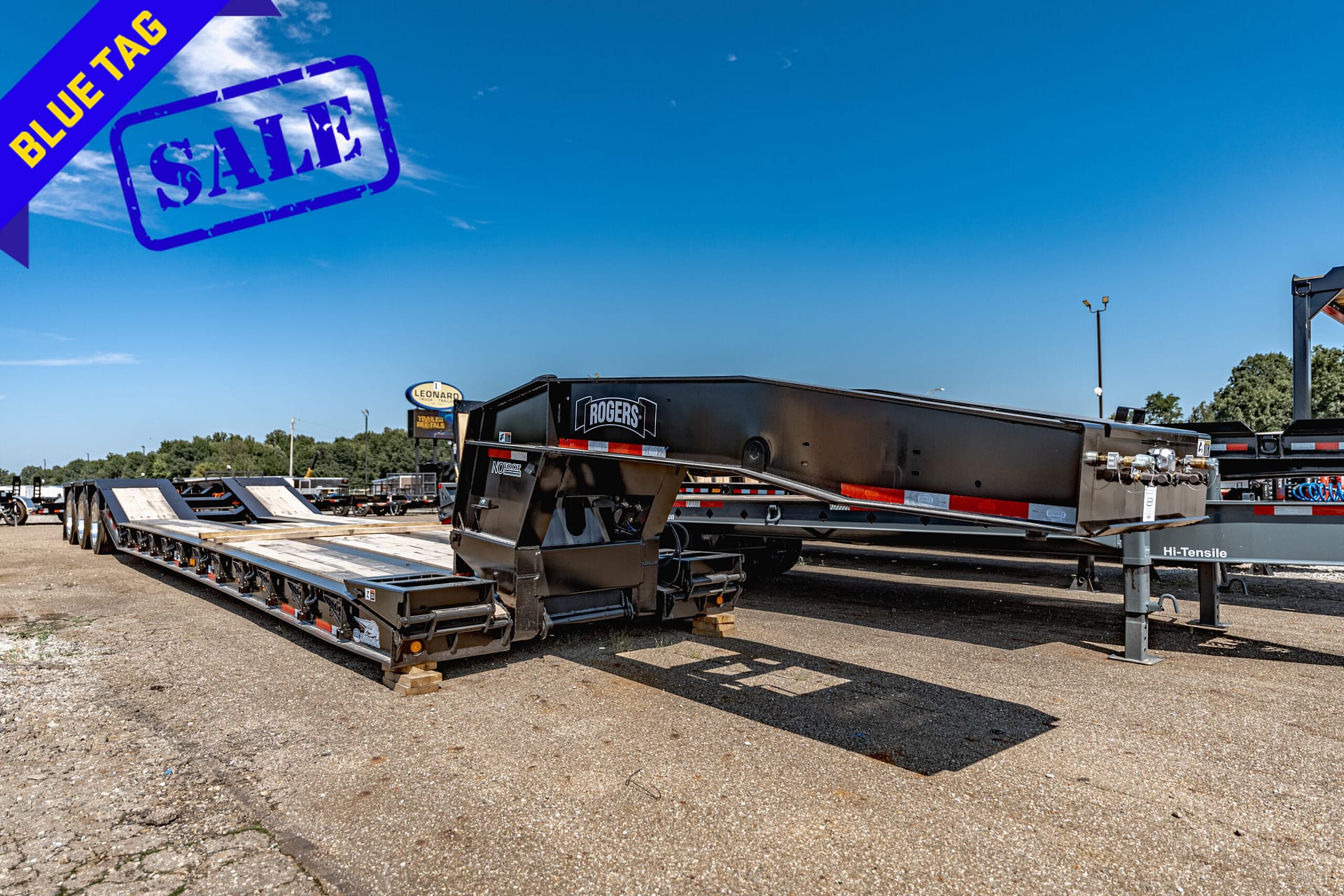

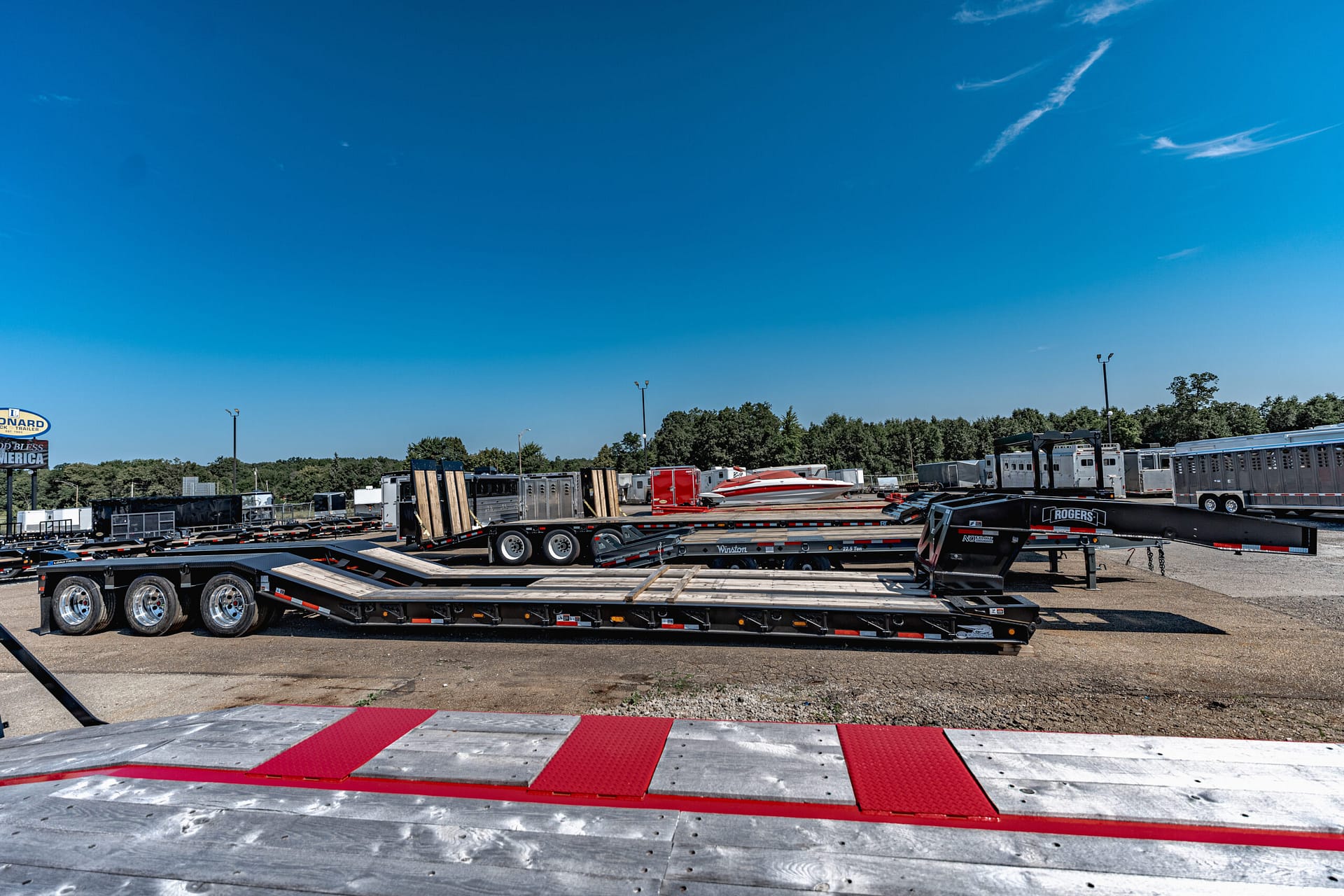

New 2025 Rogers SP55GR110/53/25/102/3XAR SemiTrailer

Since 1905 Rogers has been building trailers to haul equipment across the world. Today, you’ll see the Rogers name in all 50 states, and in 65 countries around the globe.

Model:SP55GR110/53/25/102/3XAR

Warranty:

• 7yr– Structural

Trailer Specifications – SP55GR110/53/25/102/3XAR

Frame & Dimensions

• Frame: 110,000 lbs. max capacity concentrated in 16′ 0″ of deck

• 56′ 4″ overall length; 102″ maximum width

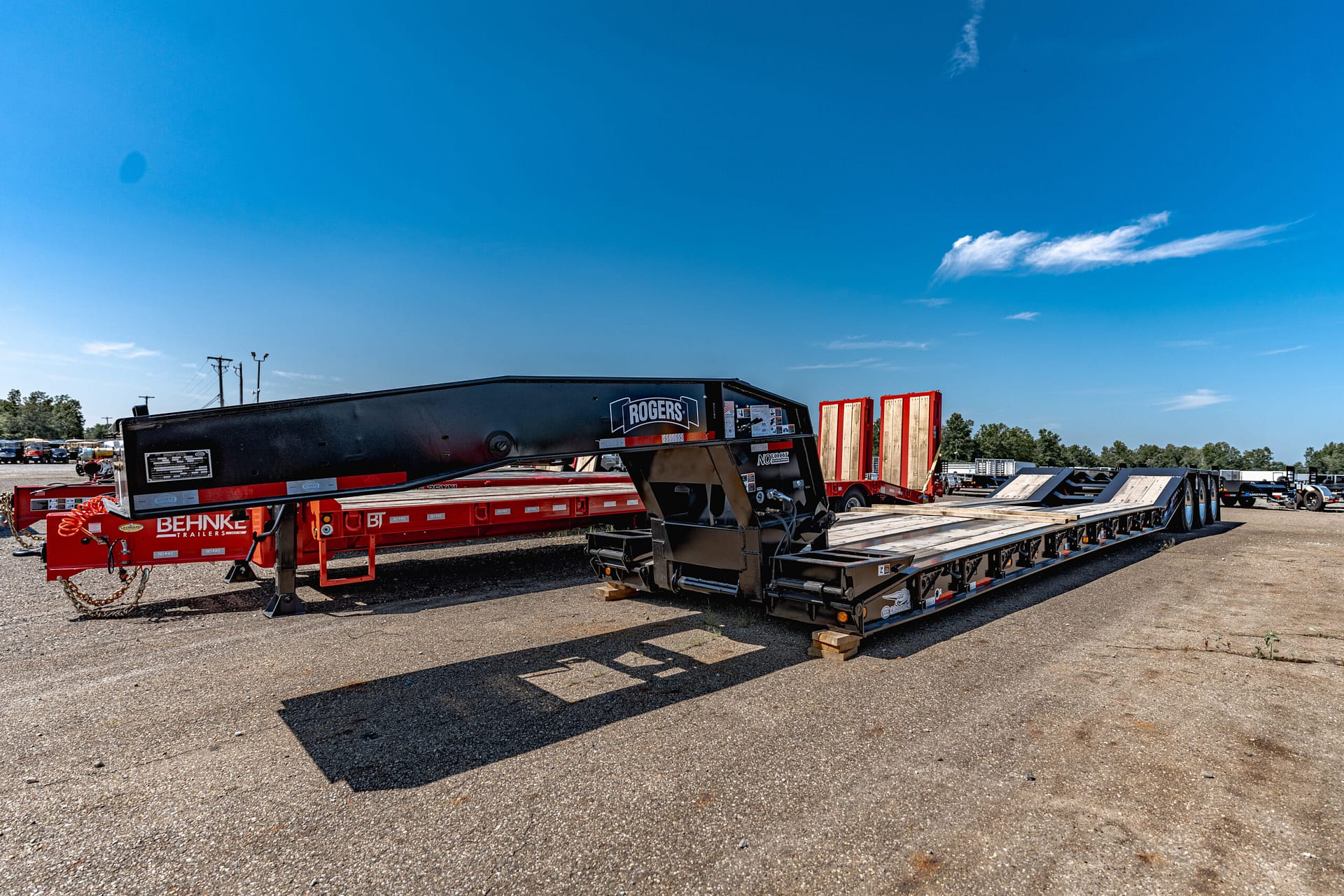

• “No-Foot” non-ground engaging

• 13′ 1″ overall gooseneck length; 53″ light 5th wheel height x 110″ swing clearance

• Hydraulic power source: Tractor PTO

• Trap door extension blocks adjust 5th wheel height from 51″ to 55″

Gooseneck Features

• Dual arm hydraulic gooseneck jack paddle and shoe

• (1) standard lashing D on cross member behind kingpin

• (2) standard lashing D’s on top of each gooseneck beam

• Steel covered lockable toolbox, front center of gooseneck

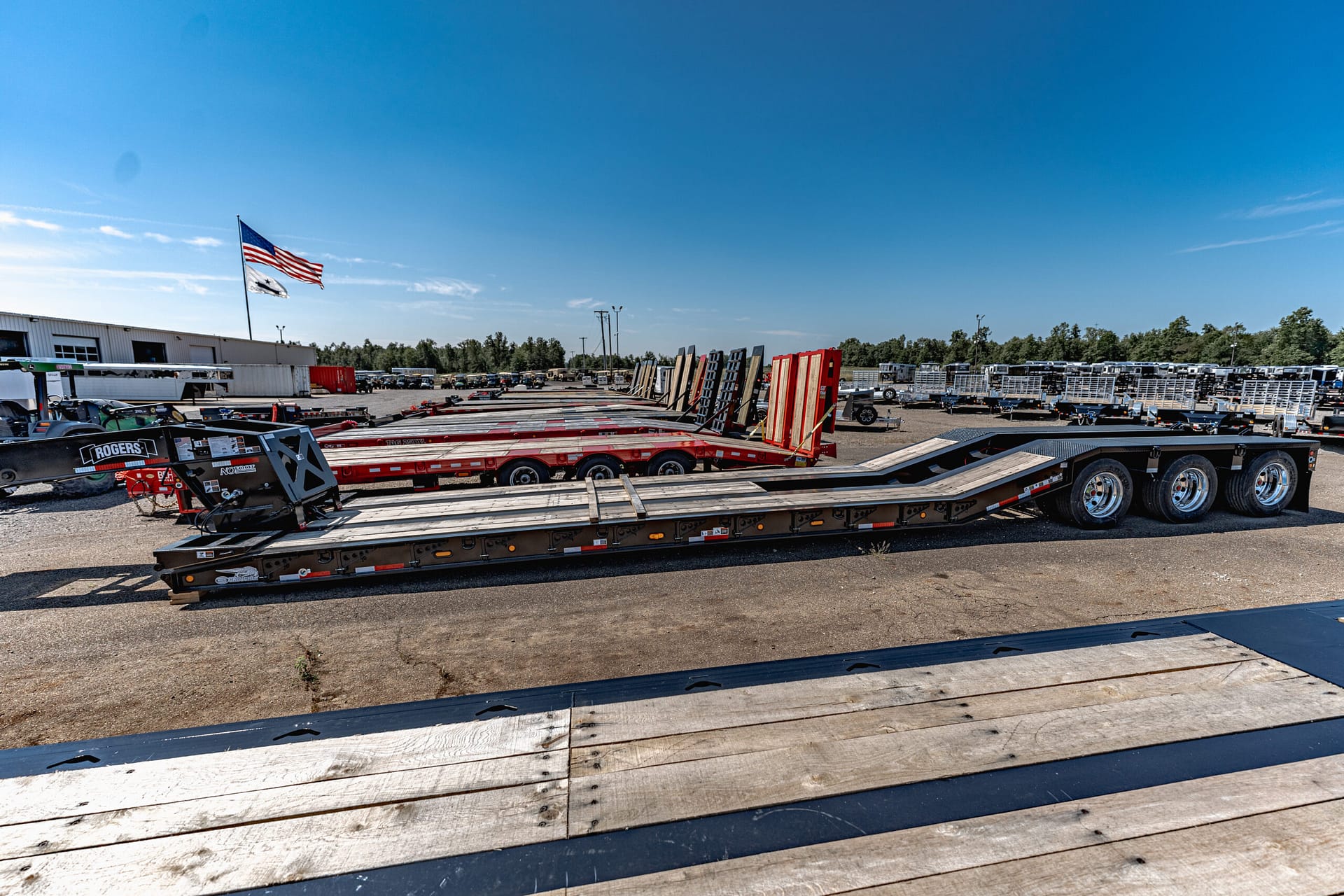

Deck Platform

• Four beam cambered design

• 25′ 0″ x 102″ platform

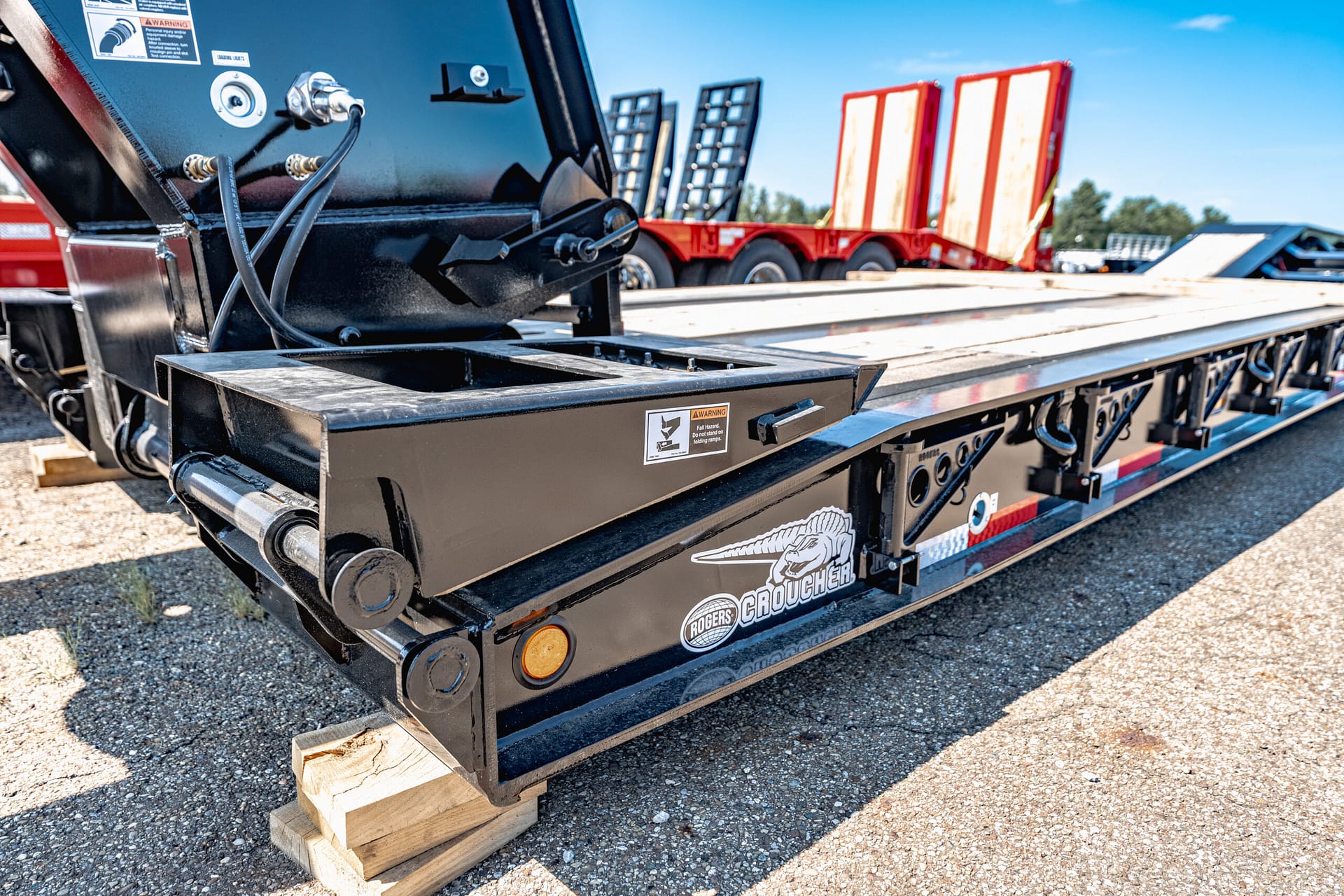

• “Paver Front” tapered to approx. 8 3/8″ height

• 20″ loaded deck height with full capacity load

• “Bucket Pocket” with last 3 center cross members lowered

• 1 3/4″ air dried oak flooring; center boards installed

• (12) bent lashing D’s — (6) each side of deck

Ramps & Side Brackets

• Adjustable width double-fold front folding ramps, wood covered, with tapered wedge on front (BLACK)

  • Ramps do not extend beyond gooseneck when folded onto deck

• (24) swinging removable side brackets (22800) (BLACK)

16° Gentle Riser Includes:

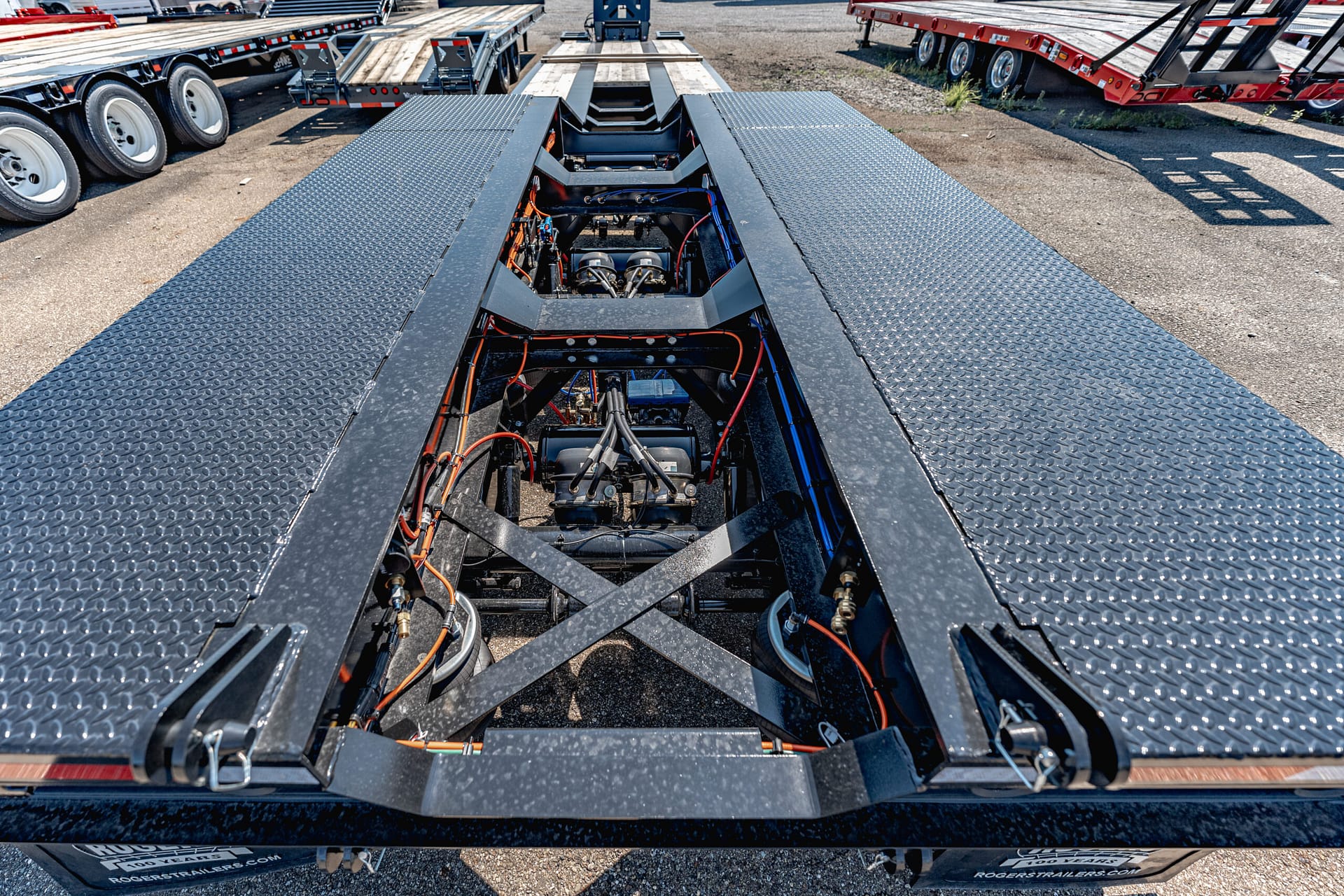

• “Boom Trough” with lowered cross members in riser and rear frame with standard notched rear channel

• 1/4″ tread plate wheel covers, reinforced (NO WHEEL CUTOUTS)

• Trunnion beams between wheels with a lashing D on each end

• Hinges/pins installed; air/light lines extended for removable/flip 4th axle

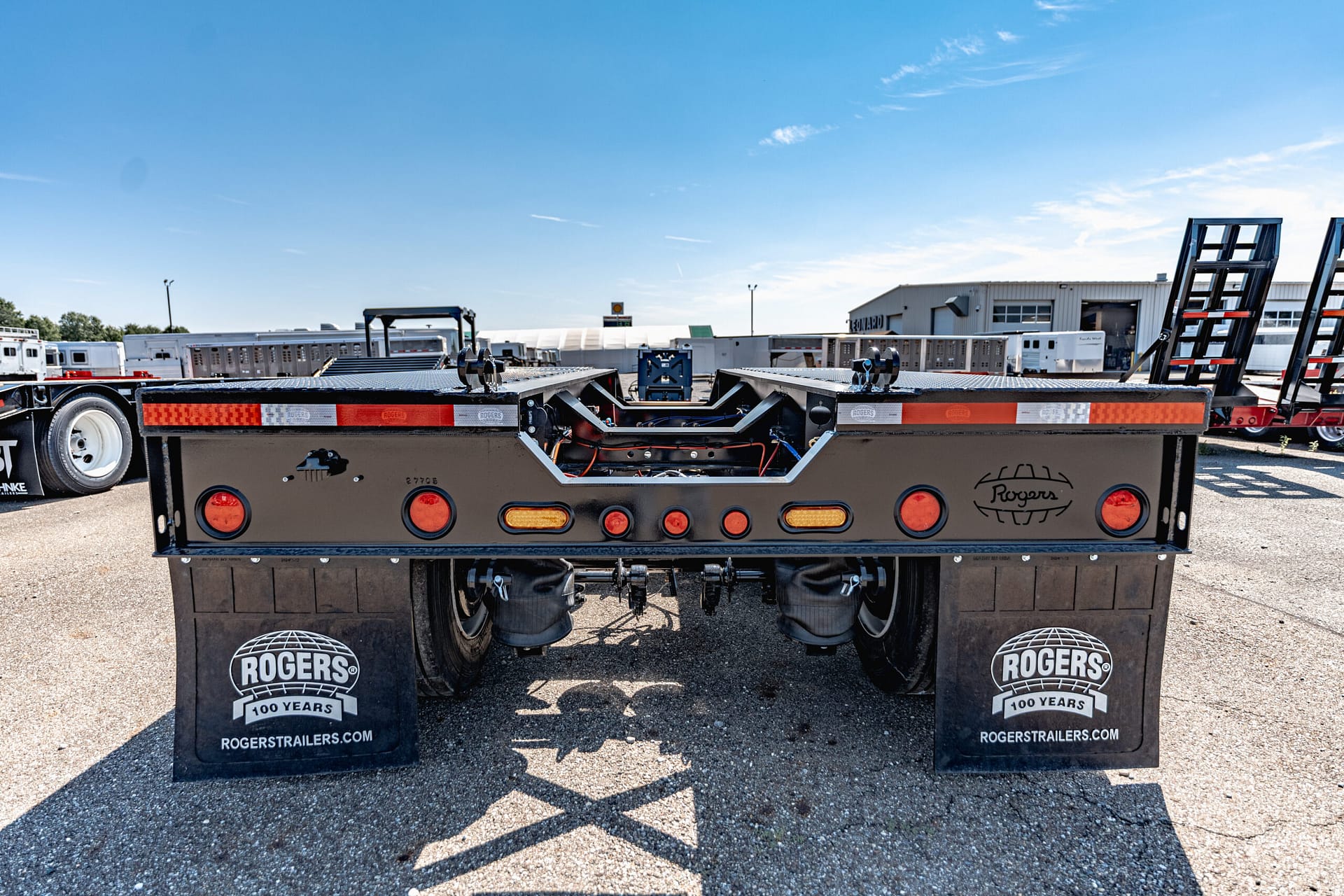

• (1) pair flag holders on rear channel

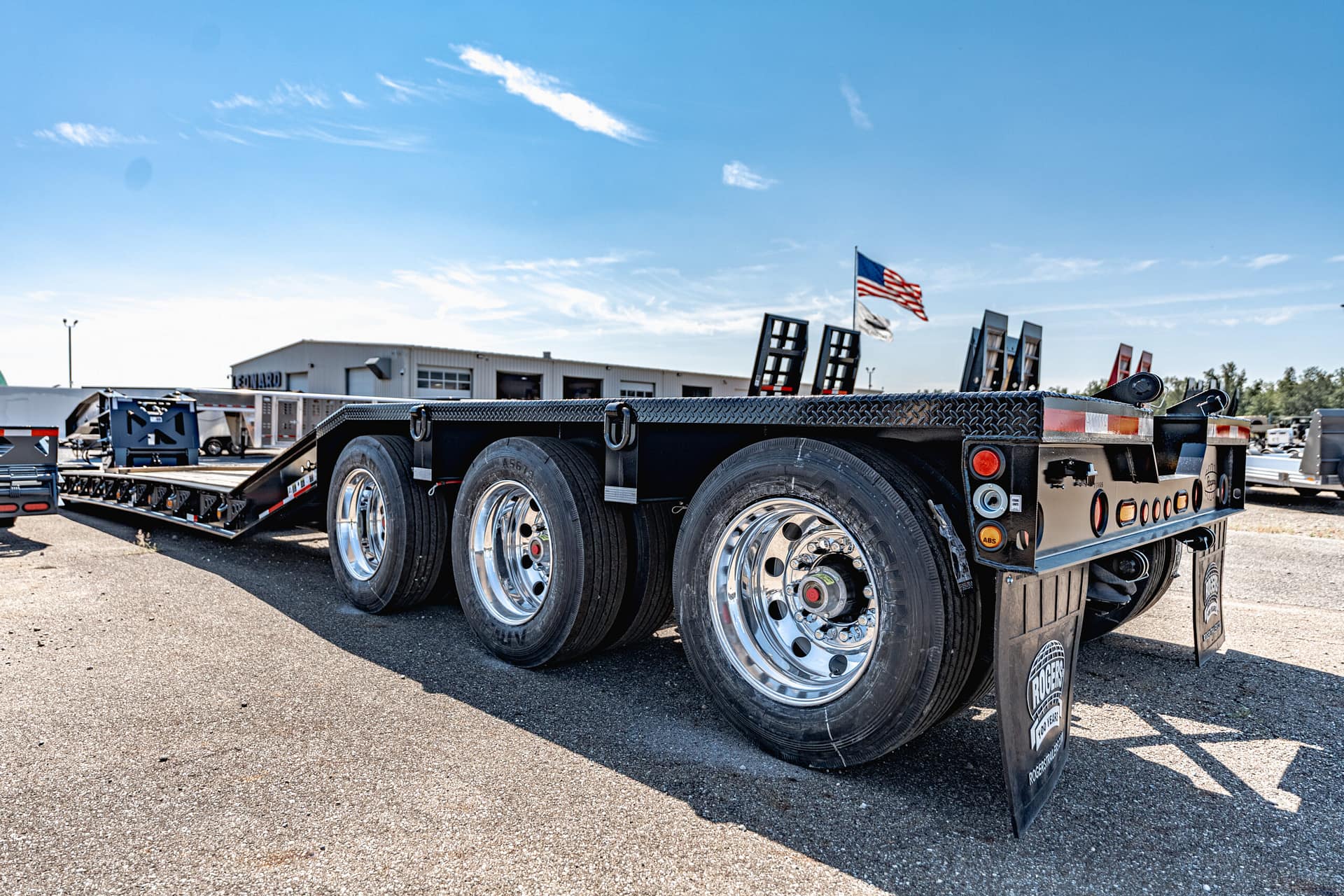

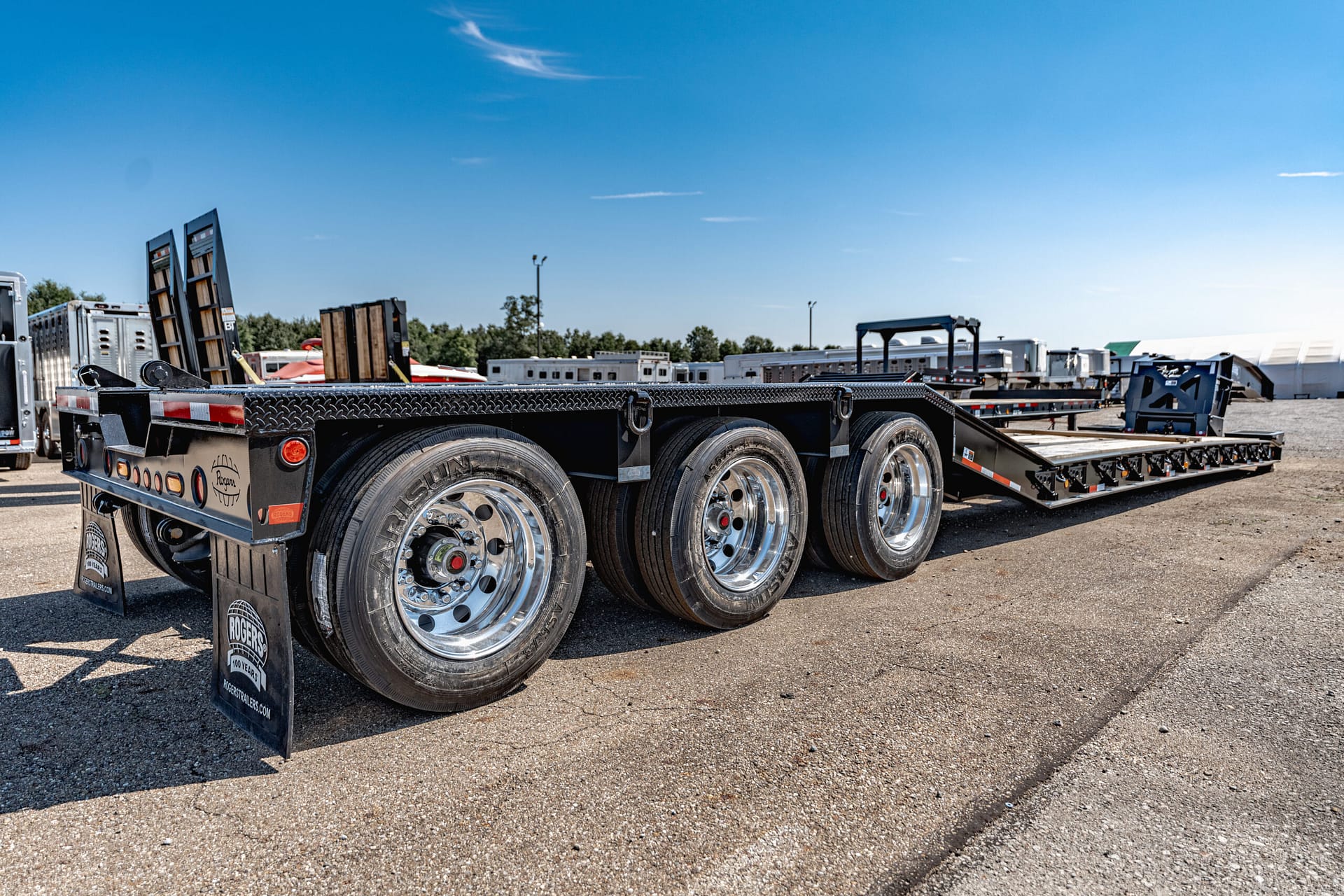

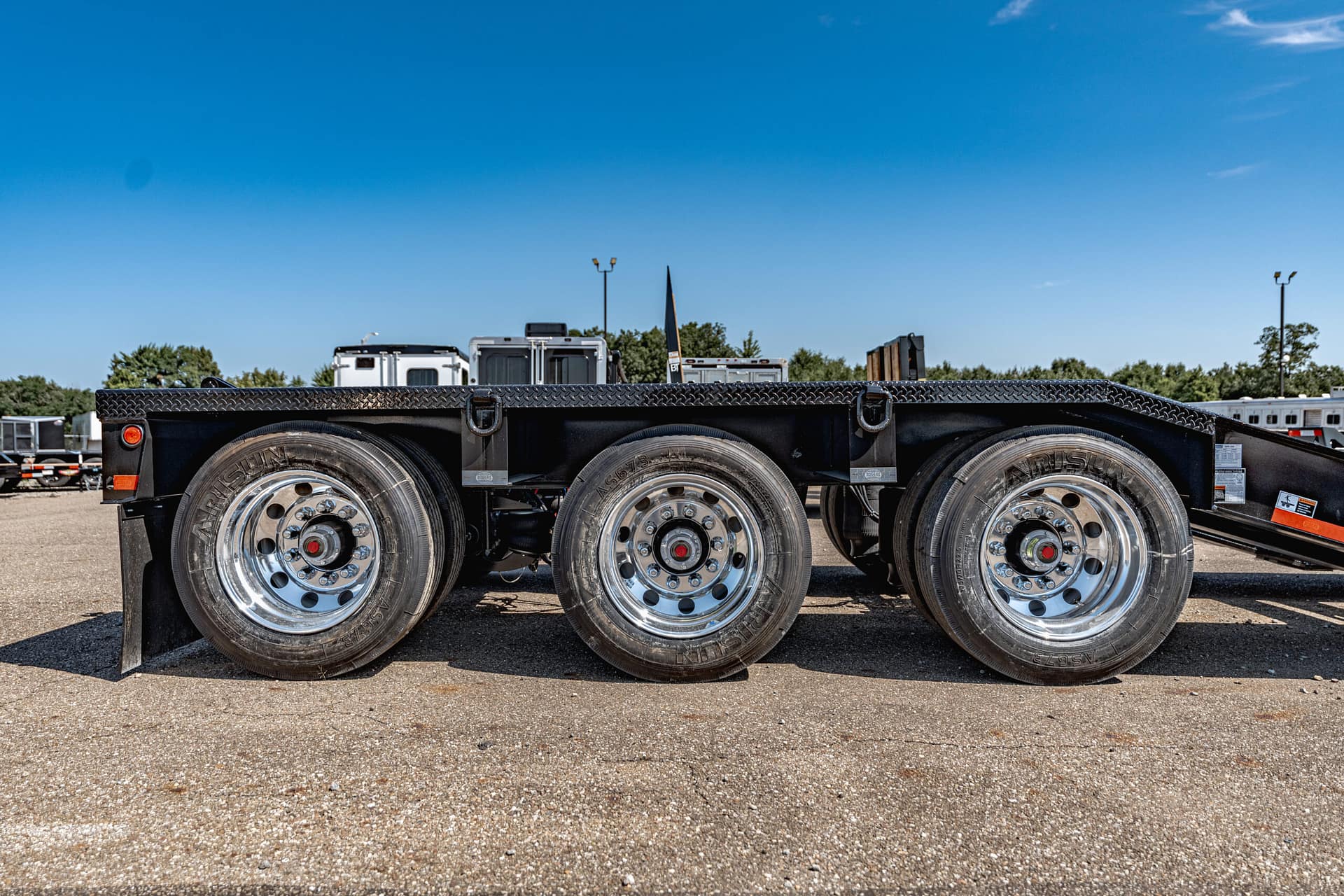

Axles, Tires, & Suspension

• Air ride suspension, 25,000 lb. capacity per axle, mechanical height control

• (3) 25,000 lb. axles; 10-stud hubs with oil-bathed bearings

• (6) 22.5 x 8.25 10-hole hub piloted steel disc wheels (inner)

• (6) 22.5 x 8.25 10-hole hub piloted aluminum disc wheels (outer)

• (12) 275/70R22.5 J18 tubeless radial tires

• 54 1/2″ axle spacings

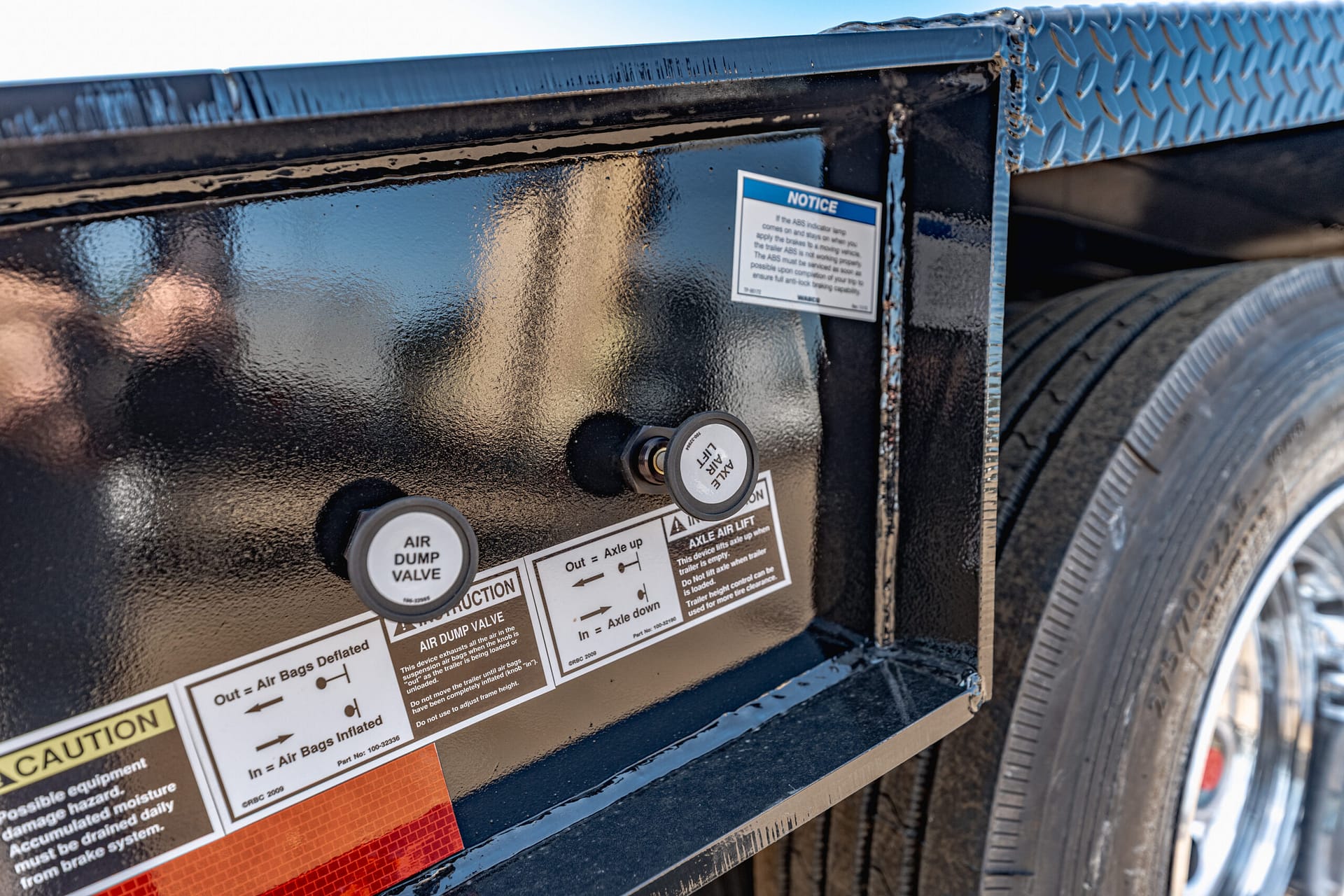

• Axle air lift with dual air bags on 3rd axle

• Air dump valve

Brake System

• Air brakes; 16 1/2″ x 7″ shoes

• Automatic slack adjusters

• ABS system (4S/2M)

• Spring brakes on (3) axles

• Cable pull remote air tank drains

Finish

• Rogers Black acrylic polyurethane enamel

We offer outstanding financing options, accept trades, and can arrange nationwide NO HASSLE delivery!

Inquire today for more information! (888) 333-6613

**We believe these specifications to be accurate. Any discrepancies are unintentional. Please verify information with a sales associate prior to purchase.**

Stock Number:44021
